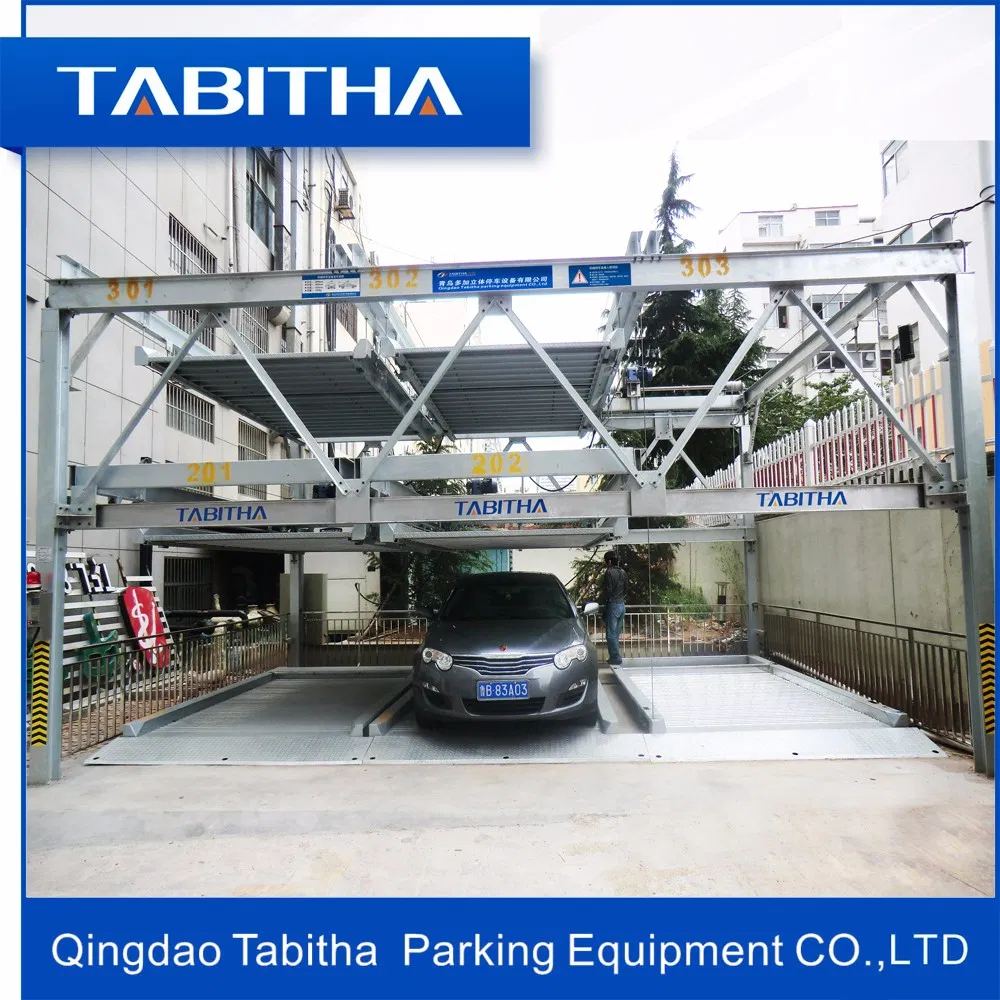

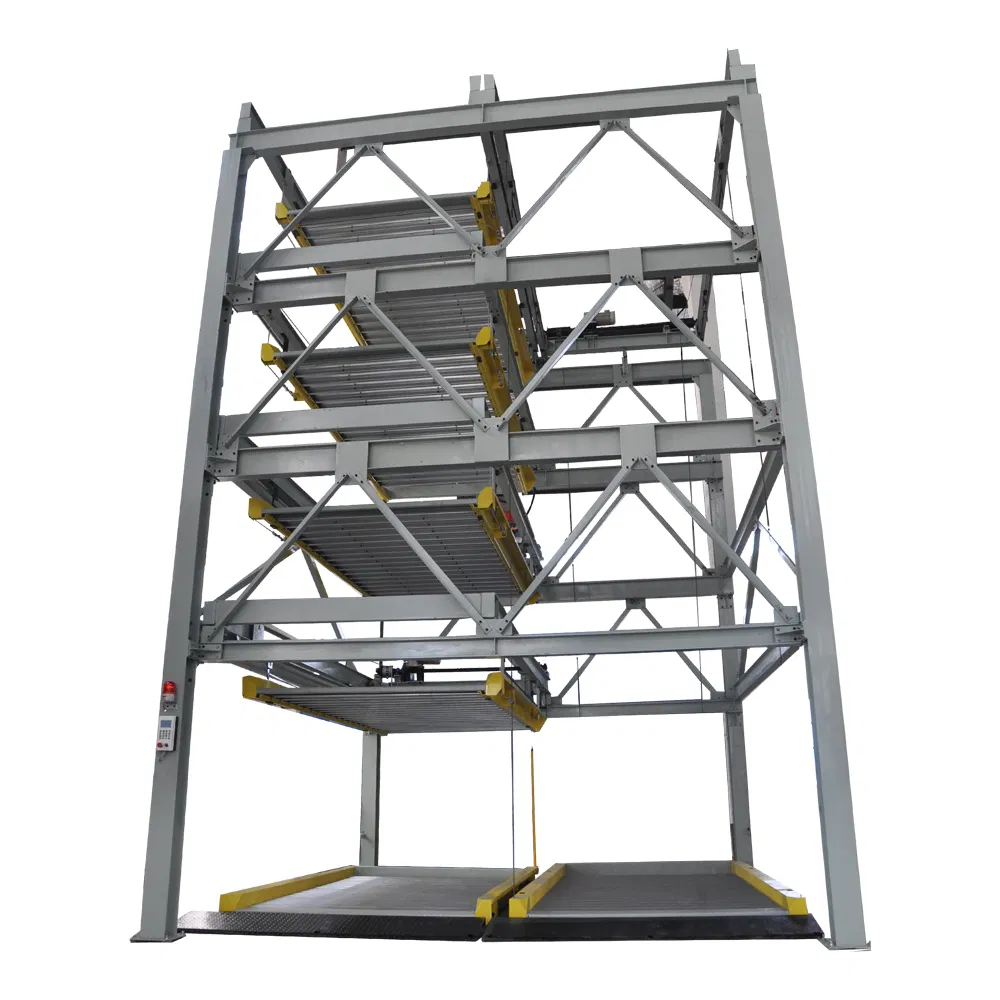

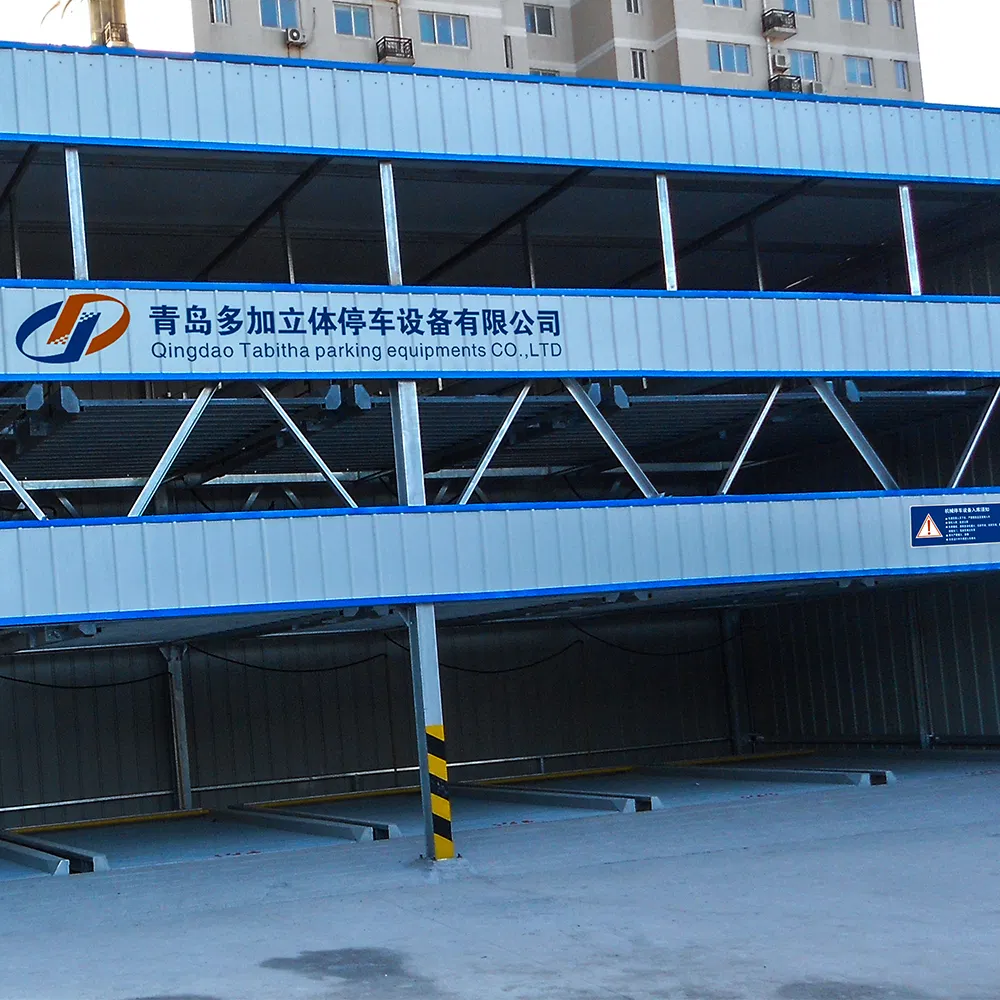

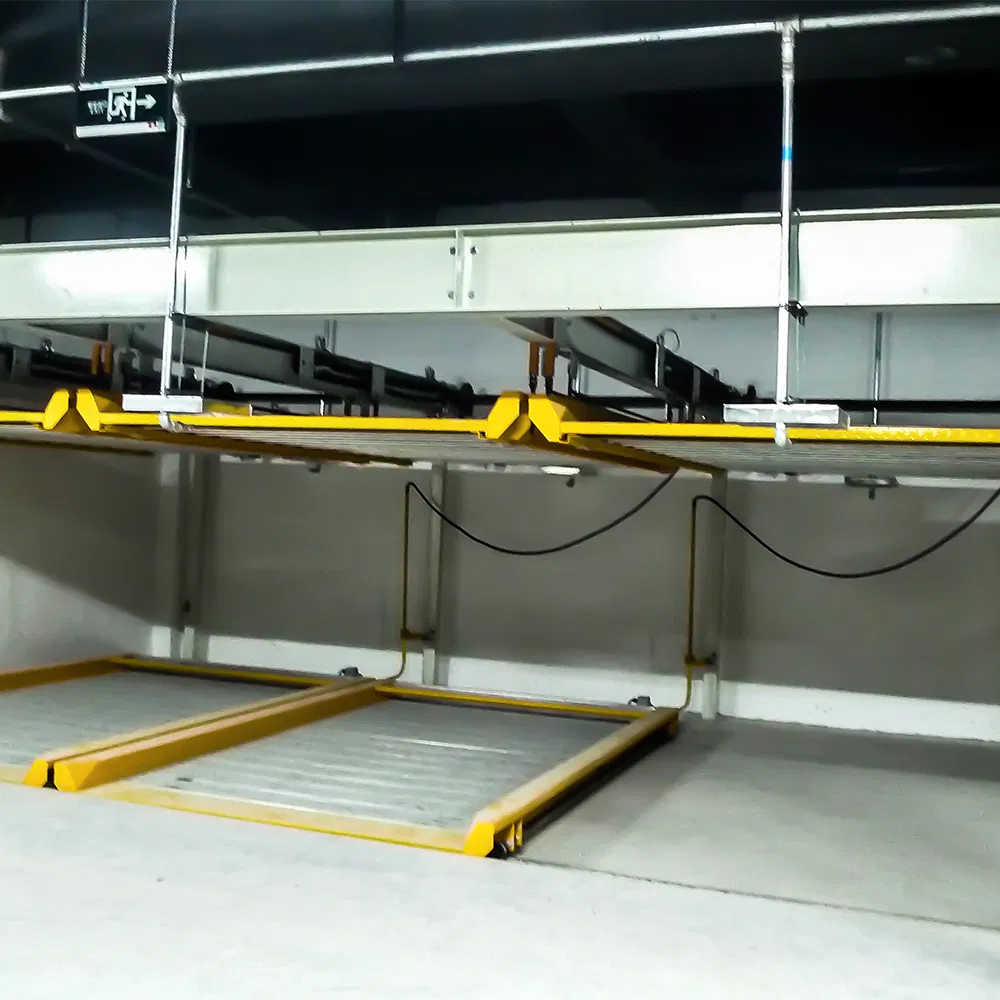

Two Floor Puzzle Parking System for 7 Cars CE Certificated Tabitha

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information

Model NO.PSH
CompatibilitySUV/Sedans
Control SystemPLC Control
InstallationIndoor/Outdoor
Lifting MechanismMechanical
Load Capacity2000kg
Operation ModeSemi-Automatic
Safety FeaturesAnti-Collision Sensors, Emergency Stop, Overload Protection
TypePuzzle Parking System
HS Code8428902000

Product Description

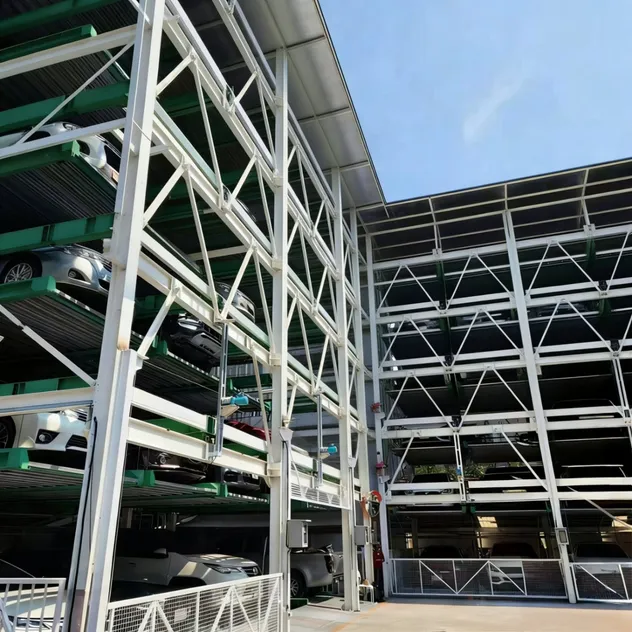

Puzzle Parking System 1

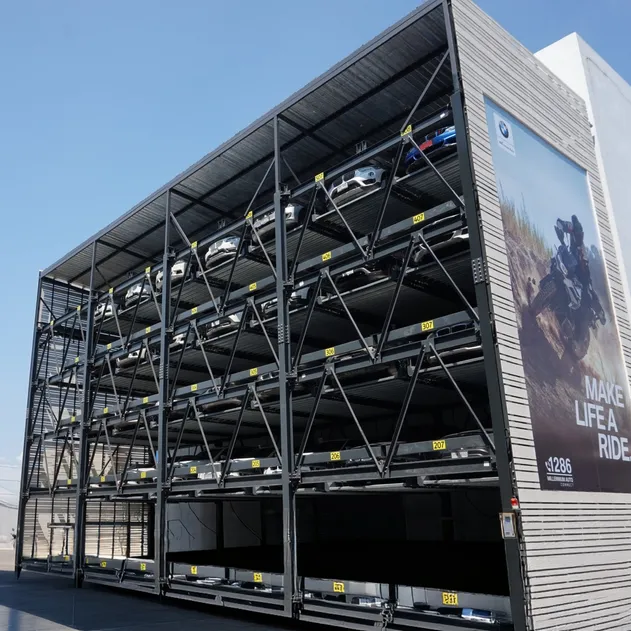

Puzzle Parking System 2

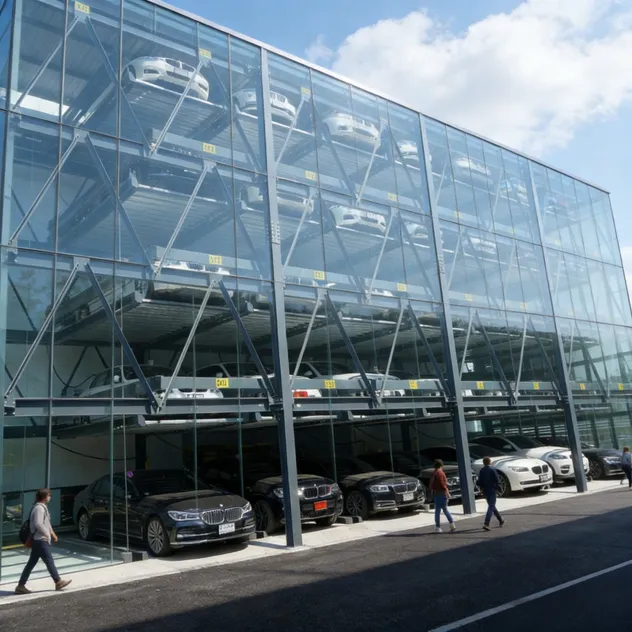

Puzzle Parking System 3

Working Principle

Utilize the lifting and sliding of the car loading plate to access vehicle. Each parking space contains a car plate to reach the ground floor by lifting, lowering and sliding movement so that the driver is able to enter the garage and get access to the car. The top and the underground floor is full parking for which only lifting movement is needed, the remaining floors are required to leave an empty shift for both sliding and lifting movement.

System Configurations

  • Production of 2 to 6 floors parking systems above ground.
  • Combined solutions with basement floors (from -1+2 to -3+6).
  • Traversing puzzle parking options available.
  • Multiple transmission modes: chain or steel wire.

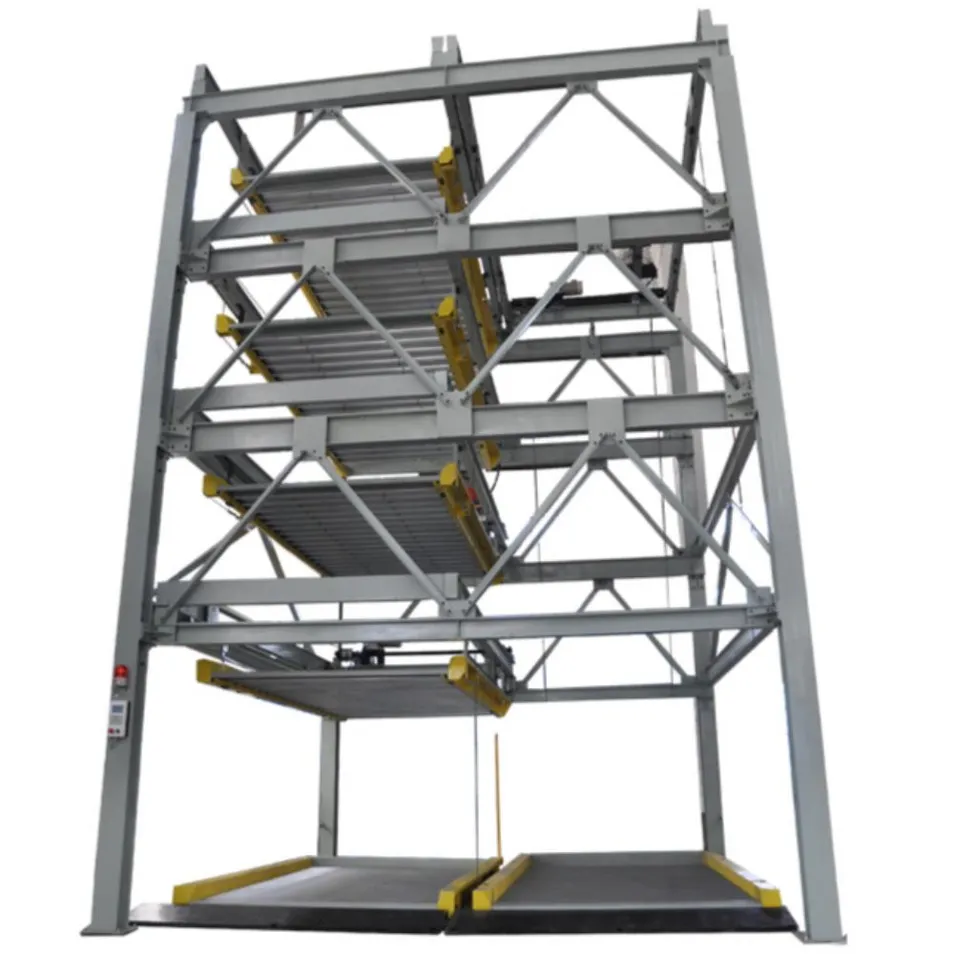

System Types

Core Features

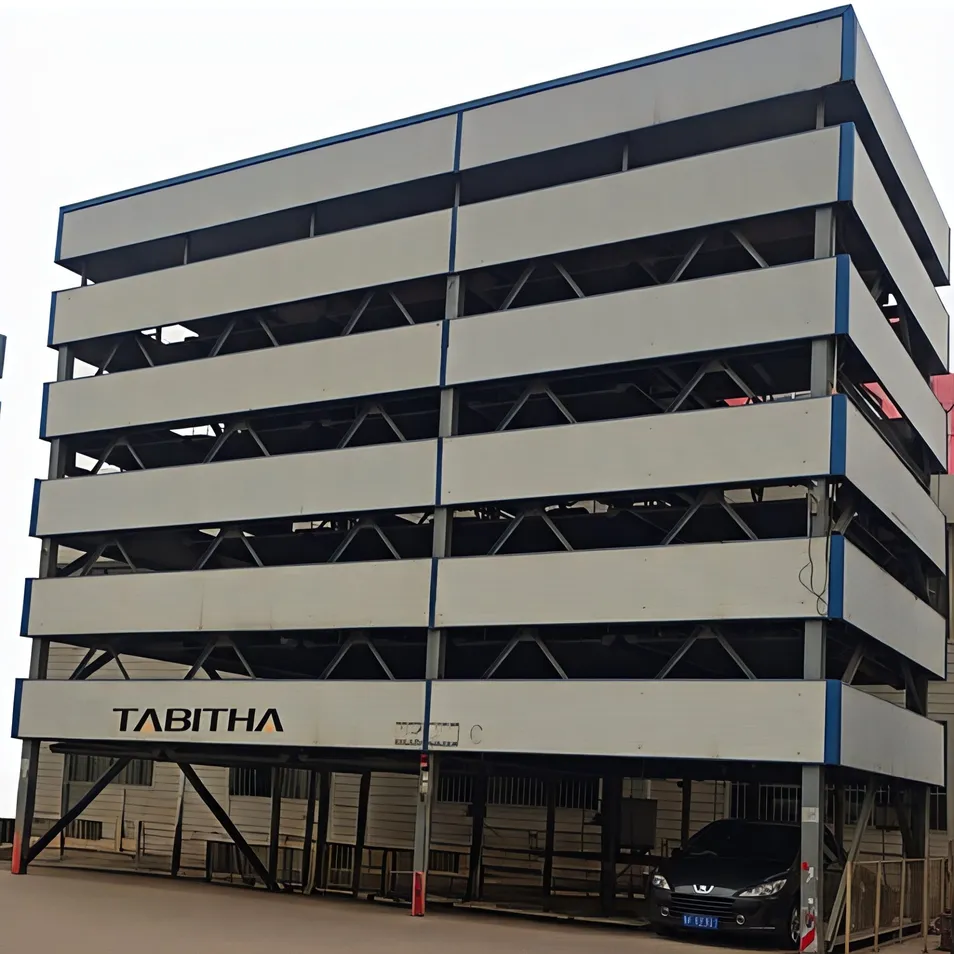

Features Display
1
Adaptable Layout: Flexible arrangements for underground or outdoor spaces.
2
Robust Structure: High-quality steel components with simple transmission.
3
Safety & Reliability: Smoothing operation with multiple security detection devices.
4
Eco-Friendly: Low noise operation and energy-saving design.
5
Easy Maintenance: Simplified installation and low lifecycle costs.

Specifications & Certifications

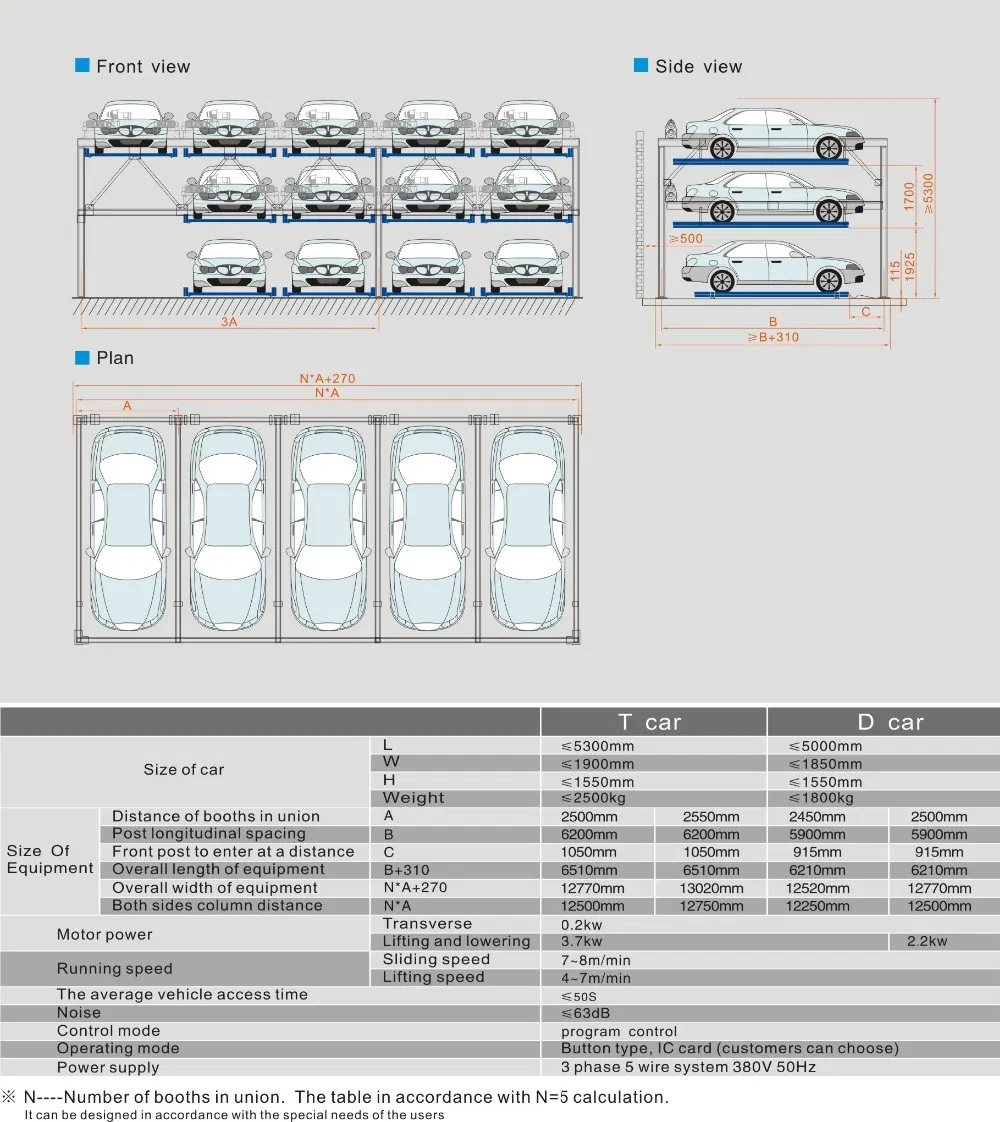

Technical Specifications
CE Certifications

During the production of each product, we strictly adhere to CE certification standards. From raw material selection to finished product inspection, every step is carefully controlled to ensure compliance with strict international quality and safety regulations. This ensures top-notch safety assurance and high-quality reliable performance for both household and industrial use.

Factory & Logistics

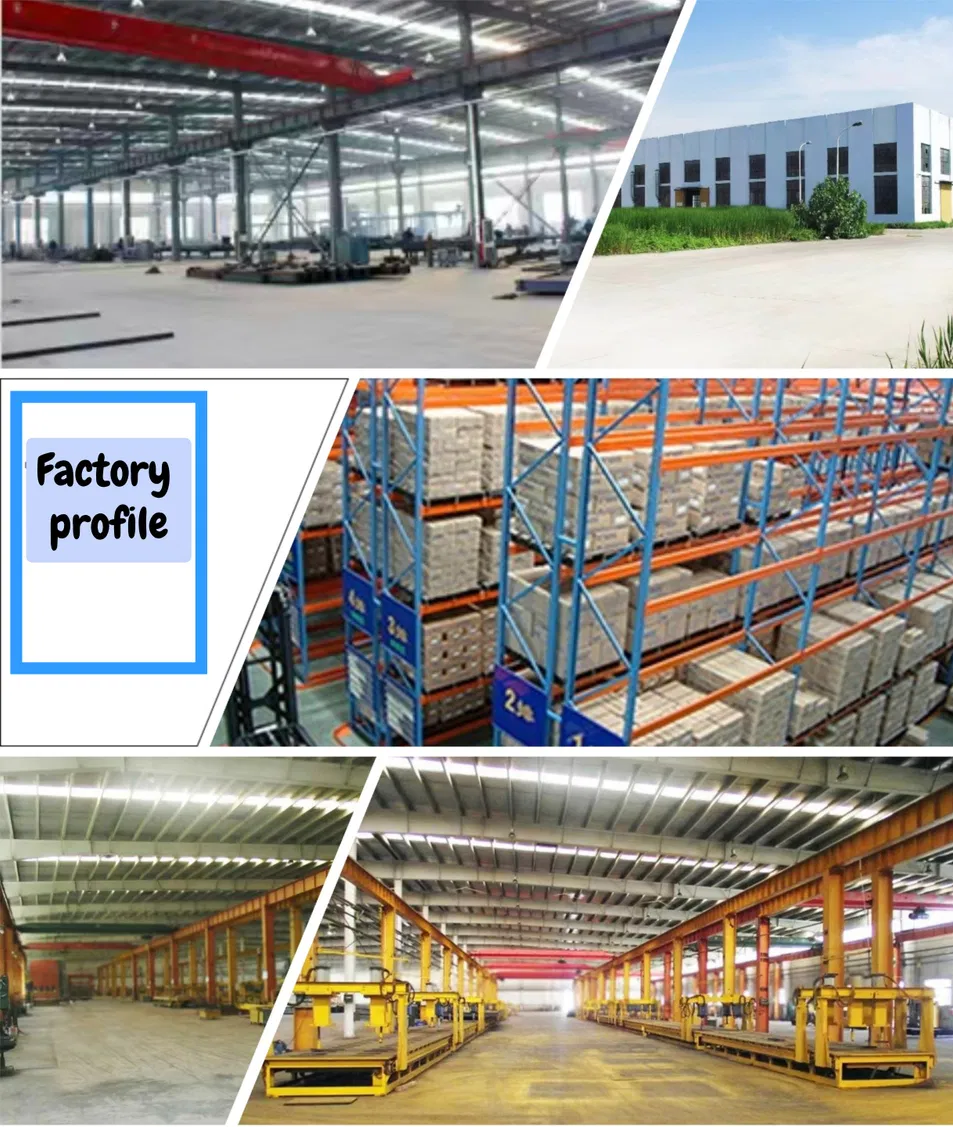

Factory Overview

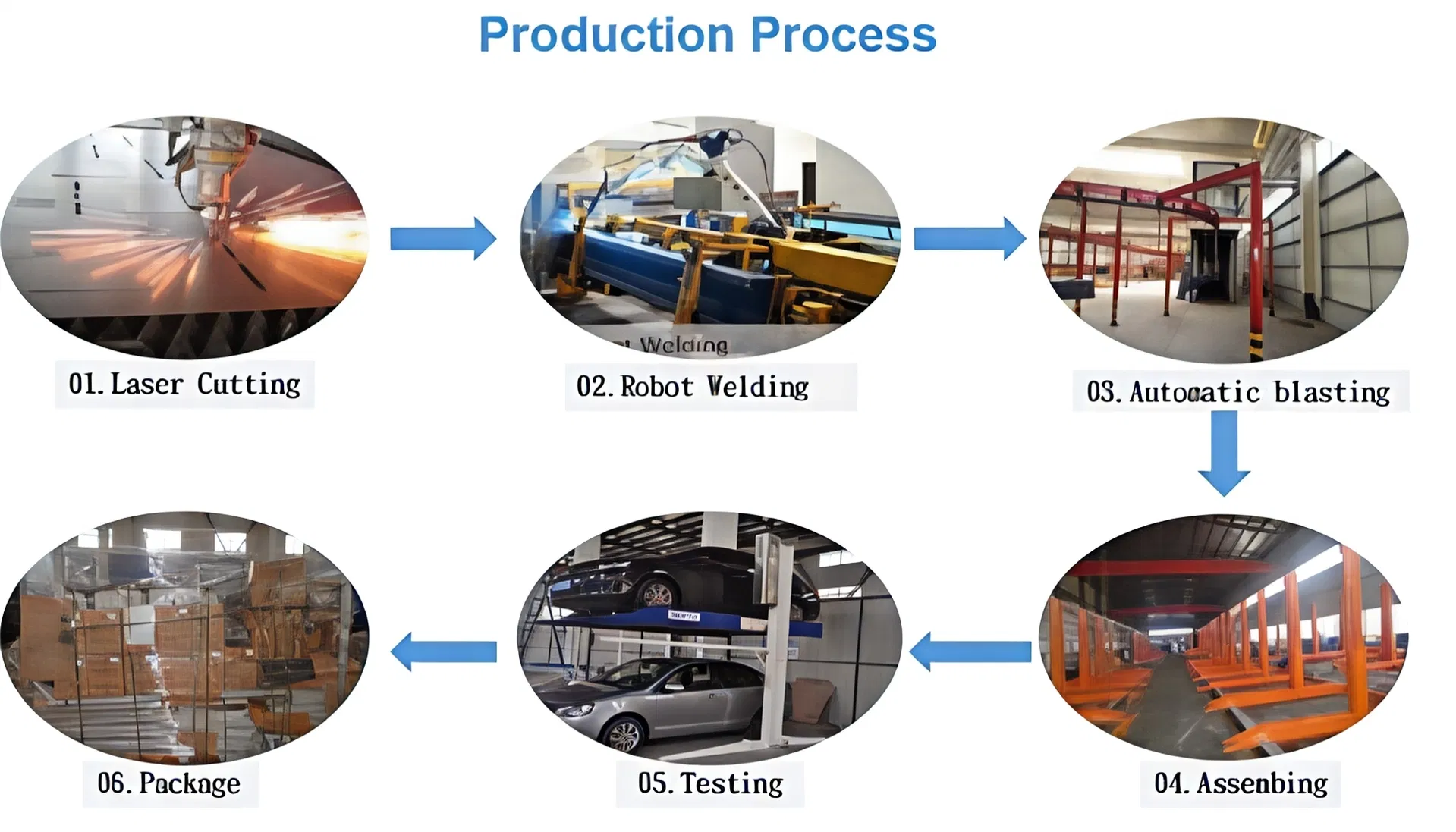

Production Line

Professional Packaging: We select high-strength packaging materials including tough corrugated cartons and thick foams. Each solution is customized to the product's contour, providing all-round protection for long-distance transportation. We use environmentally-friendly and biodegradable materials wherever possible.

Packaging Detail

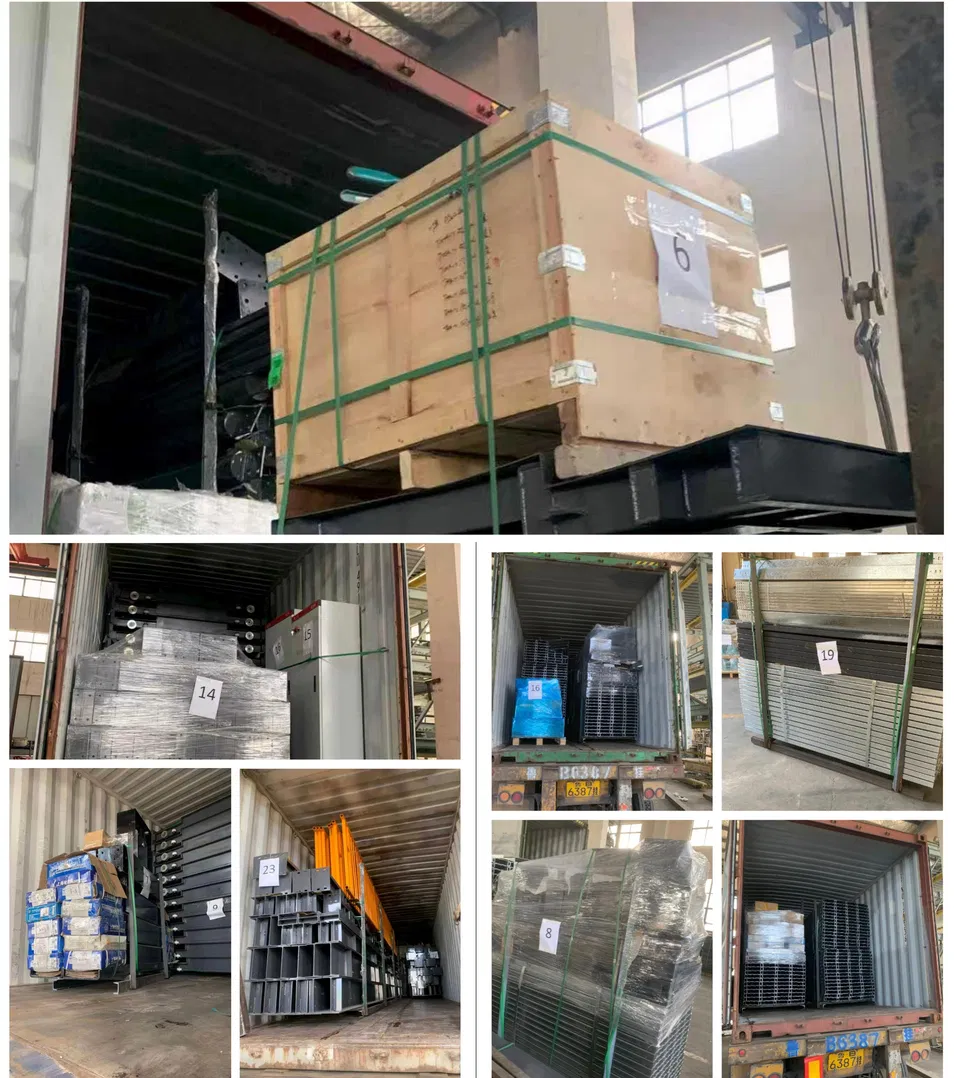

Logistics Shipment

International Cooperation

Project 1

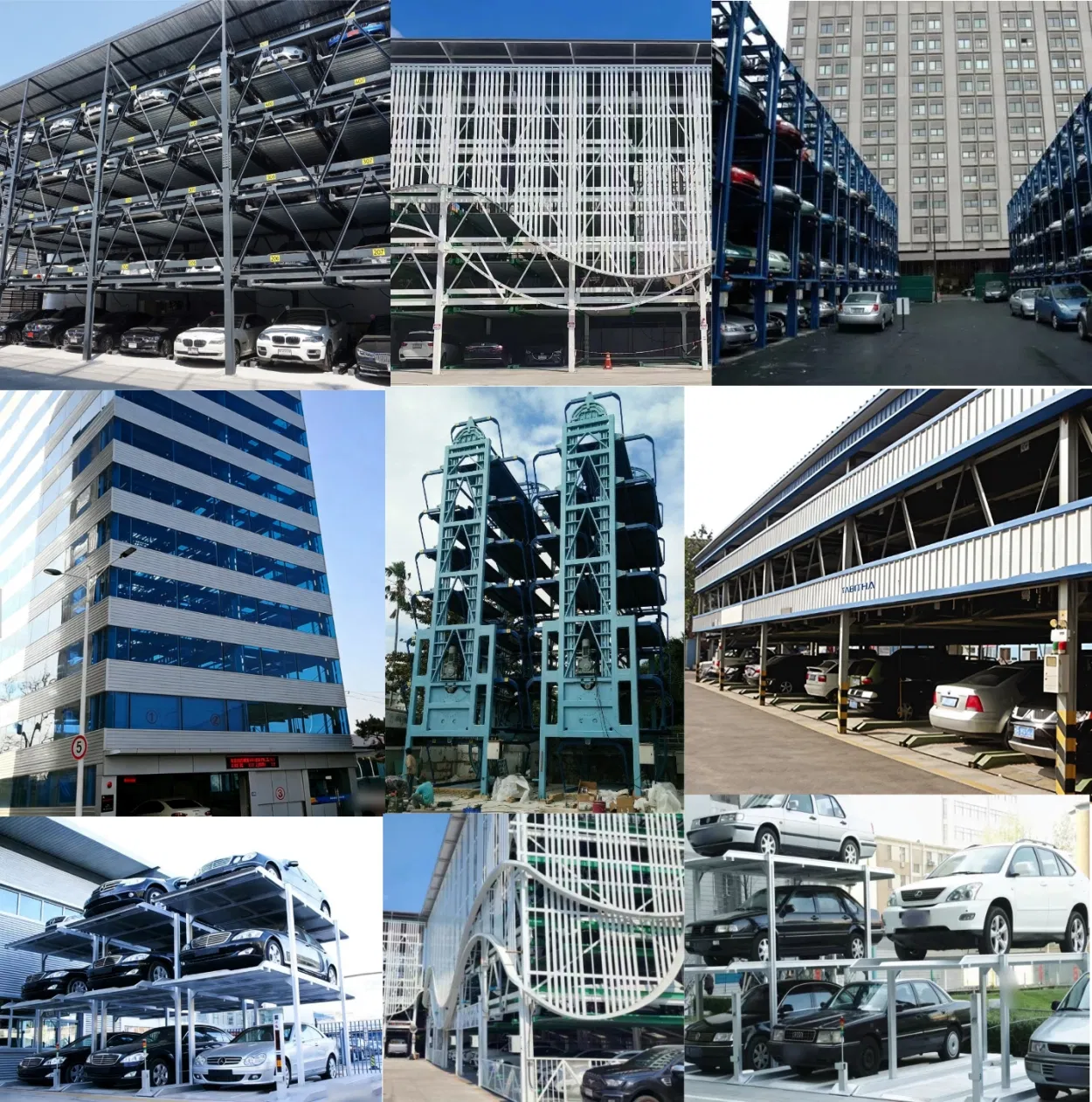

Project 2

We delve deep into understanding the needs and market characteristics of clients from different countries. By combining rich experience and professional technology with advanced management concepts, we jointly tackle technical challenges and optimize project processes. Our success in cross-border cooperation has earned us an international reputation for excellence.

Global Market

Frequently Asked Questions

What is the maximum load capacity for the PSH system?
The system has a standard load capacity of 2000kg, making it suitable for most SUVs and sedans.
Can the puzzle parking system be installed outdoors?
Yes, the system is adaptable for both indoor and outdoor installations. For outdoor use, anti-canopies and fences can be added for protection and aesthetics.
How many levels can the puzzle parking system support?
We can produce systems ranging from 2 to 6 floors above ground. It can also be combined with basement levels for higher density parking.
Is the system safe for daily use?
Absolutely. The system includes multiple safety features such as anti-collision sensors, emergency stop buttons, and overload protection, all meeting CE certification standards.
What kind of maintenance does it require?
The system features a simple mechanical steel structure and transmission mode, which allows for easy maintenance and a long service life with regular inspections.
Is the operation fully automatic?
It is semi-automatic. Users simply need to insert a card or push a button, and the PLC control system automatically handles the lifting and sliding movements to retrieve the vehicle.
