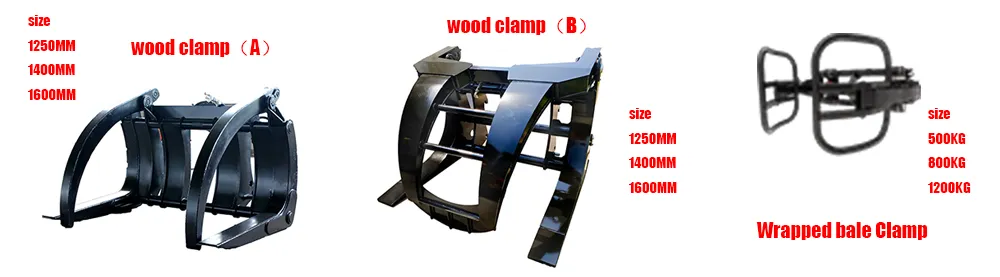

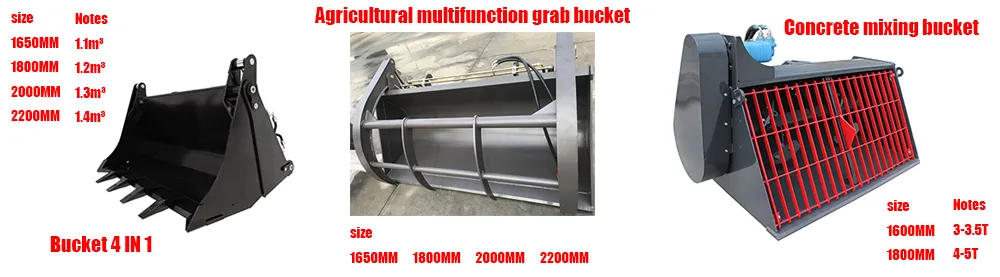

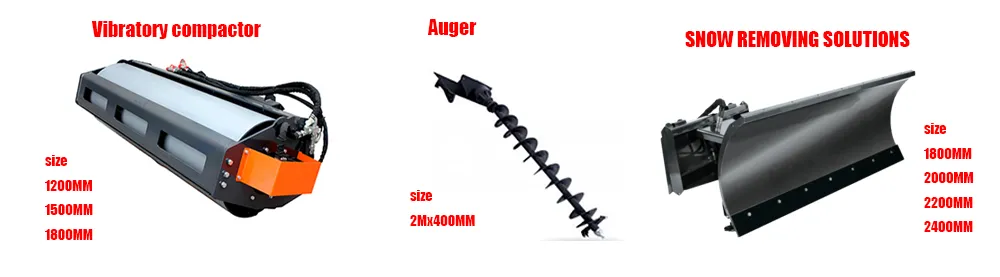

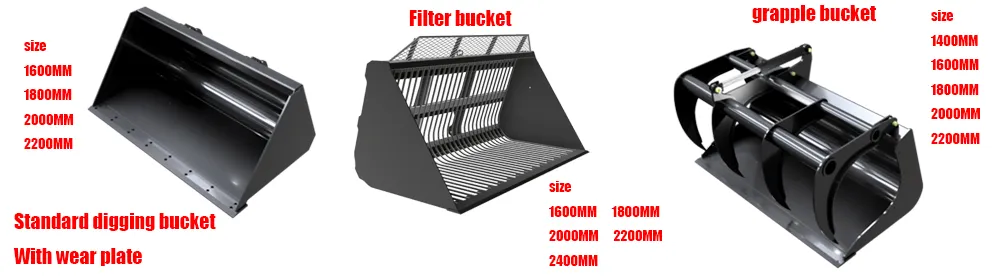

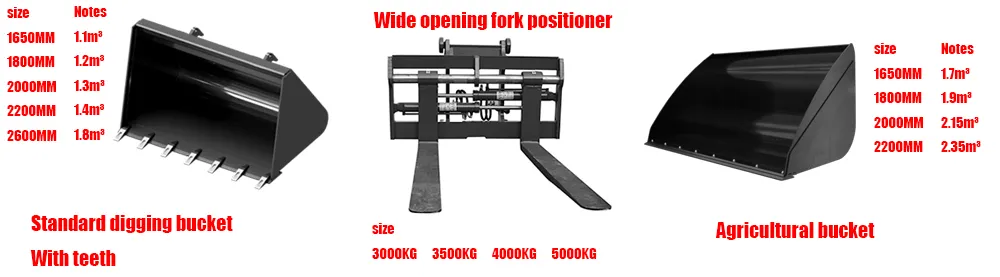

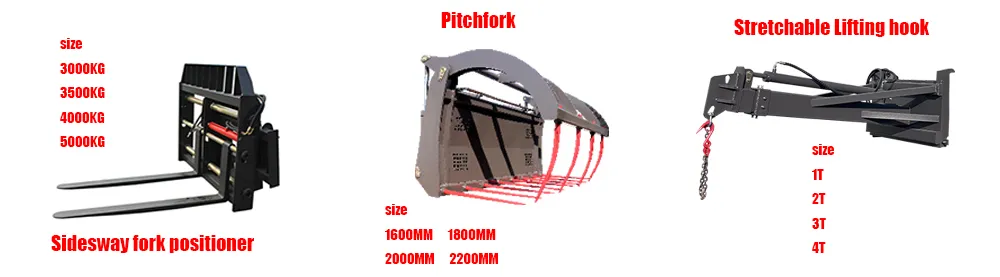

Impressively versatile, these telehandlers are the perfect helpers for stacking or loading material. With powerful all-rounders and a wide range of attachments, every job is done quickly. Adaptable to your exact needs for maximum versatility.

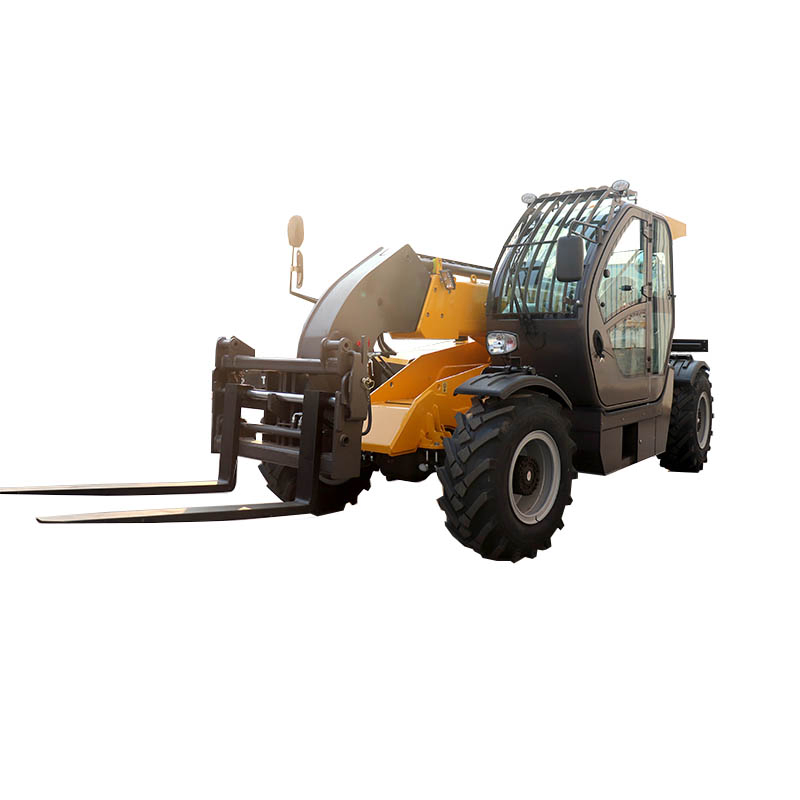

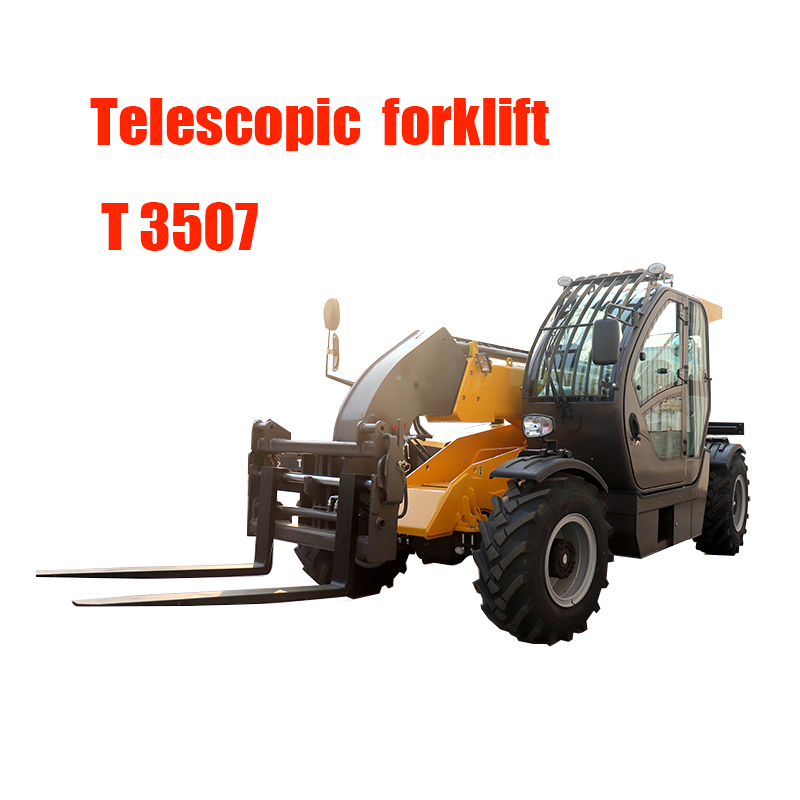

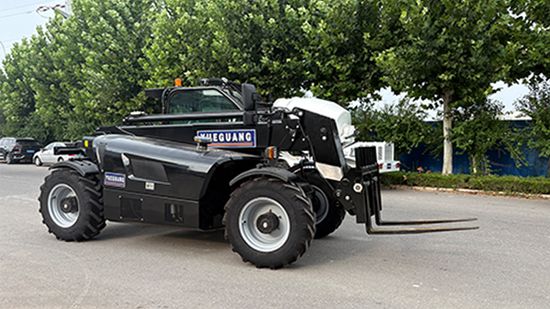

Telehandler Forklift T 3507A
Two-section telescopic boom, Yunnei YN38GBZ 76KW engine, hydraulic pilot operation, luxury cab with LED lights, 10-inch driving and reversing images, four-wheel drive, and multiple steering modes (front-wheel, four-wheel, and crab steering).

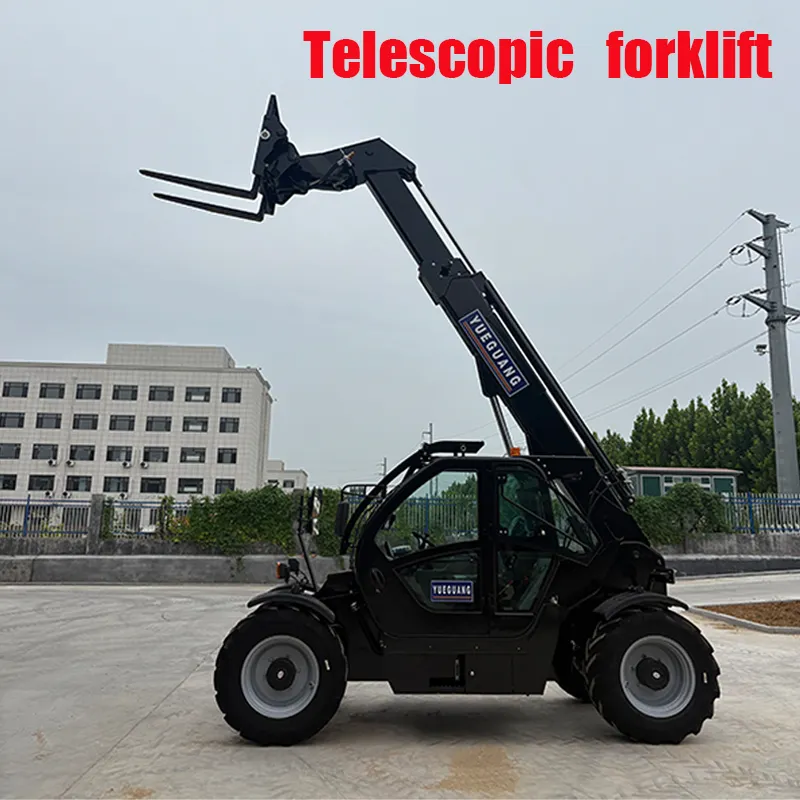

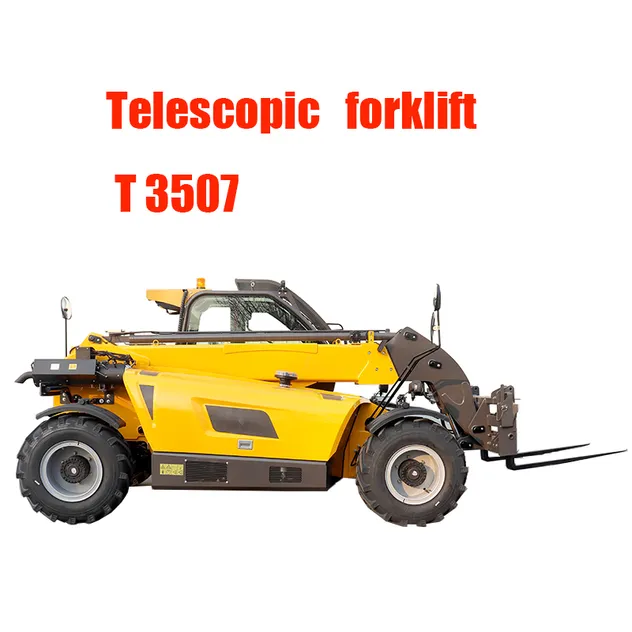

Right Elevation

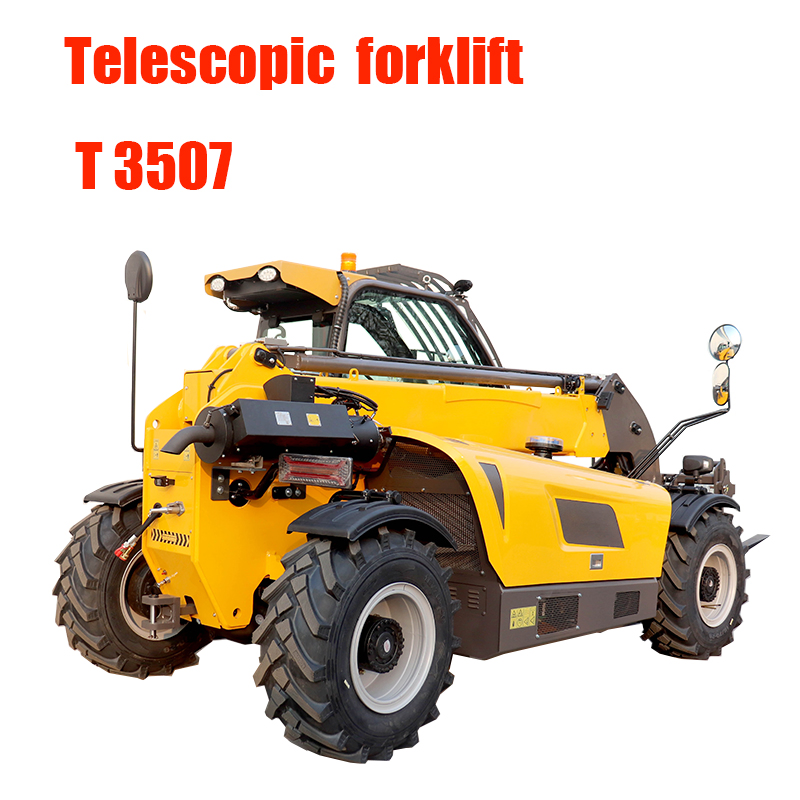

Left Elevation

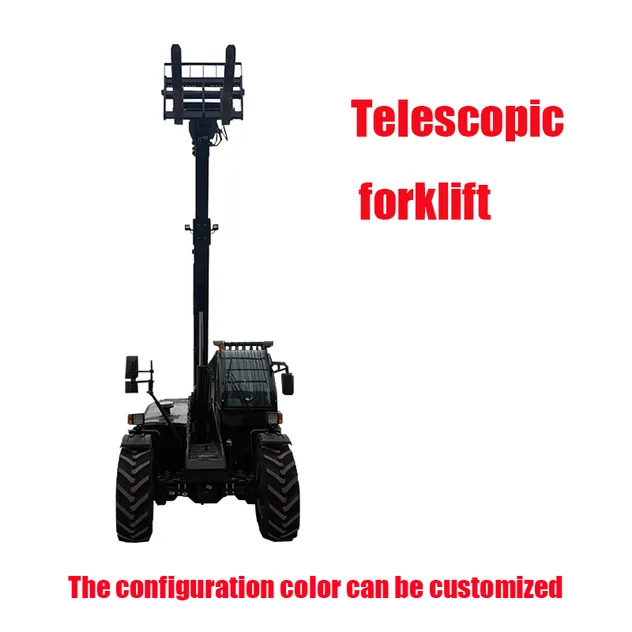

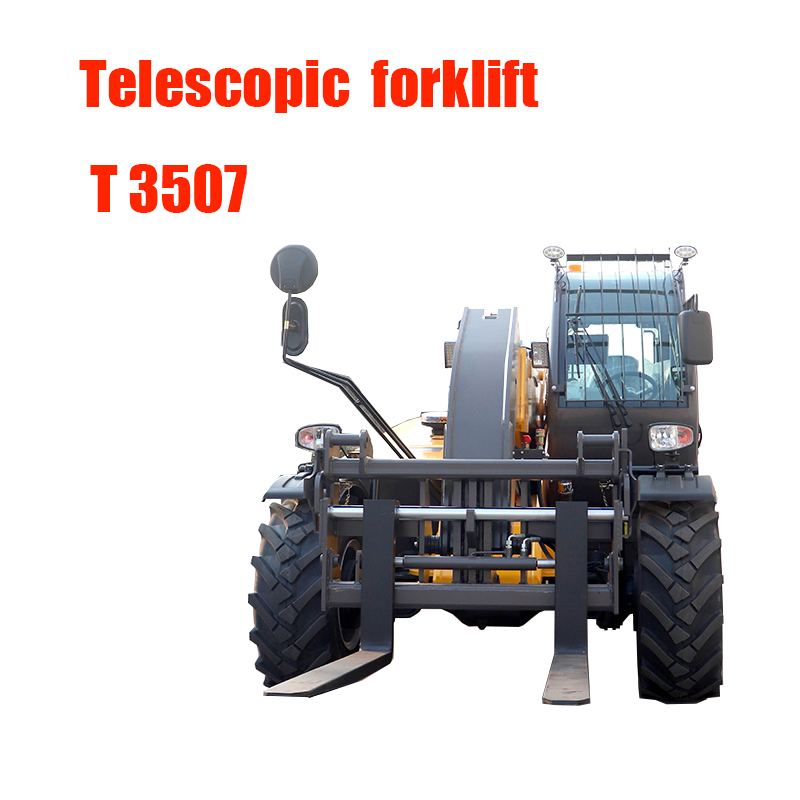

Front Elevation| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Engine brand | Yuchai | Max. torque | 400 Nm @ 1400 rpm |
| Engine norm | National II | Draw bar pull | 10000 daN |
| Max. fuel sulphur | 5000 ppm | Transmission type | Torque converter |
| Engine model | YCD4M22T-105 | Gears (F/R) | 2 / 2 |
| Cylinders | 4 - 4400 cm³ | Max. travel speed | 35 km/h |
| Engine power | 103 Hp / 77.3 kW | Parking brake | Automatic air-cut brake |
With up to 9-functions on the joystick, you have the most important machine functions at your fingertips for total control.
Illuminated operating elements allow the driver to find required functions quickly, even in the dark.
Simple and intuitive design displaying all important vehicle data. Brightness can be adjusted individually.
Equipped with Bluetooth connectivity and front/rear view cameras for improved visibility and operator comfort.
Shovel ModeAutomatic retraction for maximum payload stability.
Batch ModeVertical movement for simplified high-height stacking.
Manual ModeFull manual control with active overload protection.
