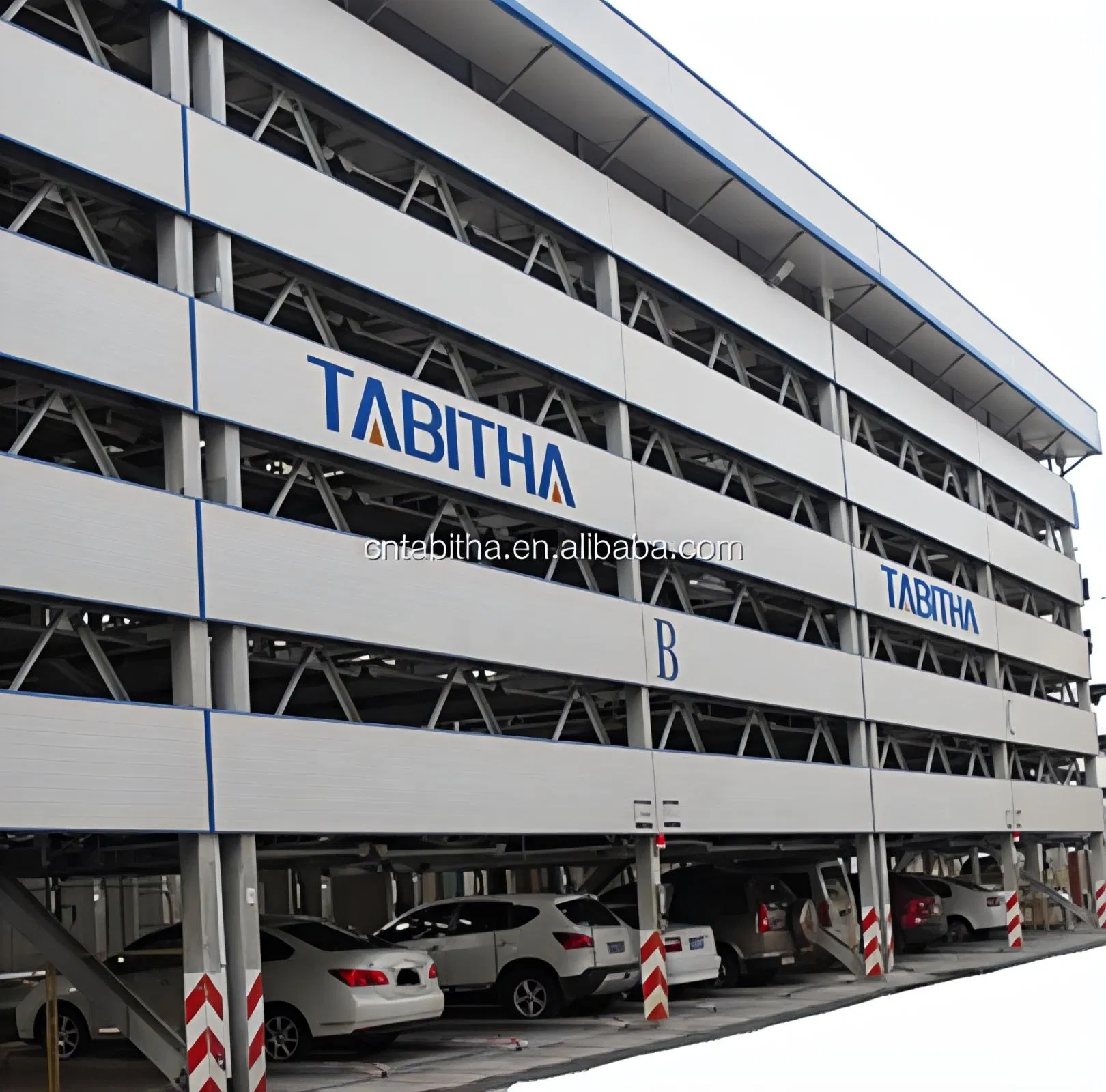

Tabitha Four Floor Puzzle Parking System for 29 Cars CE Certificated

1 / 5

Tabitha Four Floor Puzzle Parking System for 29 Cars CE Certificated

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model:

PSH

Compatibility:

SUV/Sedans

Control System:

PLC Control

Installation:

Outdoor

Lifting Mechanism:

Mechanical

Load Capacity:

2500kg

Operation Mode:

Fully Automatic

Safety Features:

Anti-Collision Sensors, Emergency Stop

Type:

Puzzle Parking System

Capacity:

1000 PCS/Year

Product Description

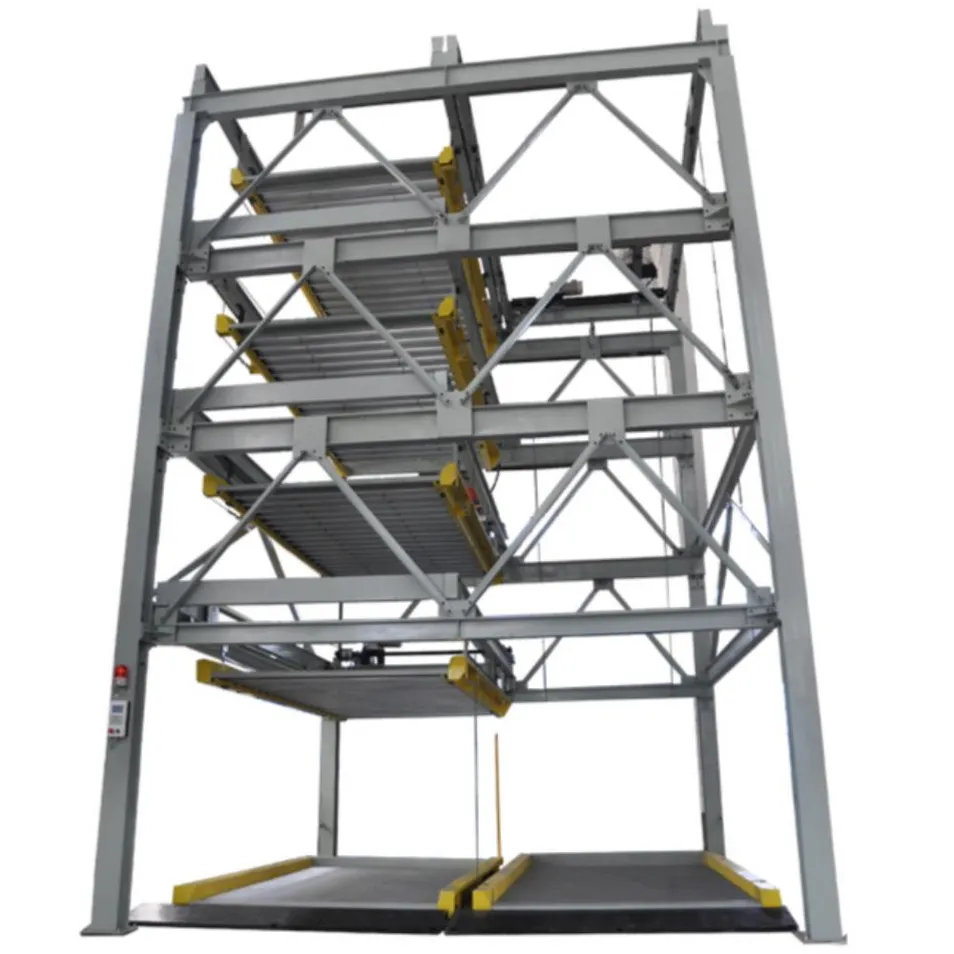

Working Principle

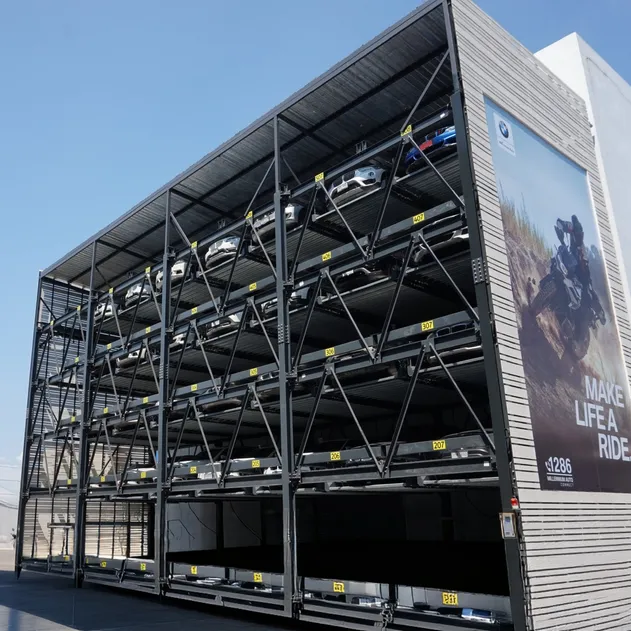

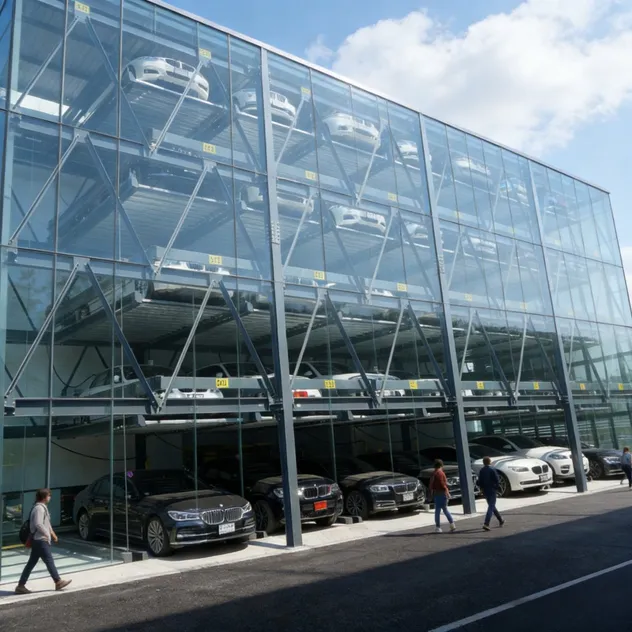

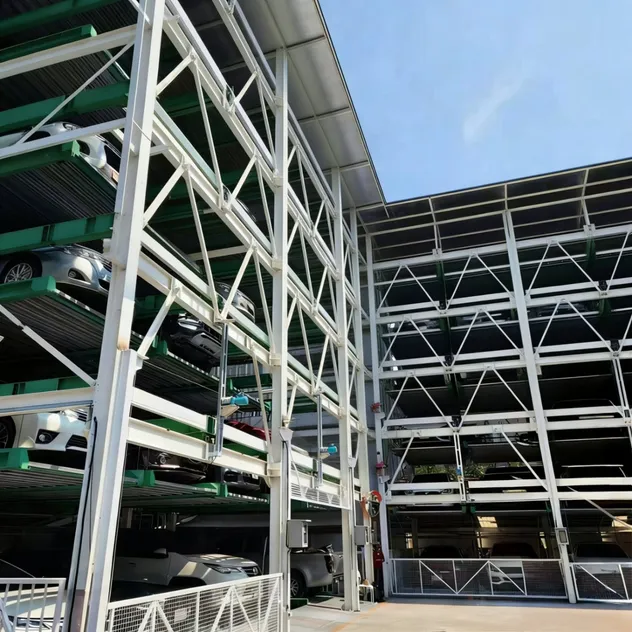

Utilize the lifting and sliding of the car loading plate to access vehicle. Each parking space contains a car plate to reach the ground floor by lifting, lowering and sliding movement so that the driver is able to enter the garage and get access to the car. The top and the underground floor is full parking for which only lifting movement is needed, the remaining floors are required to leave an empty shift for both sliding and lifting movement. The process is fully automated via card insertion or button operation.

Available Types:

✓ 2 to 6 floors above ground
✓ Combined basement floors (-1+2 to -3+6)
✓ Traversing puzzle parking systems
✓ Chain or steel wire transmission modes

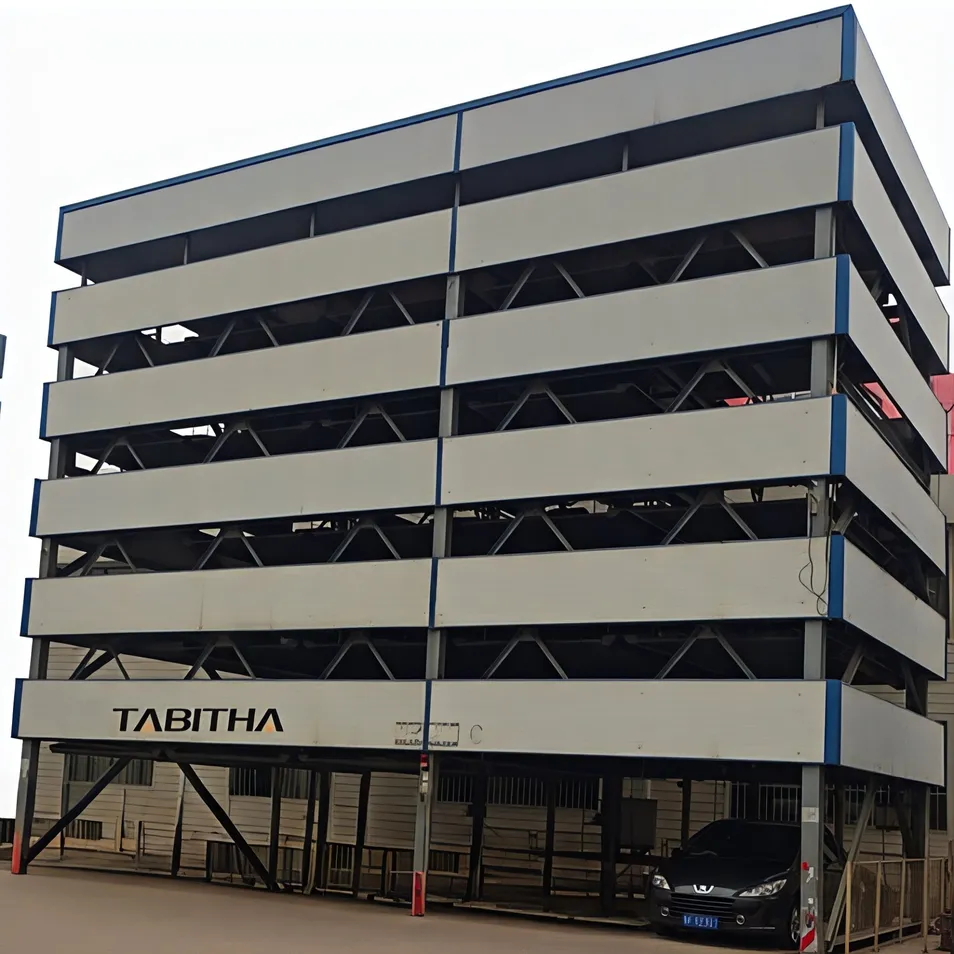

Key Features

★ Adaptable, flexible layout for various terrains

★ Simple steel structure and transmission

★ Smooth, safe, and reliable operation

★ Energy-saving with low noise levels

★ Low maintenance and easy installation

★ Multiple security detection devices

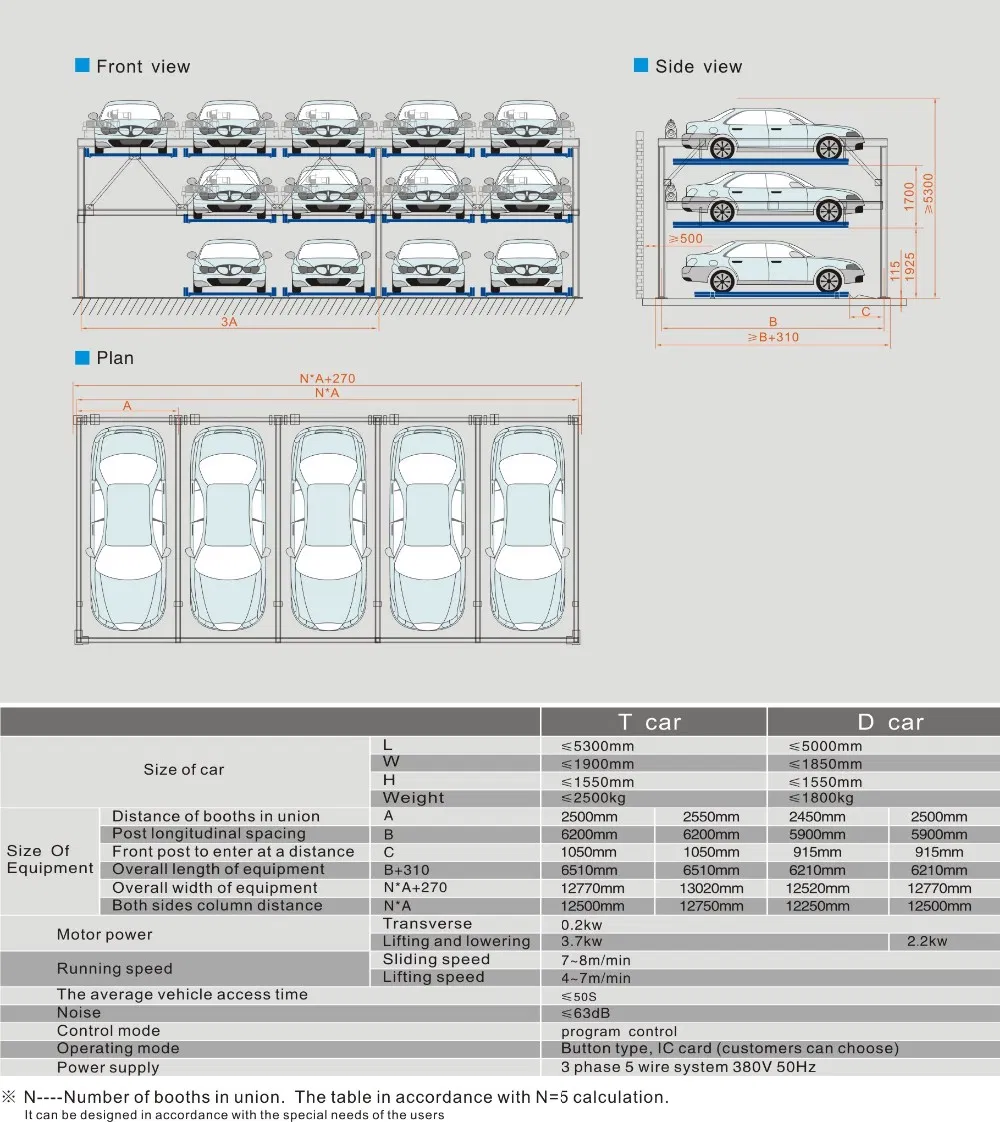

Technical Specification

Quality Certifications

Production adheres strictly to CE certification standards. From raw material selection to finished inspection, every step is controlled for international quality and safety compliance. Enjoy top-notch safety assurance, reliable performance, and internationally recognized quality marks.

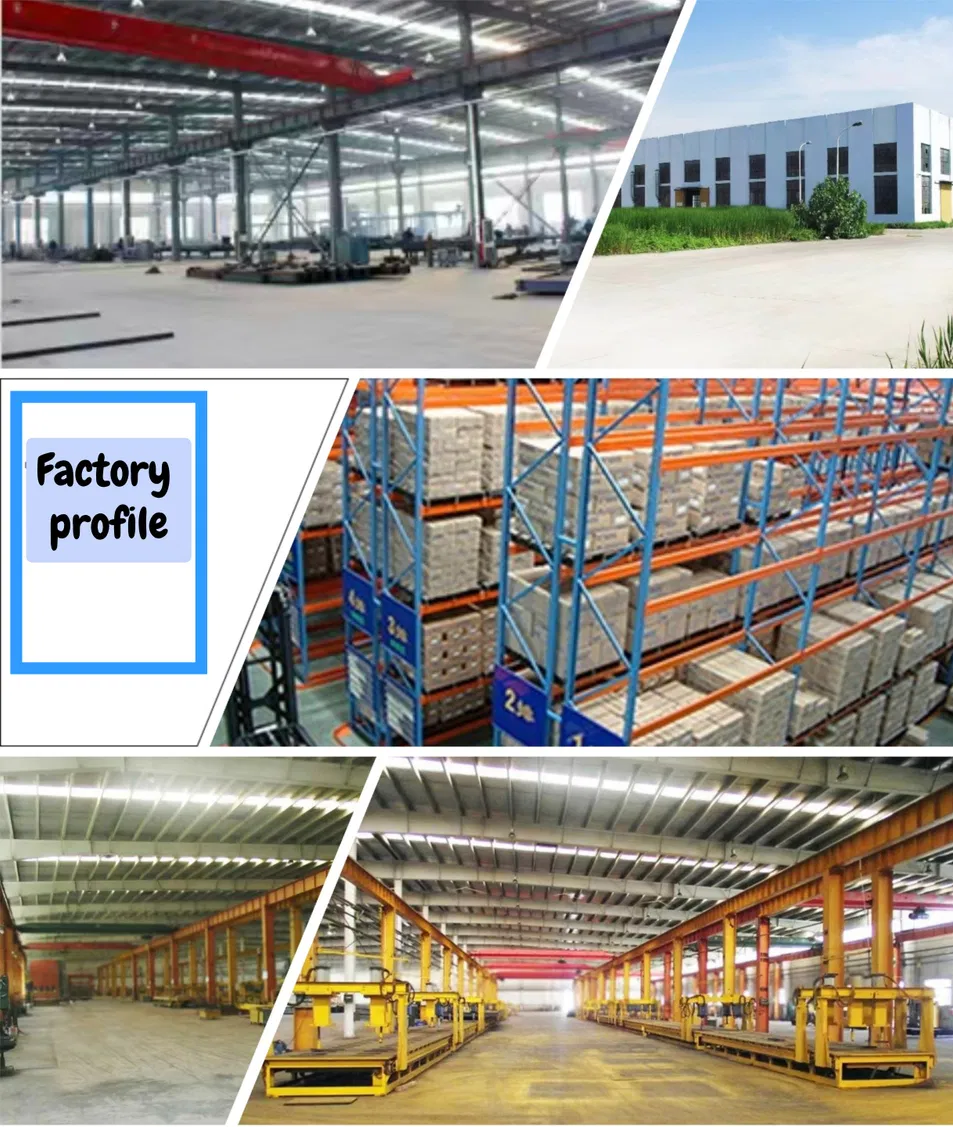

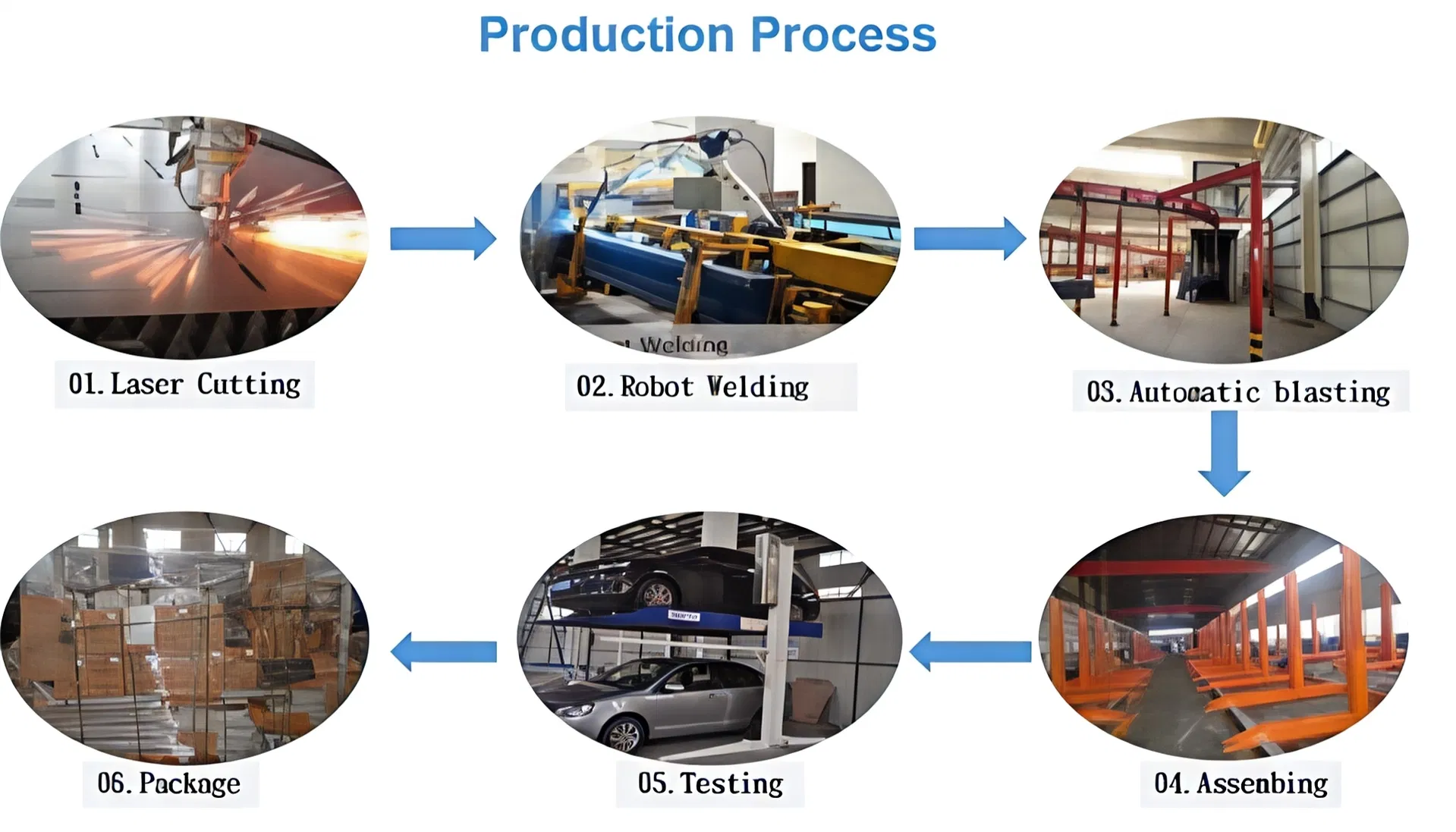

Manufacturing & Logistics

● Modern equipment with efficient production cycles.
● Zero-tolerance quality inspection protocols.

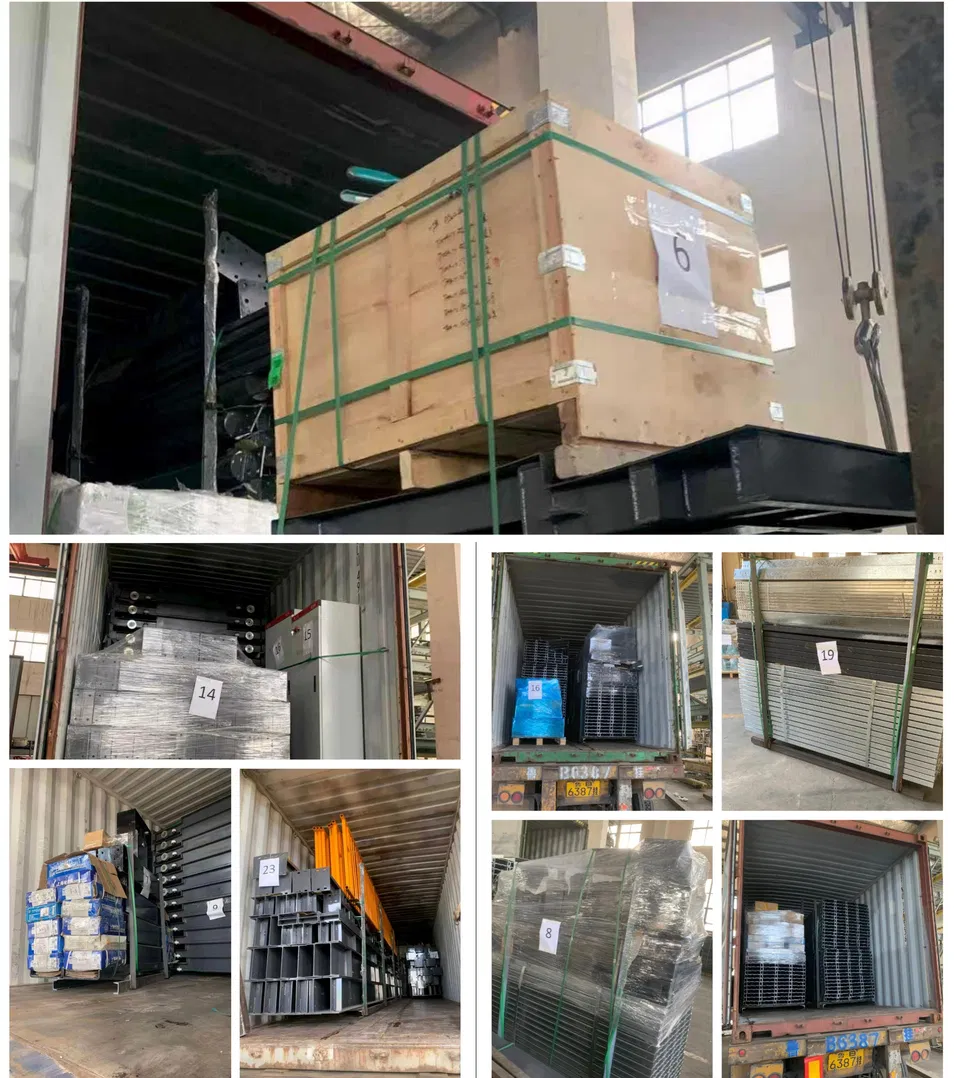

● High-strength packaging: Corrugated cartons and thick foam protection.
● Environmentally-friendly and biodegradable logistics materials.

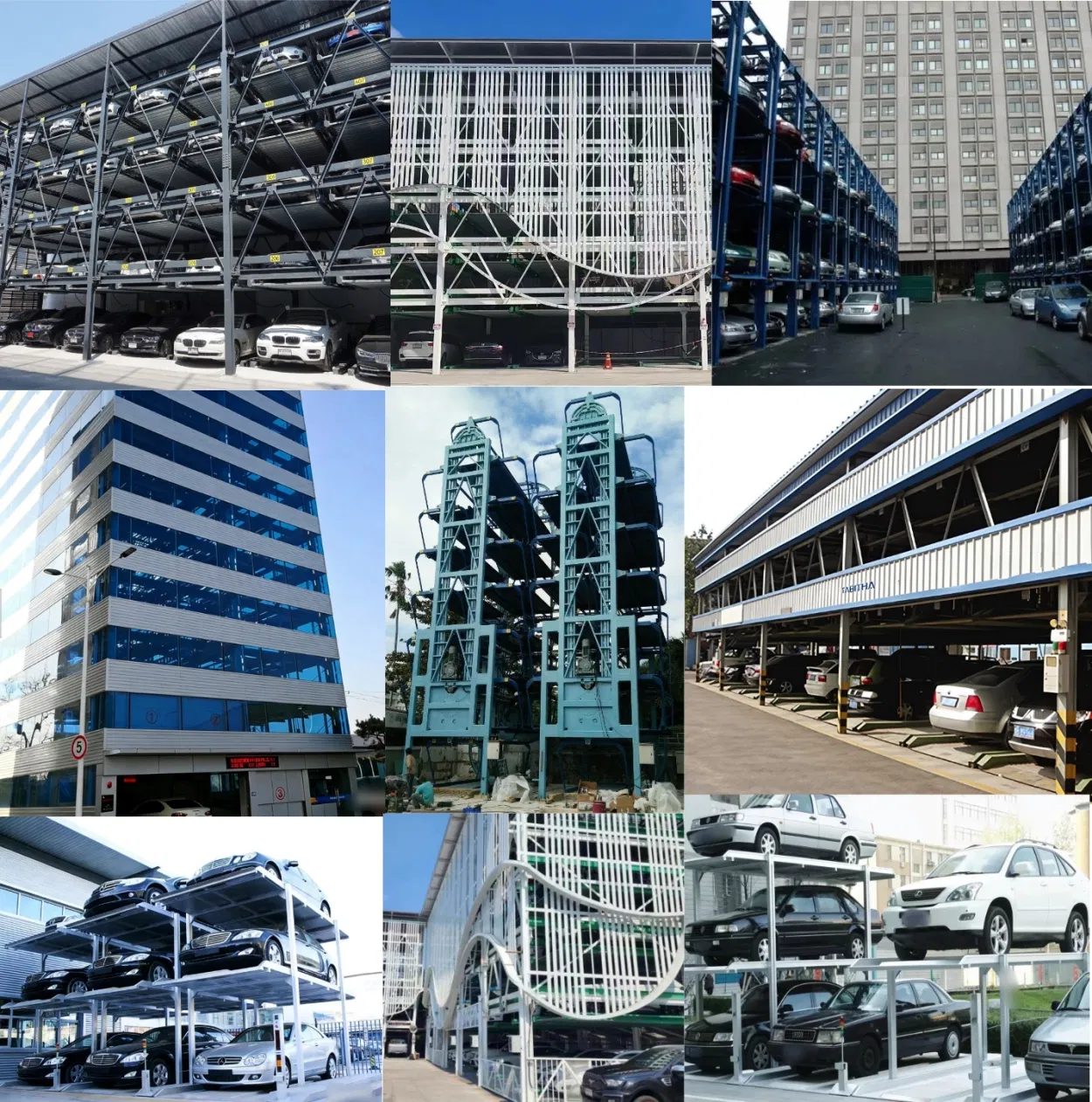

Global Cooperation

We delve deep into understanding market characteristics of clients from different countries. Through close communication and professional technology, we tackle technical problems and optimize project processes, creating significant value for cross-border cooperation.

Frequently Asked Questions

Q1: What is a Puzzle Parking System?

It is a fully automated system that uses lifting and sliding motions of metal plates to stack and move vehicles, maximizing parking space efficiency.

Q2: How many floors can be configured?

The standard configuration supports 2 to 6 floors above ground, but it can also be combined with basement levels for higher density.

Q3: What is the maximum vehicle weight the system can handle?

The PSH model is designed with a robust load capacity of up to 2500kg, making it suitable for both Sedans and most SUVs.

Q4: Can this system be installed outdoors?

Yes, the system is designed for outdoor installation and can be equipped with anti-canopies and peripheral fences to protect vehicles from weather.

Q5: How safe is the automatic operation?

Safety is a priority. The system includes anti-collision sensors, emergency stop buttons, and multiple security detection devices to ensure safe vehicle retrieval.

Q6: What control system does the equipment use?

It utilizes a high-performance PLC (Programmable Logic Controller) system to manage the complex lifting and sliding movements automatically.
