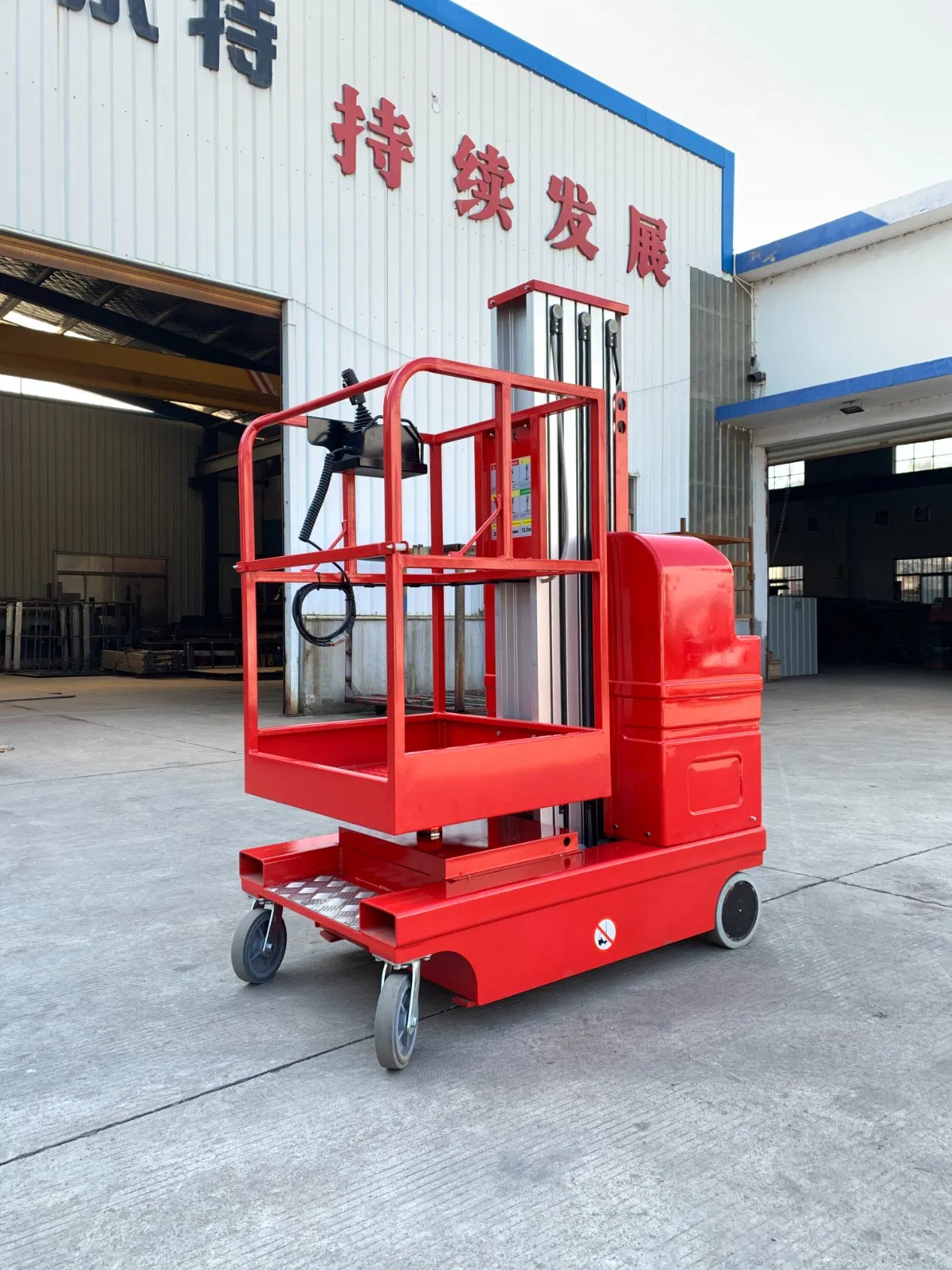

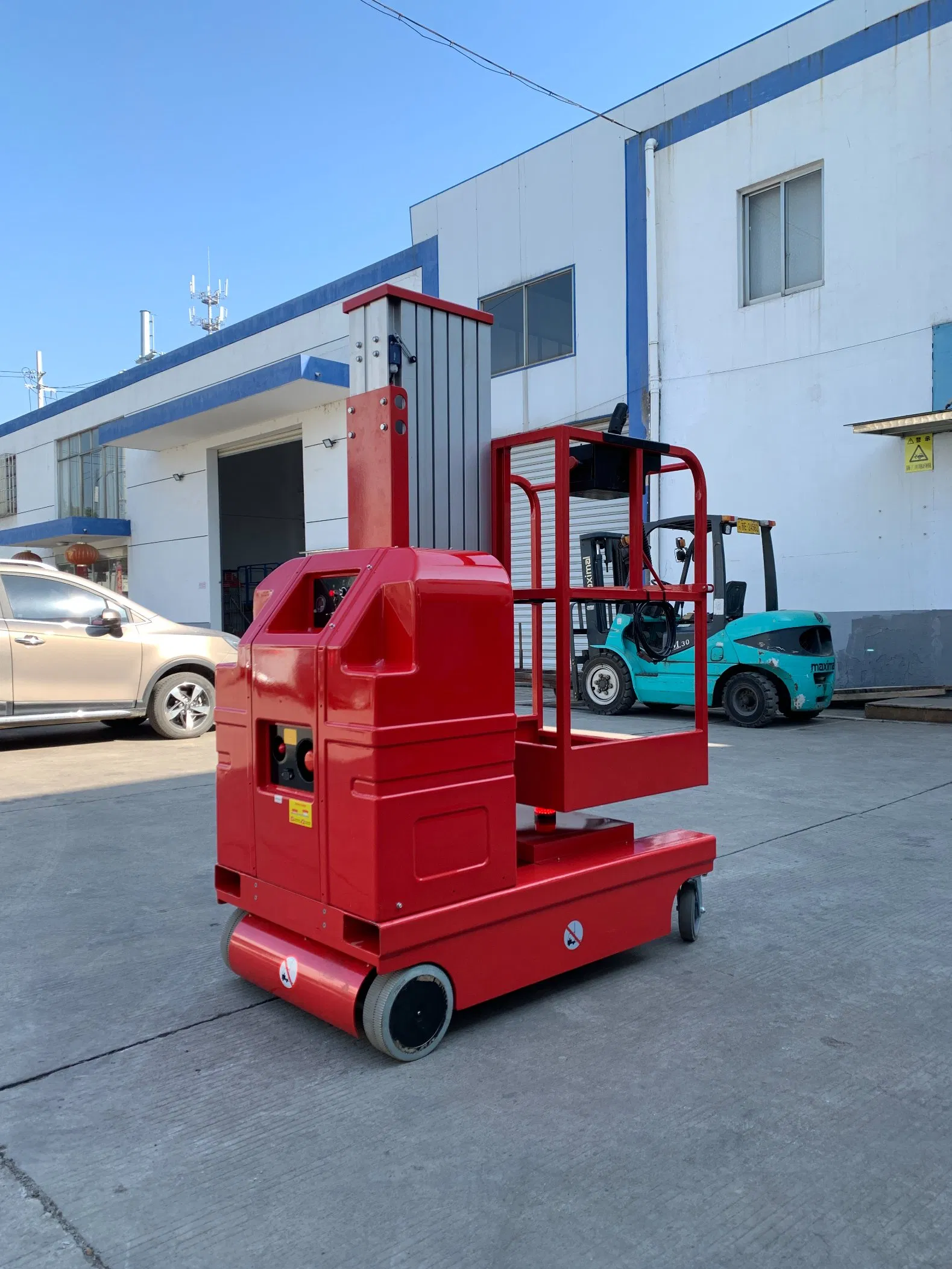

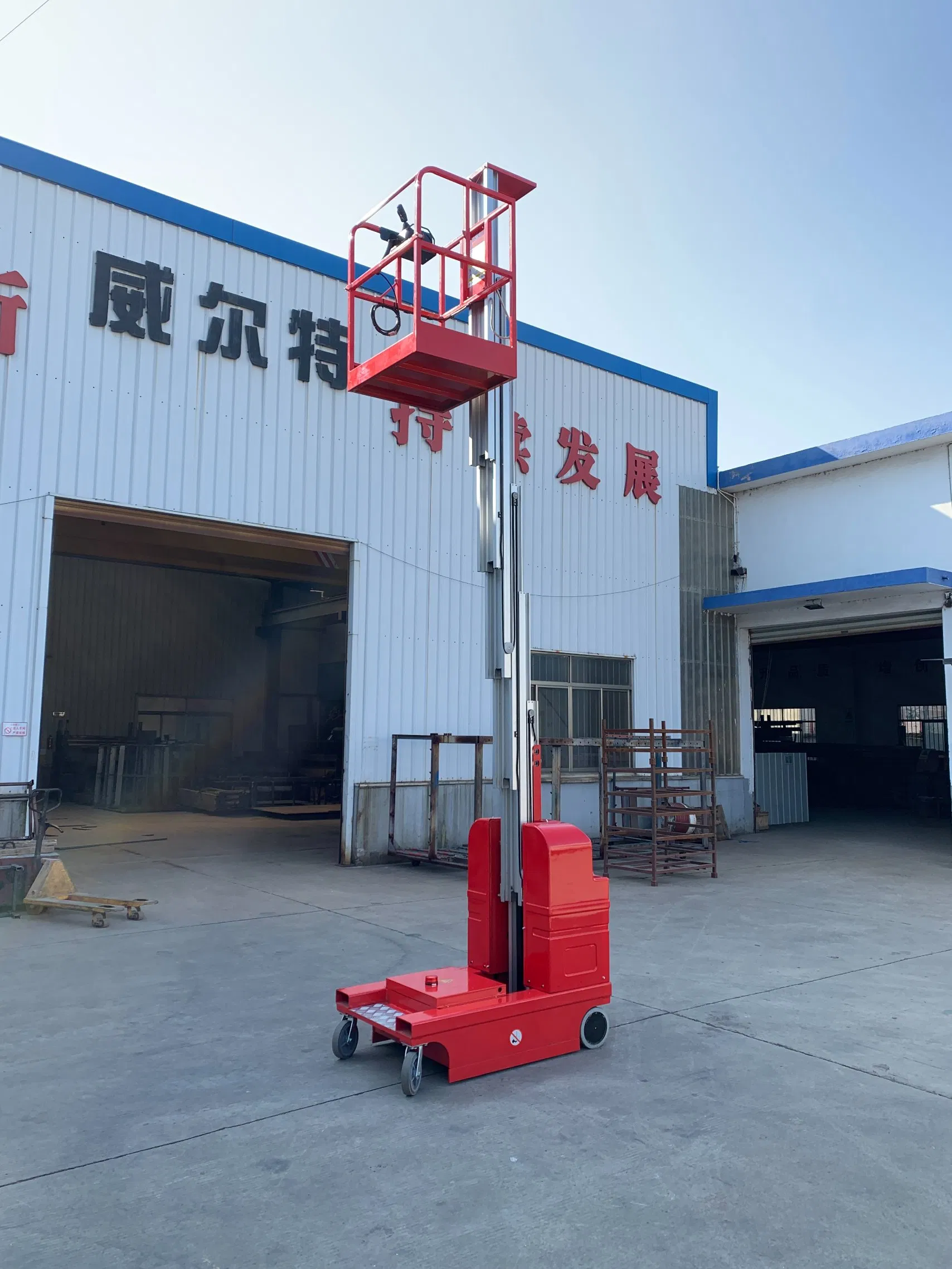

Self-Propelled Lifting Equipment for Working at Height

1 / 5

Self-Propelled Lifting Equipment for Working at Height

Customization:	Available
Warranty:	12 Months Apart From Man-Made Faults
Application:	Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane, Decoration

Send Inquiry

Product Description

Basic Specifications

Model NO.

AWPM 7.5-100

Lift Mechanism

Lift Chain

Carrying Capacity

Middle-Level

Moves

Self-propelled

Driven Type

DC or AC, DC and AC

Running Mode

Moving

Max Platform Height

7500 mm

Max Working Height

9500 mm

Rated Load

125 Kg

Platform Size

780*700 mm

Introduction

A modern manufacturing enterprise specialized in aerial work platforms, providing package services for design, production, sales, and after-sales. With a business philosophy of "Quality First, Client Oriented," we strive for innovation and perfection in every detail of our lifting equipment.

Applications

1. Designed for single passenger use.
2. Widely utilized for aerial installation and maintenance in hotels, grand halls, sport stadiums, large factories, workshops, warehouses, stations, airports, and gas stations.

Standard Configuration

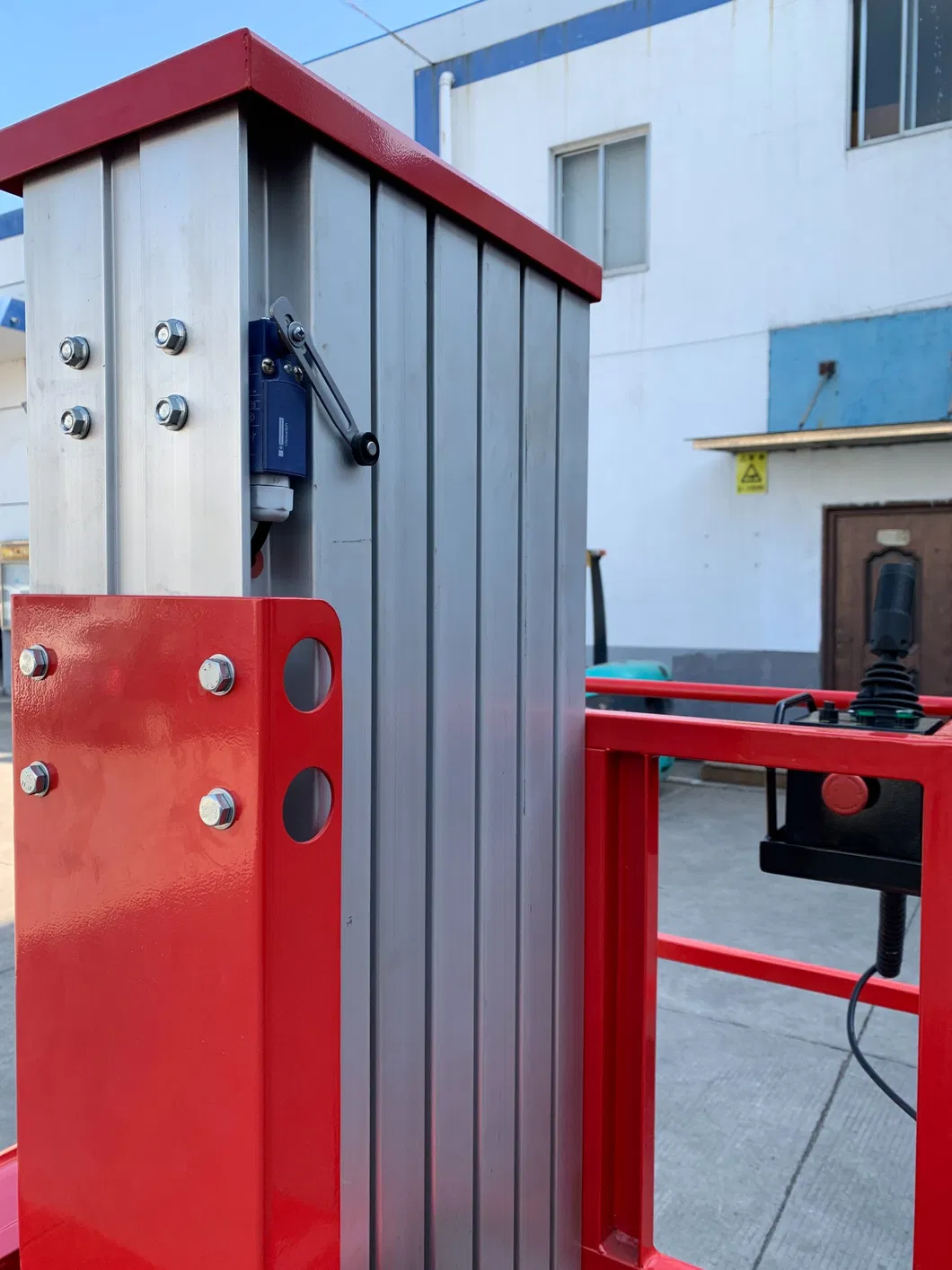

Electric limit switch for power cut-off at height limits

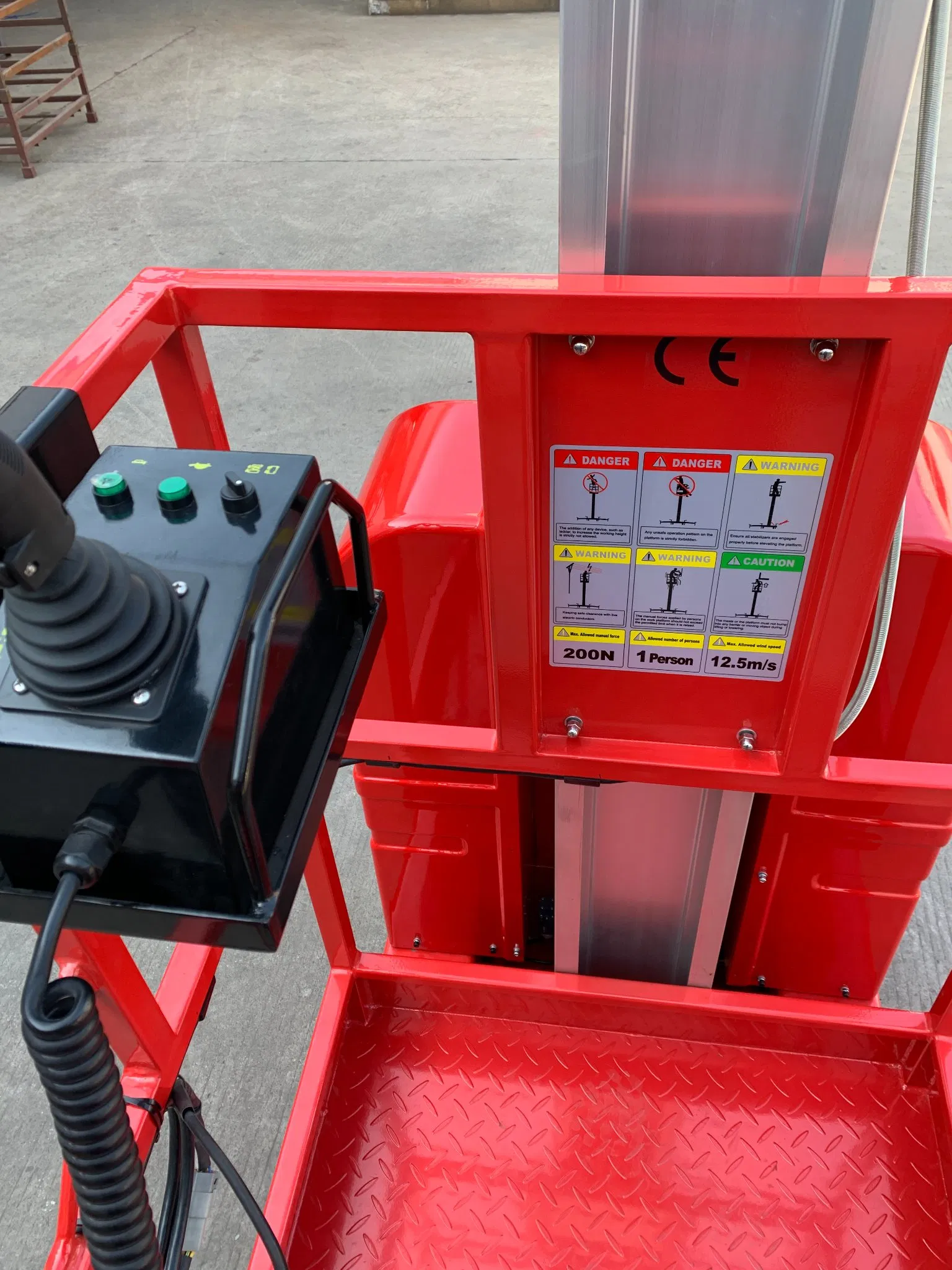

Ground and platform dual control modes

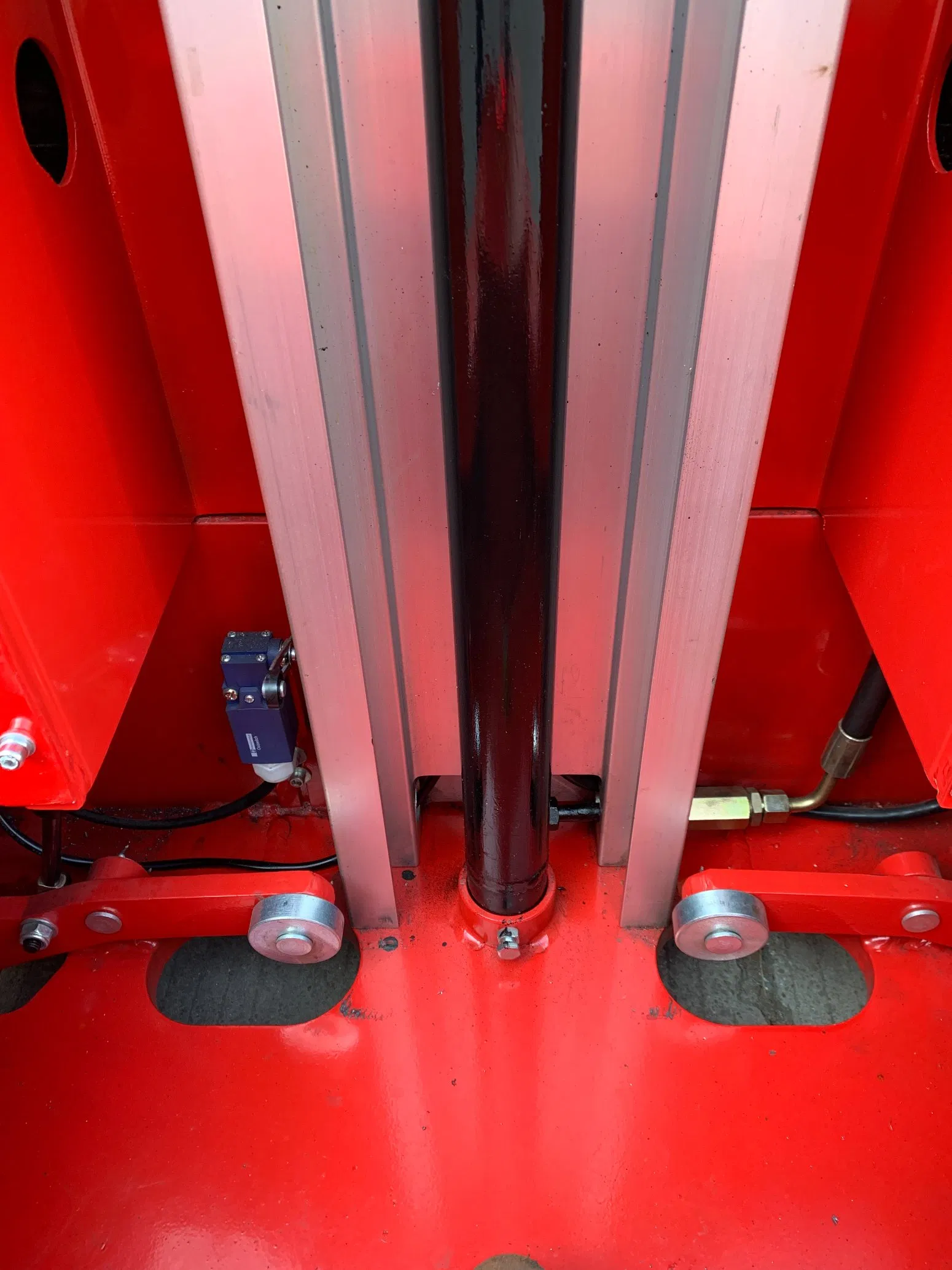

Stroke protection block in hydraulic cylinder

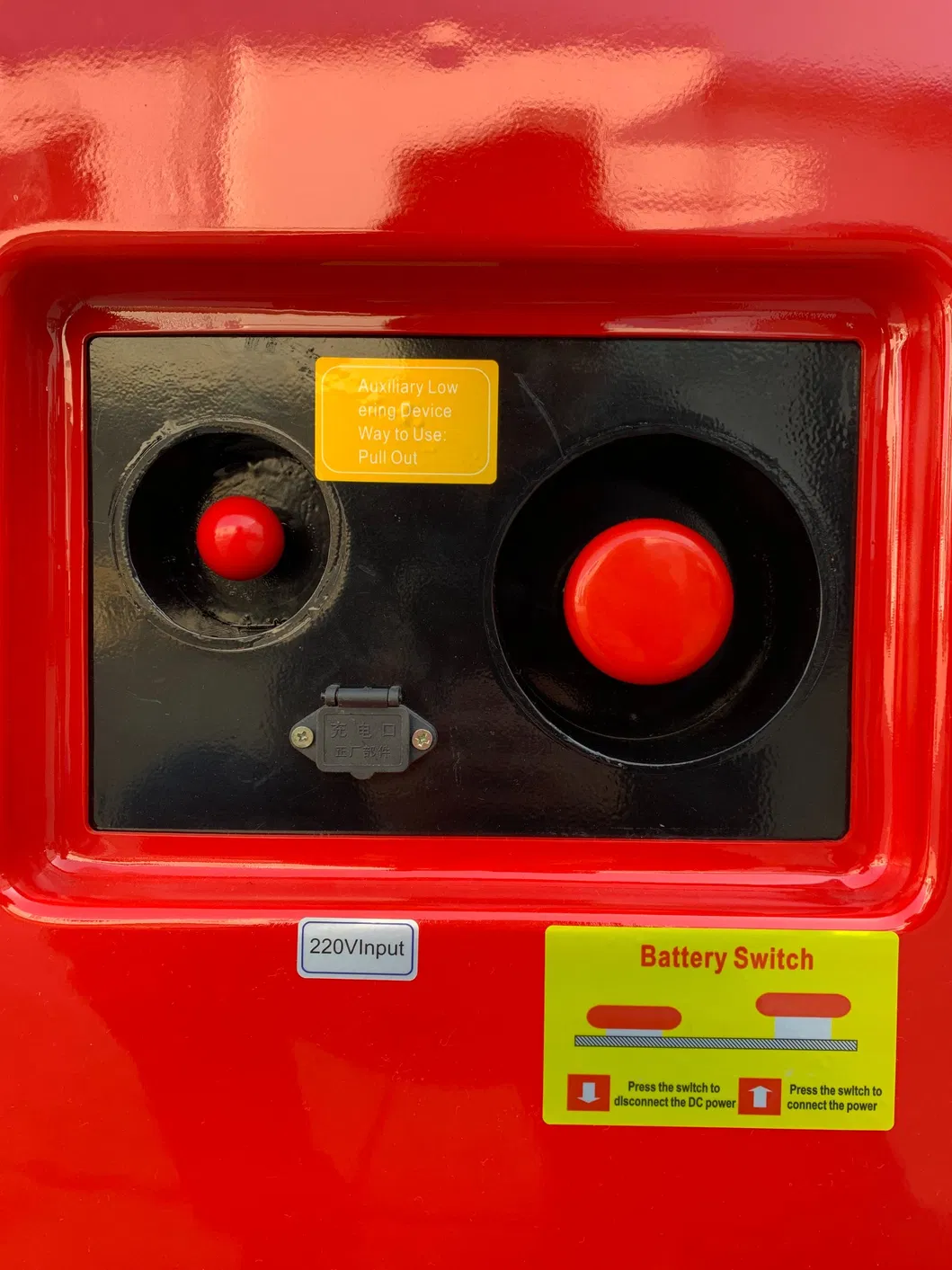

Emergency lowering system equipped

Power supply: DC24V with dedicated charger

Self-propelled move mode with low-noise hydraulic pump

Automatic pothole protection and tilt/overweight alarms

Rigid mast industry standard for maximum stability

Easily rolls through standard doorways

Wide, rear access forklift pockets for easy transport

Technical Parameters

Model	Max Platform H (m)	Max Working H (m)	Rated Load (kg)	Weight (kg)	Platform Size (m)	Overall Size (m)	DC Power
AWPMM3.0	3	5	150	560	0.7*0.64	1.30.761.78	24V/2.0kw
AWPMM4.0	4	6	125	610	0.7*0.64	1.30.761.78	24V/2.0kw
AWPM6-100W	6	8	150	950	0.78*0.7	1.40.822.00	24V/2.0kw
AWPM7.5-100W	7.5	9.5	125	1020	0.78*0.7	1.40.822.00	24V/2.0kw
AWPM6-100	6	8	150	1060	0.78*0.7	1.450.822.0	24V/2.0kw
AWPM7.5-100	7.5	9.5	125	1130	0.78*0.7	1.450.822.0	24V/2.0kw
AWPM7.5-200	7.5	9.5	200	1280	1.00*0.7	1.551.012.0	24V/2.0kw
AWPM9-200	9	11	150	1350	1.00*0.7	1.551.012.0	24V/2.0kw

Quality Control & Service

One year warranty for the whole machine (non-human fault)

Free parts replacement during warranty period

24-hour technical support via email or online tools

User-friendly English maintenance and operation manuals

Quick response within 2 hours for any inquiries

Frequently Asked Questions

What is the maximum working height of the AWPM 7.5-100 model?

The AWPM 7.5-100 model offers a maximum platform height of 7500mm and a maximum working height of 9500mm.

Can this machine pass through standard indoor doorways?

Yes, the machine is designed with a compact structure (1.45m length and 0.82m width), allowing it to easily roll through standard doorways and into elevators.

What safety features are included for high-altitude work?

It includes an automatic pothole protection system, tilt alarm, overweight alarm, emergency lowering system, and a rigid mast for maximum stability.

What is the power source for the self-propelled drive?

The unit is powered by a DC24V battery system and includes a built-in charger, making it ideal for both indoor and outdoor operations without needing a constant plug-in.

What kind of after-sales support is provided?

We provide a one-year warranty, free replacement parts for non-human faults, and 24/7 technical support with a guaranteed 2-hour response time.
