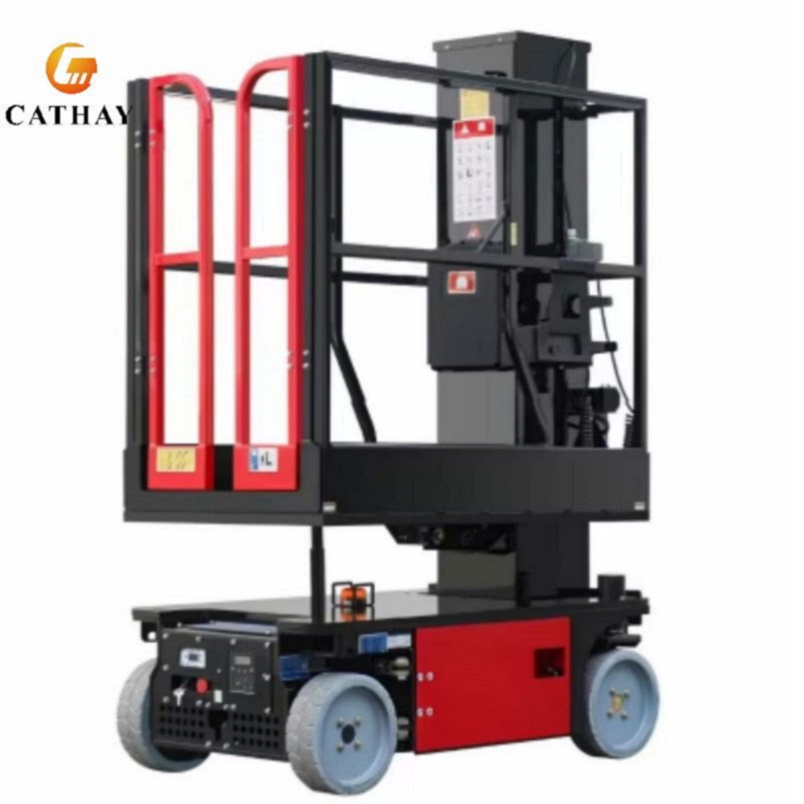

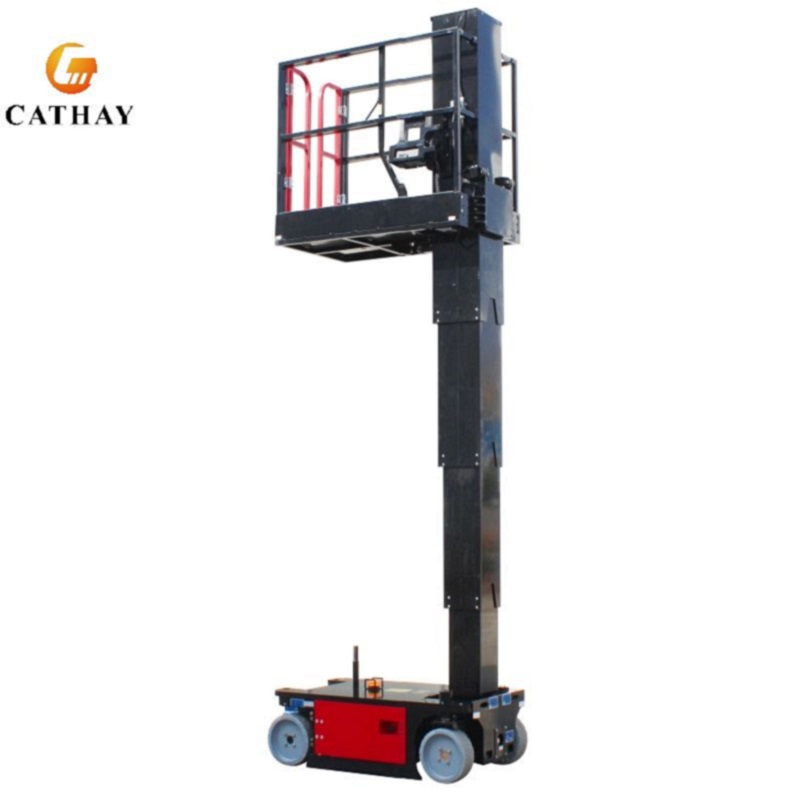

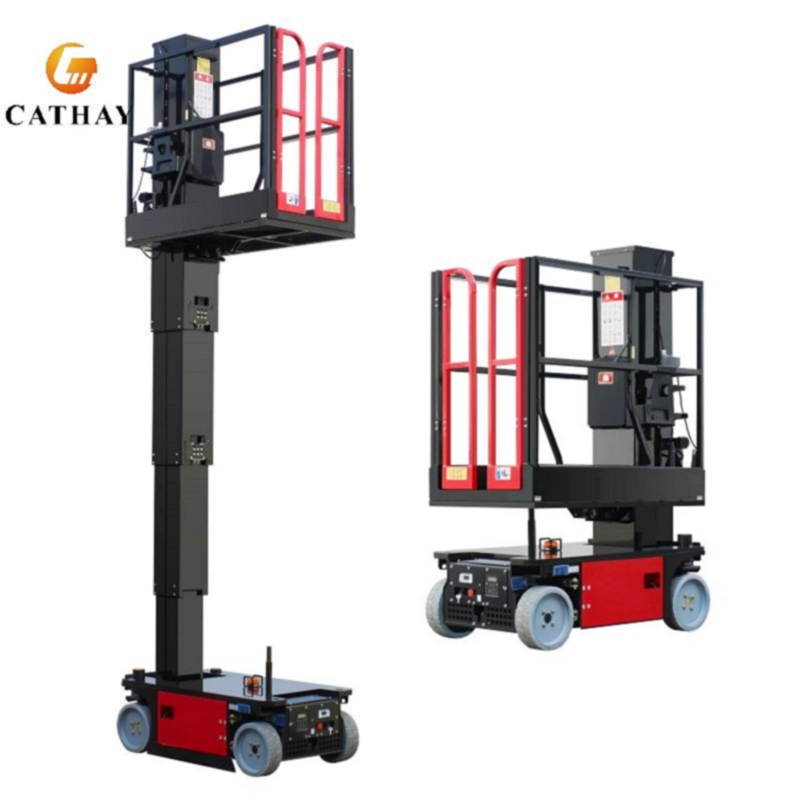

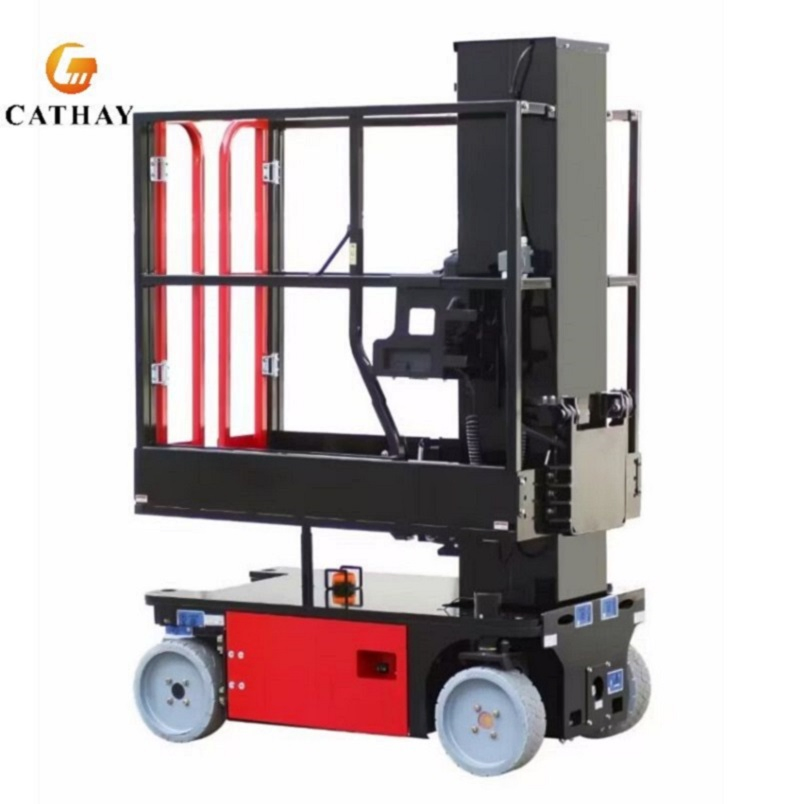

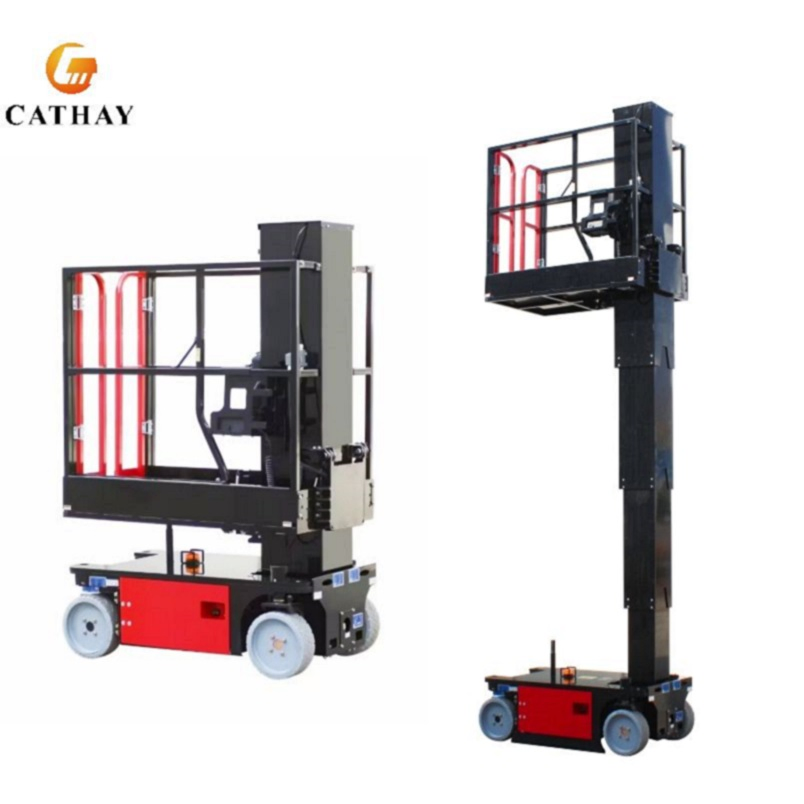

3.6~8m Small Indoor Self-Propelled Low Level Access Platform Lift
OEM & ODM & OBM Available

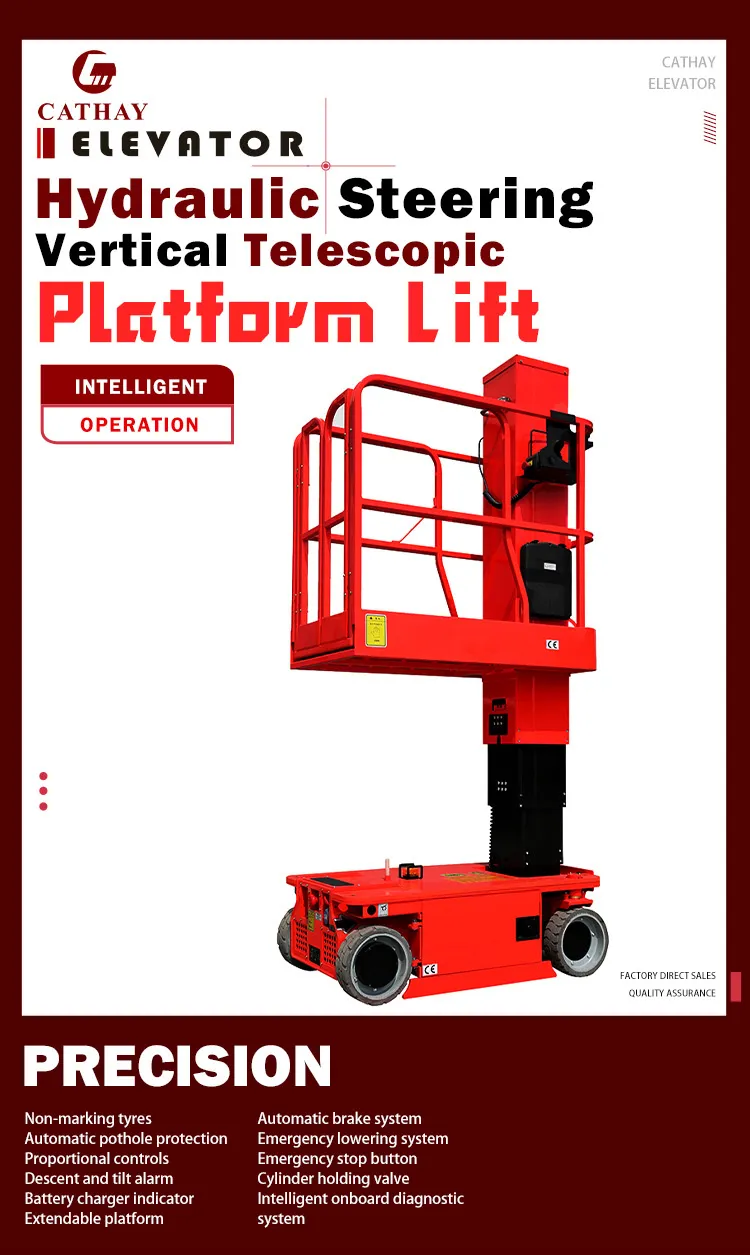

Engineered for tight indoor and outdoor spaces, the Low Level Access Platform features a compact structure, AC-powered motor, and straight-line lift function. Its 51cm extendable platform offers additional room at height, supporting tasks up to 8 meters high with a load limit of 227kg. This makes it well-suited for duties like equipment maintenance, inventory checks, and general warehouse operations where mobility and stability are essential.
| Model Type No. | CSTAR-3600 | CSTAR-4800 | CSTAR-6000 |
|---|---|---|---|
| Max. Platform Height | 3.6m | 4.8m | 6m |
| Max Lifting Height | 5.6m | 6.8m | 8m |
| Load Capacity | 227kg | 227kg | 159kg |
| Platform Size | 1.3x0.7m | ||
| Extendable Length | 0.51m | ||
| Travel Speed (Stowed) | 4km/h | ||
| Travel Speed (Raised) | 1.1km/h | ||
| Grade Ability | 25% | ||
| Battery | 2X12V/100AH | ||
| Weight | 810kg | 980kg | 1060kg |

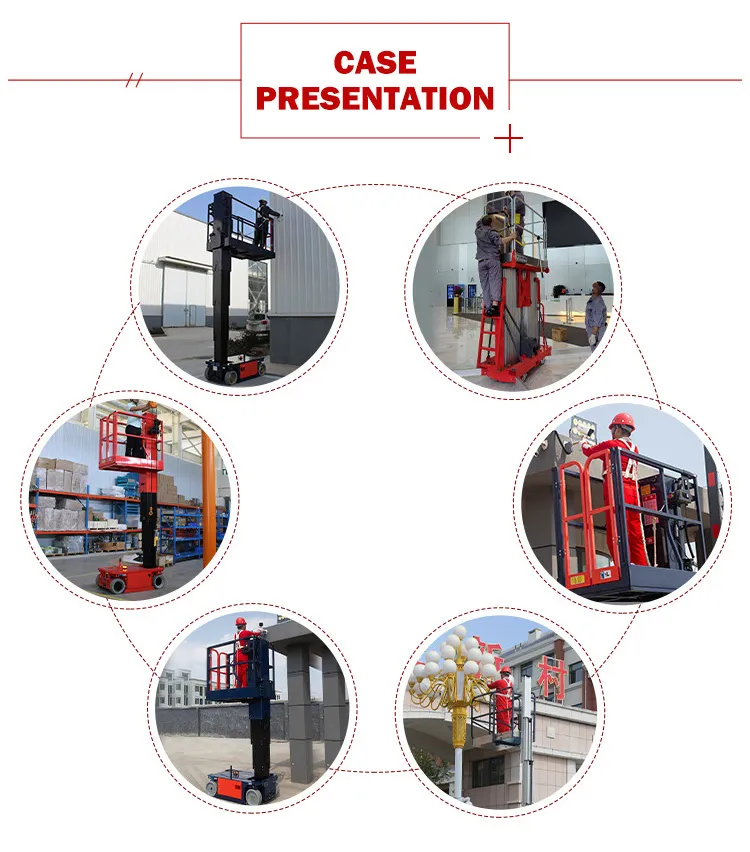

Commonly used in shopping malls, hotels, exhibition centers, industrial plants, warehouses, airports, train stations, subways, schools, and government buildings. Its compact size is ideal for maintenance in spaces with high pedestrian traffic.
A: This series offers maximum platform heights ranging from 3.6 meters to 6 meters, with a maximum working height reaching up to 8 meters.

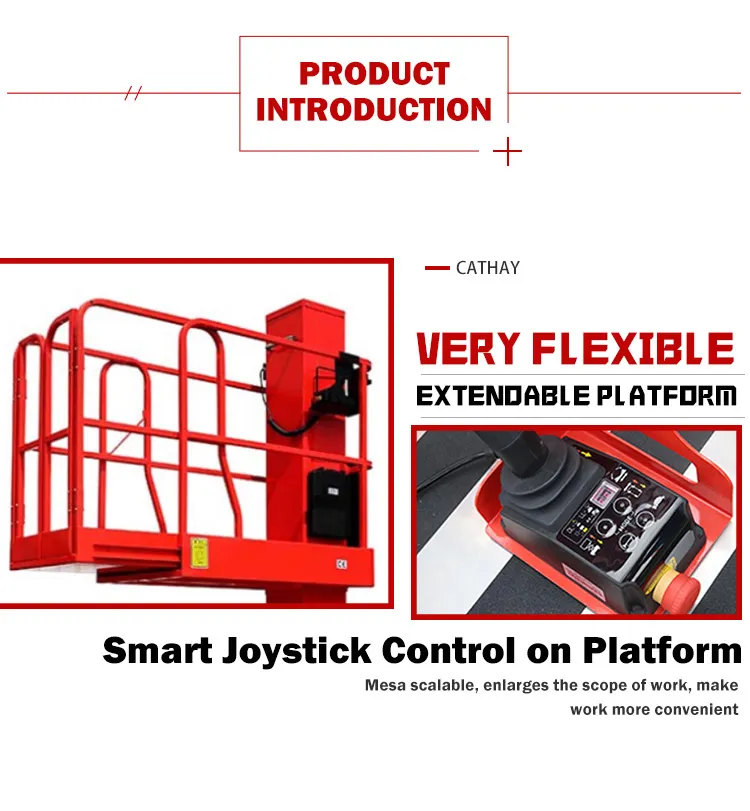

A: Yes, all models are equipped with a 0.51-meter extendable platform to provide extra space and reach when working at heights.
A: It is ideal for indoor maintenance and light-duty tasks in confined spaces such as warehouses, shopping malls, schools, and offices due to its compact width and zero inner turning radius.

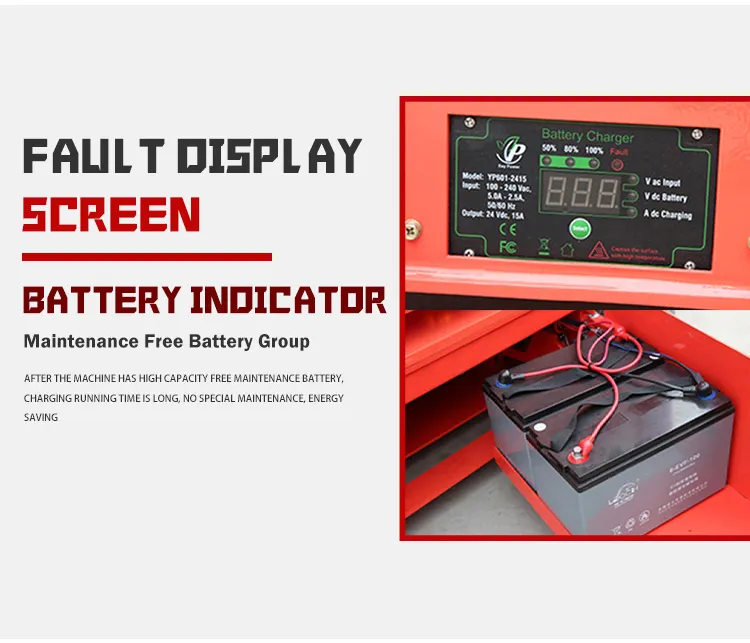

A: The lift uses a 24V DC system with 100AH batteries designed for long operation cycles. These are intelligent maintenance-free lead-acid batteries, minimizing downtime.
A: The platform is equipped with standard safety features including a buzzer, strobe light, emergency lowering valve, and explosion-proof/insulating features to ensure operator safety.
A: The platform features a 25% gradeability, allowing it to move across slightly inclined surfaces or ramps with ease.
