📋 Basic Specifications
Application
Moving Metal Material (Glass, Steel, Stone)
Vacuum Source
Oil-Free Vacuum Pump
Safety Guarantee
Pressure Holding
Max Loading
300-1000kg (Customizable)
Rocker Arm Rotate
0~360 Degree
Power Supply
AC/200V 380V DC12V/24V
Package Size
250cm * 150cm * 80cm
🏗️ Product Description

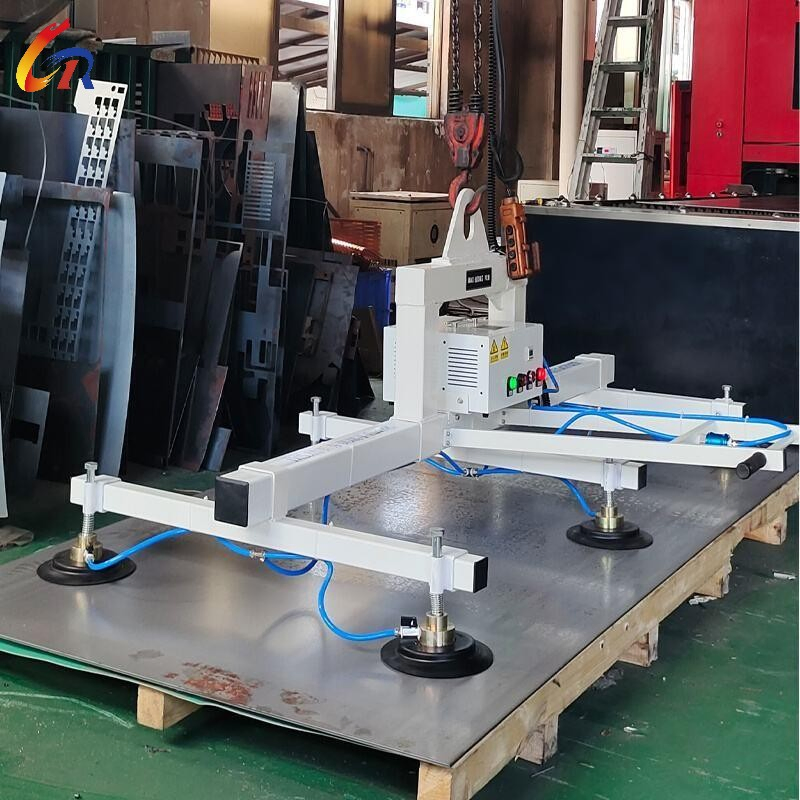

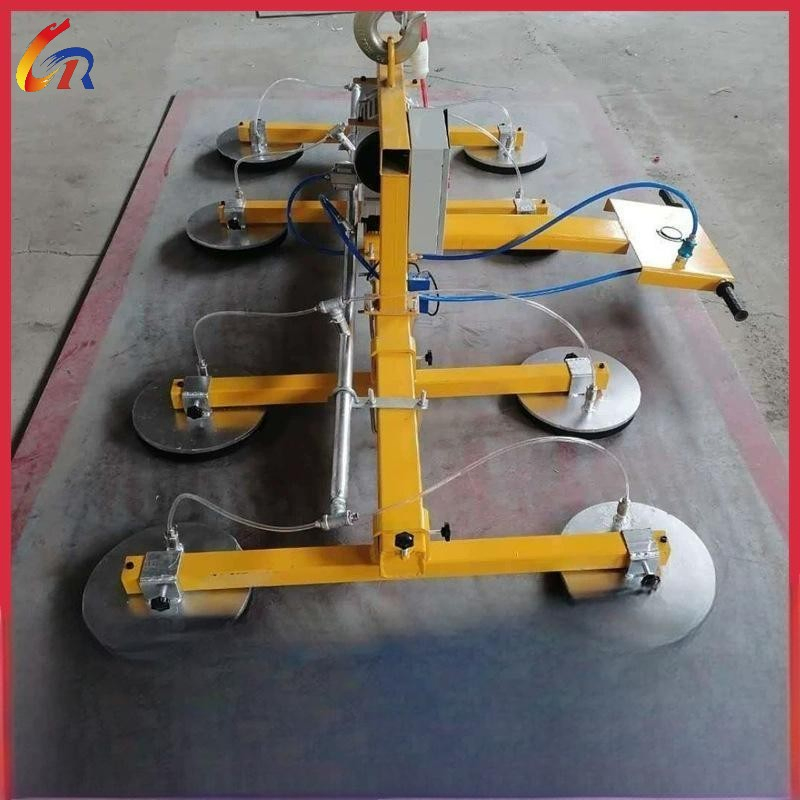

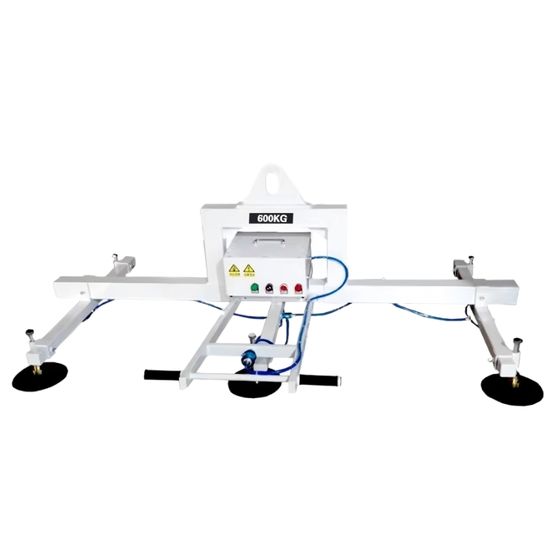

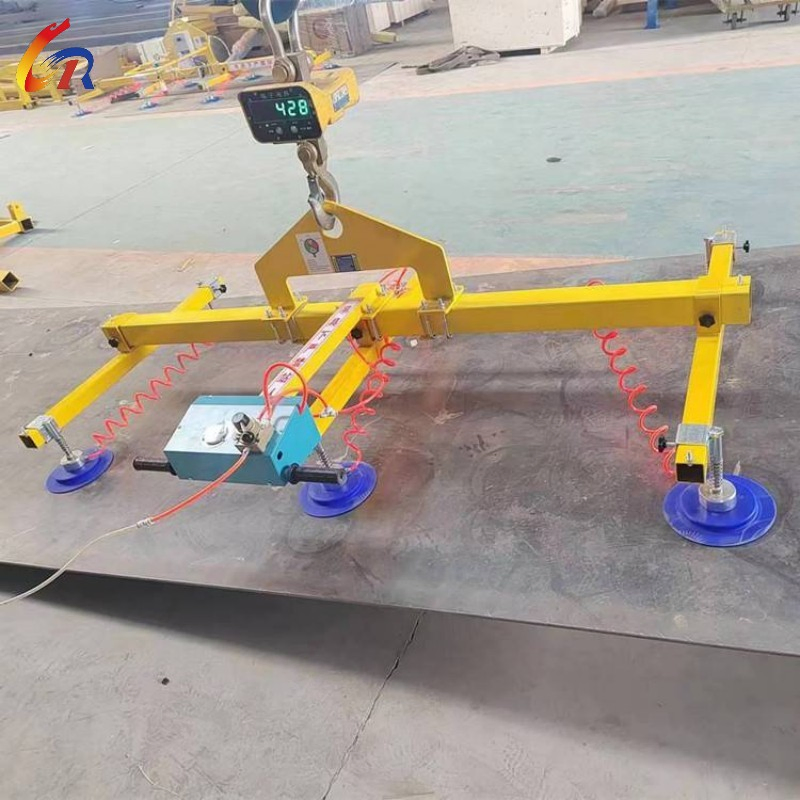

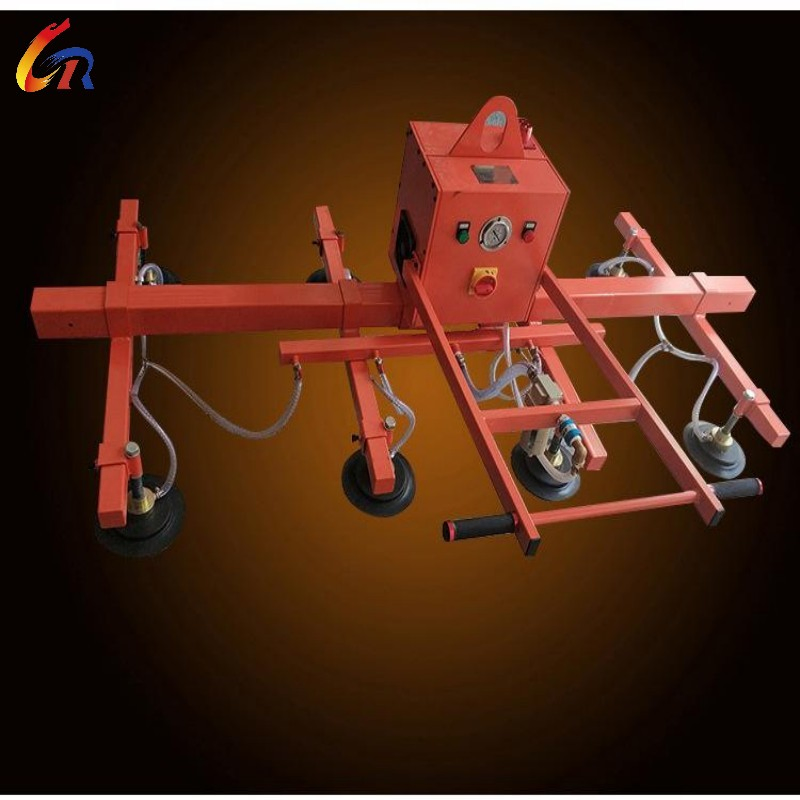

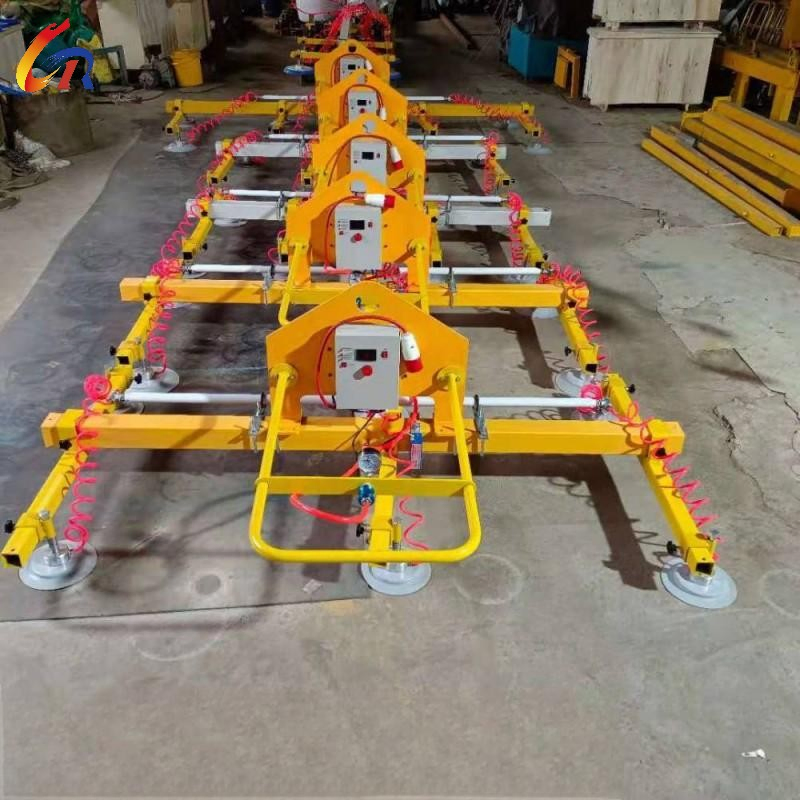

Versatile Vacuum Lifting Device
This vacuum lifter provides an efficient and reliable solution for handling flat and smooth materials in both indoor and outdoor environments. Constructed with a high-strength frame and equipped with powerful suction cups, it ensures secure gripping and safe lifting. The system can be tailored with manual or electric tilting, rotating, and flipping functions to meet diverse application needs. Ideal for glass, steel plates, panels, and stone slabs, it offers precise, damage-free handling for various material handling operations.

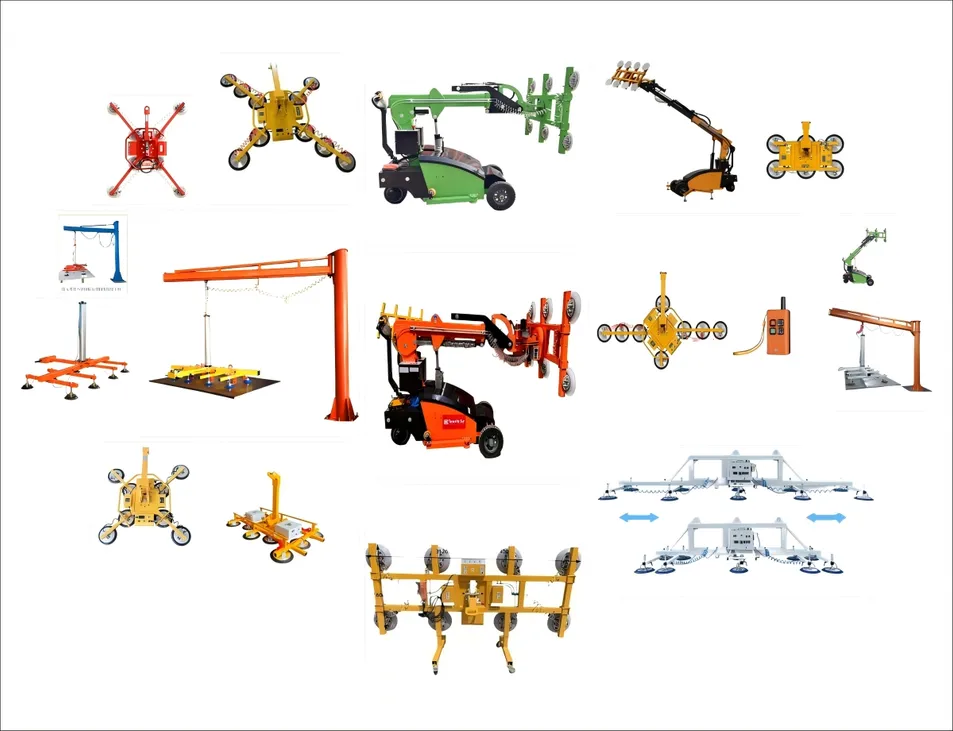

🎯 Versatile Applications
Glass HandlingSecure lifting and positioning of glass panes in production or installation.
Sheet Metal WorkIdeal for transporting steel or aluminum sheets without surface damage.
Stone ProcessingSafely lift marble, granite, and other slabs with minimal manual effort.
Panel InstallationPerfect for sandwich panels, solar panels, and wall panels.
Workshop OperationsEnhance workflow in compact workspaces with precise material handling.
Outdoor ConstructionRugged design suitable for open-air jobs with optional weatherproof features.
⚙️ Key Configurations
Strong SuctionHigh-performance vacuum pump ensures reliable grip.
Flexible PowerElectric, battery, or pneumatic options available.
Built-in SafetyVacuum gauge and alarm for secure lifting.
📊 Technical Specifications
| Item |
Specification Range |
Remarks |
| Lifting Capacity | 100 kg ~ 8000 kg | Based on suction pad quantity and size |
| Suction Pad Diameter | 150 mm ~ 400 mm | Optional sizes for different materials |
| Power Supply | 12V / 24V DC / AC / Battery | Customizable according to working site |
| Control Method | Pendant / Wireless Remote | Manual or electric control available |
| Tilting Function | 0° ~ 90° | Optional manual or motorized tilt |
| Vacuum Holding Time | ≥ 30 min (after power loss) | Ensures safety in emergency situations |
🌟 Service & Advantages
OEM/ODM CapabilitiesCustomized solutions tailored to your specific branding and operational needs.
Fast ShippingEfficient logistics and support for smooth international importation.
12-Month WarrantyComprehensive coverage ensuring peace of mind and global technical support.
Turnkey ProjectsFrom concept to completion, we provide all-encompassing service execution.
❓ Frequently Asked Questions
What materials can this vacuum lifter handle?
It is suitable for glass, metal sheets, stone slabs, plastic panels, and other flat or smooth surfaces.
Can the lifter be used outdoors?
Yes. The unit is weather-resistant and comes with anti-corrosion treatment for outdoor environments.
What happens if the power cuts off during lifting?
The system is equipped with a non-return valve and vacuum reservoir to maintain suction for at least 30 minutes in an emergency.
Can I adjust the number or position of suction cups?
Yes. The suction pads are modular and can be repositioned or added according to the specific load size.
What power supply options are available?
Options include 12V/24V battery, 220V/380V AC, or pneumatic systems depending on your job site requirements.
Does it support tilting or rotation?
Yes, optional features include 90° tilting and 360° rotation, available in both manual and electric versions.
