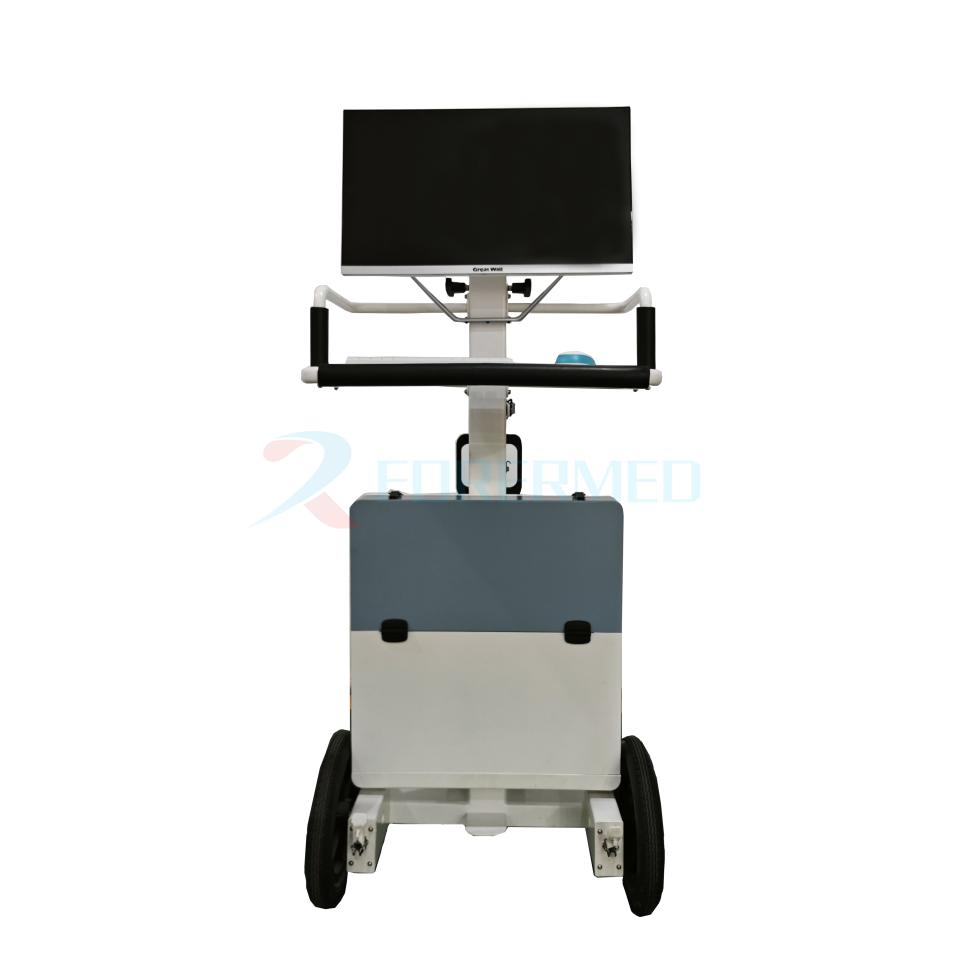

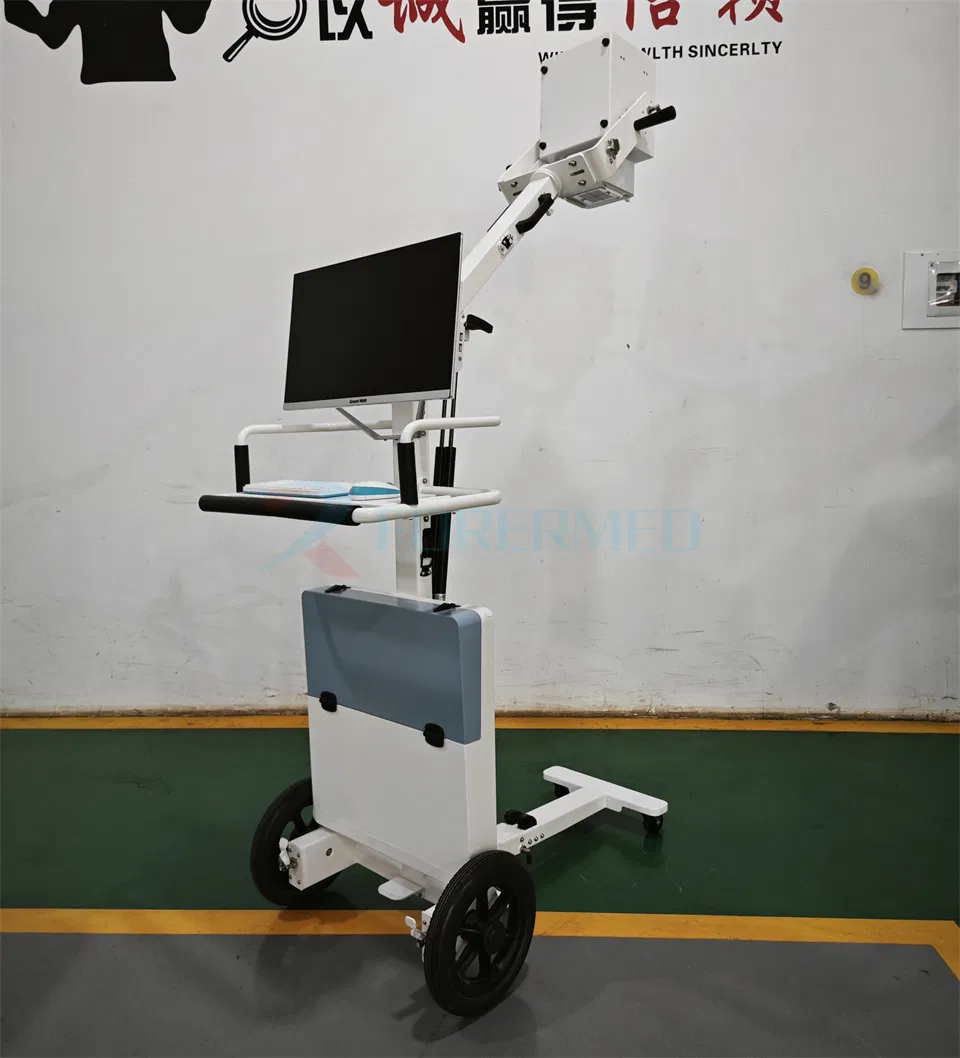

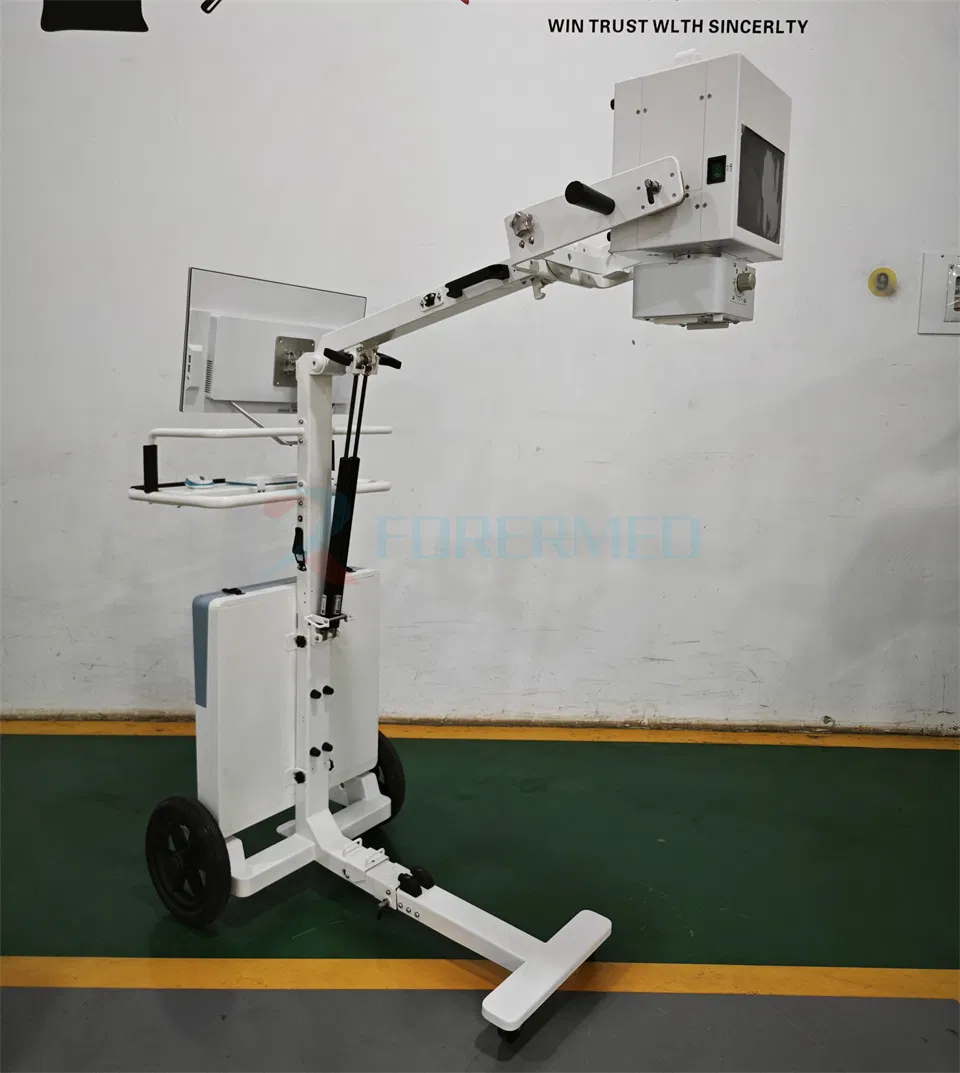

8kw Portable Digital Radiography System

Customization:	Available
Customized:	Customized
Certification:	CE, FDA, ISO13485

Send Inquiry

Product Description

Basic Information

Model NO.:YJ-P8KW

Scale:Medium

Name:High Frequency Portable X Ray System C-Arm

Power:5kw and 8kw

Voltage:40-125kv

Vision Size:14*17"

Software:Human and Veterinary Software

Exposure Time:1-4000ms

Origin:China

Capacity:500PCS/Month

Product Description

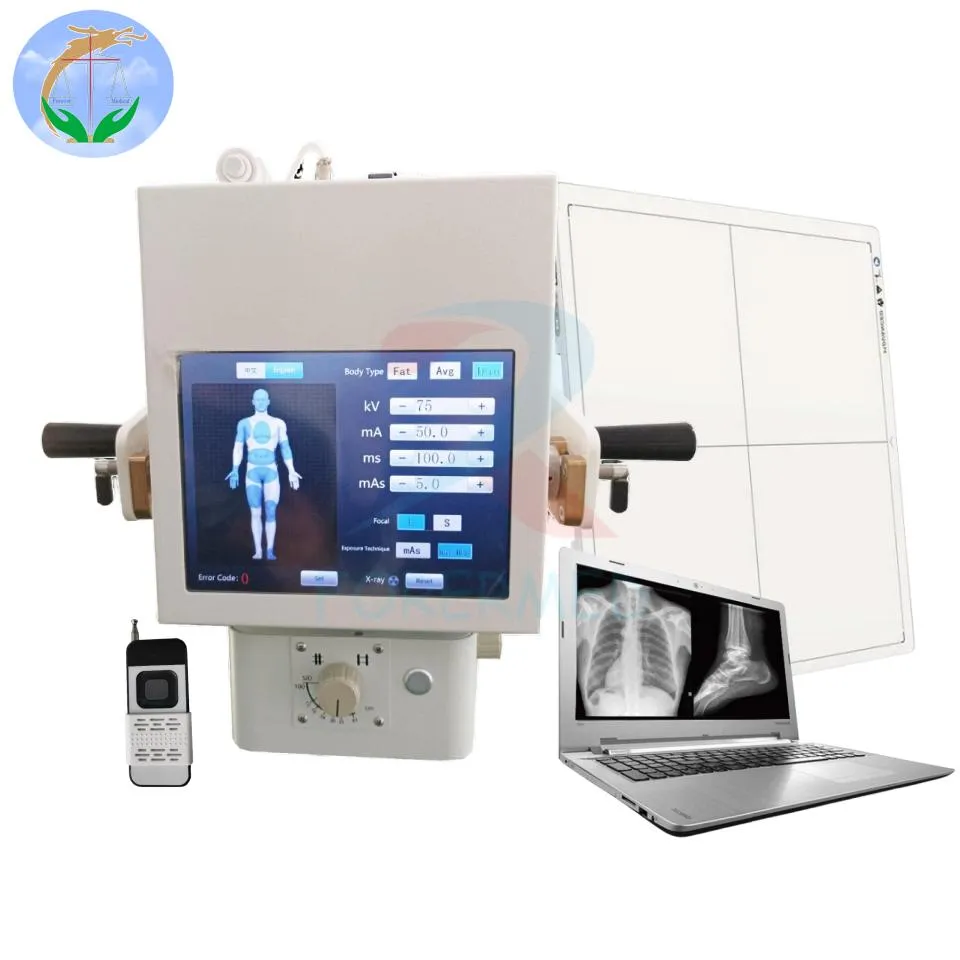

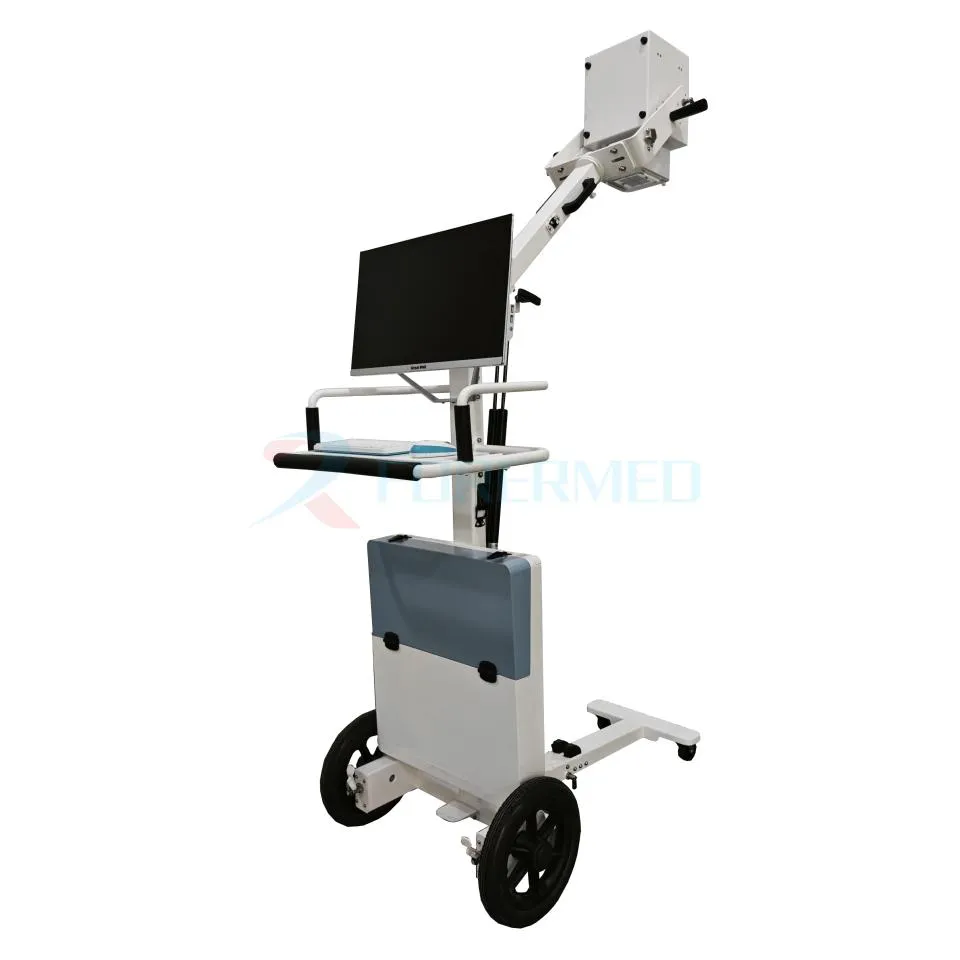

YJ-P5KW/P8KW Portable Digital Radiography System

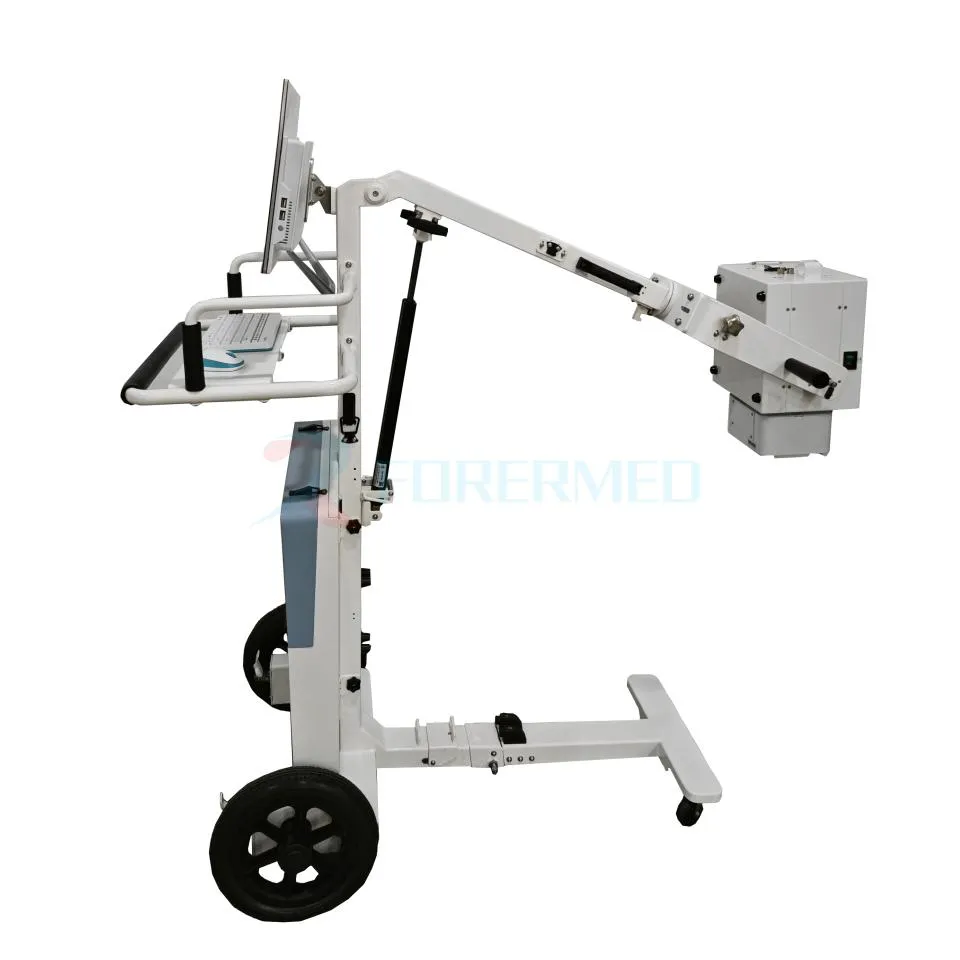

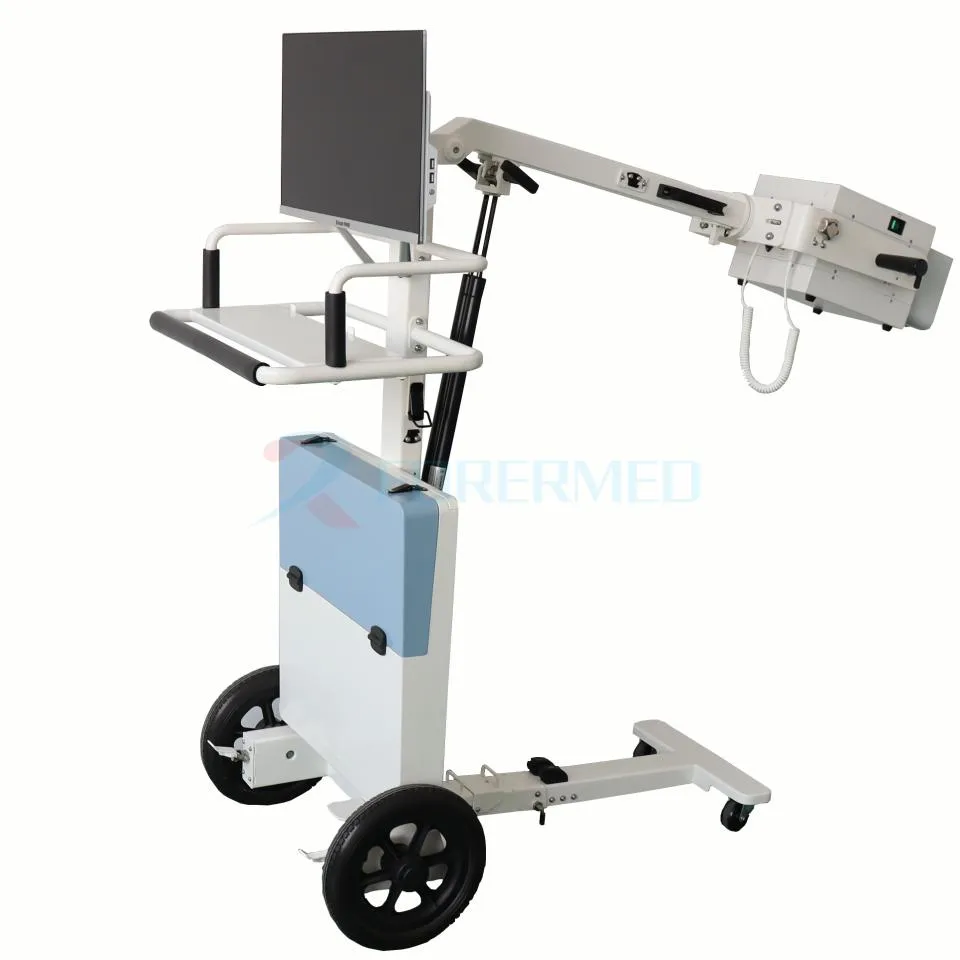

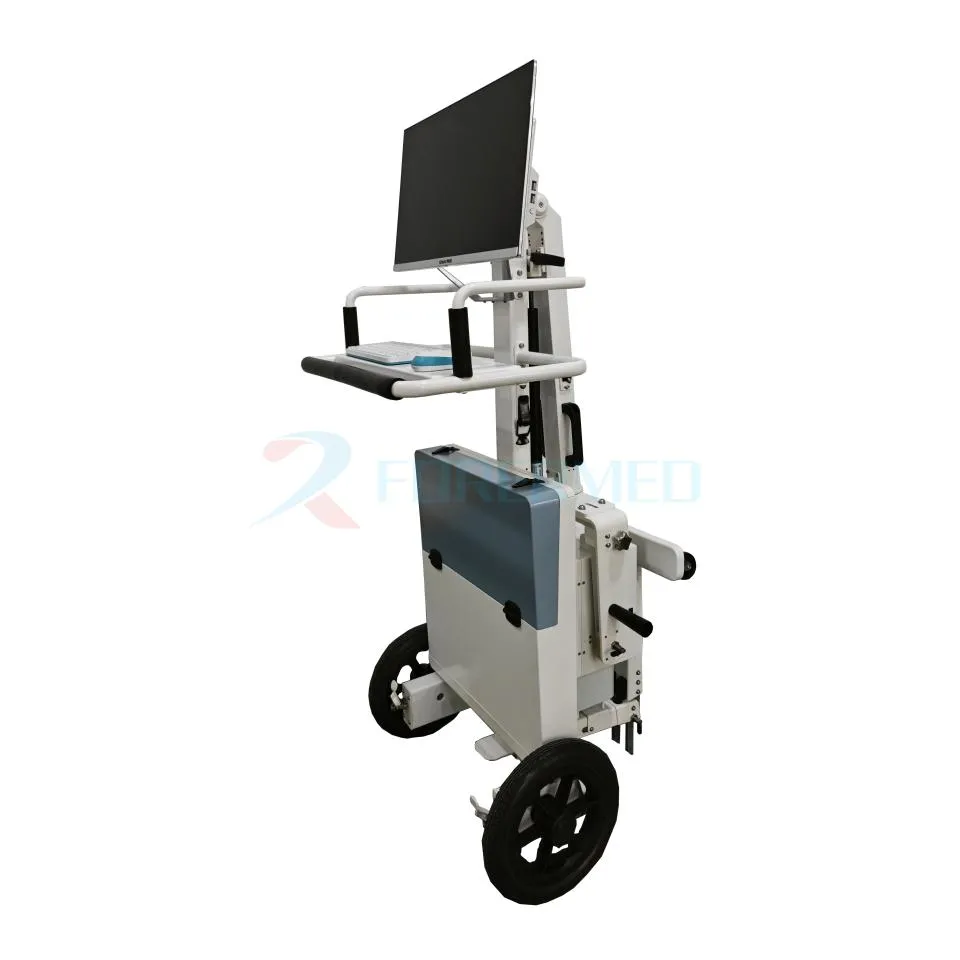

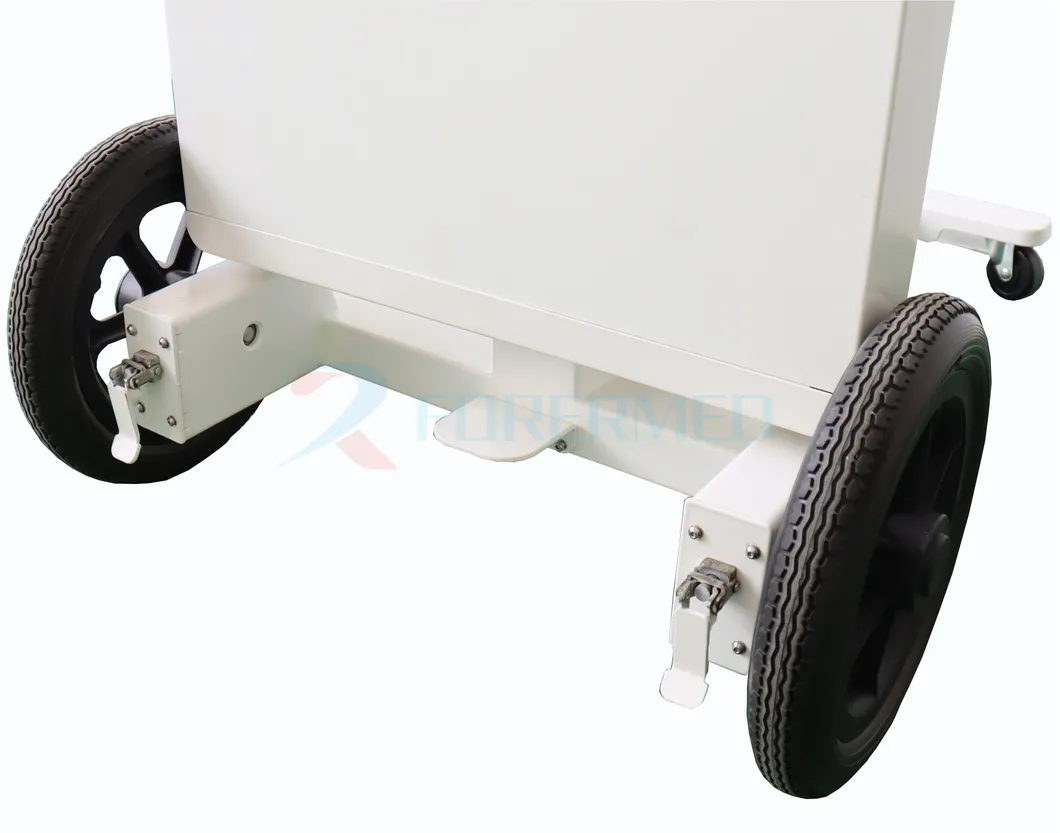

Easy positioning changes enable sequential exposures of the chest and abdomen to be acquired quickly and easily for efficient technologist workflow. Four swiveling wheel casters allow precise, easy positioning and travel in any direction, and the ability to spin the system in place in tight spaces. The articulating control panel allows rotation and height adjustment for instant image confirmation from any angle. The small lightweight design and extended reach of the tube head allows one-hand operation for easy exam positioning.

✓ Wireless Transmission

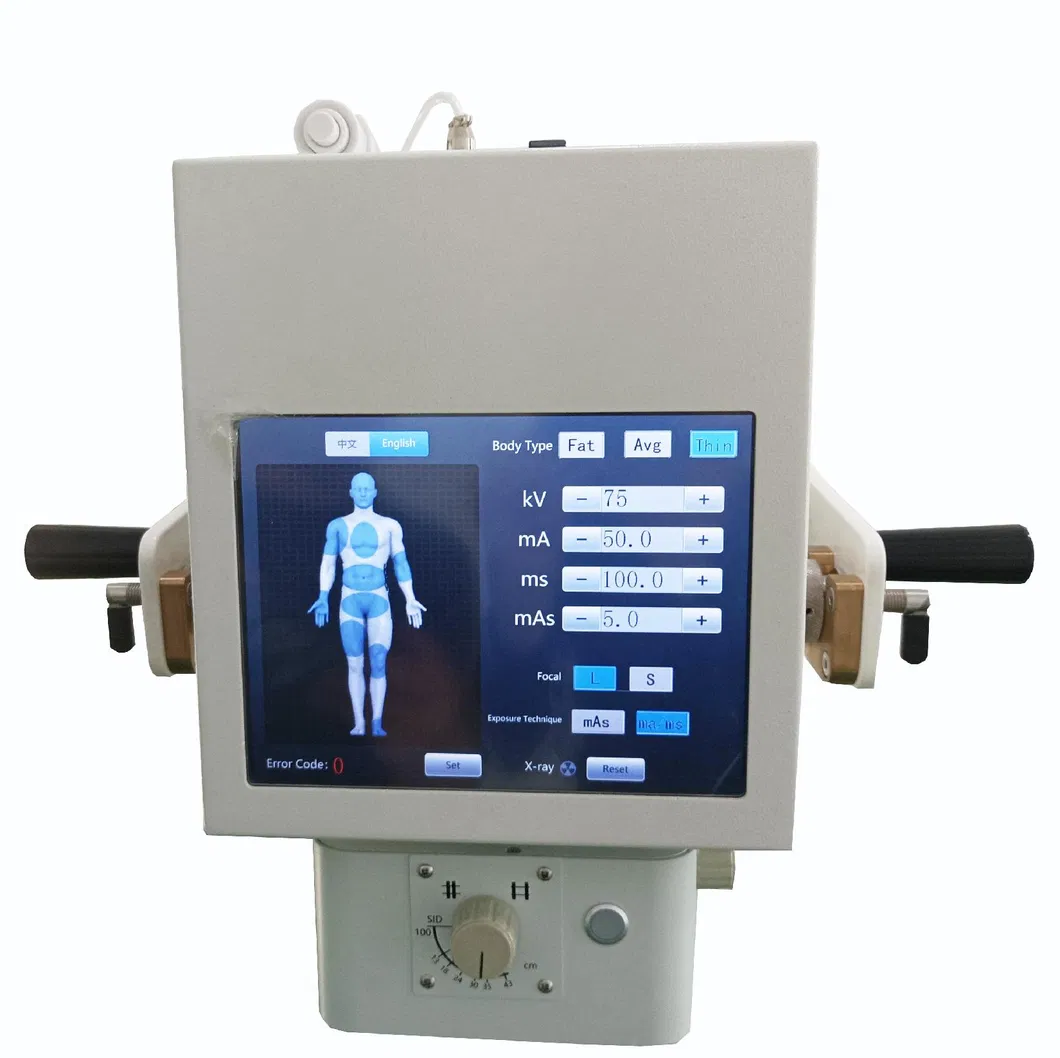

✓ Easy Exposure interface
✓ Hand switch and visual console
✓ Direct deposition CsI for better image quality with lower dose
✓ 16 bit ADC for more image details
✓ High-frequency inverter technology

Technical Specifications

Model	YJ-P5KW	YJ-8KW
Power Output	5kW	8kW
Current	10-100mA	10-125mA
Voltage	40-125kV	40-125KV
mAs	0.1-200mAs	0.1-400mAs
Exposure time	1-4000ms	1-6300ms
Focus Size	1.0/2.0	0.6/1.2
Detector Type	Wireless FPD	Wireless FPD
Vision Size	14*17"	14*17"
A/D Conversion	16 bits	16 bits
Spatial Resolution	3.4 lp/mm	3.4 lp/mm

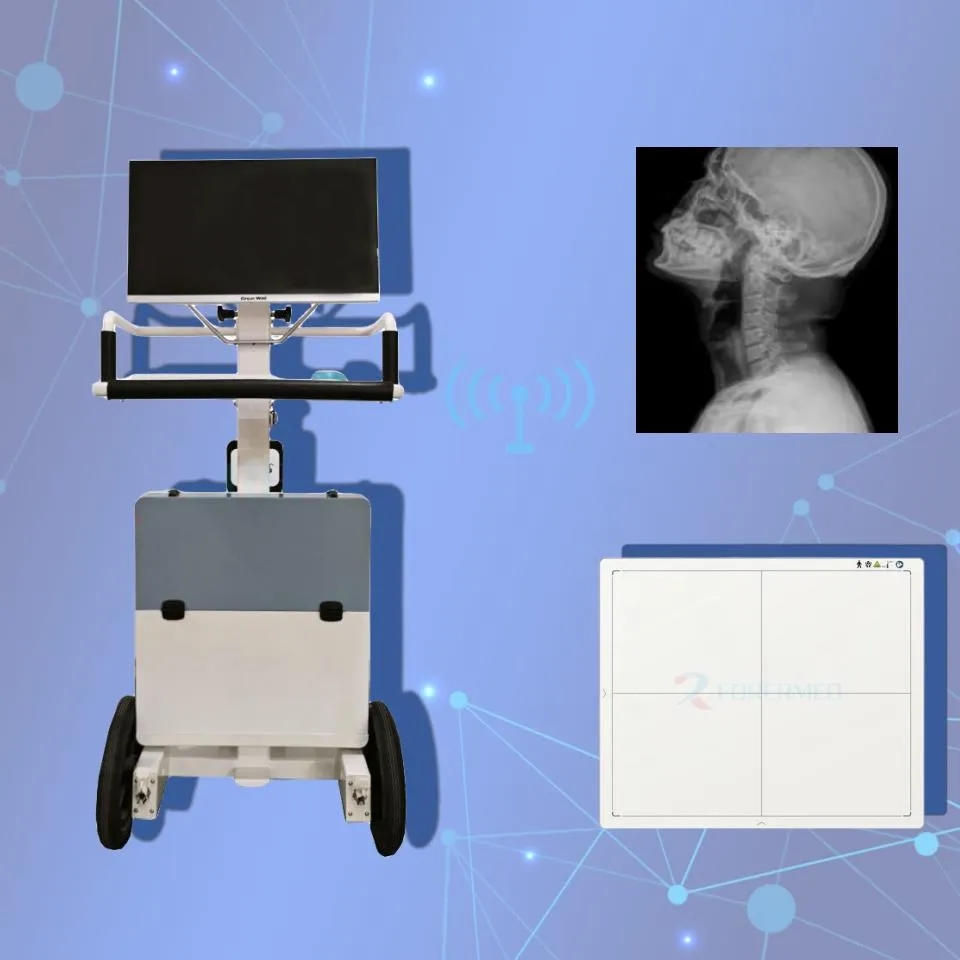

X-ray Detector (Flat Panel Detector)

Specifications:
Type: Amorphous Silicon
Scintillator: Cesium Iodide
Active Area: 14x17 Inch
Pixel Matrix: 2304 × 2800
Pixel Pitch: 150um
DQE: >=70%
Acquisition time: ≤2S
Ingress Protection: IPX1

Software Functions

Image Acquisition: Automatically obtain patient information from HIS/RIS or local records.

Image Processing: Window width/level adjustment, ROI, gray scale transformation.

Zooming & Rollover: Local zoom, actual size, 90° rollover, and mirroring.

Filtering: Noise reduction, bone level, tissue details, and sharpening.

Measurement: Linear, Angle, and Rectangle measurement tools.

Management: Standard DICOM 3.0 support, report printing with templates.

Detailed Photos

Key Product Features

1. Widely used in examination and diagnosis of human limbs, suitable for hospitals, clinics, and first aid.

2. Simple structure, small size, and light weight; no need for lead shielding darkroom.

3. Optional mobile rack, flexible for bedside shooting in hospital wards.

4. Three exposure control methods: remote control, hand brake, and console.

5. High-frequency inverter technology ensures stable high voltage and excellent image quality.

6. Compatible with DR Flat panel detectors to form a complete Digital X-ray system.

Frequently Asked Questions

What are the power options for this portable system?

The system is available in two power configurations: 5kW and 8kW, to meet different clinical requirements.

Is the X-ray detector wireless?

Yes, the system utilizes a Wireless Flat Panel Detector (FPD) for better mobility and ease of use in various environments.

Can it be used for both human and veterinary applications?

Yes, the system comes with specialized software that supports both human medical diagnostics and veterinary use.

What is the imaging area size?

The system provides a large vision size of 14 x 17 inches, suitable for chest, abdomen, and limb radiography.

Does the software support DICOM standards?

Yes, it supports the standard DICOM 3.0 function, allowing seamless data transfer to hospital HIS/RIS systems and imaging workstations.

Is a lead-shielded darkroom required?

No, due to its portable design and high-frequency technology, it is optimized for use in field operations and bedside applications without a traditional darkroom.
