| Model | DYMG |
| Application | Workshop, Shipboard, Warehouse, Building Cranes |
| Lift Mechanism | Telescoping Lift |
| Carrying Capacity | Middle-Level |
| Moves | Self-propelled |
| Driven Type | Diesel/DC |
| Running Mode | Moving |
| Feature | Explosion-Proof, Insulating |
| Certification | GS, CE, ISO 9001 |
| HS Code | 8428909090 |
| Production Capacity | 2000 units/Year |

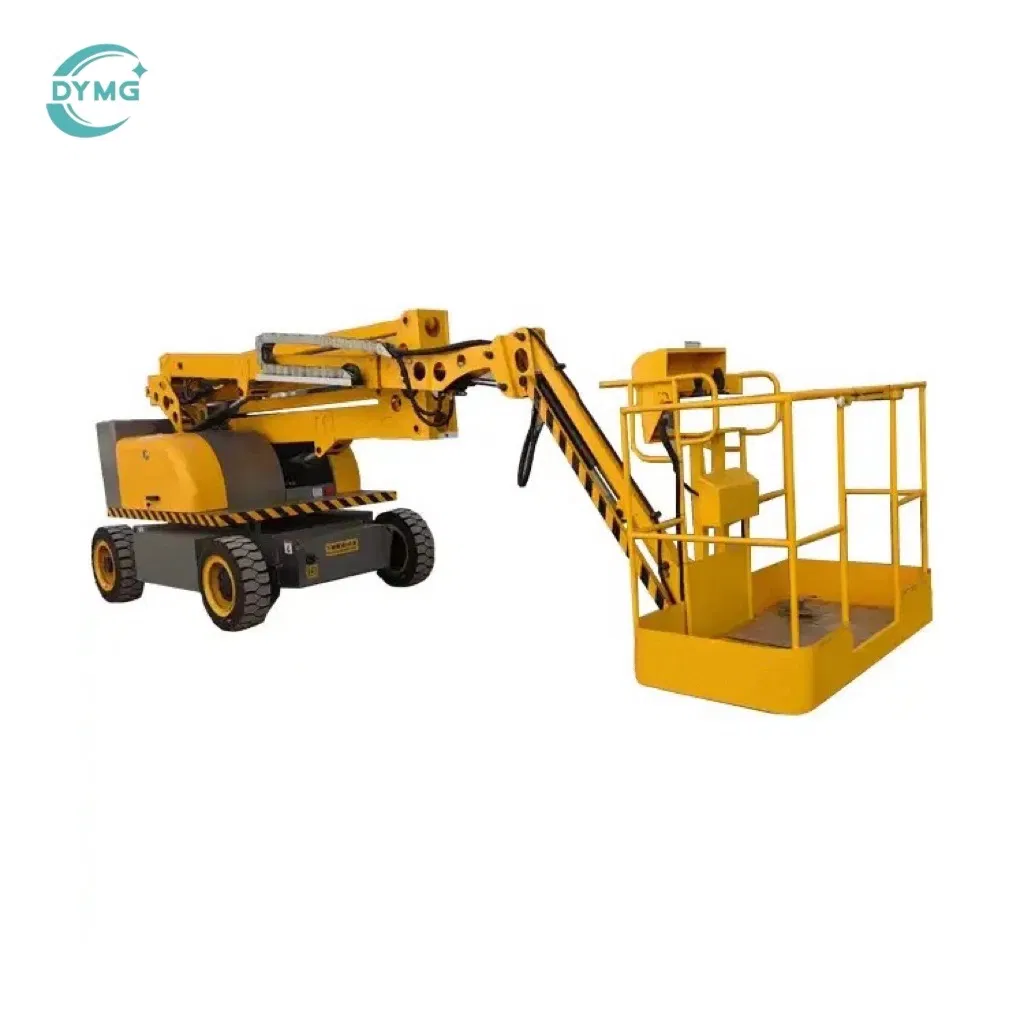

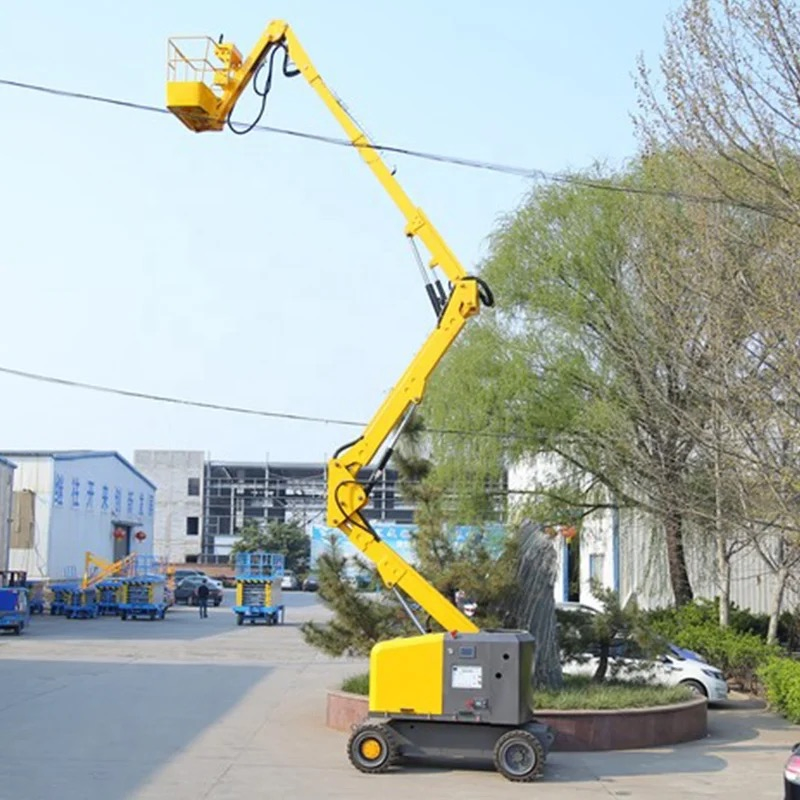

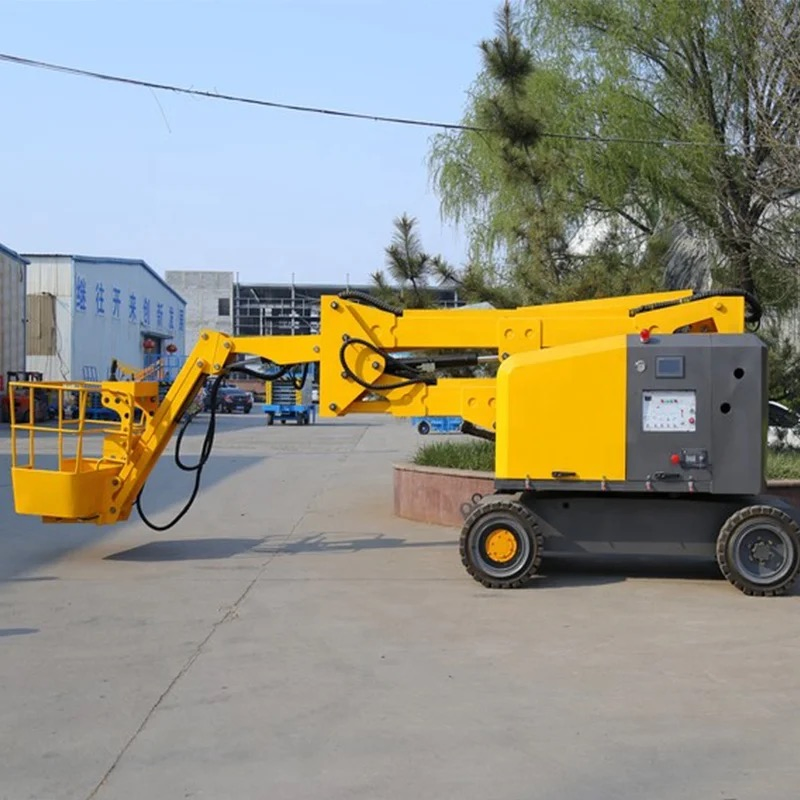

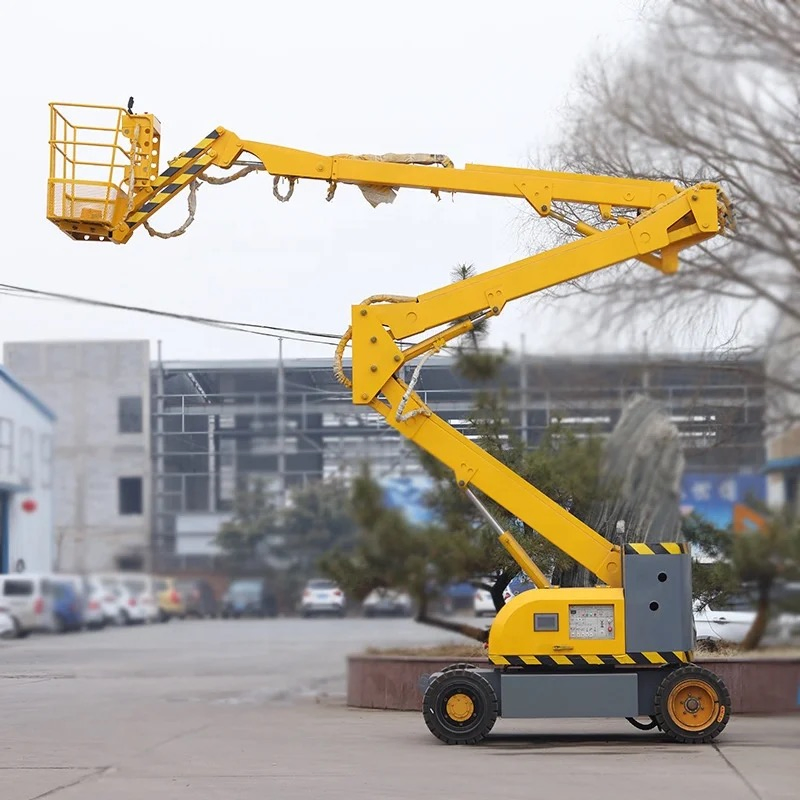

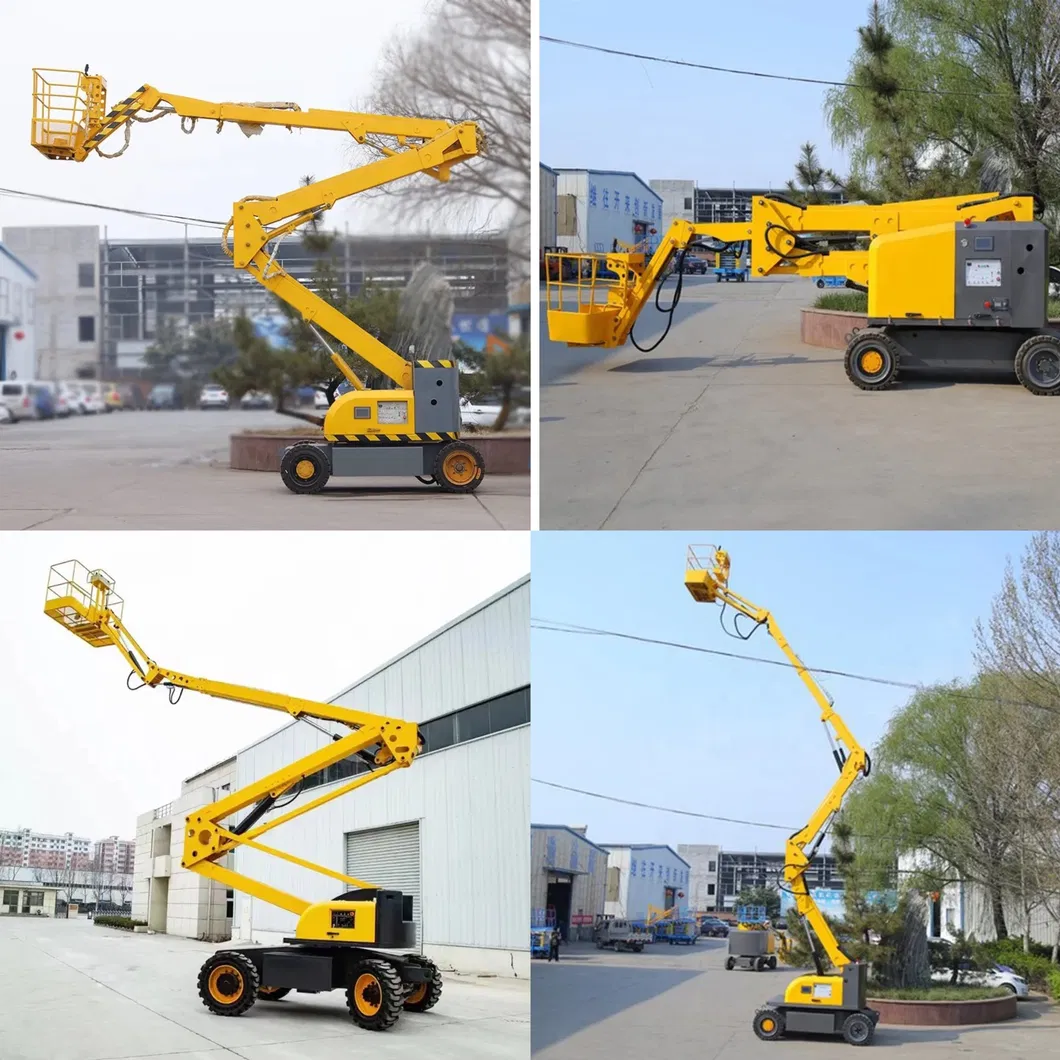

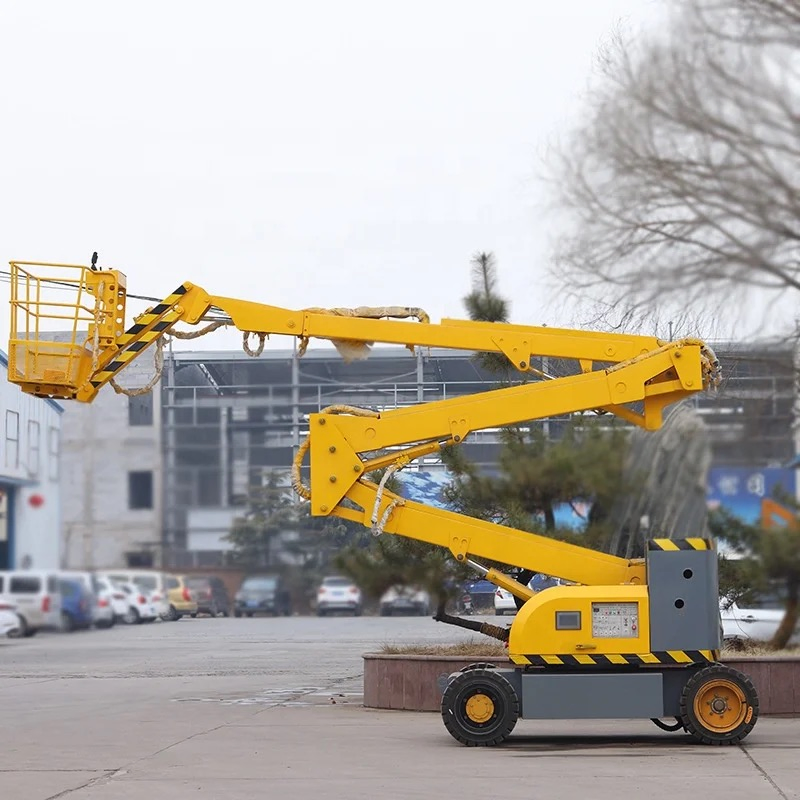

This self-propelled boom lift features a simple structure, reliable safety, and convenient operation. Powered by a high-efficiency battery pack, it can be charged through standard power sockets. The lifting height ranges from 10 to 20 meters, with a load capacity of up to 200 kg, supporting two workers simultaneously.
With a working radius from 5.3m to 11.7m, the unit can be driven directly from the platform. It utilizes balance weights instead of outriggers for stability during lifting. Power options include battery or diesel, with controls available from both the chassis and the platform.
| Parameter | Battery Power Model | Diesel Power Model |
|---|---|---|
| Max Working Height | 12m | 12m |
| Max Platform Height | 10m | 10m |
| Max Operating Radius | 5.8m | 5.8m |
| Max Crossing Height | 5.7m | 5.7m |
| Maximum Load | 200kg | 200kg |
| Driving Type | Electric drive | 4-Cylinder Diesel |
| Lifting Speed | 4-6 m/min | 4-6 m/min |
| Work Table Size | 1.53*0.78m | 1.53*0.78m |
| External Dimensions | 5.5*1.65*2.35m | 5.5*1.65*2.35m |
| Climbing Ability | 25% | 25% |
| Self-weight | 5100kg | 5000kg |
| Turntable Rotation | 355° discontinuous | 360° continuous |

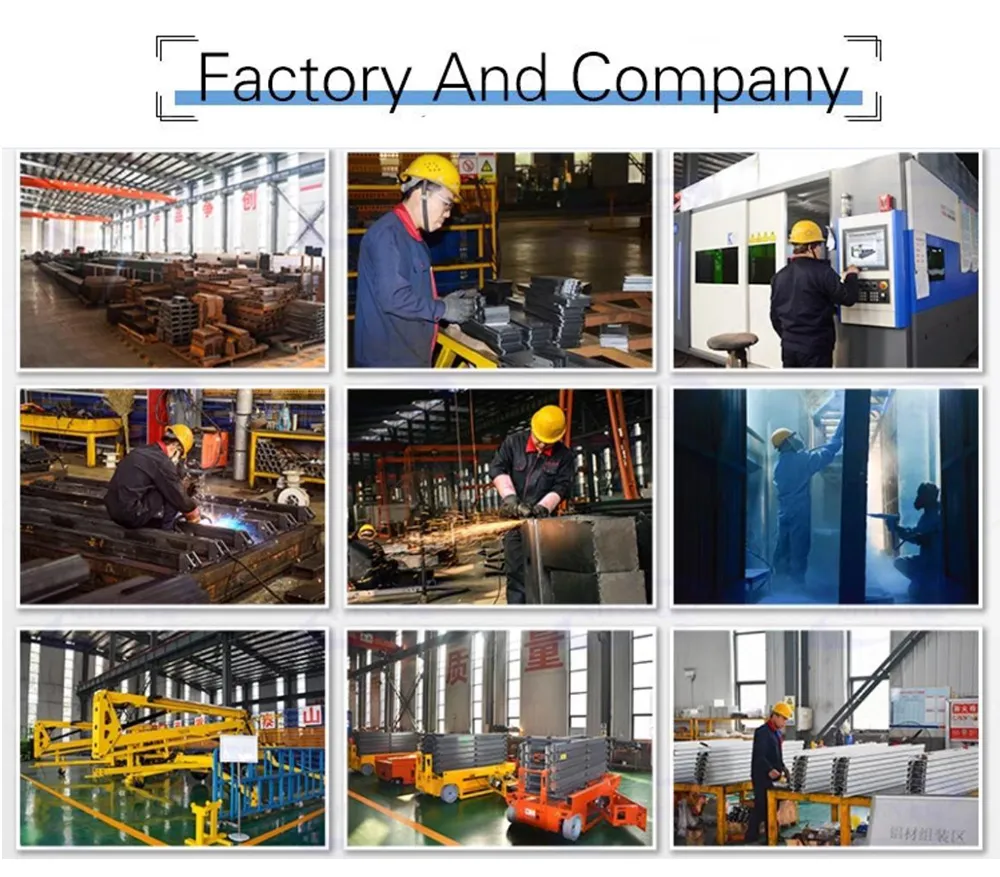

As a leading manufacturer of hydraulic lifting platforms, the facility utilizes advanced production equipment and a strong technical force. The integration of high-quality hydraulic pump stations and explosion-proof devices ensures superior stability and simple maintenance.

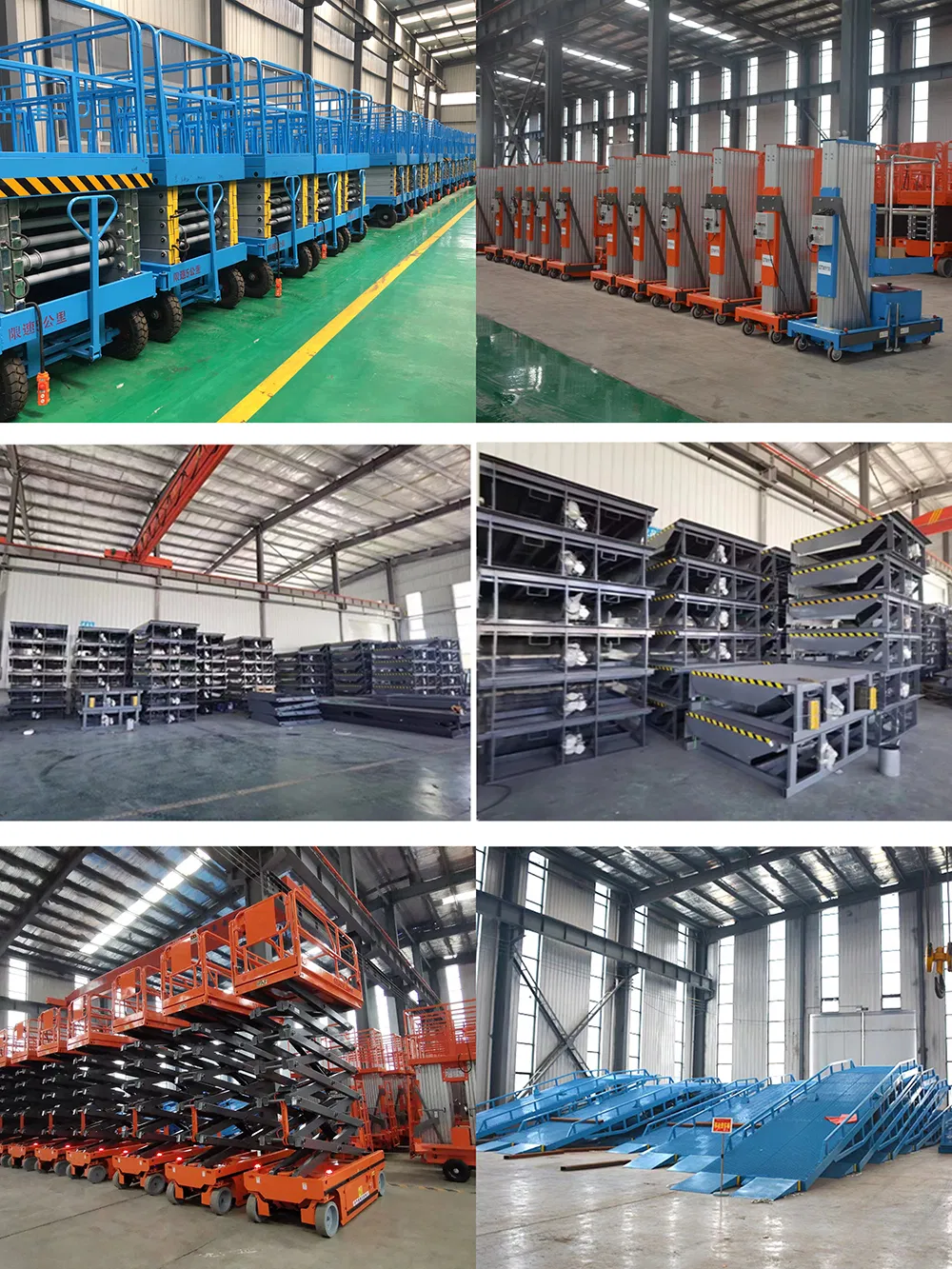

Products are widely used in plant maintenance, industrial installation, property management, aviation, and chemical industries. Our lineup includes scissor lifts, aluminum alloy mast lifts, boom lifts, and dock levelers, all meeting rigorous industry standards across 150+ countries.
