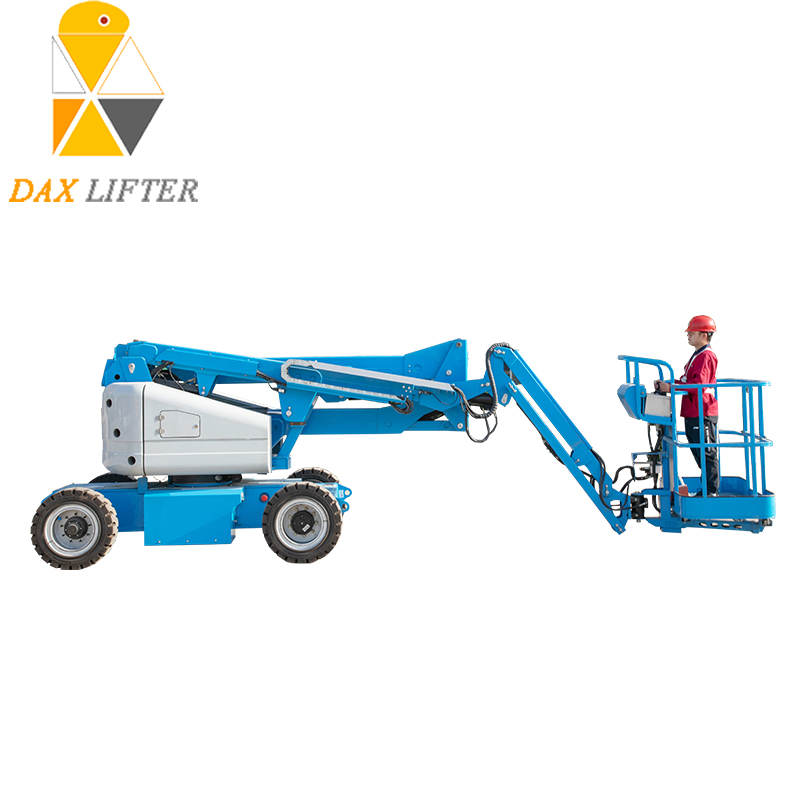

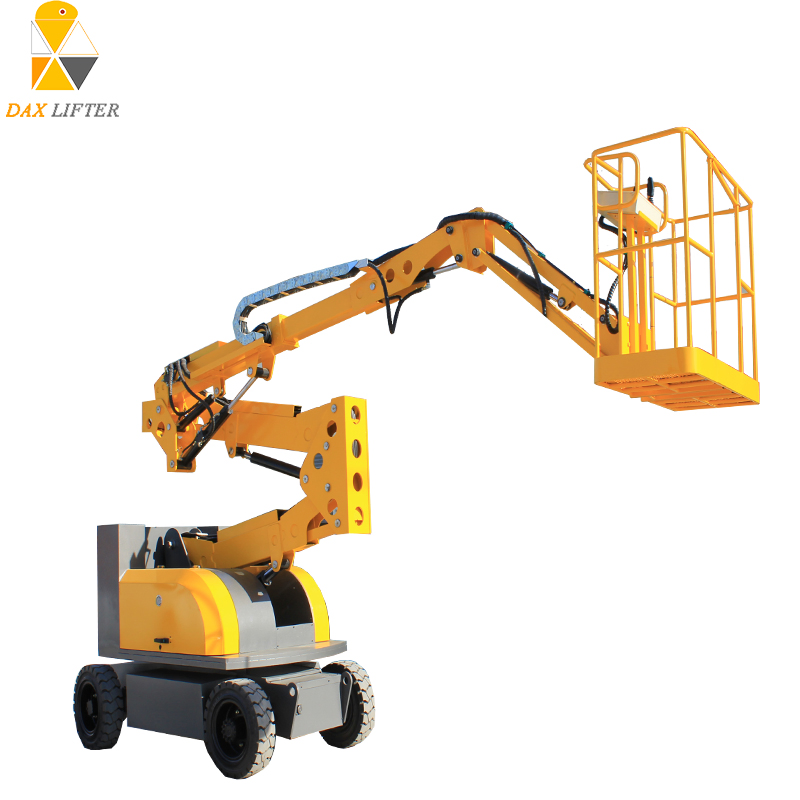

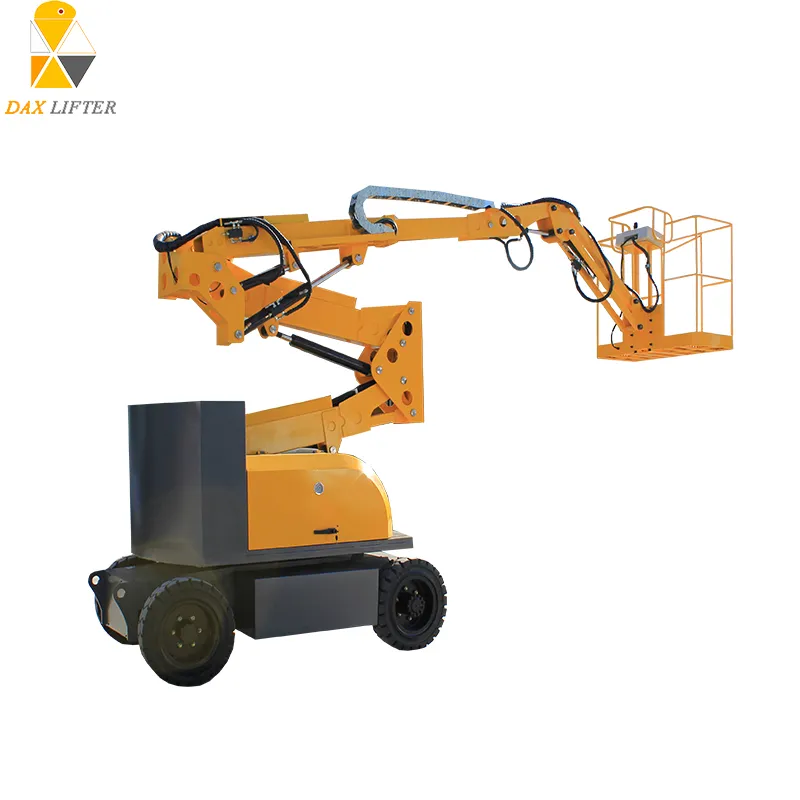

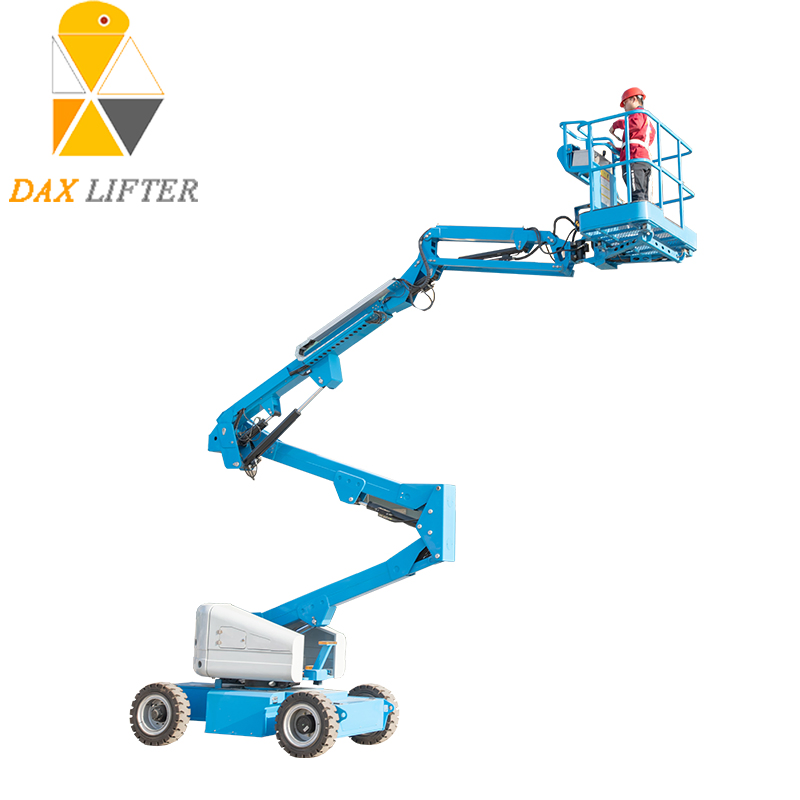

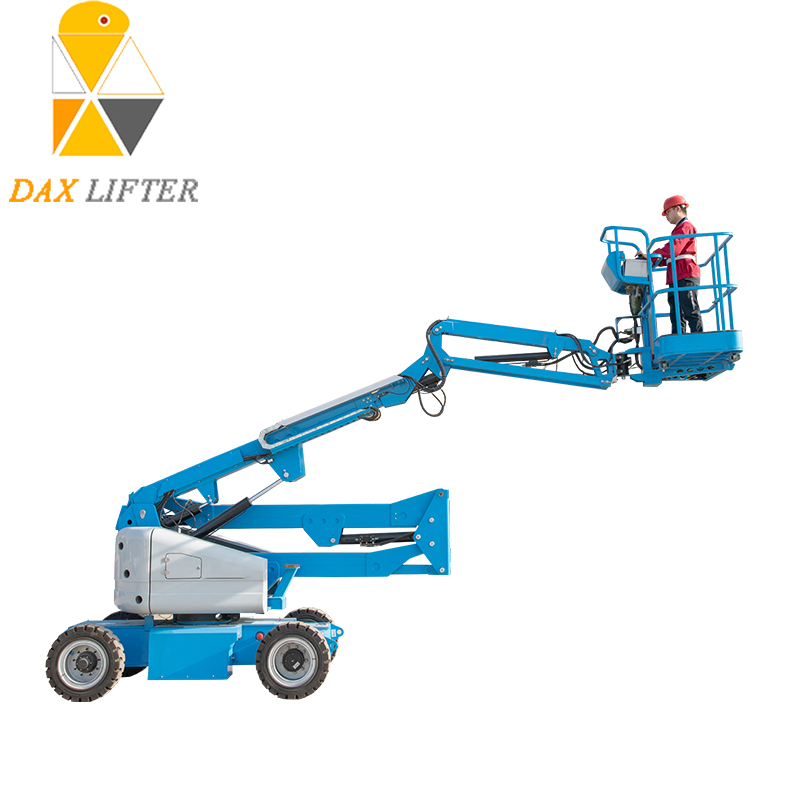

14-25m Articulated Self-propelled Aerial Working Platform Boom Lift (OEM & ODM SERVICE)
The self-propelled articulated boom lift is a highly versatile aerial work lifting equipment essential for urban construction and various industrial fields. Unlike manual push lifts, this self-propelled platform can traverse the job site independently during high-altitude operations, significantly enhancing efficiency. It requires only one operator on the platform to navigate between work areas.
A key safety feature is the automatic speed adjustment: the walking speed adapts based on the platform's height to ensure stability and operator safety. These machines are extensively utilized in construction, shipbuilding, bridge work, airports, ports, and outdoor advertising projects.
| Model | DXABL-8 | DXABL-10 | DXABL-14 | DXABL-18 | DXABL-20 | DXABL-24 | DXABL-28 | DXABL-30 |
|---|---|---|---|---|---|---|---|---|
| Platform height | 8m | 10m | 14m | 18m | 20m | 24m | 28m | 30m |
| Working height | 10m | 12m | 16m | 20m | 22m | 26m | 30m | 32m |
| Load | 230kg | 230kg | 230kg | 230kg | 230kg | 200kg | 200kg | 200kg |
| Platform size (m) | 1.5*0.65 | 1.5*0.65 | 1.53*0.78 | 1.88*0.78 | 1.88*0.78 | 1.88*0.85 | 1.88*0.85 | 1.88*0.85 |
| Working radius | 5.3m | 5.8m | 8m | 10.6m | 11.7m | 12.5m | 13.2m | 18.2m |
| Overall Length | 5.3m | 5.8m | 8m | 10.6m | 11.7m | 12.5m | 13.2m | 13.6m |
| Overall Width | 1.65m | 1.65m | 1.93m | 2.2m | 2.25m | 2.6m | 2.8m | 2.8m |
| Weight | 4900kg | 5800kg | 6900kg | 9200kg | 11000kg | 14200kg | 18200kg | 21000kg |
