📊 Product Description

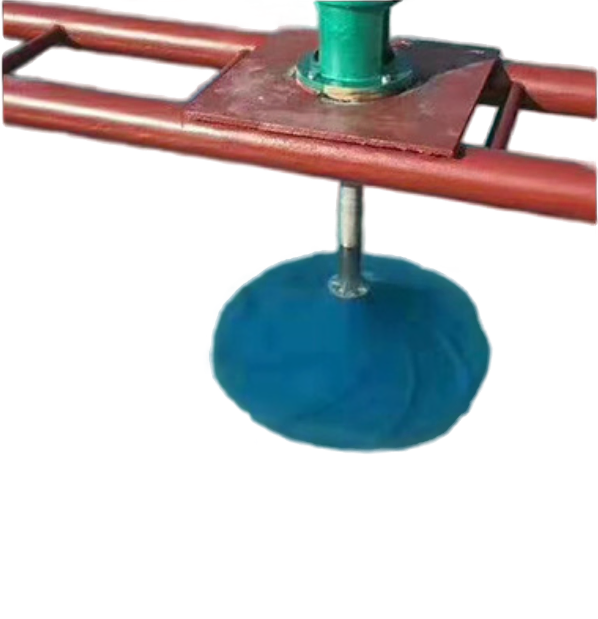

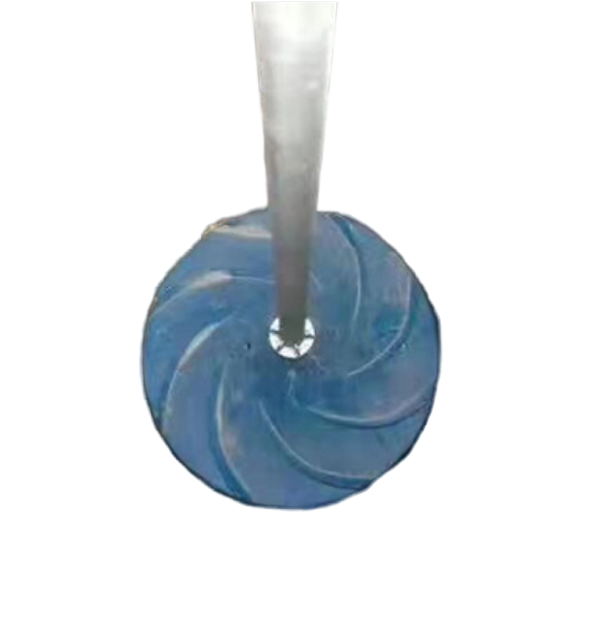

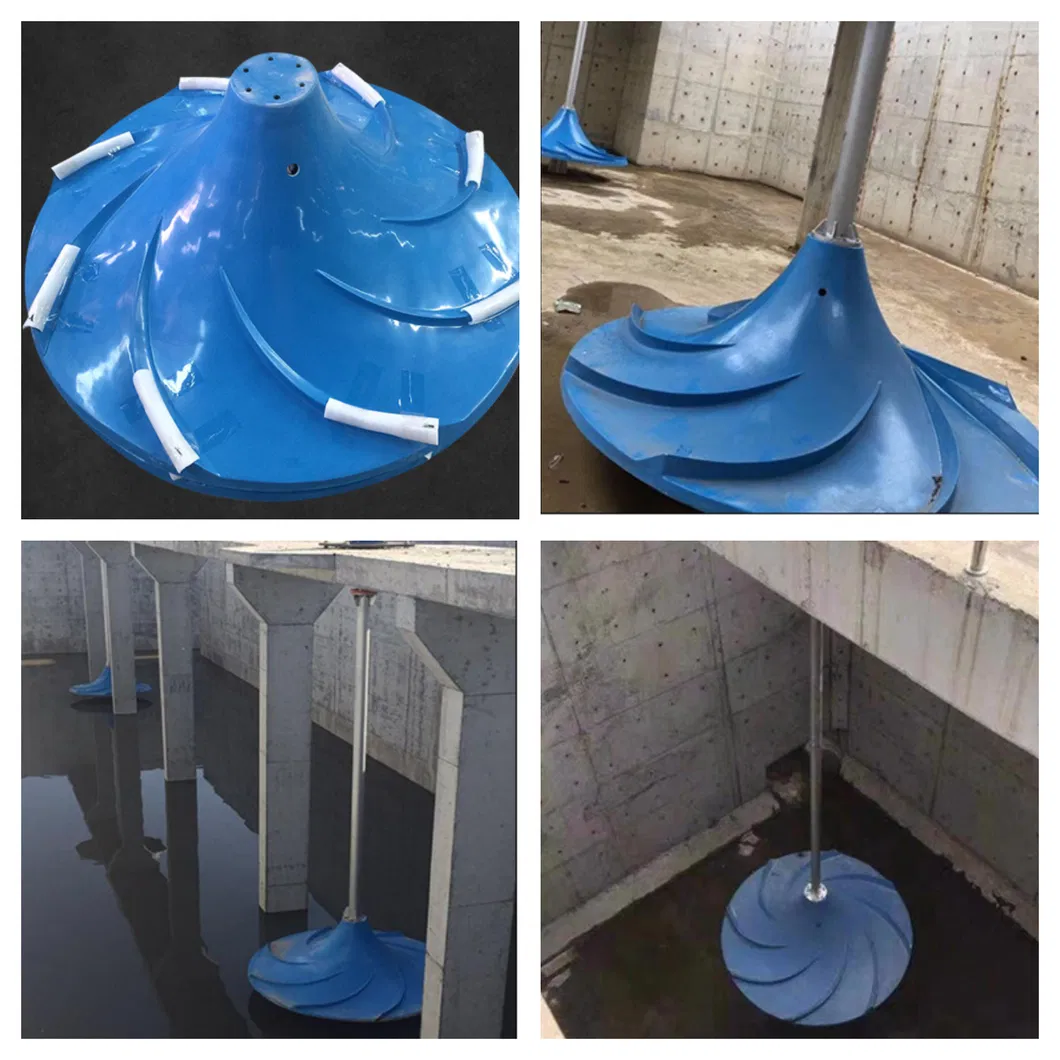

Introducing the QSJ/GSJ series hyperbolic mixer, a marvel of engineering. This mixer embodies versatility at its finest, making a substantial impact across a wide array of industries, including environmental protection, chemical engineering, energy, and light industry. It is meticulously designed to excel in scenarios requiring a seamless blend of solid, liquid, and gas with liquids. This mixer is undeniably a game-changer in sewage treatment processes, playing a crucial role in coagulation tanks, regulating tanks, and both anaerobic and nitrification-denitrification tanks, ensuring unparalleled efficiency and reliability.

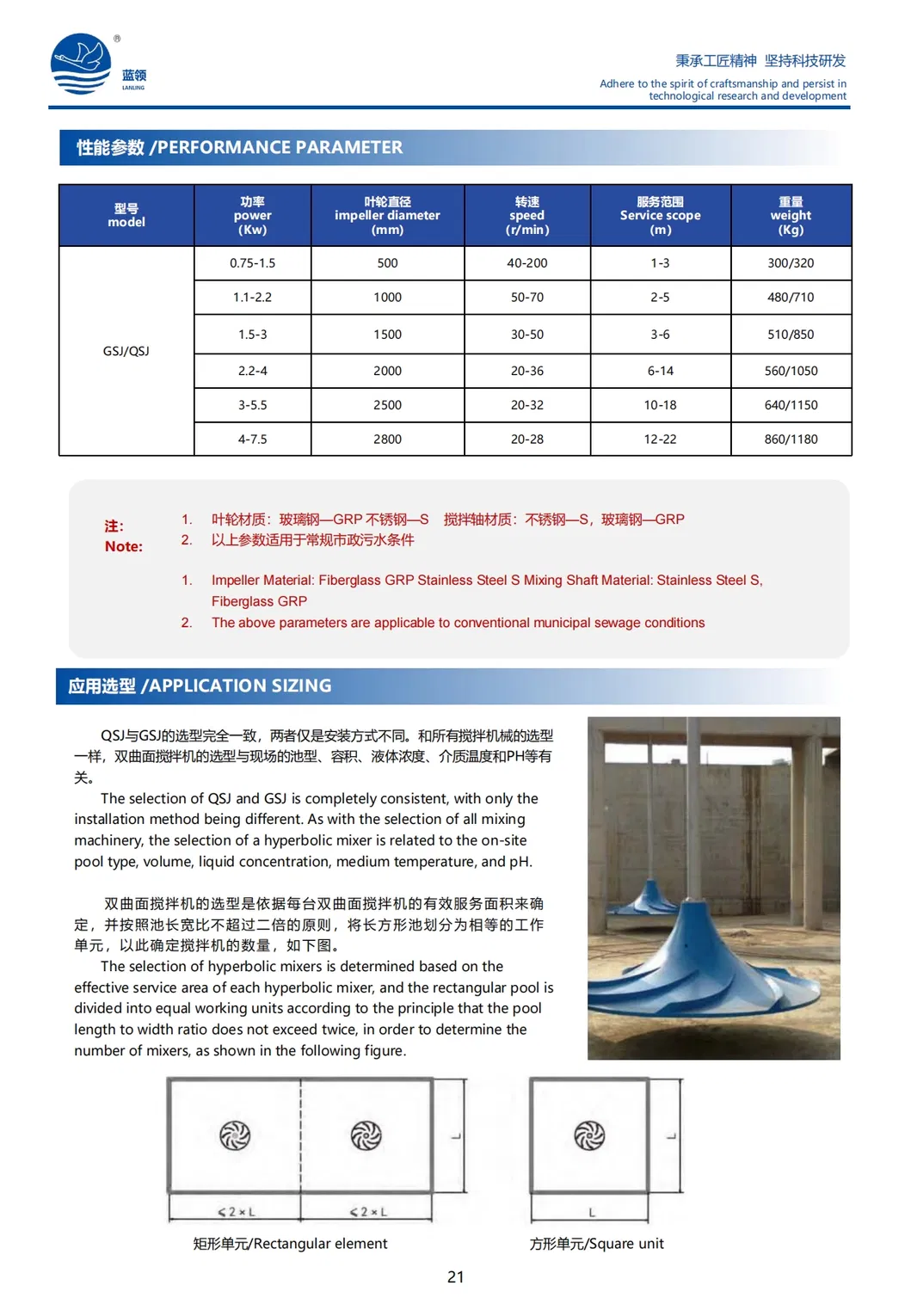

⚙ Performance Parameters
| Model |
Power (kW) |
Impeller Dia (mm) |
Speed (r/min) |
Service Scope (m) |
Weight (kg) |
| GSJ/QSJ |
0.75-1.5 |
500 |
40-200 |
1-3 |
300/320 |
| 1.1-2.2 |
1000 |
50-70 |
2-5 |
480/710 |
| 1.5-3 |
1500 |
30-50 |
3-6 |
510/850 |
| 2.2-3 |
2000 |
20-36 |
6-14 |
560/1050 |
| 3-5.5 |
2500 |
20-32 |
10-18 |
640/1150 |
| 4-7.5 |
2800 |
20-28 |
12-22 |
860/1180 |
Note:

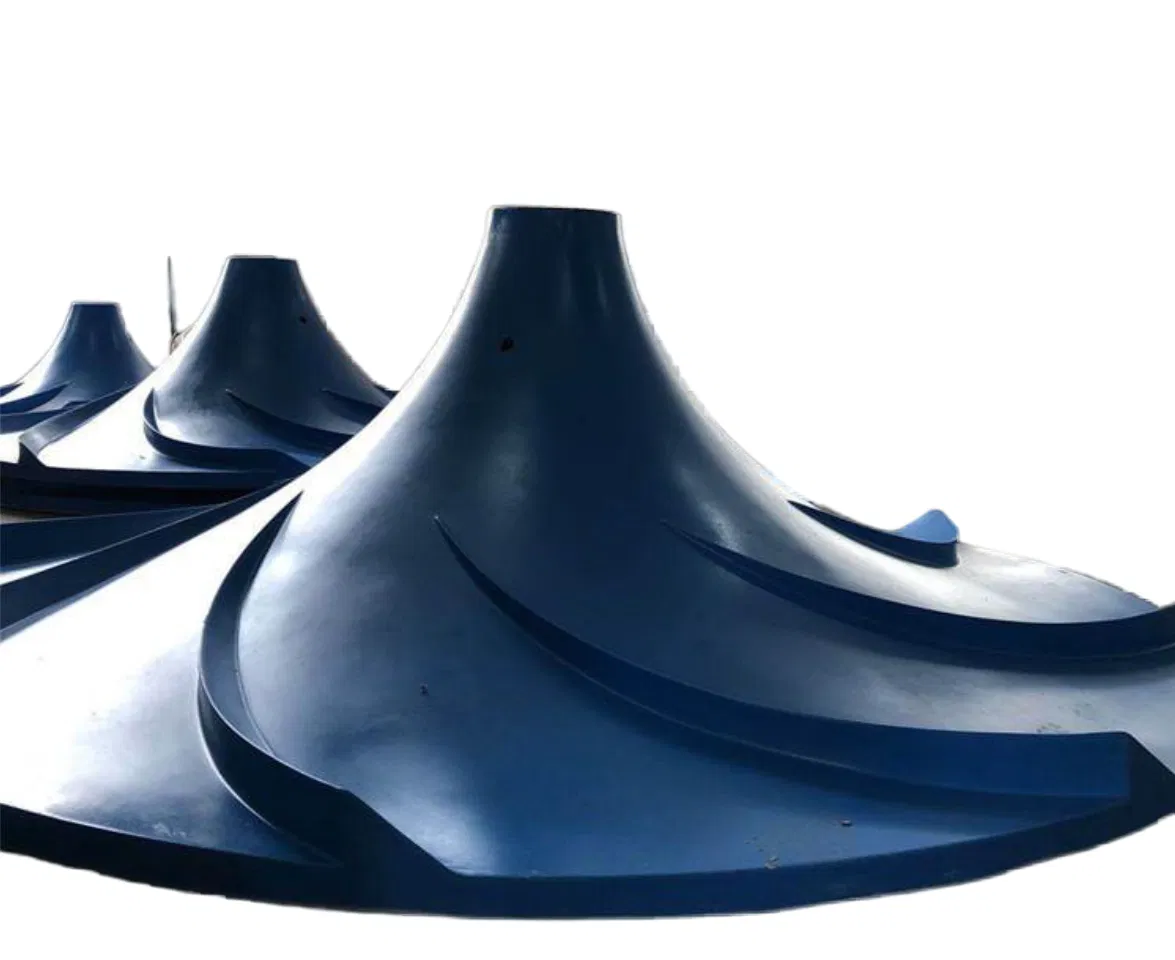

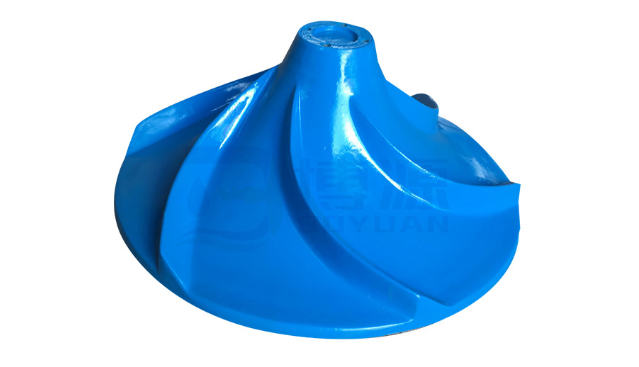

1. Impeller Material: FRP - GRP, Stainless Steel - S
Stirring Shaft Material: Stainless Steel - S, FRP - GRP
2. The above parameters are suitable for conventional municipal sewage conditions.
Frequently Asked Questions
What are the primary applications of the QSJ/GSJ hyperbolic mixer?

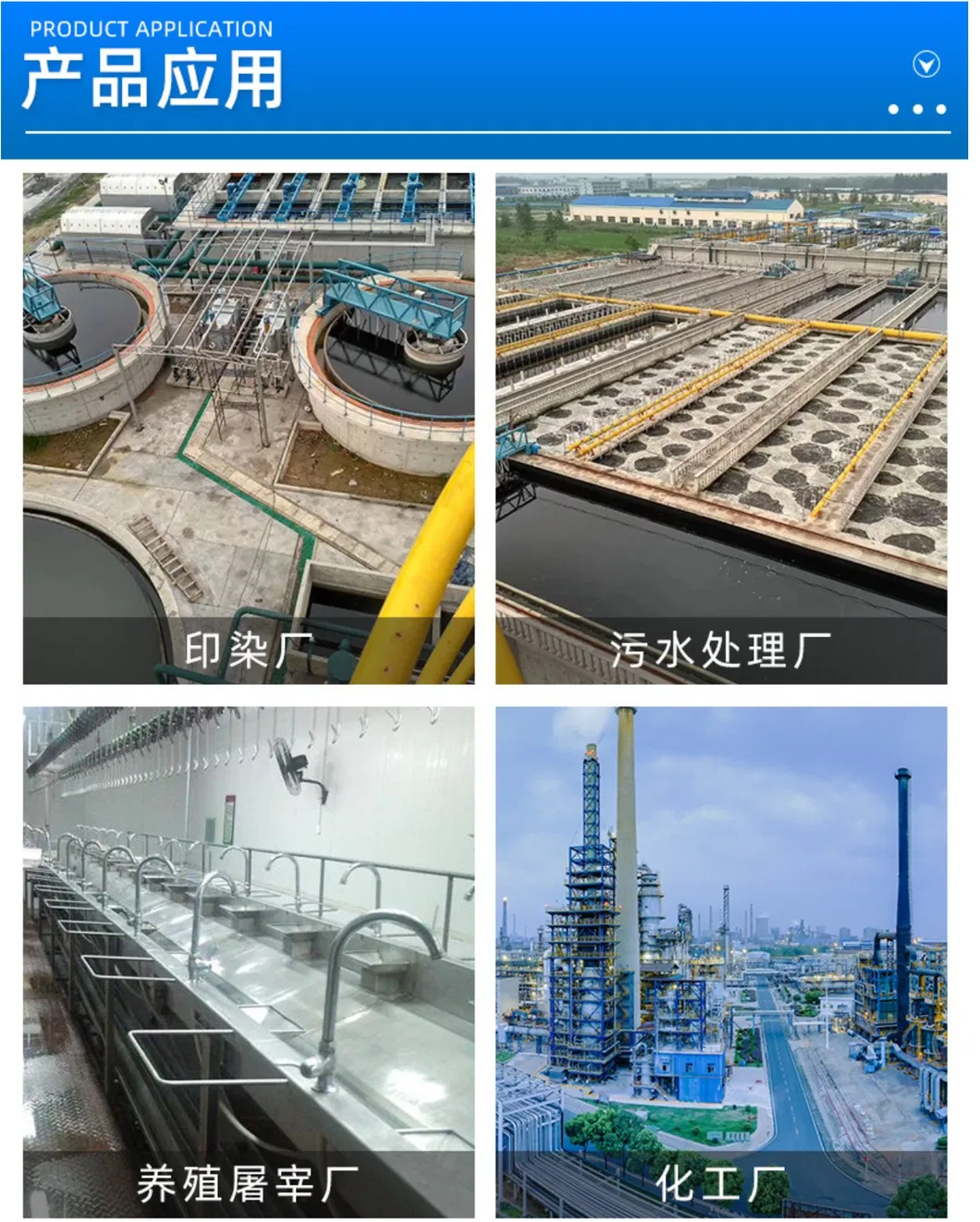

The QSJ/GSJ series is widely used in environmental protection, chemical engineering, and energy industries. It is particularly effective in sewage treatment for coagulation tanks, regulating tanks, and anaerobic or nitrification-denitrification processes.
What materials are available for the impeller and stirring shaft?
The impeller and stirring shaft are available in high-quality materials including Fiber Reinforced Plastic (FRP/GRP) and Stainless Steel (S), ensuring durability in various municipal and industrial sewage conditions.
What is the service scope range for these mixers?
Depending on the model selected, the service scope ranges from 1 meter for smaller units up to 22 meters for high-capacity models like the GSJ/QSJ-2800.
Can these mixers handle solid-liquid-gas blending?
Yes, they are meticulously designed to provide a seamless blend of solids, liquids, and gases within a liquid medium, ensuring unparalleled efficiency in complex treatment scenarios.

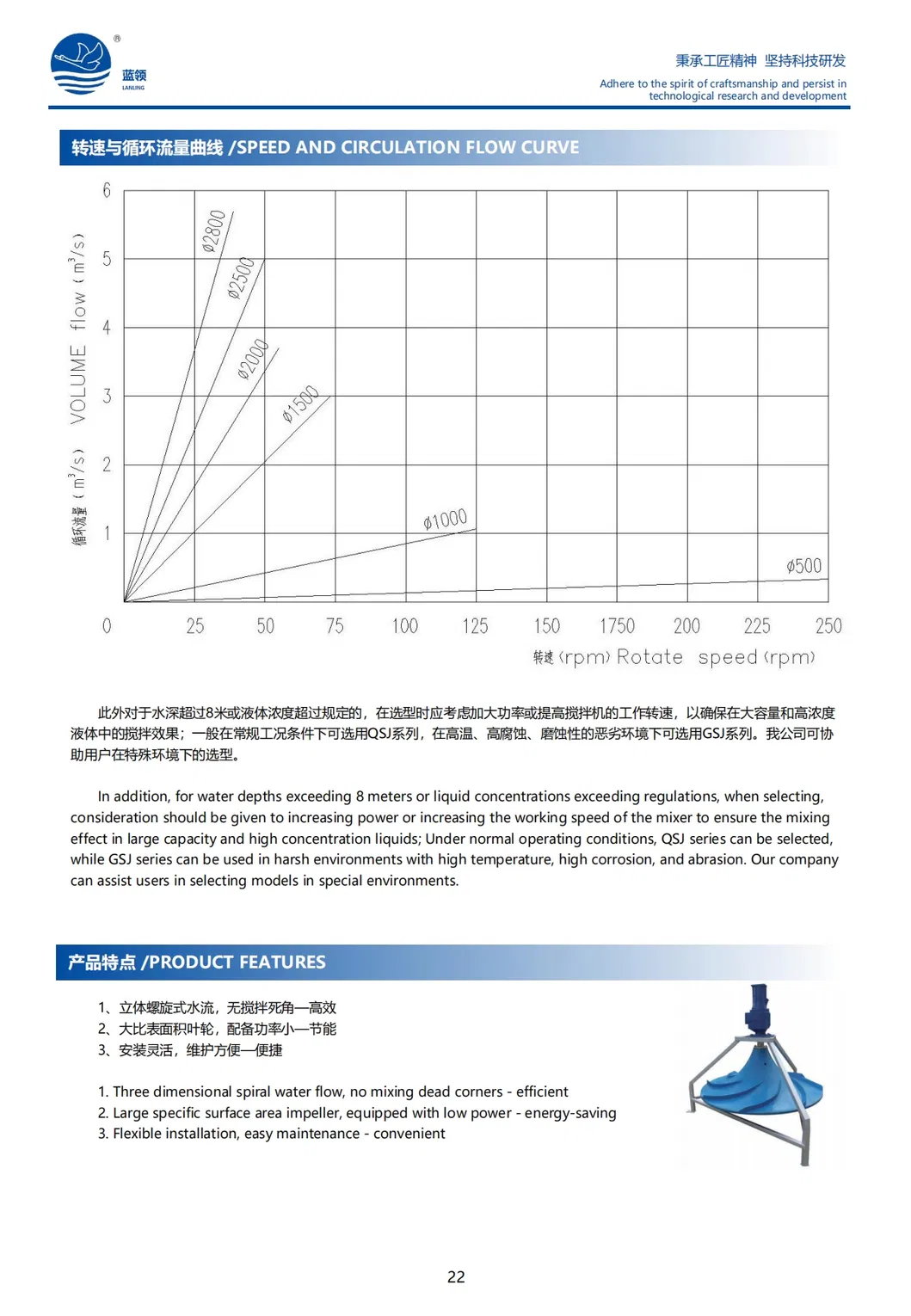

What is the typical rotation speed for the hyperbolic mixer?
The rotation speed varies by model size, starting from high speeds of 40-200 r/min for smaller impellers (500mm) down to 20-28 r/min for the largest units (2800mm).

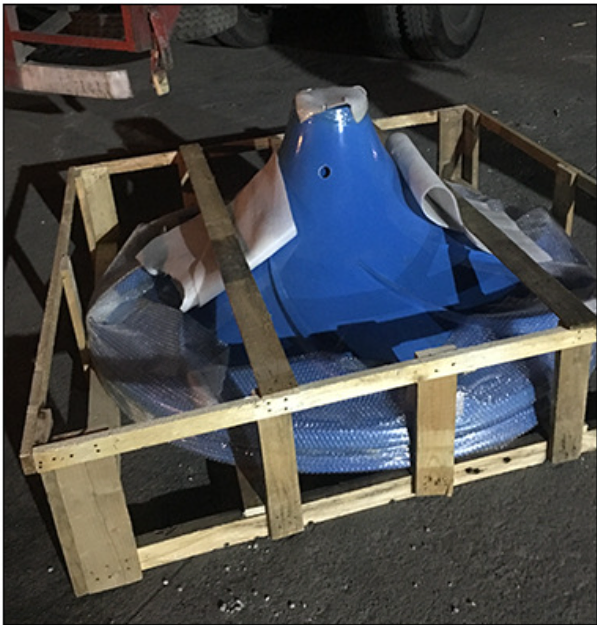

Are the units shipped securely?

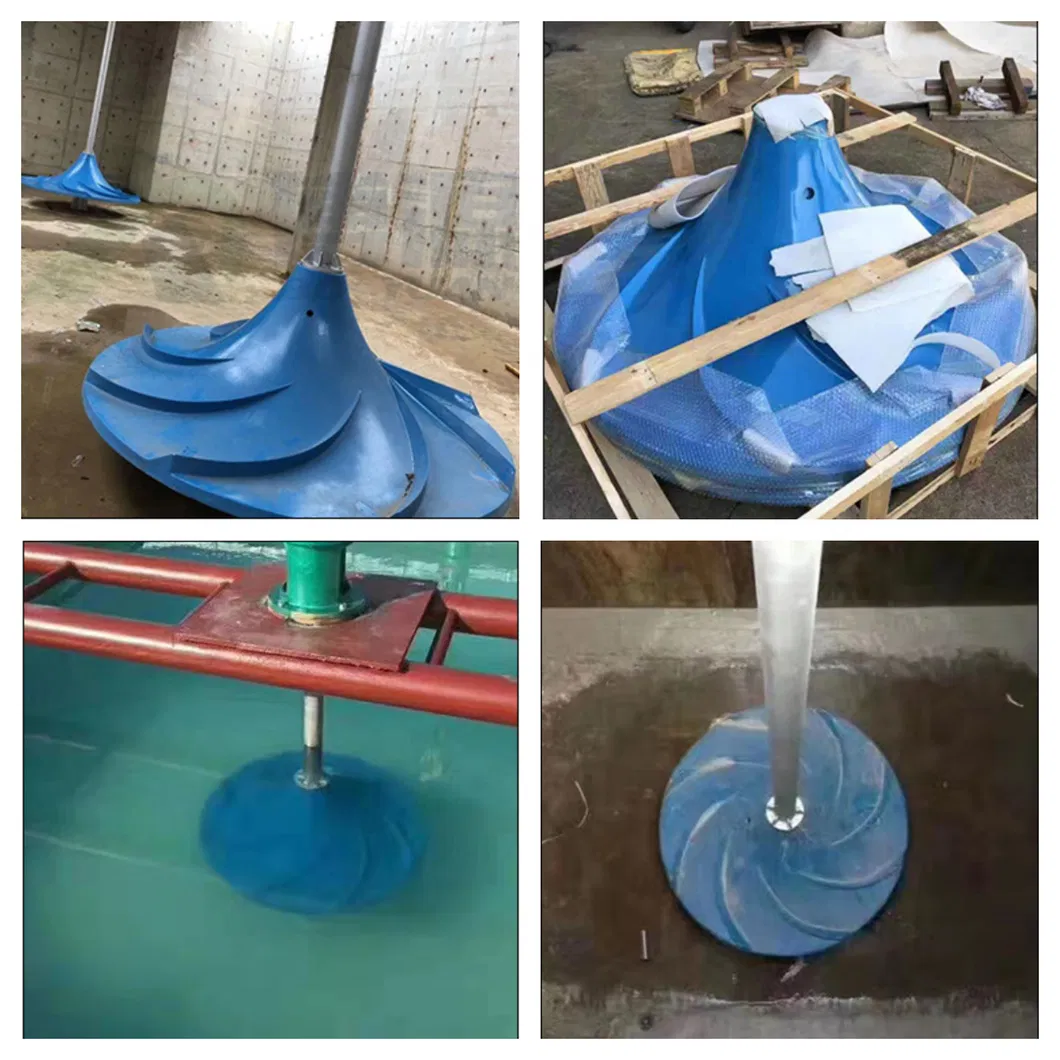

Yes, all products are packed in sturdy wooden cases to ensure maximum protection during transportation and shipping.
