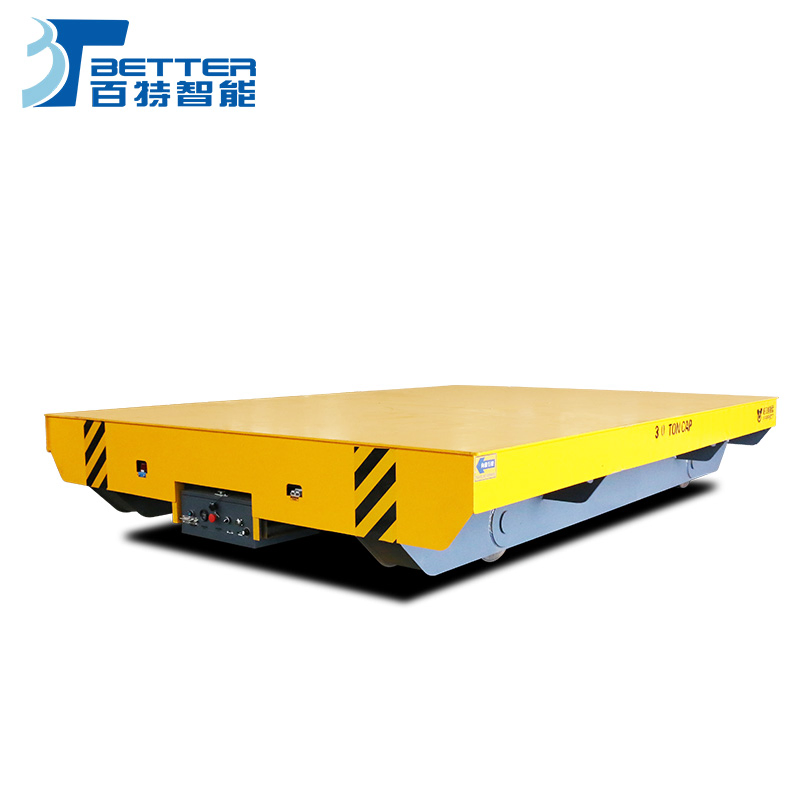

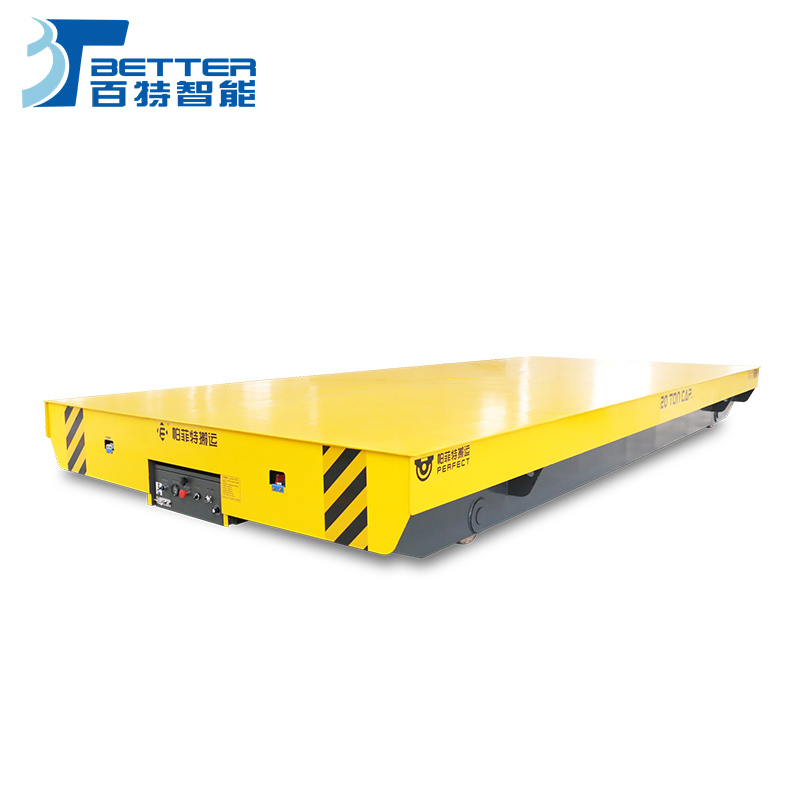

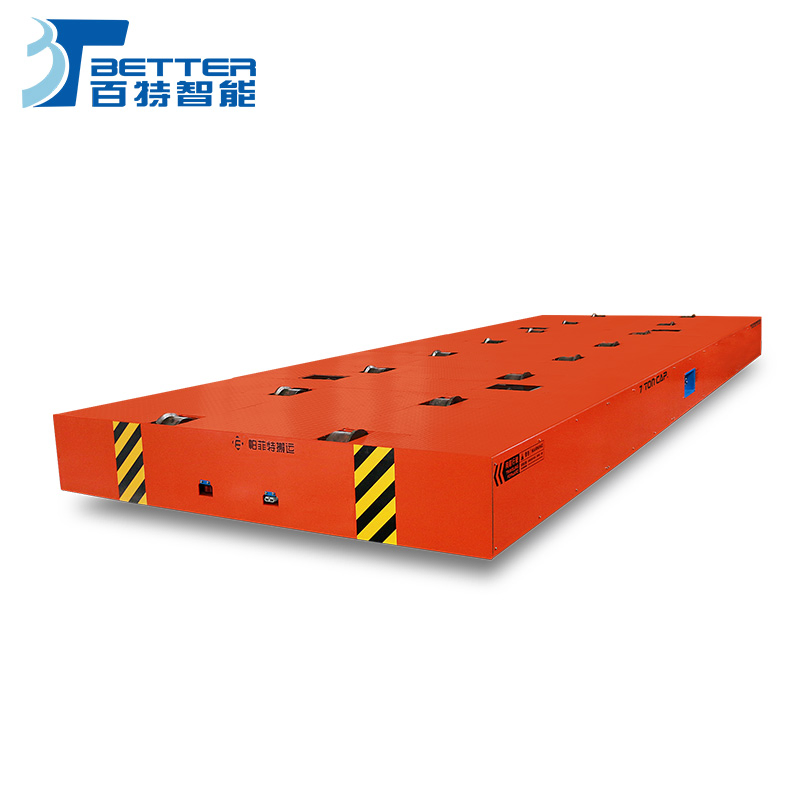

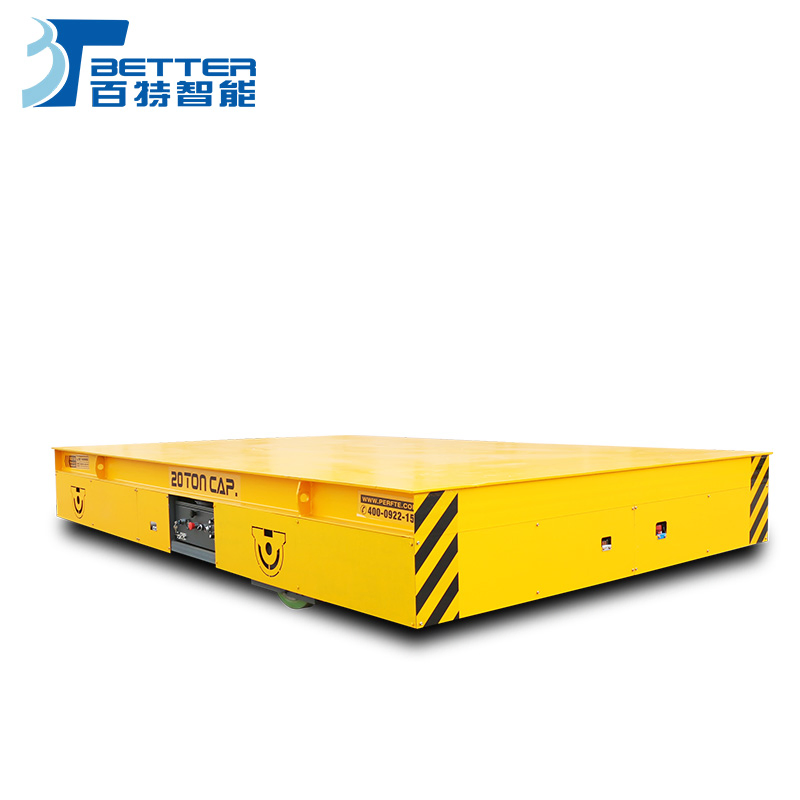

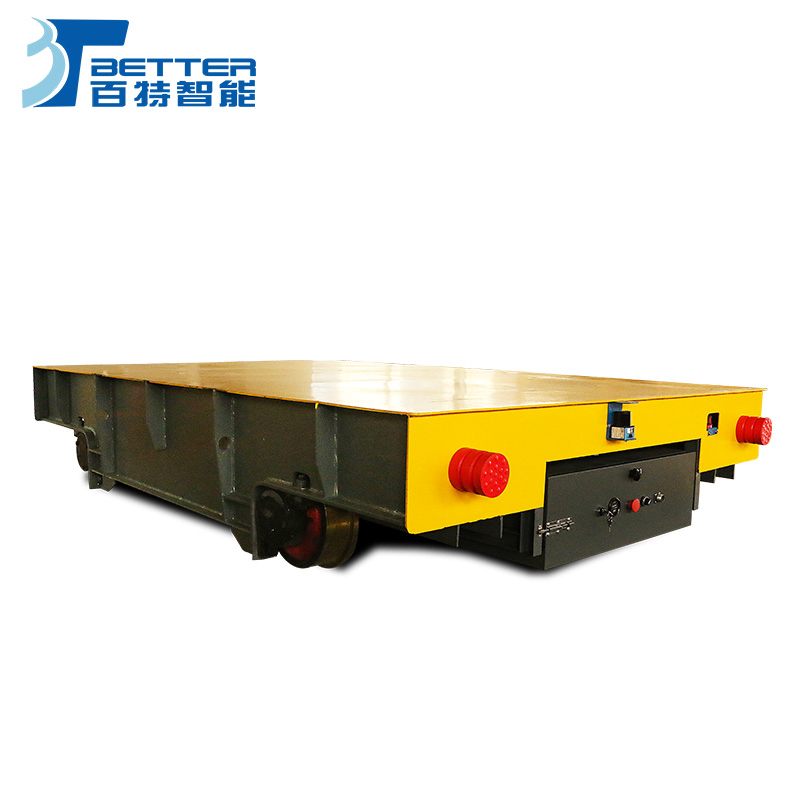

Heavy Duty Self-Propelled Platform of Automated Transfer Equipment

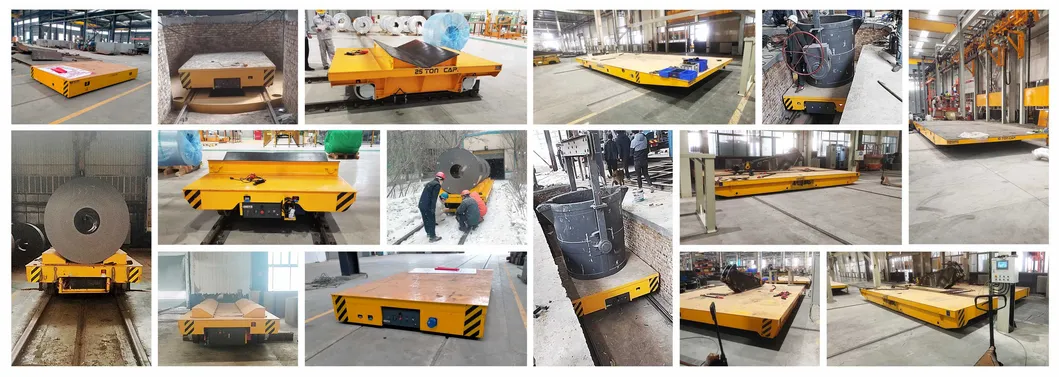

This heavy duty transfer equipment is a premier material handling tool designed for heavy industrial transportation. With a load capacity reaching up to 300 tons, it is a popular solution for heavy-duty cargo movement. This electric flatbed transfer equipment can be customized with specific features, such as flexible turning systems for narrow spaces, increasing efficiency while reducing labor costs. It is ideal for transporting heavy cargo within warehouses, goods inspection, machine adjustment, and maintenance tasks.
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
|---|---|---|---|---|---|---|
| Rated Load (t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size (mm) | Length (L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width (W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Height (H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base (mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Running Speed (m/min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Voltage (V) | 24 | 48 | 48 | 72 | 72 | |
Ensures a quiet working environment with minimal decibel levels during operation.
Guarantees protection for both operators and handled materials with integrated safety protocols.
Intuitive driving systems allow for immediate use upon delivery for efficient load transport.
Operates on standard floors without the need for complex or permanent installations.
Standard transportation utilizes 20ft or 40ft containers depending on dimensions. For lengths exceeding 12m or widths beyond 2.2m, flat rack containers or bulk cargo shipping are implemented to ensure safe delivery.
