Product Description

ℹ️

Basic Specifications

Model NO.

GL-LD

Carrying Capacity

Weight Level

Driven Type

Feature

Explosion-Proof, Insulating

Certification

GS, CE, RoHS, ISO 9001

Load Capacity

100kg to 800kg

Lifting Height

1.5m to 3.5m (Customizable)

Suction Caps

4 / 6 / 8 PCS (Customizable)

Hydraulic Motor

24V/2000W

Battery

2X12V/70ah to 2X12V/160ah

Working Principle

Hydraulic Lifting and Vacuum Sucking

HS Code

8428909090

🛠️

Product Description

Electric Power Hydraulic Automatic Vacuum Lifter

The hydraulic vacuum lifter is specially designed for handling different kinds of heavy plates, such as steel, glass, granite, and marble, using advanced vacuum suction caps.

We offer two standard series to meet various industrial demands:

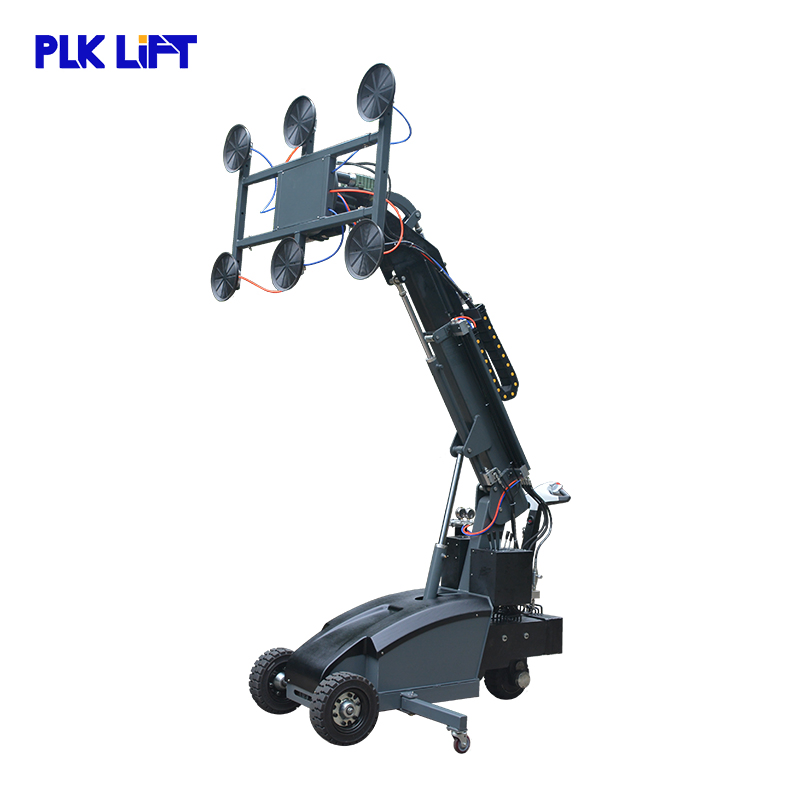

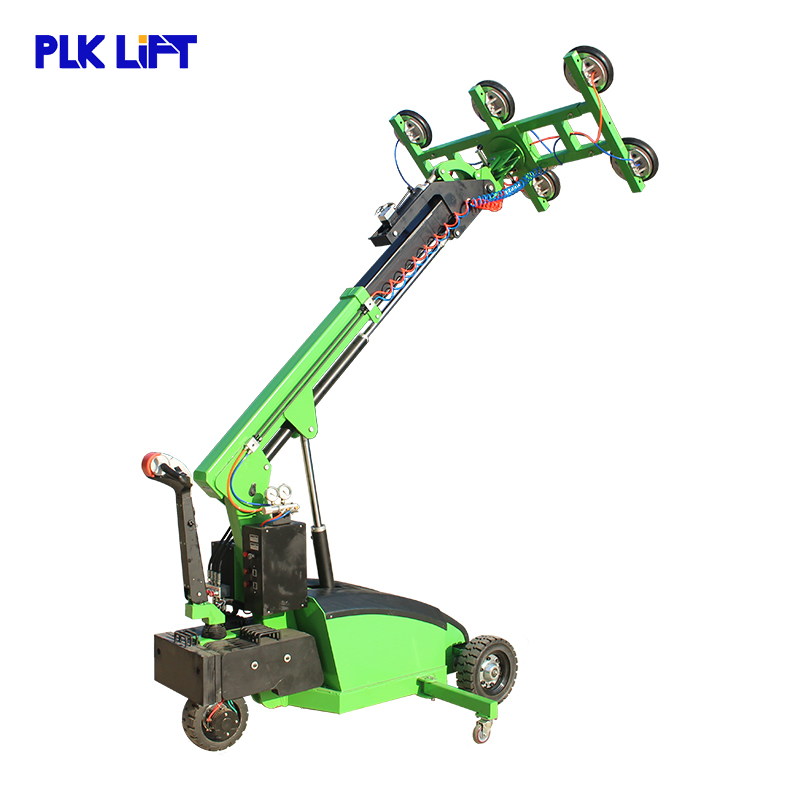

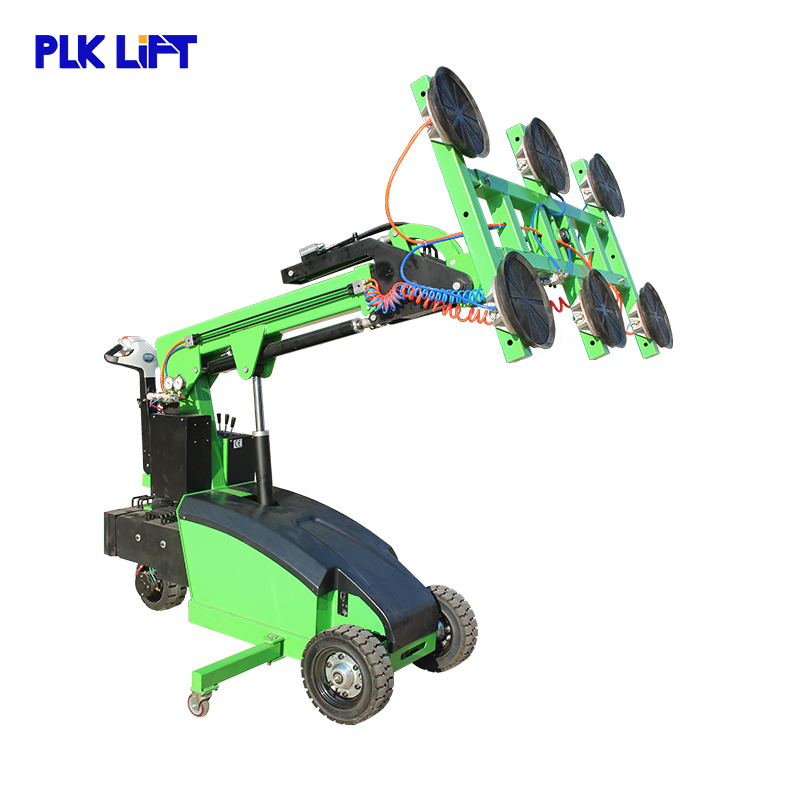

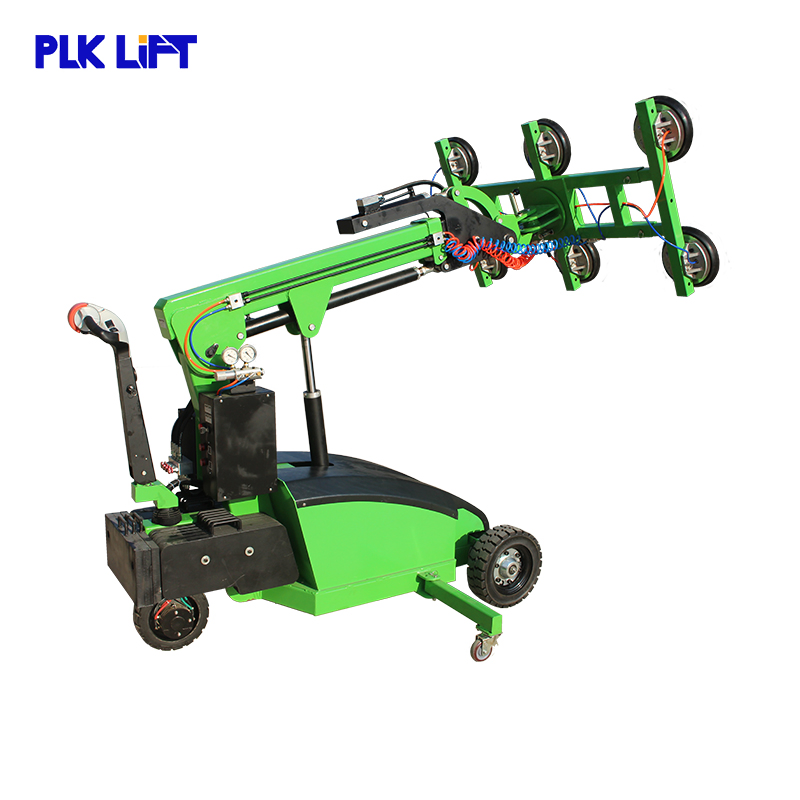

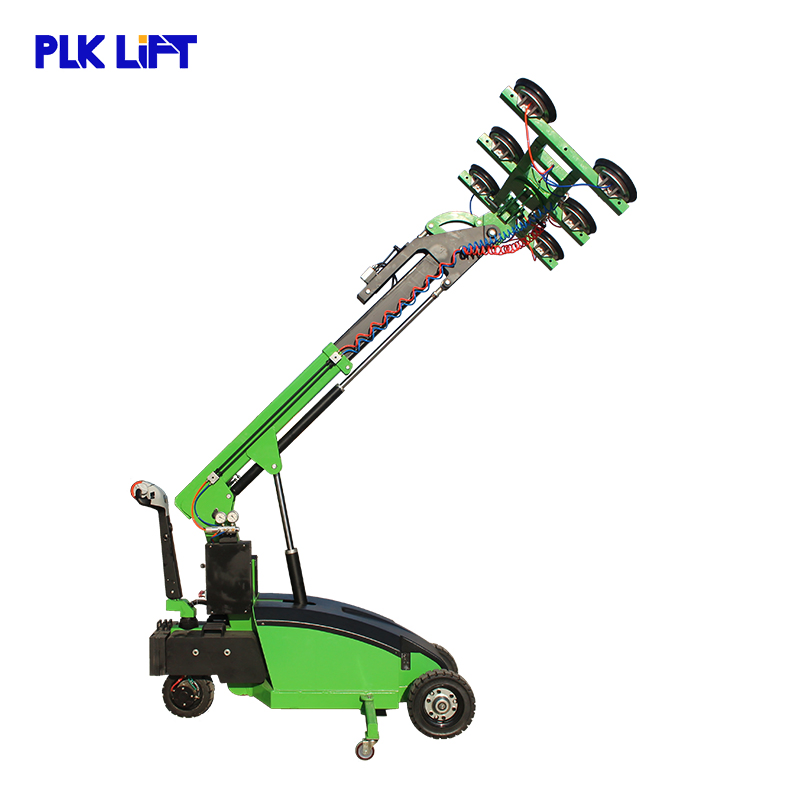

GL-LD Series: Features a boom arm reaching up to 3.6m (customizable to 4m). It offers 360° rollover and 180° tilt, making it ideal for installing windows, doors, and heavy panels.
GL-HD Series: Built on a floor crane chassis, ideal for workshop use. It is commonly used to move heavy panels to CNC machines for cutting and processing.

📊

LD Series Specifications

Model Type	GL-LD-350	GL-LD-600
Loading Capacity	350kg (retract) / 175kg (extend)	600kg (retract) / 300kg (extend)
Lifting Height	3500mm	3500mm
Battery	2x12V/100AH	2x12V/120AH
Drive Motor	24V/600W	24V/900W
Hydraulic Power	24V/2000W/5L	24V/2000W/5L
Cap Diameter	Ø250mm/300mm	Ø250mm/300mm

📊

HD Series Specifications

Model	GL-HD-8015(6)	GL-HD-8025(8)	GL-HD-6015	GL-HD-4015
Max. Load	800kgs	800kgs	600kgs	400kgs
Lifting Height	1500mm	2500mm	1500mm	1500mm
QTY of Caps	6pcs	8pcs	4pcs	4pcs
Cap Diameter	Ø300mm	Ø300mm	Ø300mm	Ø300mm
Drive Motor	24V/900W	24V/900W	24V/700W	24V/500W
Battery	2x12V/160Ah	2x12V/160Ah	2x12V/100Ah	2x12V/70Ah

⭐

Key Advantages

✔Integrated control system for automatic vertical and horizontal positioning.

✔Reliable DC24V actuators for efficient lifting, extension, and tipping.

✔Self-propelling design with multiple circuit vacuum suction safety.

✔High anti-corrosion finish via shot blasting and stoving varnish.

✔High-quality pump station for stable lifting and descending.

✔Heavy-duty cylinders with check valves to prevent accidental lowering.

✔Overload protection with pressure relief and flow control valves.

✔Simple structure for easy operation and minimal maintenance.

🖼️

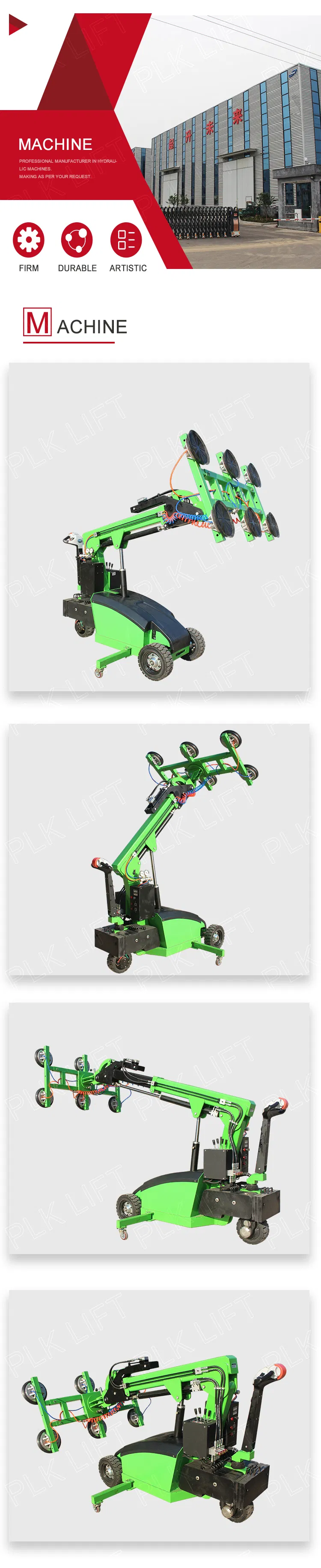

Product Gallery

❓

Frequently Asked Questions

What materials can this vacuum lifter handle?

It is specifically designed for various smooth, non-porous heavy plates including glass, steel, marble, granite, and insulated panels.

What is the difference between the LD and HD series?

The GL-LD series is designed for high-reach installation tasks (up to 4m) with a flexible boom, while the GL-HD series is more suitable for warehouse material handling and CNC machine feeding.

Is the suction cup configuration customizable?

Yes, both the quantity of suction caps (4, 6, 8, etc.) and the diameter of the caps can be customized to match your specific load requirements.

How is the equipment powered?

The system is powered by a DC 24V battery system, featuring high-quality motors for both driving and hydraulic functions, and comes with an integrated charger.

What safety mechanisms are in place?

Safety features include check valves to prevent falling in case of hose failure, pressure relief valves to prevent overloading, and dual-circuit vacuum systems for secure attachment.

Can the machine perform rotational movements?

Yes, the LD series boom arm is highly flexible, supporting 360° rollover and 180° tilt for precise positioning during installation.
