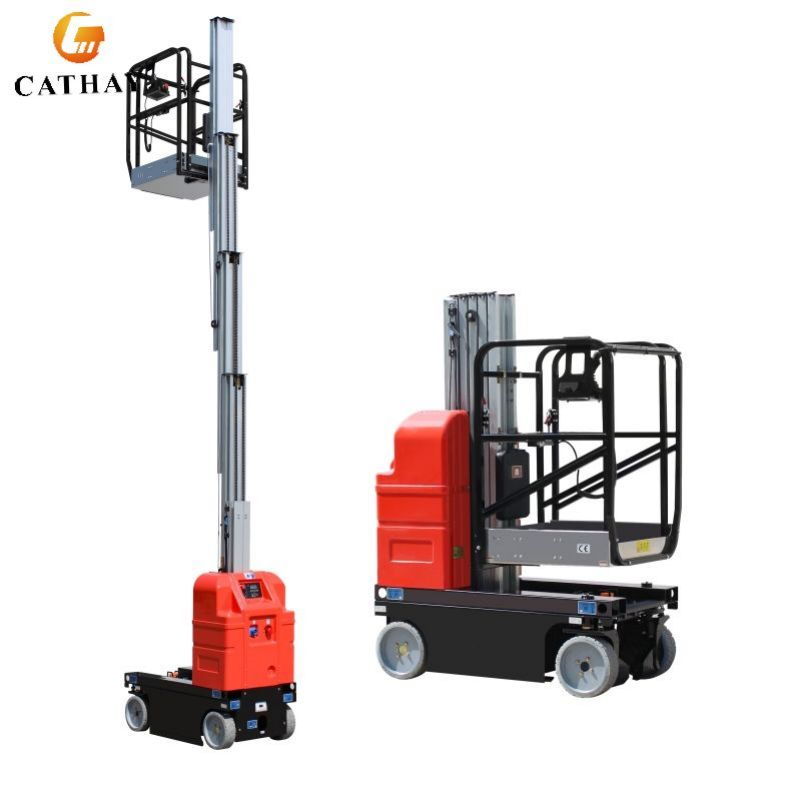

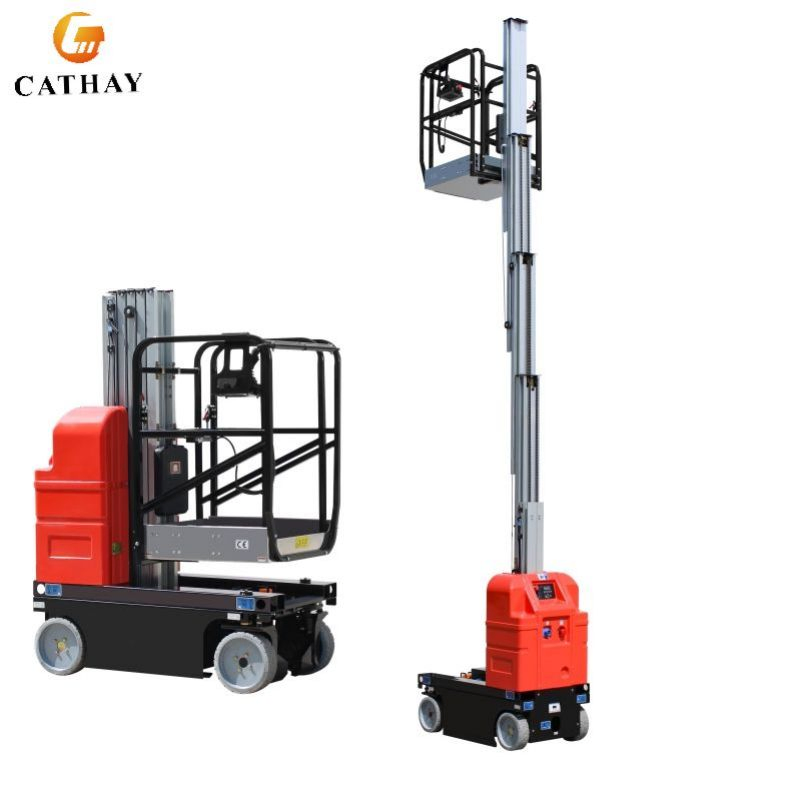

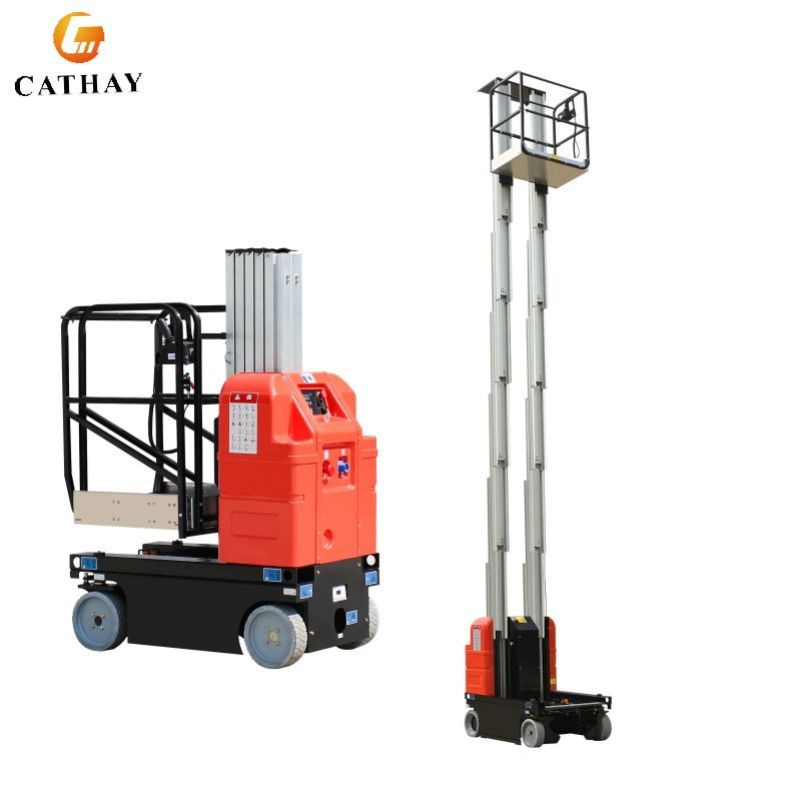

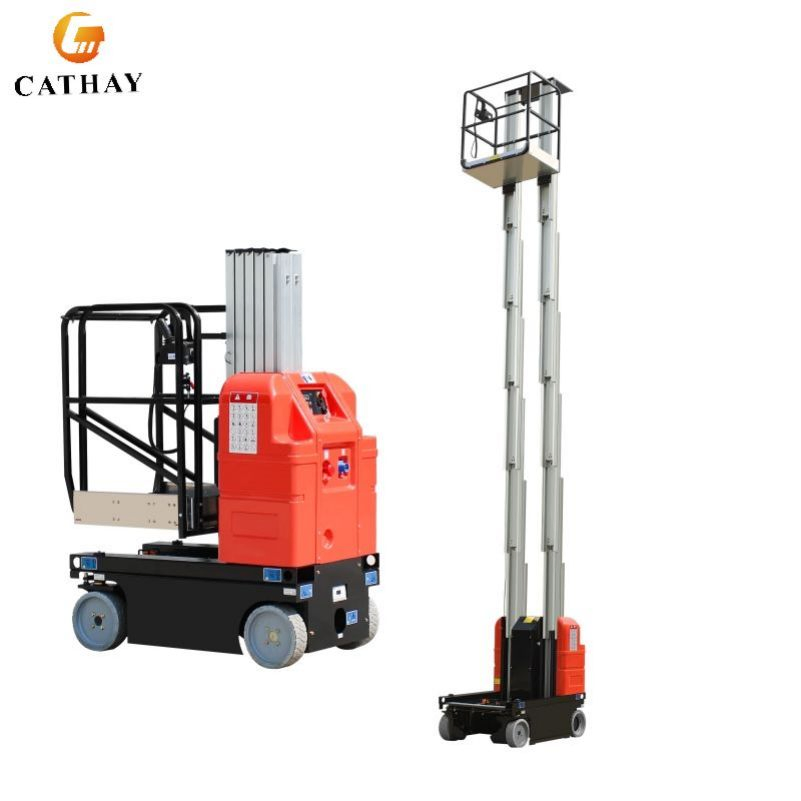

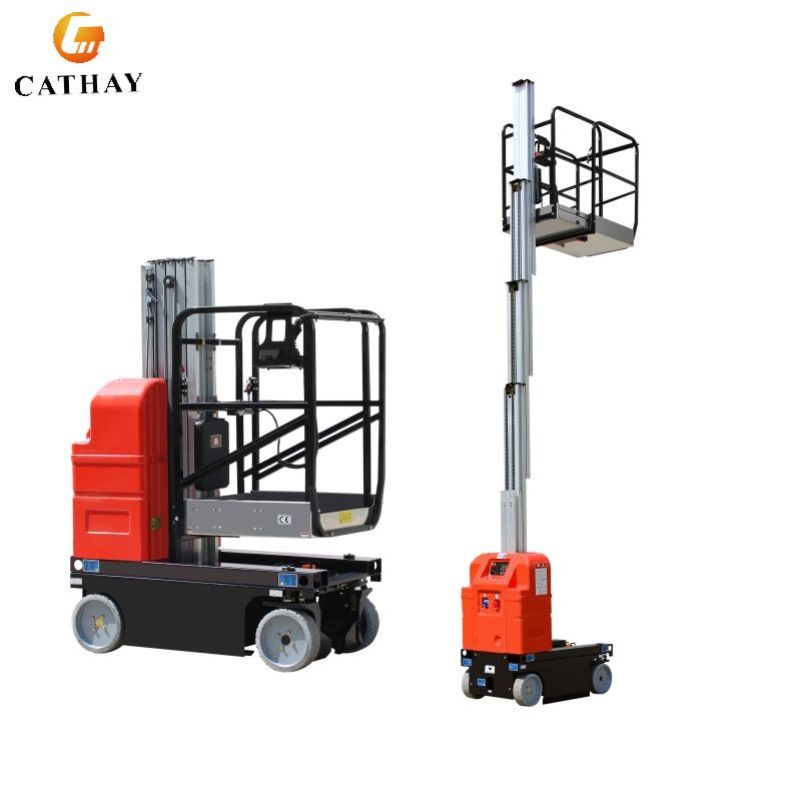

Popular Electric Mast Ladder Aluminum Moving Lifting Equipment with CE

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

6m 7.5m 9m Portable Powered Battery Operated Drivable Vertical Mast Hydraulic Aluminum Alloy Lift

OEM & ODM & OBM

Basic Information

Model NO.

CR-6, CR-7.5, CR-7.5D, CR-9D

Application

Workshop, Shipboard, Warehouse, Building

Lift Mechanism

Vertical Mast Lift

Moves

Self-propelled

Driven Type

DC Battery

Certification

GS, CE, RoHS, ISO 9001

Load Capacity

Up to 200kg

Lifting Height

6m ~ 9m

Working Height

8m ~ 11m

Occupants

1 Person

Product Description

The Vertical lift is a high-performance double mast self-propelled aerial working platform. Operators can fully control lifting and driving movements directly from the platform without descending, allowing for seamless transition between work locations. Featuring integrated steering and propulsion without the need for manual traction or external power supplies, it offers exceptional flexibility. This equipment is designed to enhance efficiency and safety for modern industrial production and maintenance.

Technical Parameters

Model No.	Unit	CR-6	CR-7.5	CR-7.5D	CR-9D
Max. Platform Height	mm	6000	7500	7500	9000
Max Working Height	mm	8000	9500	9500	11000
Load Capacity	kg	150	125	200	150
Overall Size	mm	14007601990	140010201990	146010201990	14608201990
Platform Size	mm	1260*700	1260*700	1000*620	1000*620
Max Drive Speed (Stowed)	km/h	4	4	4	4
Max Drive Speed (Extended)	km/h	1.1	1.1	1.1	1.1
Up/Down Speed	sec	43/35	48/40	48/40	53/48
Battery	V/Ah	2x12V/100Ah	2x12V/100Ah	2x12V/100Ah	2x12V/100Ah
Net Weight	kg	1120	1170	1260	1360

Product Advantages

Greater maneuverability and operational smoothness
Compact design and light-weight for easy transport

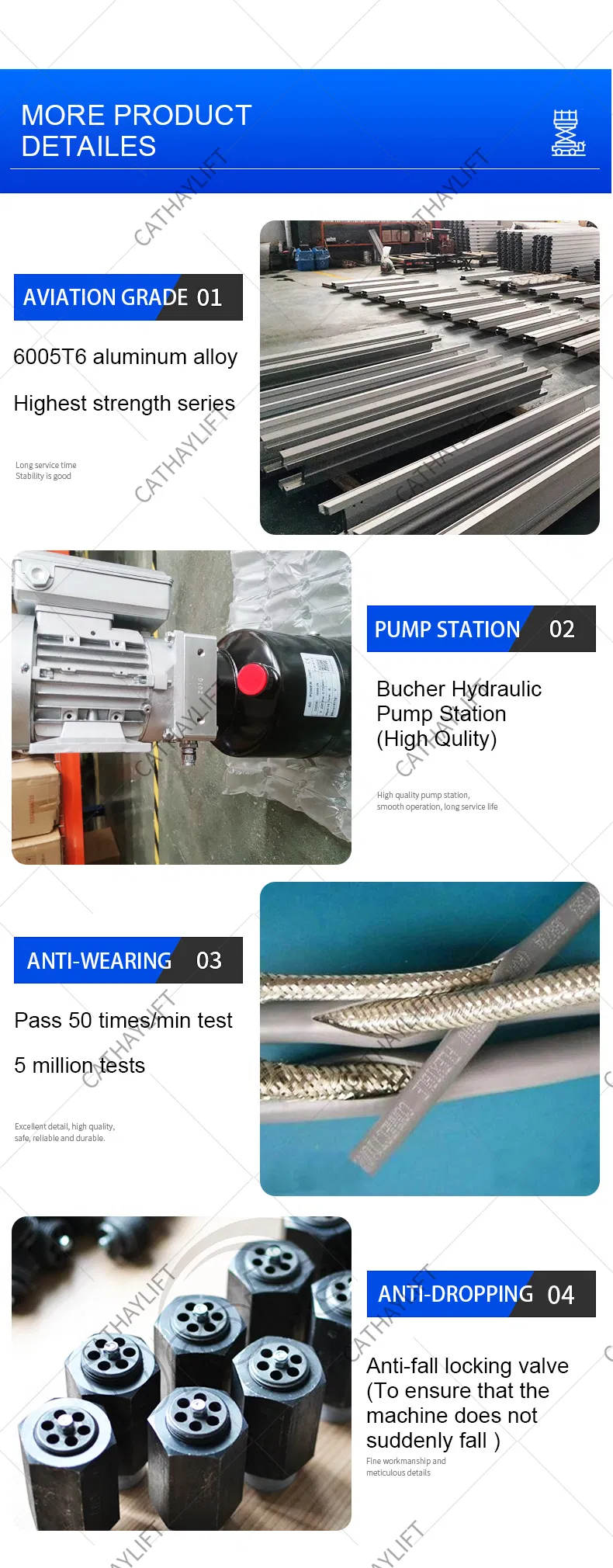

Hydraulically controlled front wheel steering with maintenance-free brushless AC electric drive
Integrated machine tilt sensing for enhanced safety
Extra platform deck extension (+0.48m) for better reach
Equipped with buzzer, strobe light, horn, and emergency drop cable
Minimal downtime and low maintenance requirements

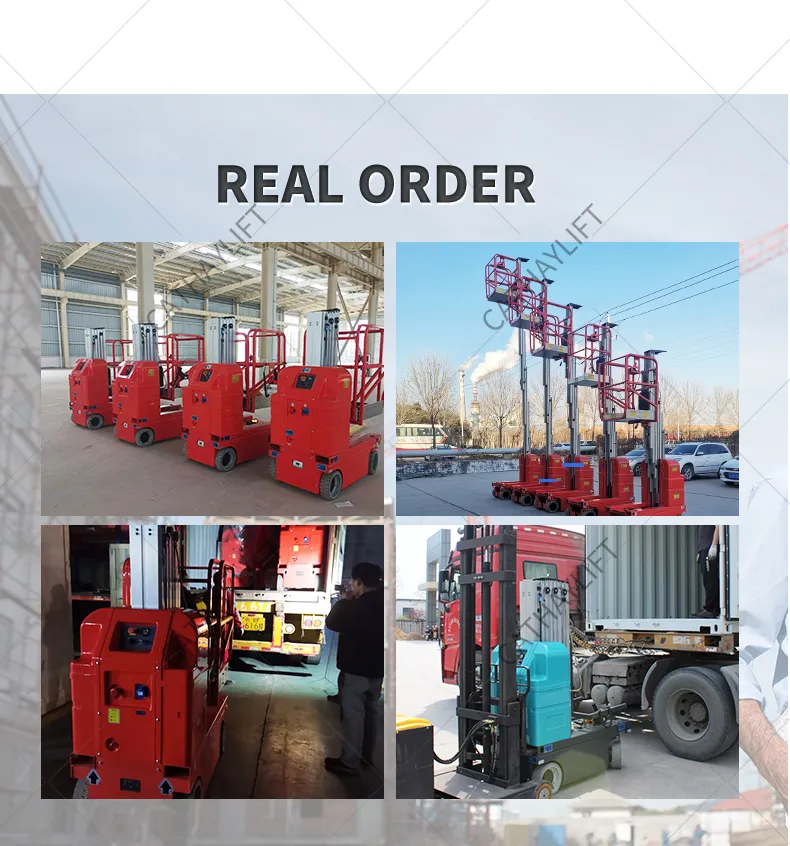

Application & Real Orders

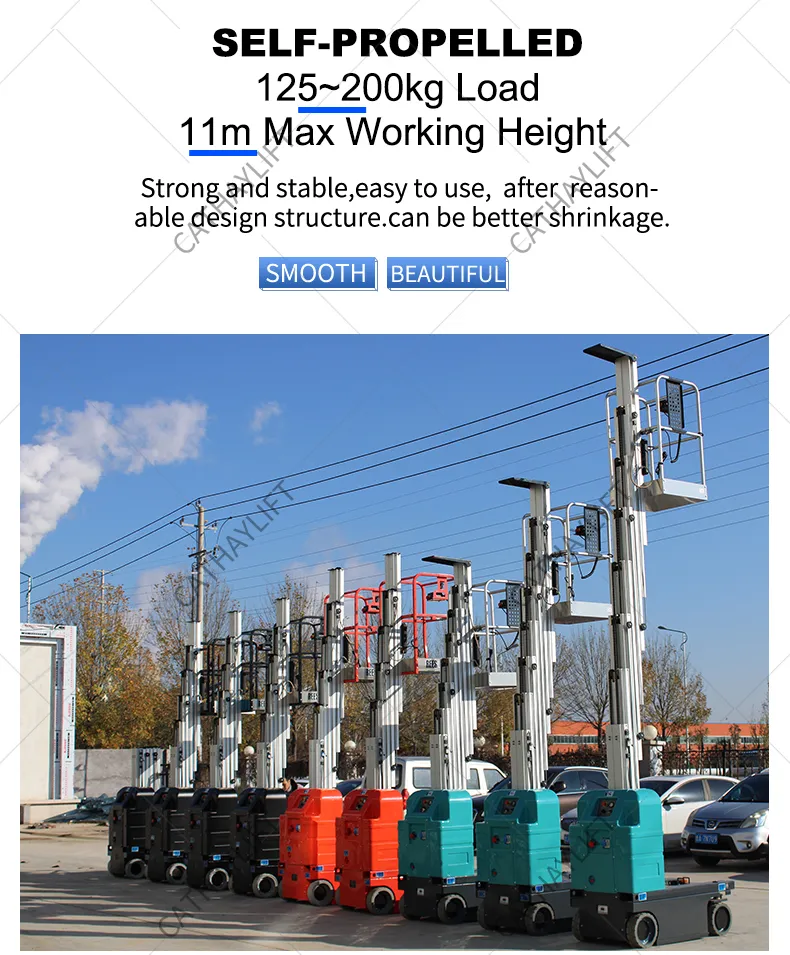

Self-propelled mast aerial work platforms simplify difficult and dangerous tasks. Small, flexible, and fast, these units replace traditional indoor scaffolding and ladders. Reach required heights efficiently while saving valuable time and cost.

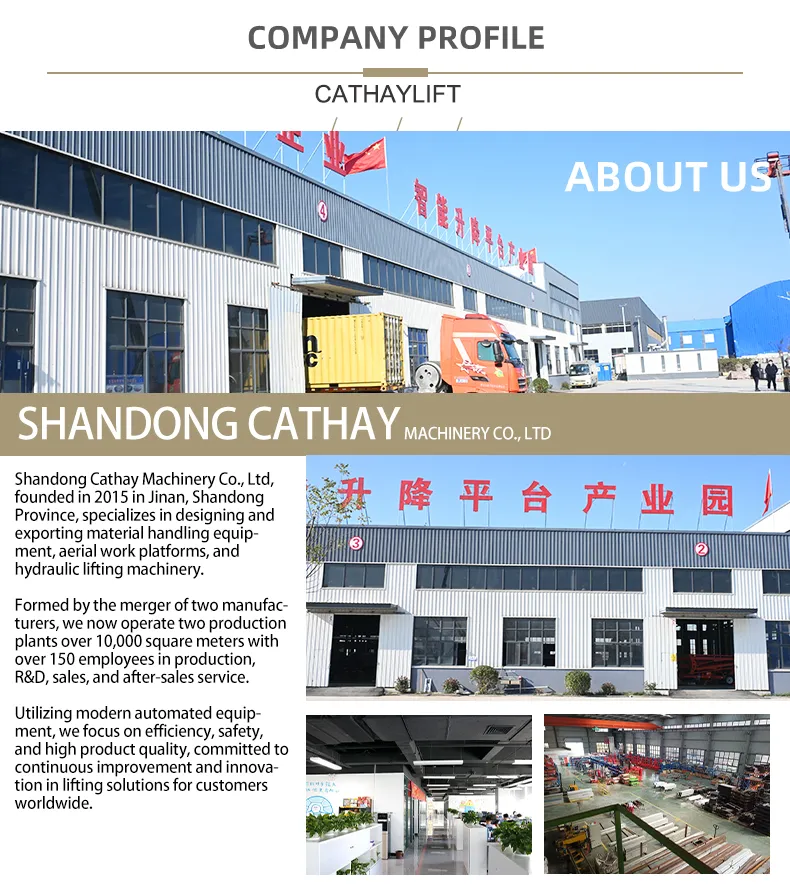

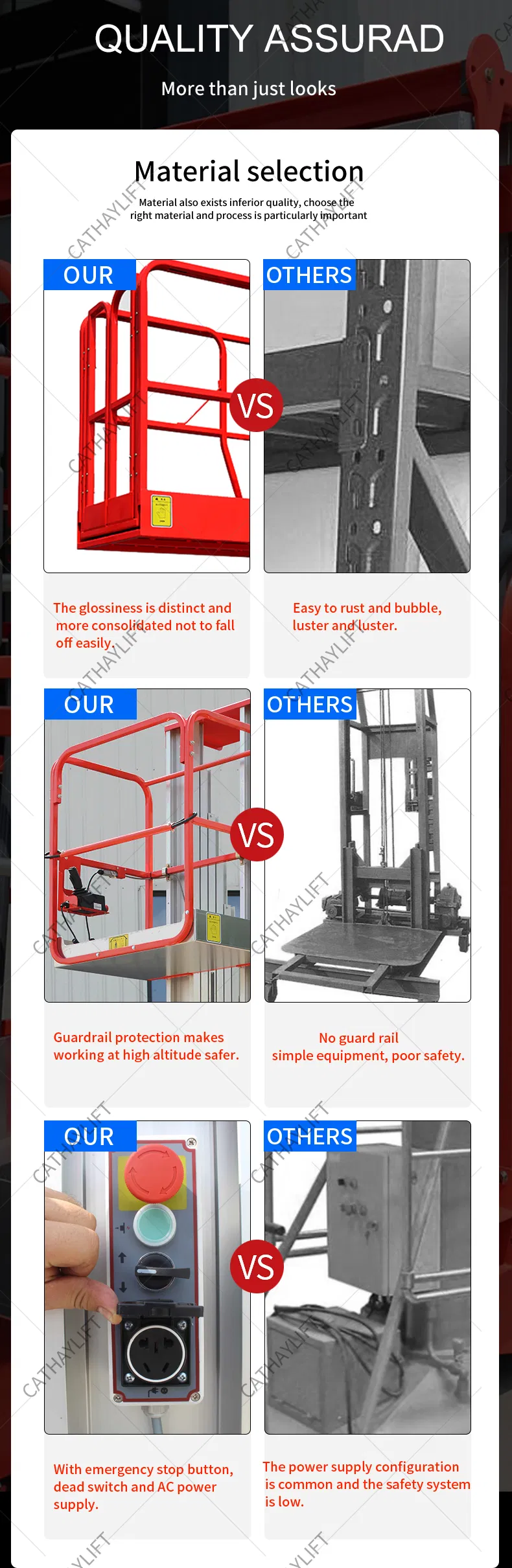

Production & Quality

Teams & Customers

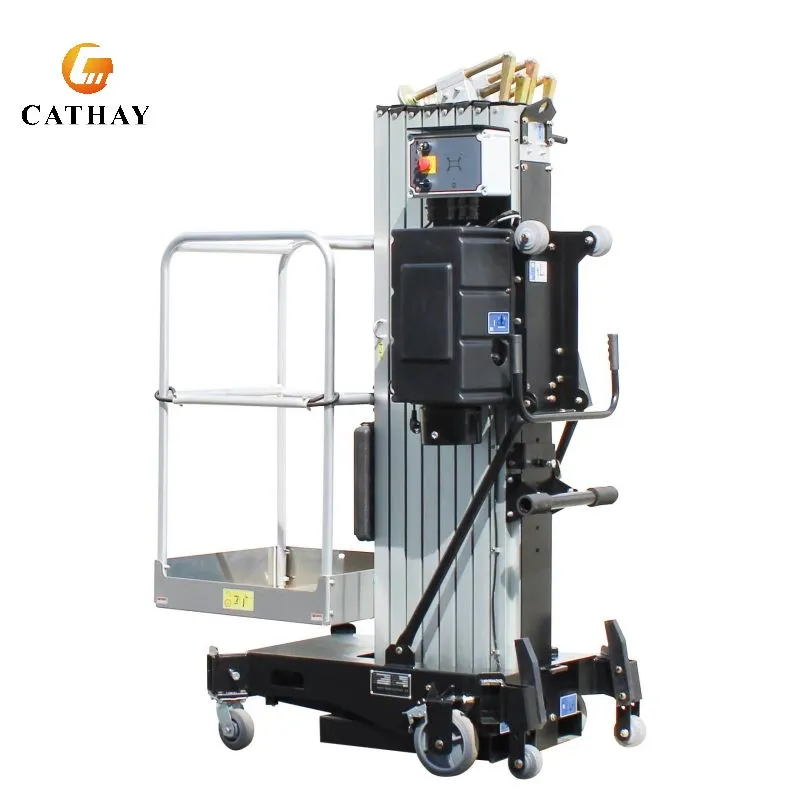

Related Products

FAQ

Q1: What is the maximum working height of the vertical mast lift? A: Depending on the model, the maximum working height ranges from 8 meters (CR-6) up to 11 meters (CR-9D).

Q2: Can the operator move the lift while the platform is extended? A: Yes, it is self-propelled. It can move at a speed of 1.1 km/h when the platform is extended and 4 km/h when stowed.

Q3: What safety features are integrated into the machine? A: The lift includes tilt sensing, an emergency drop cable, strobe lights, a buzzer, and a horn to ensure operator safety during aerial work.

Q4: How many people can the platform accommodate? A: These models are designed for 1 occupant, with a load capacity ranging from 125kg to 200kg.

Q5: What type of power source does the equipment use? A: It is powered by a 24V DC battery system (2x12V/100Ah) with an included 24V/15A charger.

Q6: Is it suitable for narrow indoor spaces? A: Absolutely. With a zero minimum turn radius and compact dimensions (width as low as 760mm), it is ideal for warehouse and workshop aisles.
