Professional Foundation Drilling Solutions
Rotary drilling rigs are primarily used to drill deep wells into the earth's crust, reaching depths of several thousand meters to access energy reserves. The process involves a rotating drill bit and a circulating fluid system to clear debris and cool the equipment.
Used to access hot water and steam reservoirs deep underground for electricity generation or direct heating. Precise control parameters ensure the integrity of the wellbore and efficient resource extraction.

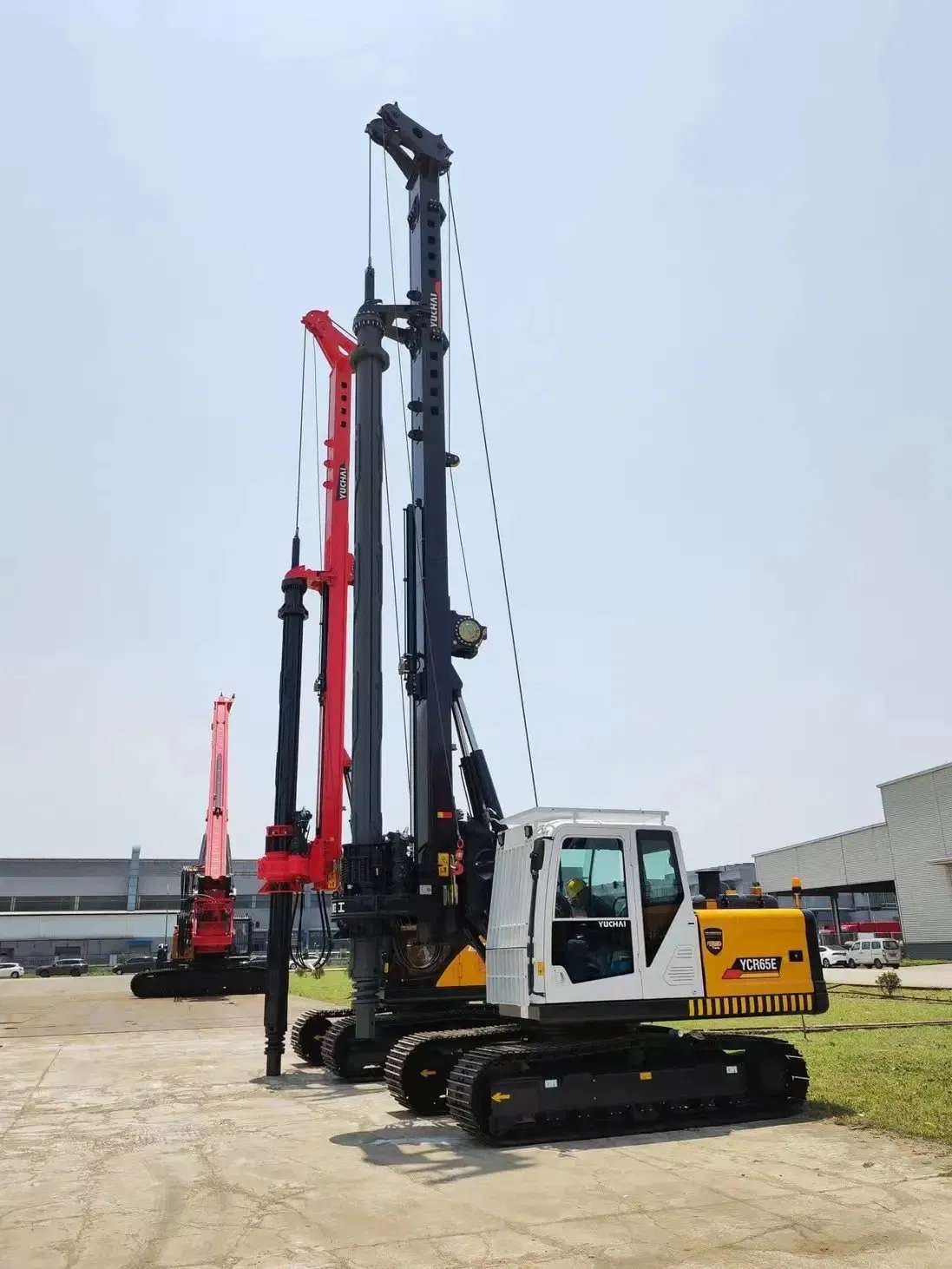

The detachable mast integrates a low headroom design, adapting to various height-restricted working conditions. The strengthened parallelogram variation provides a larger construction scope.

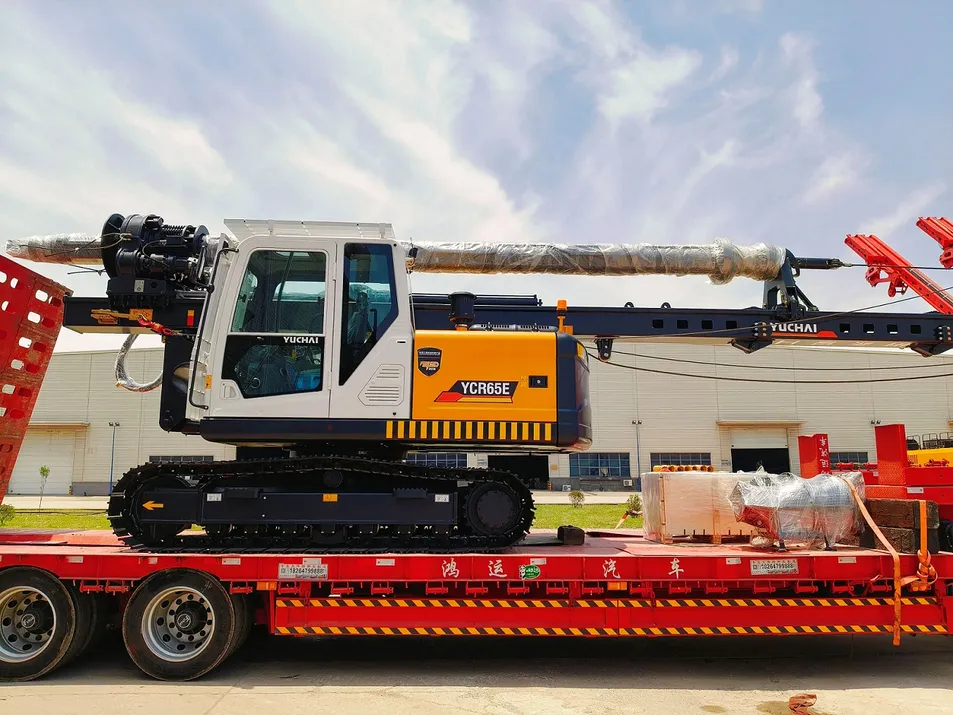

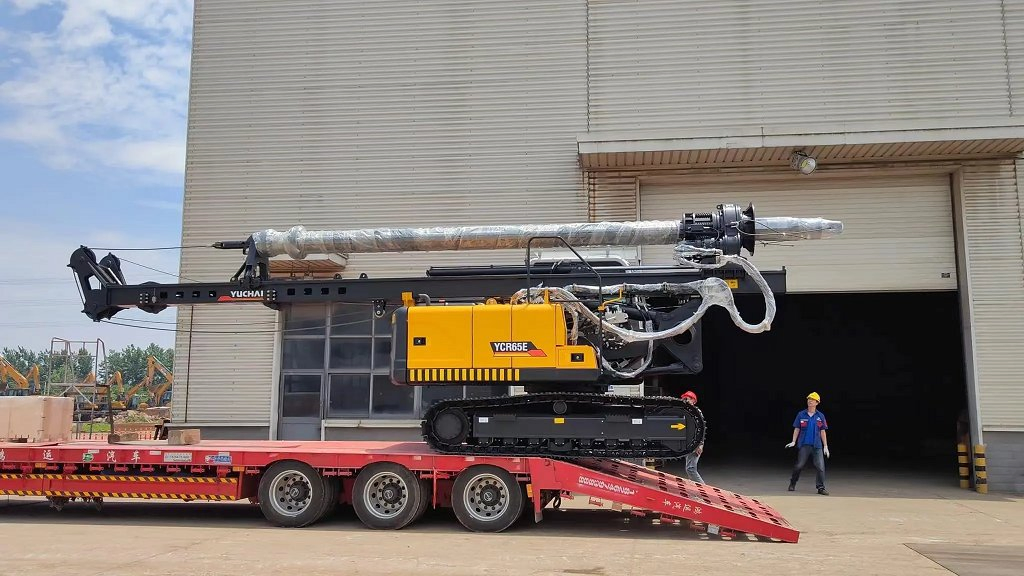

The inverted mast allows for truck transportation without disassembling the drill pipe. The entire main engine and accessories can be moved in a single truck, significantly reducing freight costs.
Dual power head motor reducer design ensures stable torque and high efficiency. Features a key high-speed dumping function and large triangular structure for superior stability.
Equipped with a new generation engine featuring advanced control modes (EGR+DOC+DPF). No urea needed, providing environmental protection, strong power, and fuel economy.
Right Elevation
Left Elevation

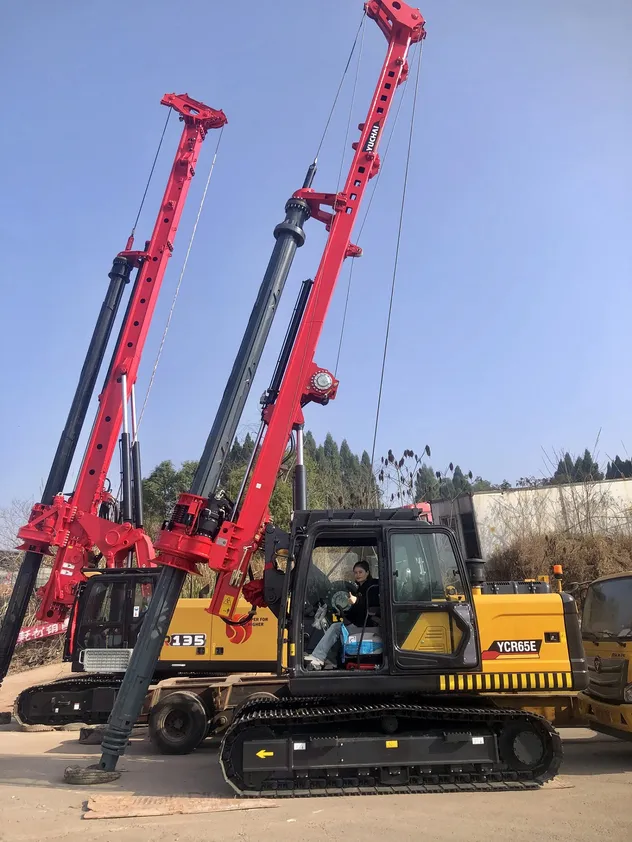

Front Elevation
| Main Parameter | Units | YCR90 Details |
|---|---|---|
| Engine Model | - | YC4DK115 |
| Rated Power/Speed | kW/rpm | 86/2200 |
| Max. Output Torque | kN•m | 90 |
| Rotary Speed | rpm | 36 |
| Max. Pull-down Piston Push | t | 9 |
| Max. Pull-down Piston Pull | t | 10 |
| Max. Drilling Diameter | mm | 1200 |
| Max. Drilling Depth | m | 24 |
| Machine Weight | t | 23 |
| Transport Dimensions | mm | 11580*2700*3170 |
