Basic Specifications
Model:DX Series
Application:Workshop, Shipboard, Warehouse, Building
Lift Mechanism:Scissor Lift
Drive Type:DC / Self-propelled
Capacity:300kg - 320kg
Height Range:6m - 14m
Certification:CE, ISO 9001
Feature:Explosion-Proof, Insulating

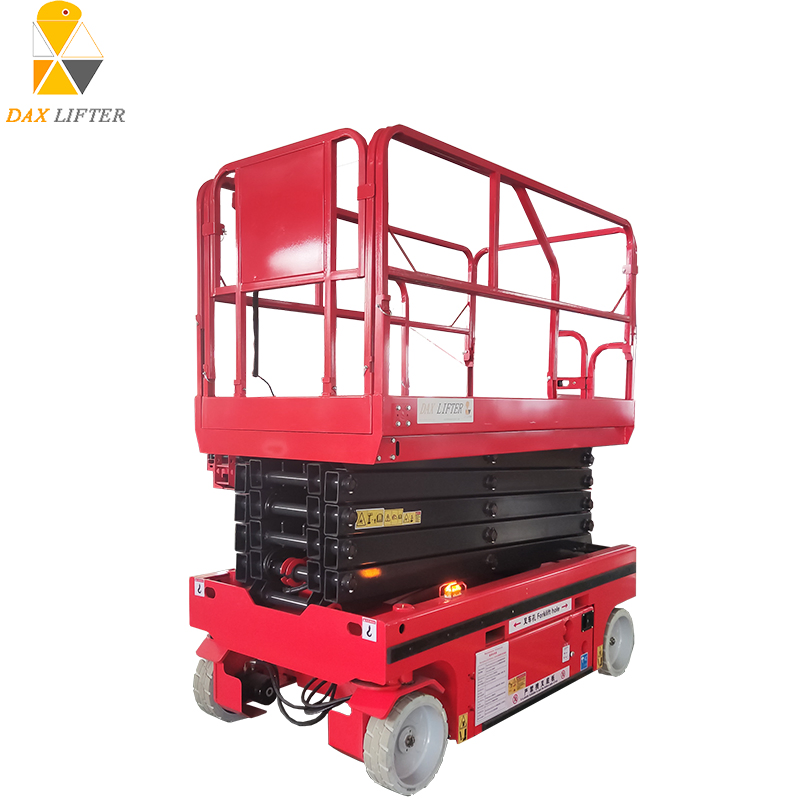

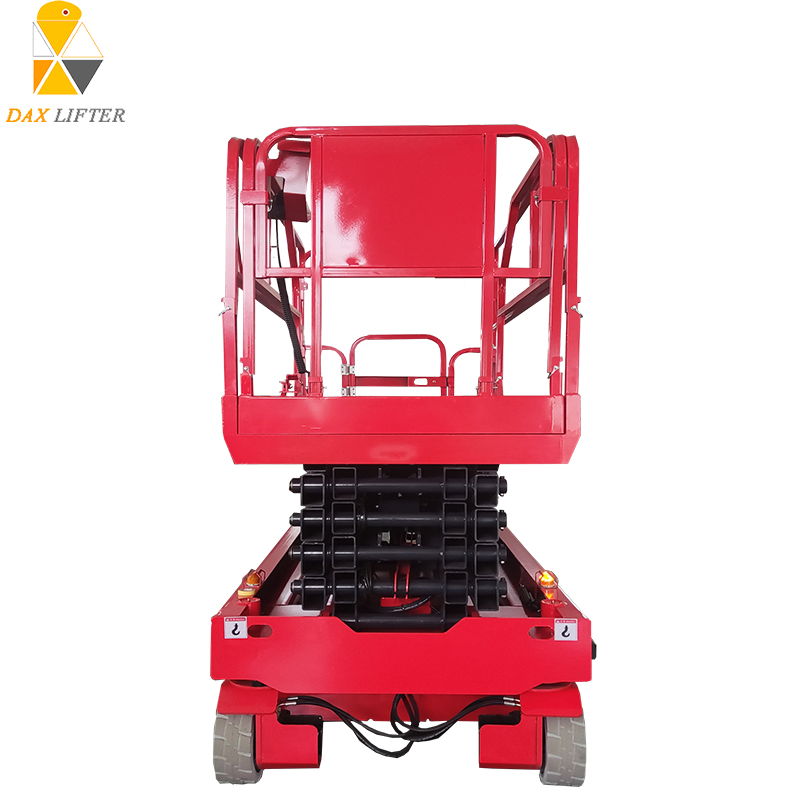

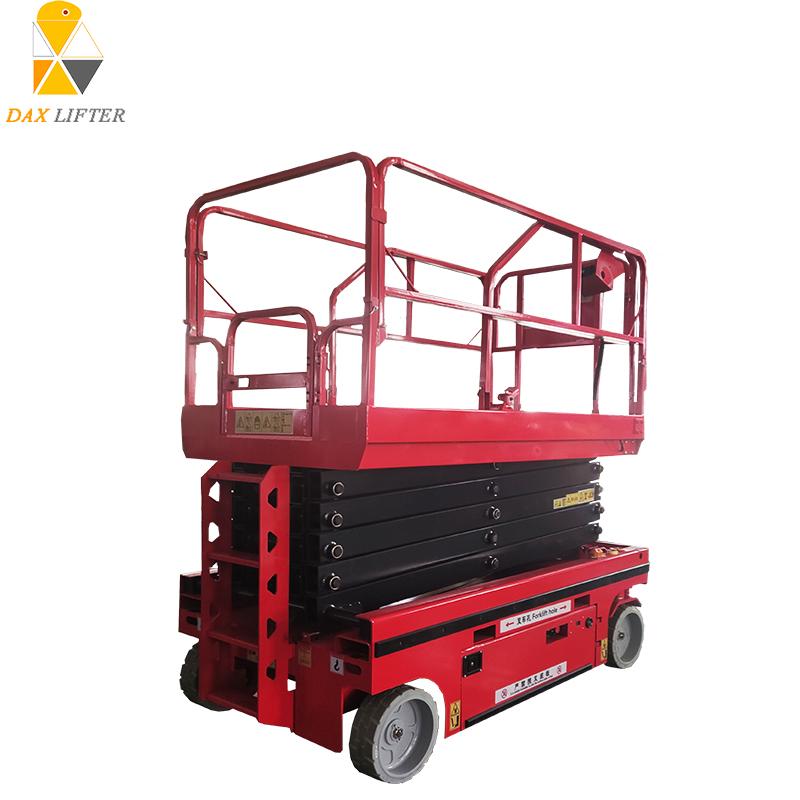

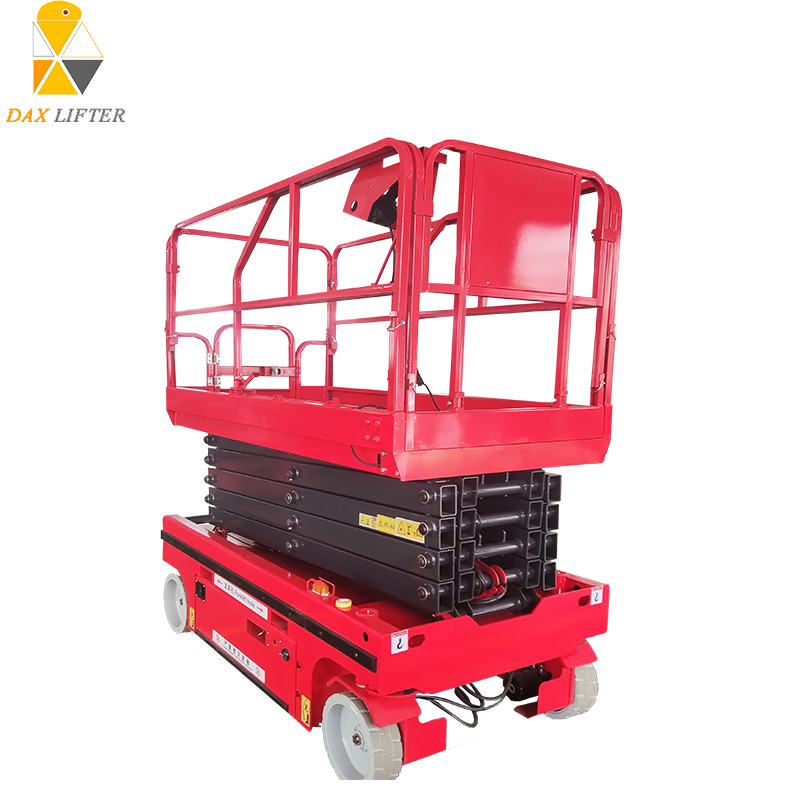

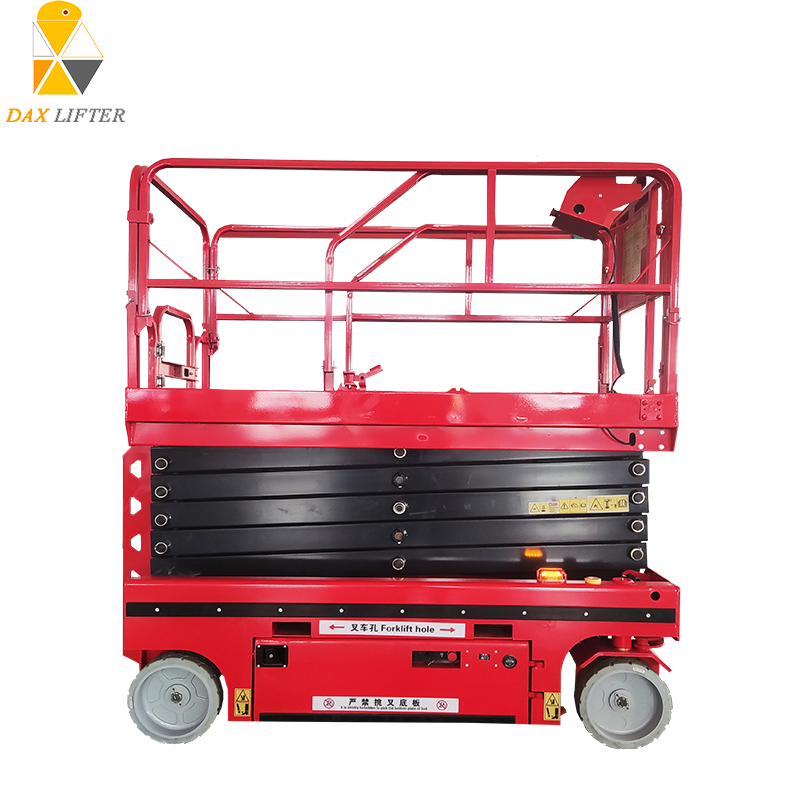

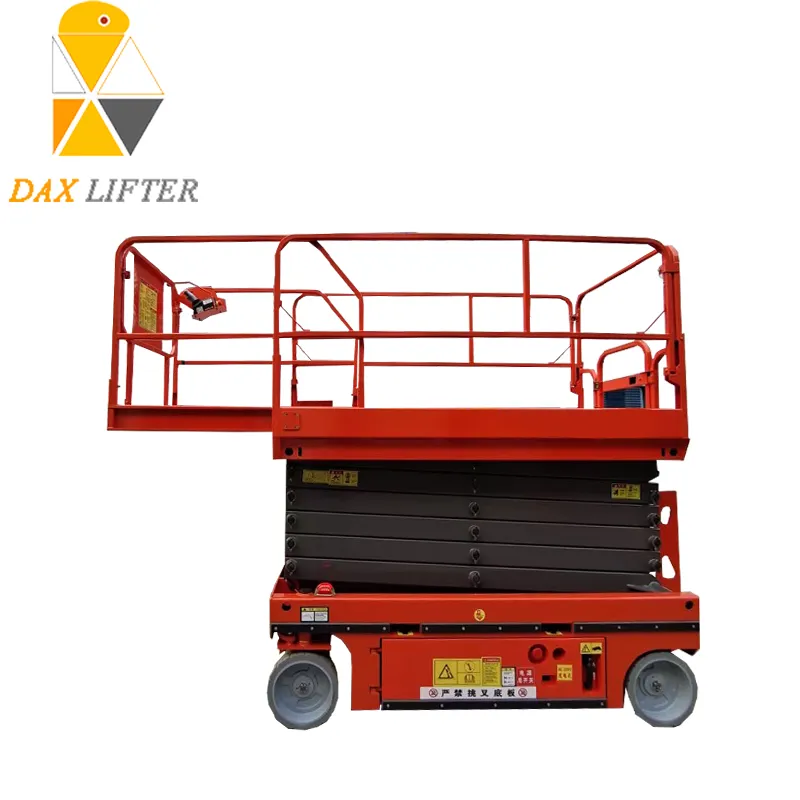

6-14m Self Propelled Scissor Lift
💡
OEM & ODM SERVICE AVAILABLE - High-class aerial working platform with extendable deck.
China self-propelled hydraulic drive scissor lift is widely used in the aerial work platform industry. These lifts are typically utilized in factory operations, high-altitude installations, aviation maintenance, and cleaning tasks. The primary advantage is that operators can control movement directly from the platform, significantly increasing convenience and efficiency compared to manual mobile lifts.
Technical Data
| Model |
DX06 |
DX08 |
DX10 |
DX12 |
DX14 |
| Max Platform Height |
6m |
8m |
10m |
12m |
14m |
| Max Working Height |
8m |
10m |
12m |
14m |
16m |
| Lifting Capacity |
320kg |
320kg |
320kg |
320kg |
230kg |
| Platform Size |
2270*1110mm |
2640*1100mm |
| Overall Size |
2470*1150*2220mm |
2470*1150*2320mm |
2470*1150*2430mm |
2470*1150*2550mm |
2855*1320*2580mm |
| Weight |
2210kg |
2310kg |
2510kg |
2650kg |
3300kg |

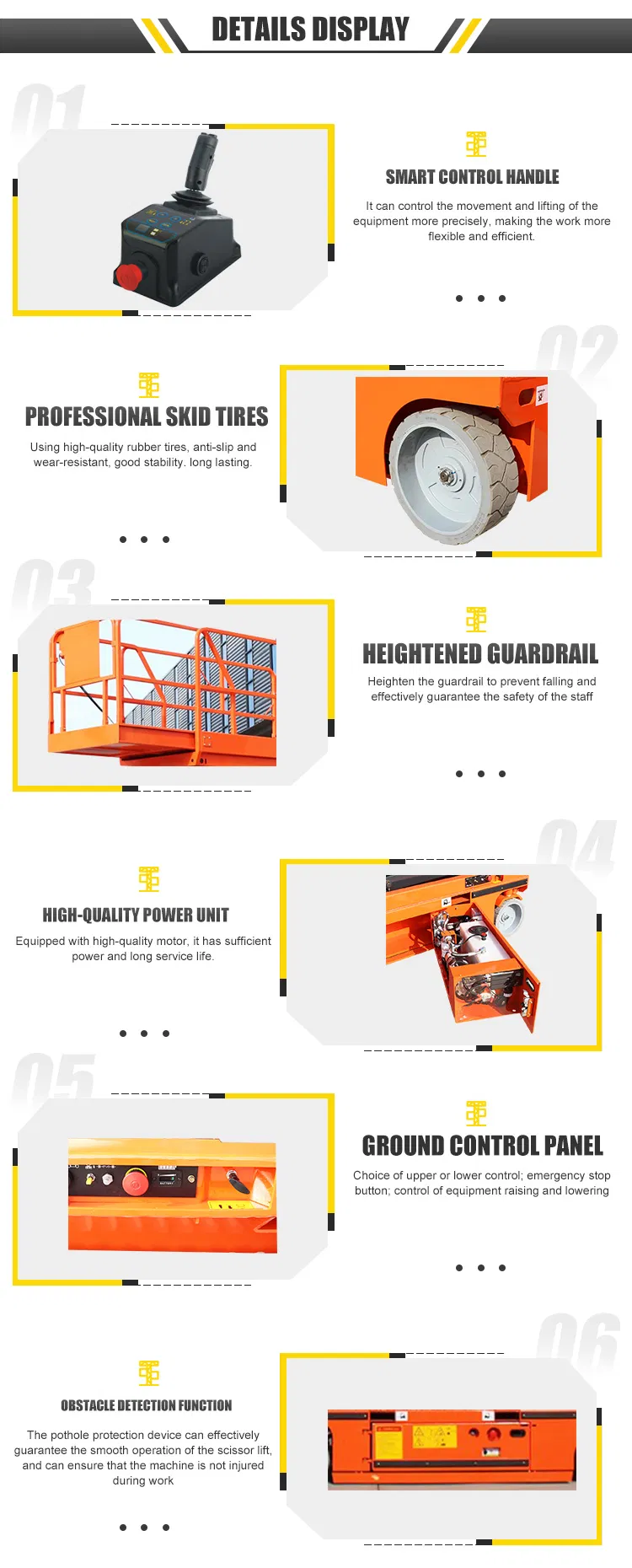

Key Features & Advantages
Extendable Platform
The working platform can be extended by 900mm to widen the workspace, allowing multiple workers to operate simultaneously.
High-Quality Hydraulic Structure
Designed for durability, the hydraulic system prevents impurities in the cylinder, making maintenance easier.
Removable Control Panel
The platform control panel is detachable to prevent theft or damage from outdoor elements like rain.
Emergency Lowering Valve
Ensures safety by allowing the platform to be lowered manually in the event of a power failure or emergency.
Self-Propelled Indoor/Outdoor Utility
The DC power drive allows for flexible movement without manual traction, suitable for both indoor facilities and outdoor sites.
Frequently Asked Questions
Q1: What is the maximum working height of these scissor lifts?
A: The series offers a maximum working height ranging from 8 meters (DX06) up to 16 meters (DX14).
Q2: Can the platform be extended for more space?
A: Yes, the platform includes an extension feature of 900mm, providing a larger working area for operators and tools.
Q3: What is the load capacity of the DX series?
A: Models DX06 through DX12 have a lifting capacity of 320kg, while the DX14 model supports up to 230kg.
Q4: Does it require manual pushing to move?
A: No, these are fully self-propelled units powered by a DC system, allowing the operator to drive and steer from the platform.
Q5: What safety features are included for power failures?
A: Every unit is equipped with an emergency lowering valve that allows the platform to safely descend if power is lost.
Q6: Is assembly required upon delivery?
A: No, the product is shipped as a complete piece of equipment and is ready for use immediately upon arrival.
