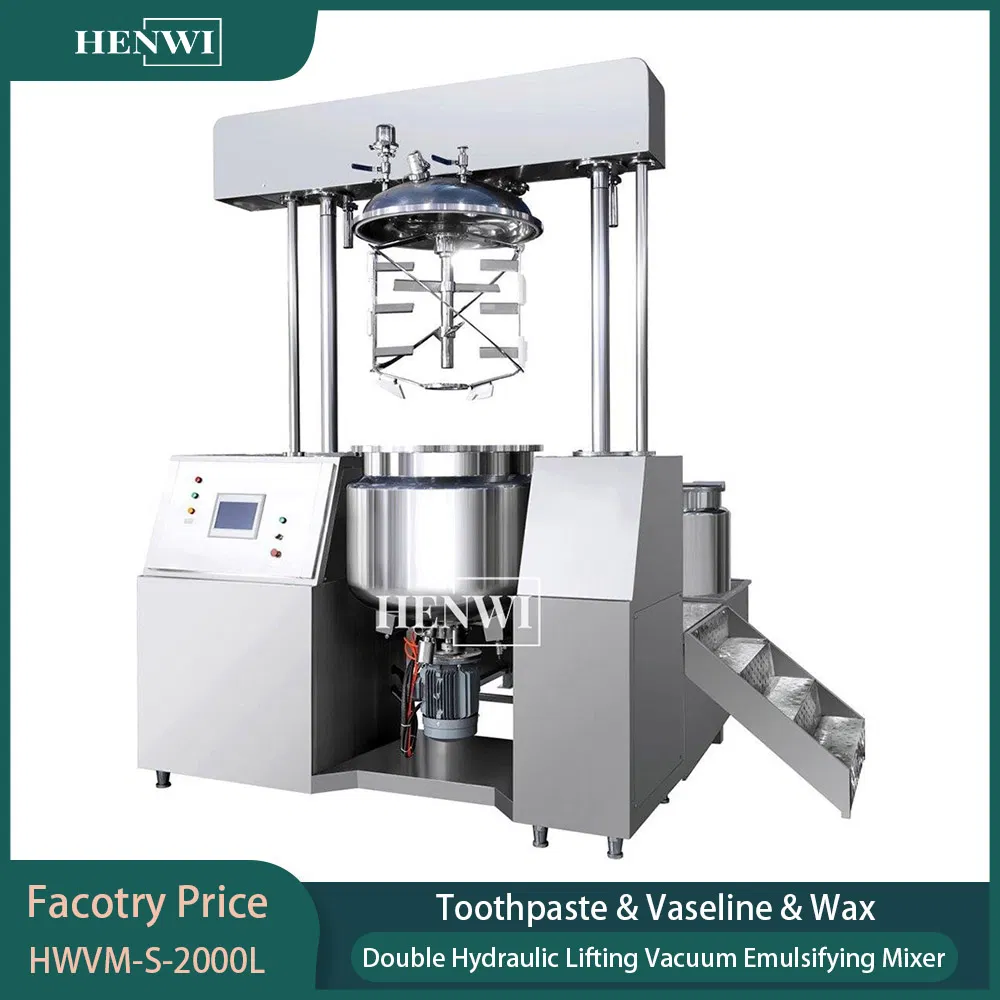

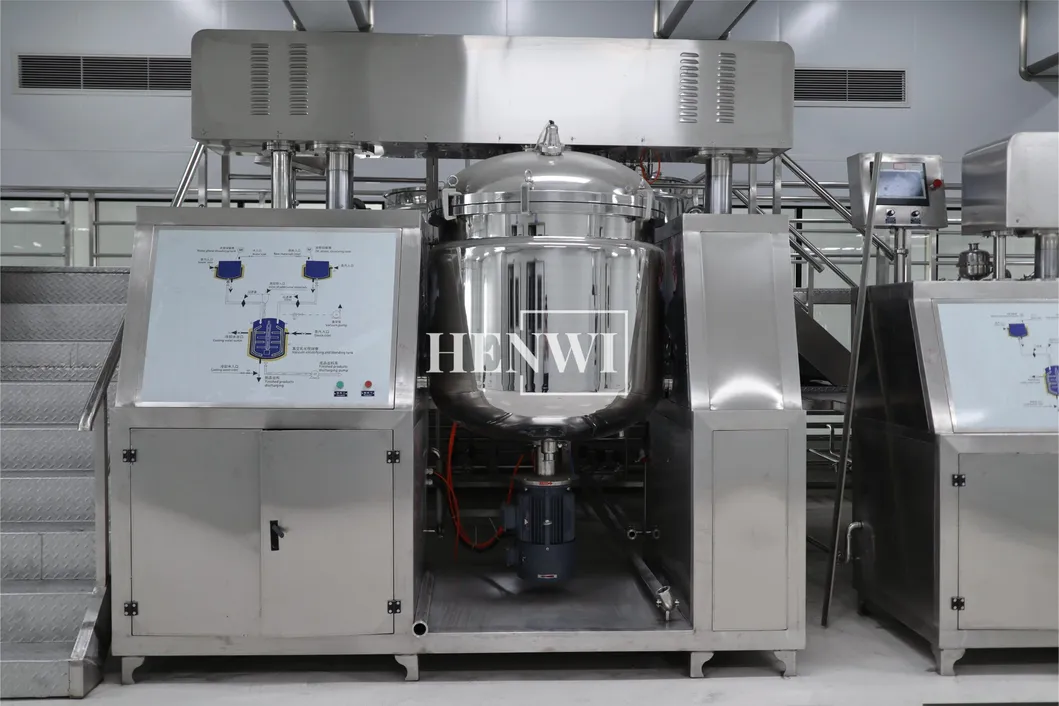

Hydraulic lifting vacuum emulsifier mixer
The machine is suitable for the production of various kinds of paste, cream products in cosmetic factory and pharmaceutical factory. Especially designed for the production of stable emulsions creams, milk, gels, balms, lotions, ointments, toothpastes, etc. having extremely small particles for chemical, cosmetics, pharmaceutical and food industries.
|
|

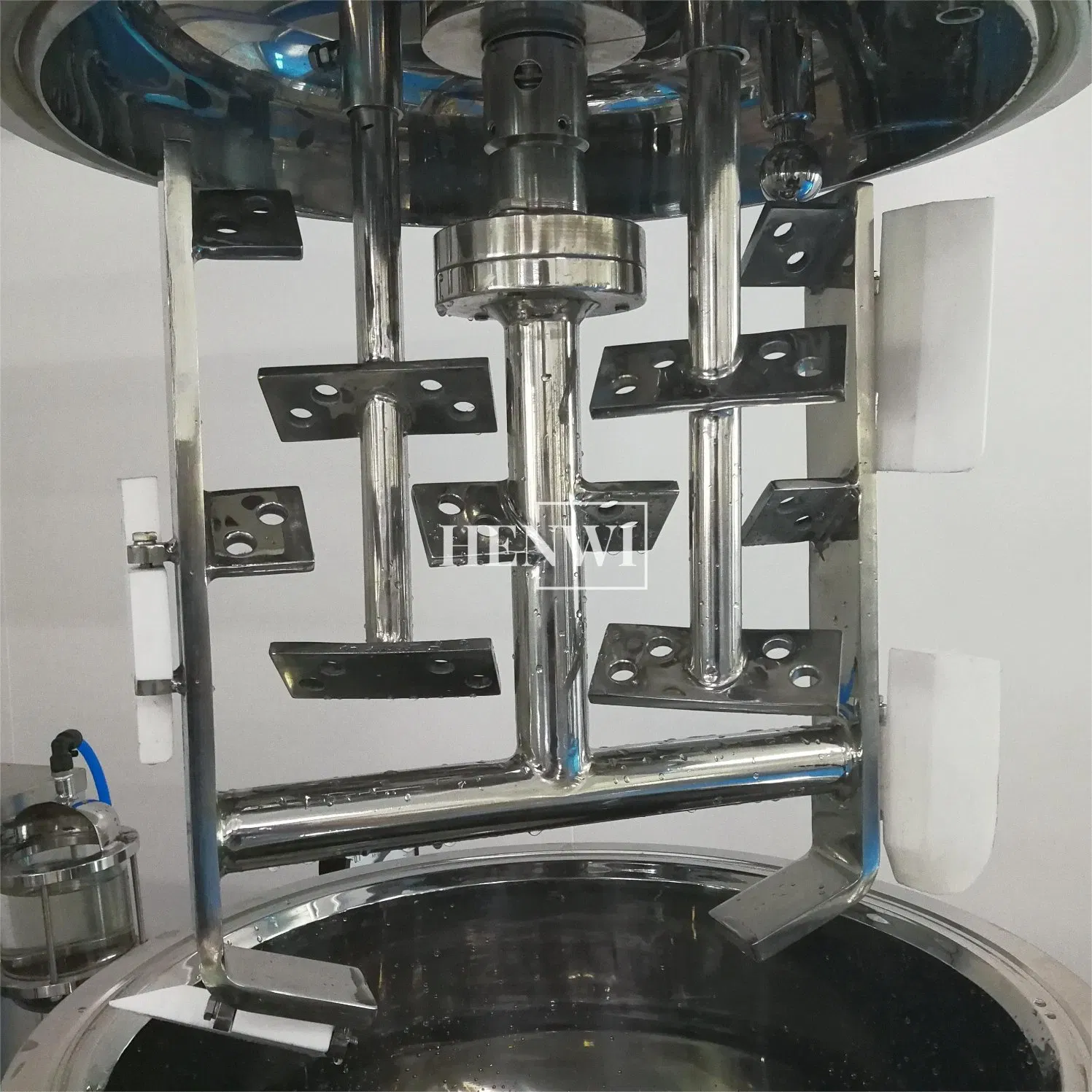

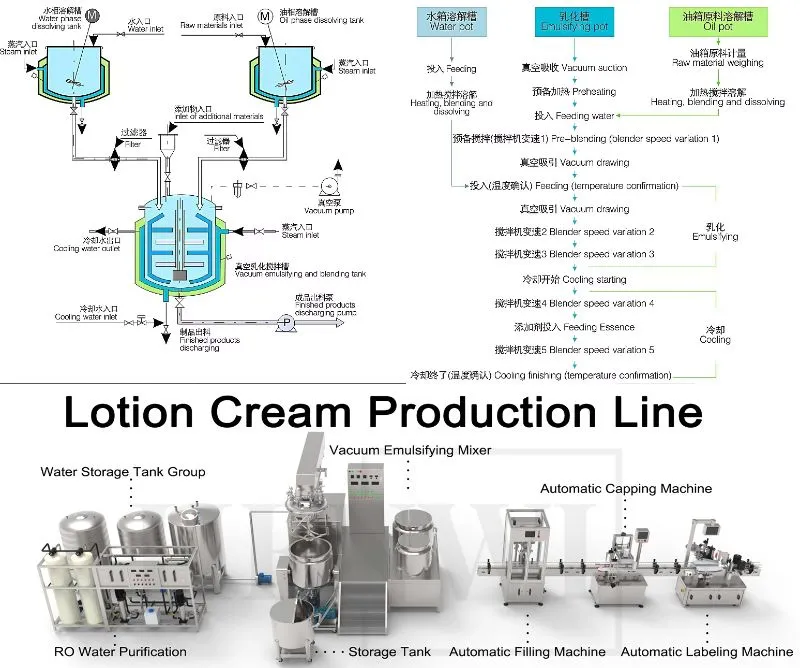

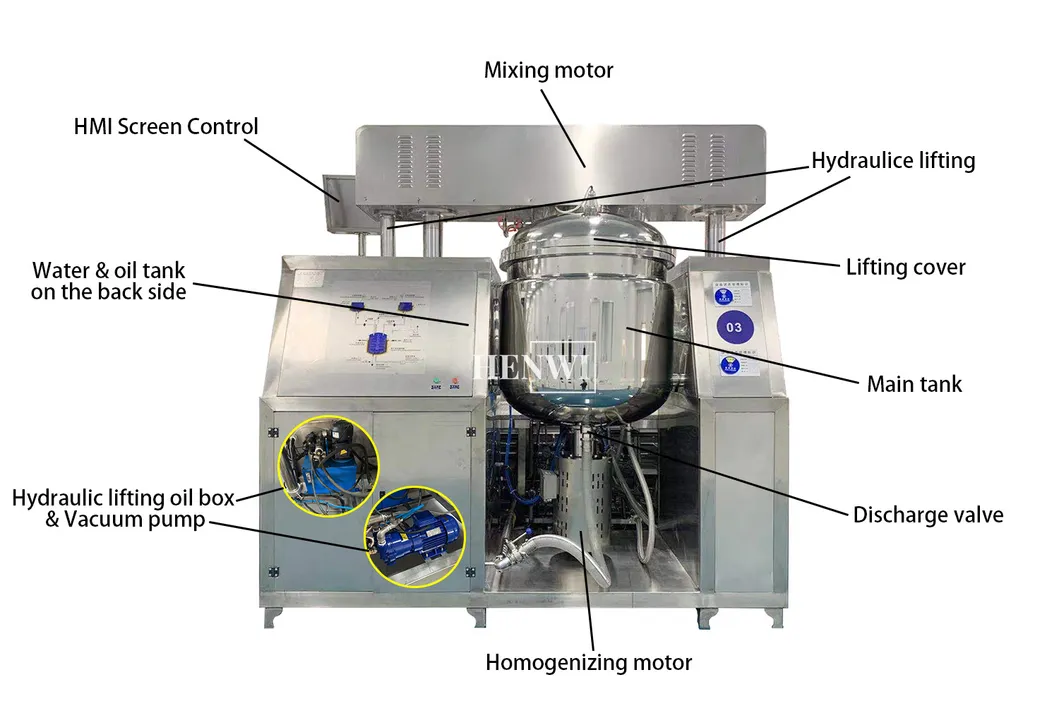

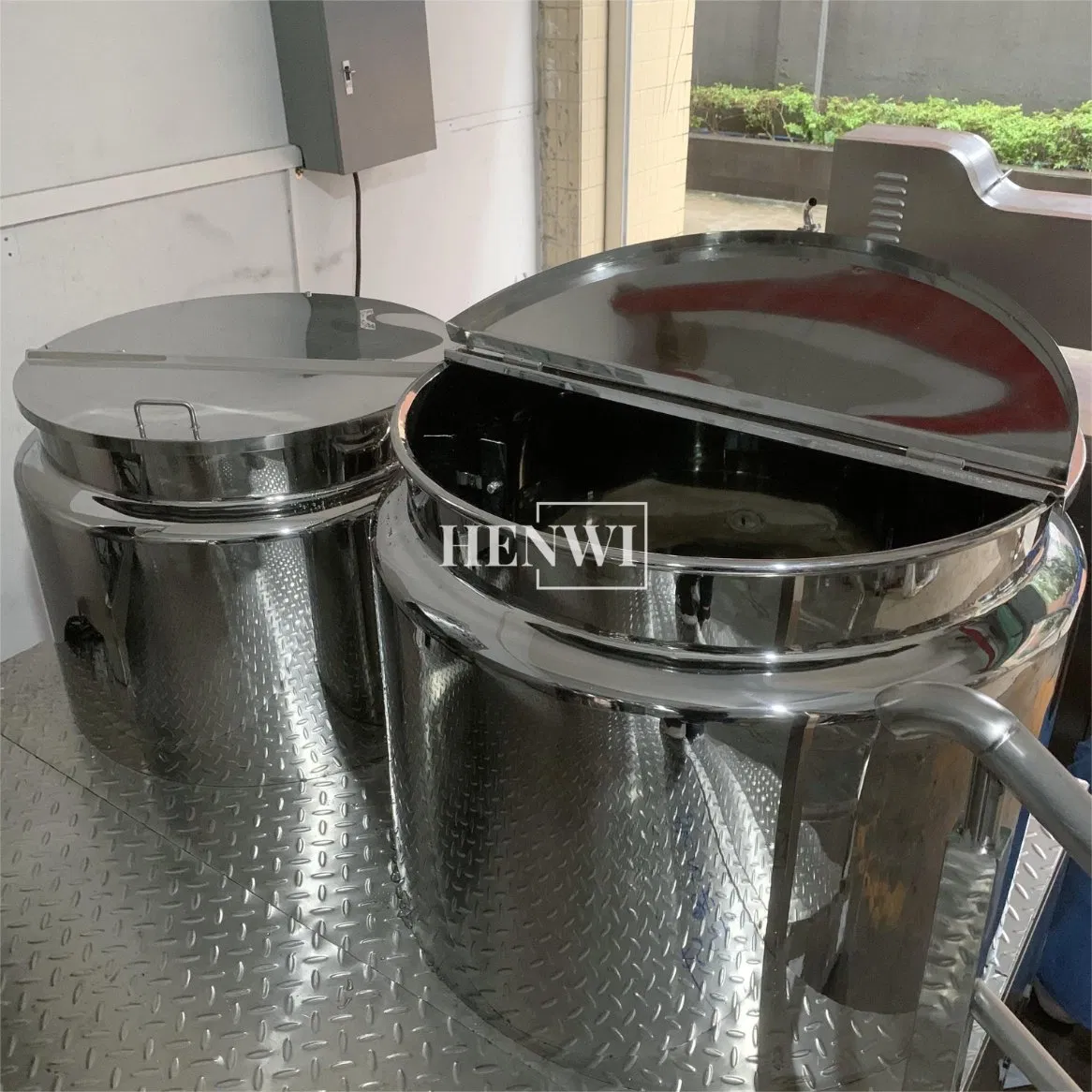

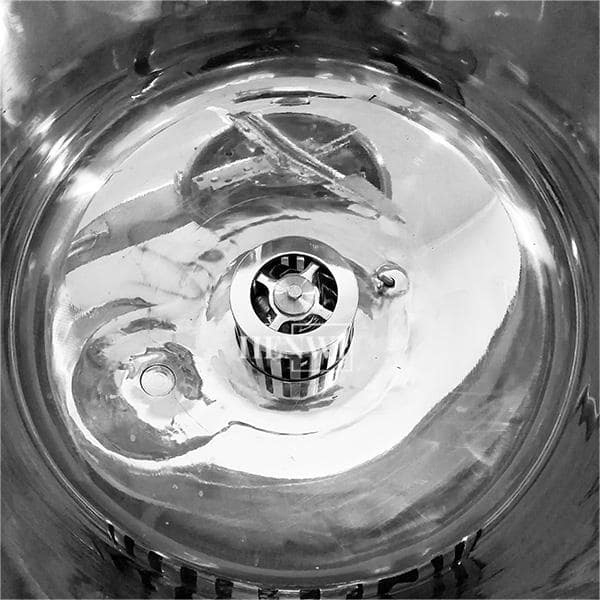

The materials in the water-phase tank and oil-phase tank are heated up and stirred. After they are thoroughly mixed, they will be transferred to the emulsifying tank by vacuum pump. The material will be stirred by the upper part of the central paddle, combined with the PTFE scraper sweeping the wall, the material will be stirred thoroughly and meanwhile be pushed down to the emulsifier at the low part of the central axle. With very high speed emulsifying effect, the material will be seriously cut, sheared, and cracked into 200nm - 2um particles. Bubbles appearing during the process will be sucked out promptly in the vacuum status.
Our equipment is widely used in Agricultural Chemicals, Chemical, Daily Chemical, Engineering & Construction, Food, Pharmaceutical, and Cosmetics industries.
| No. | Parameter Item | Specifications (HWVM-SG-2000L) |
|---|---|---|
| 1 | Working capacity | 2000L |
| 2 | Heating method | Steam/electric |
| 3 | Mixing type | Upper frame oar scraper mixer |
| 4 | Mixing speed | 0-65rpm |
| 5 | Homogenizer type | Bottom homogenizer with frequency inverter |
| 6 | Homogenizer speed | 0-3600rpm (60Hz) |
| 7 | Vacuum system | Water cycle vacuum pump (4KW) |
| 8 | Lifting system | Hydraulic lifting system (7.5KW) |
| 9 | Tank Materials | SUS316L Inner (7mm), SUS304 Middle (6mm), SUS304 Outer (6mm) |
