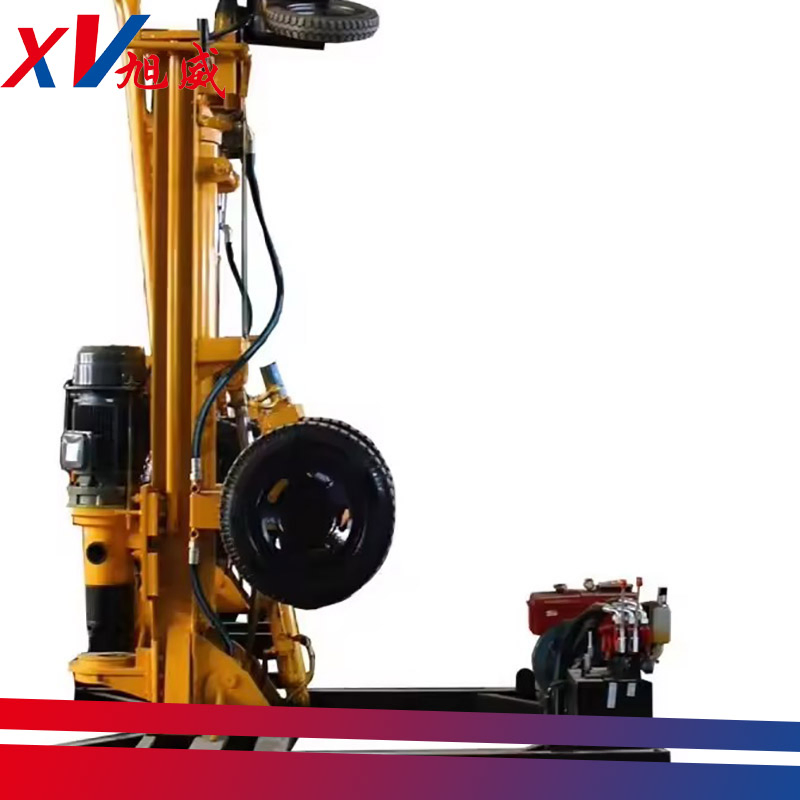

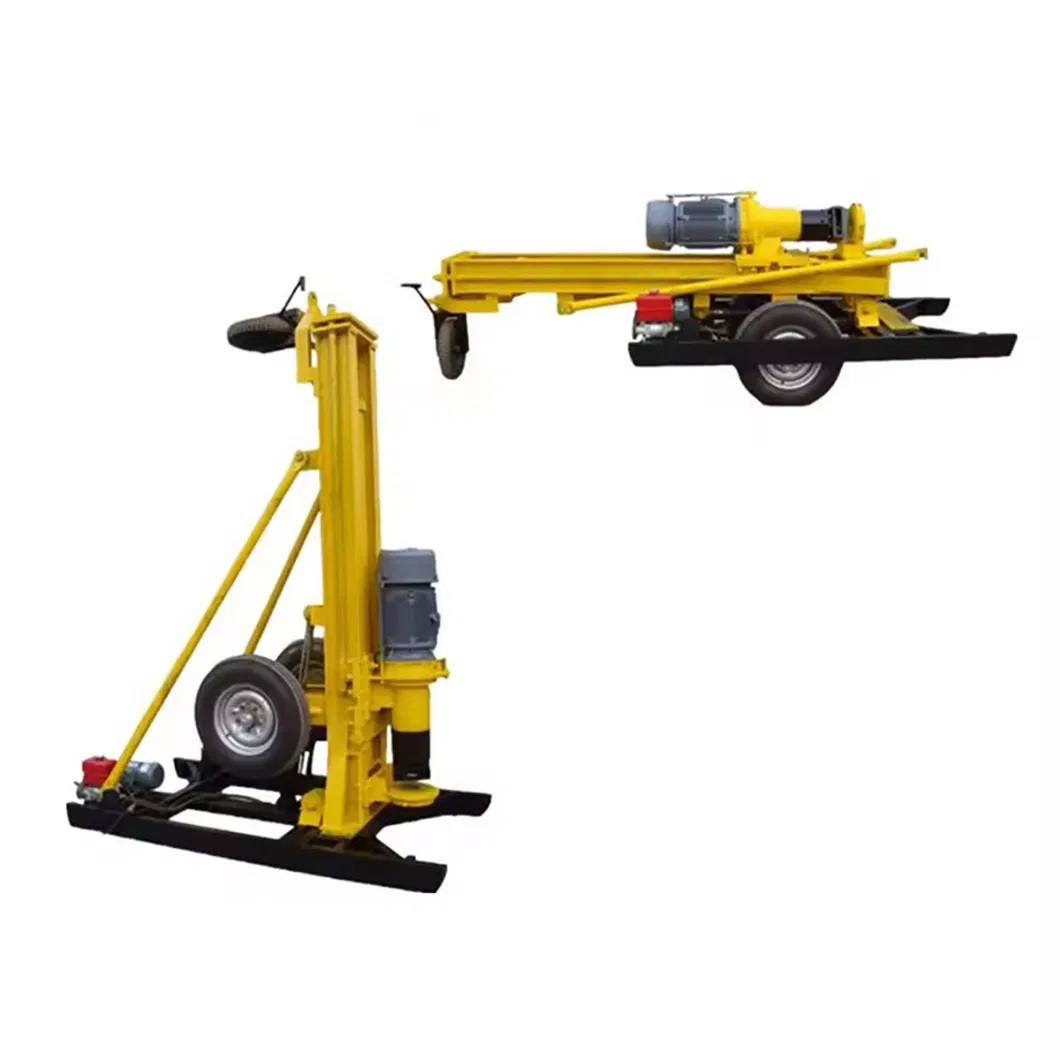

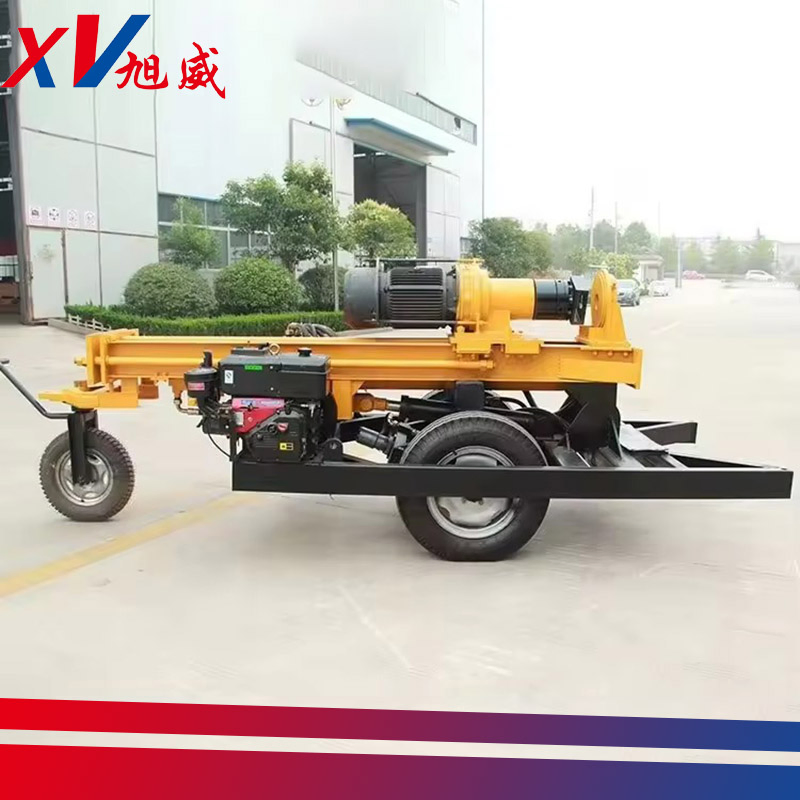

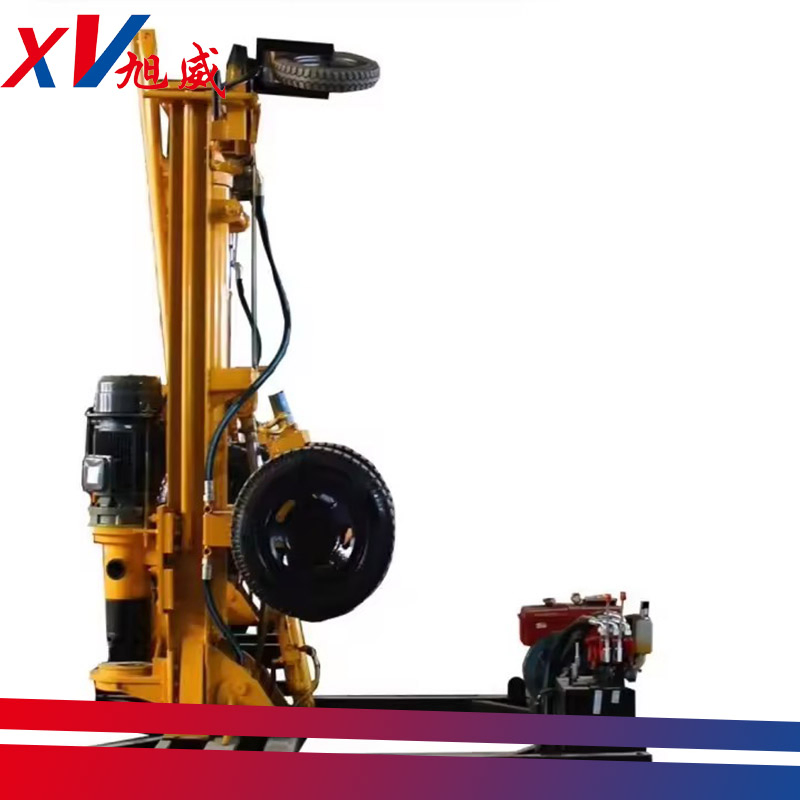

| Model NO. | XW200D |
| Certification | CE, RoHS, ISO 9001:2000, ISO 9001:2008 |
| Condition | New |
| Drill Hole Diameter | 100-254mm |
| Drill Hole Depth | >150m |
| Bit Type | Diamond Bit |
| Drilling Way | Compound |
| Type | Three-Wheeled |
| Machine Weight | 1.8t |
| Motor Power(Kw) | 11 |
| Air Consumption(M³/Min) | 15-27 |
| Working Air Pressure | 1.45-2.5 |

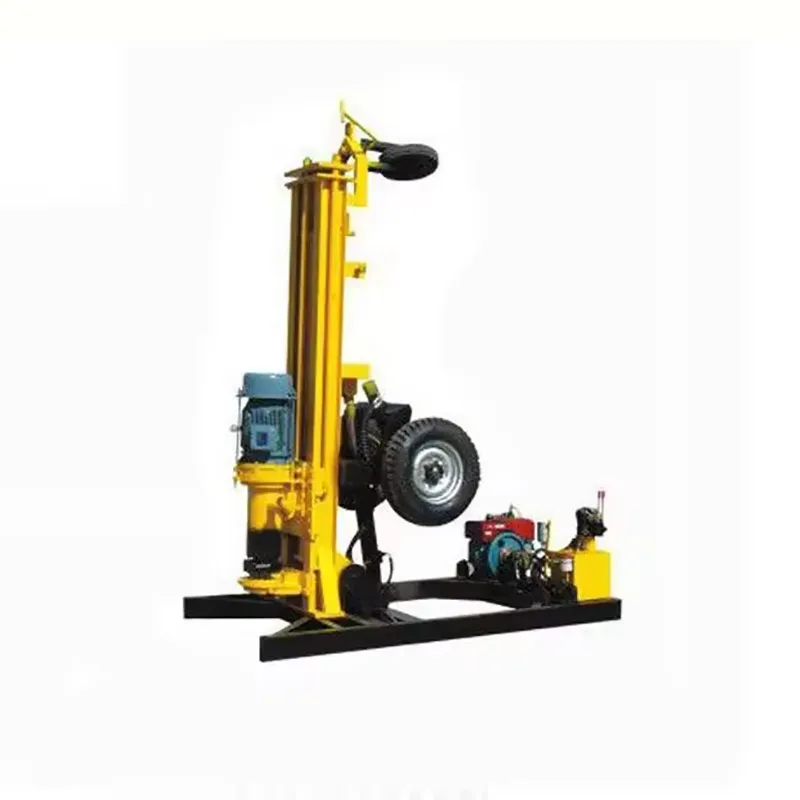

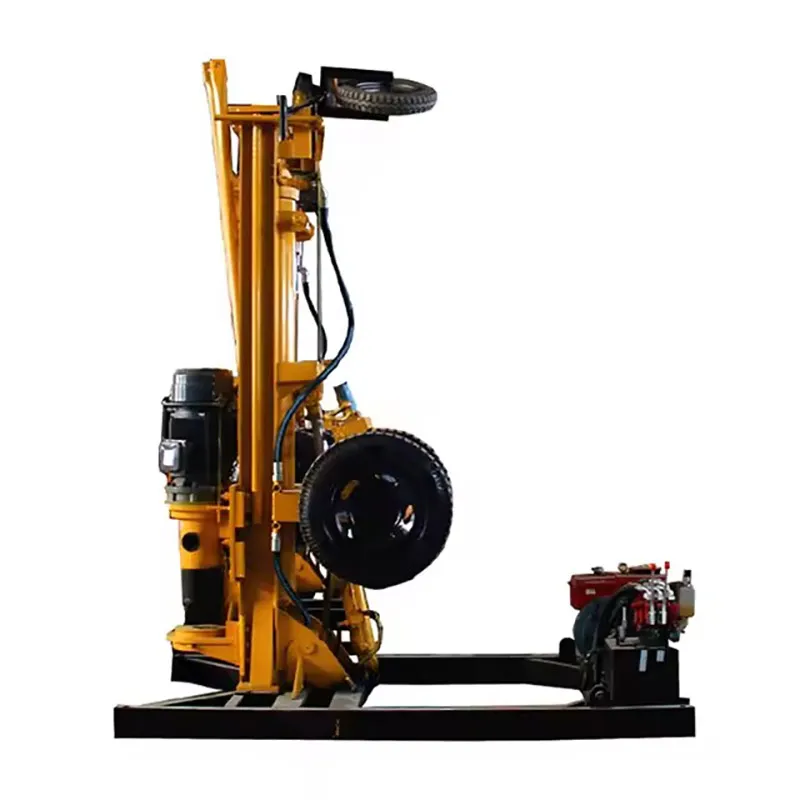

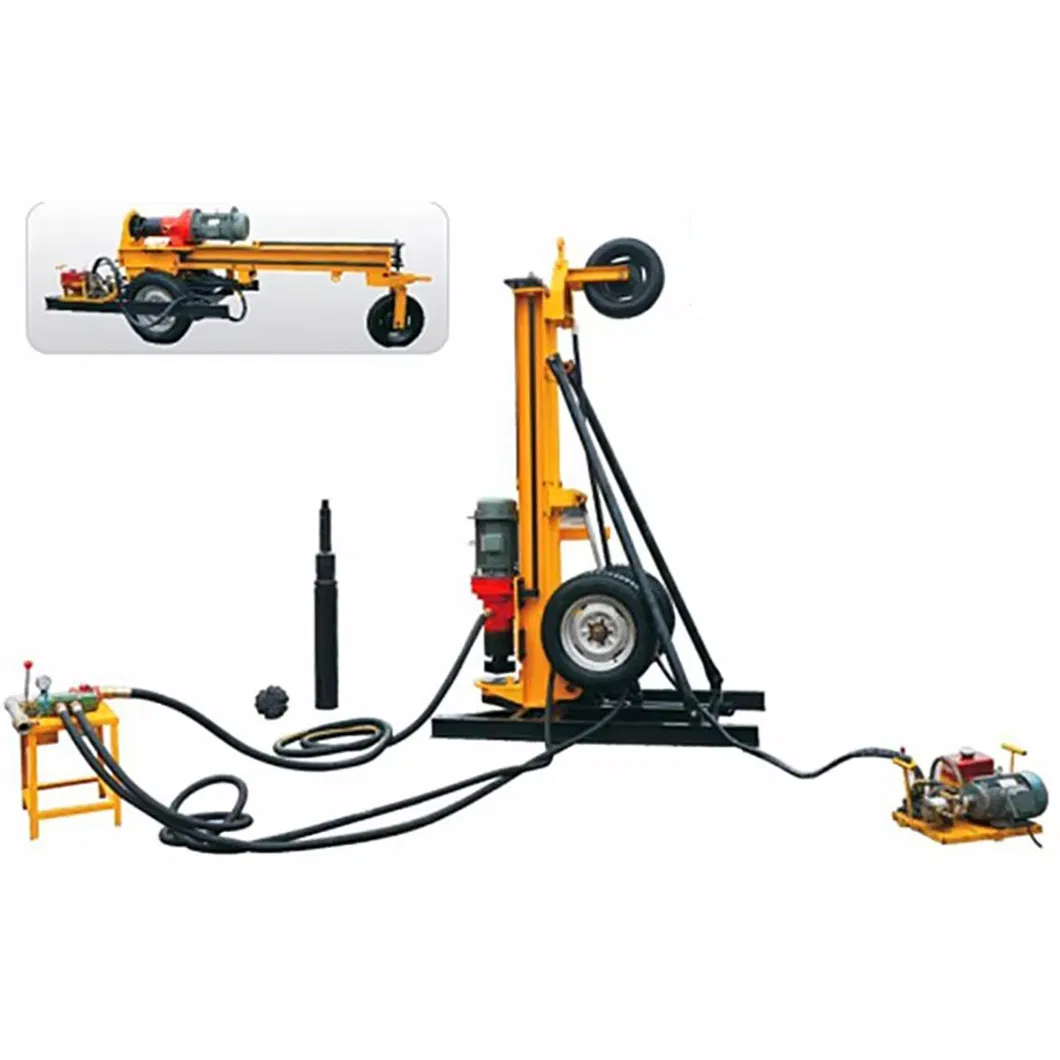

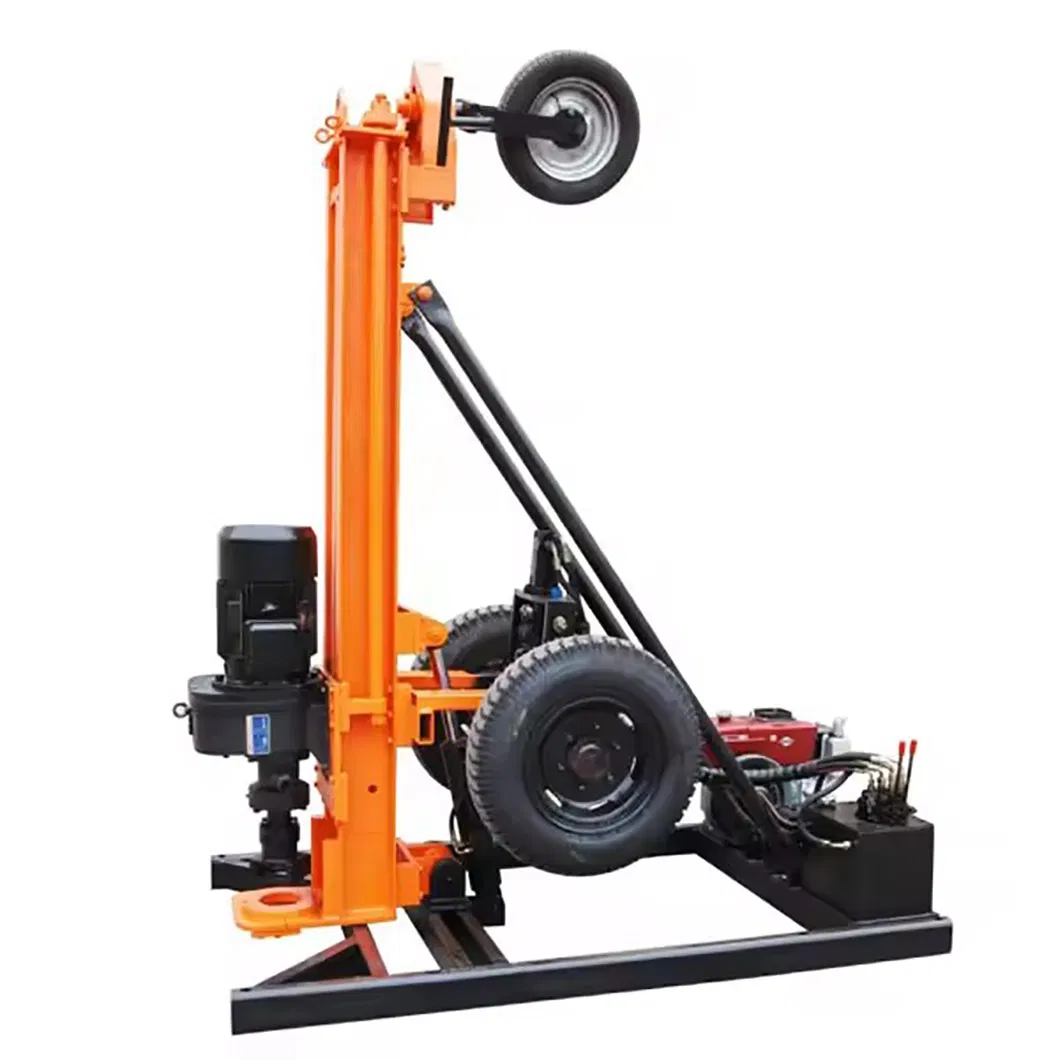

| XW200D Drilling Rig Specification | |
|---|---|
| The weight (kg) | 1800 |
| The hole diameter (mm) | 100-254 |
| Drilling depth (m) | 200 |
| One-time advance length (mm) | 1800 |
| Walking speed (km/h) | 3 |
| Equipped capacitor (kw) | 11 |
| Using air pressure (MPA) | 1.45-2.5 |
| Air consumption (m³/min) | 15-27 |
| Swing speed (rpm) | 52 |
| Drilling direction | From 45-90° to the ground |
We are a professional company engaged in the research, development, production, sales, application, and service of air compressors and rock drill machines. Our products are widely utilized in industrial compressed air supply, mining, and various construction projects.
With technology development as the core of our philosophy, we follow guidelines of "detail-oriented, high efficiency, quality first, and creating the future" and a business philosophy of constant science and technology innovations. We eye the global market with confidence, striving to provide world-class products and excellent services to our customers.
