| Model NO. | MH Single Beam Gantry Crane |
| Certification | RoHS, CE, ISO9001, SGS |
| Maximum Lifting Weight | 20t Max/Customizable |
| Maximum Lifting Height | 20m Max/Customizable |
| Operation Form | Push Button Pendent/Radio Remote Control |
| Type | Single Girder Semi Gantry Crane |
| Main Girder Form | Single Girder |
| Span | 40m Max/Customizable |
| Power Supply | 3 Phase 380V 50Hz/Customizable |
| Lifting Mechanism | Electric Wire Rope Hoist/Chain Hoist/Winch |

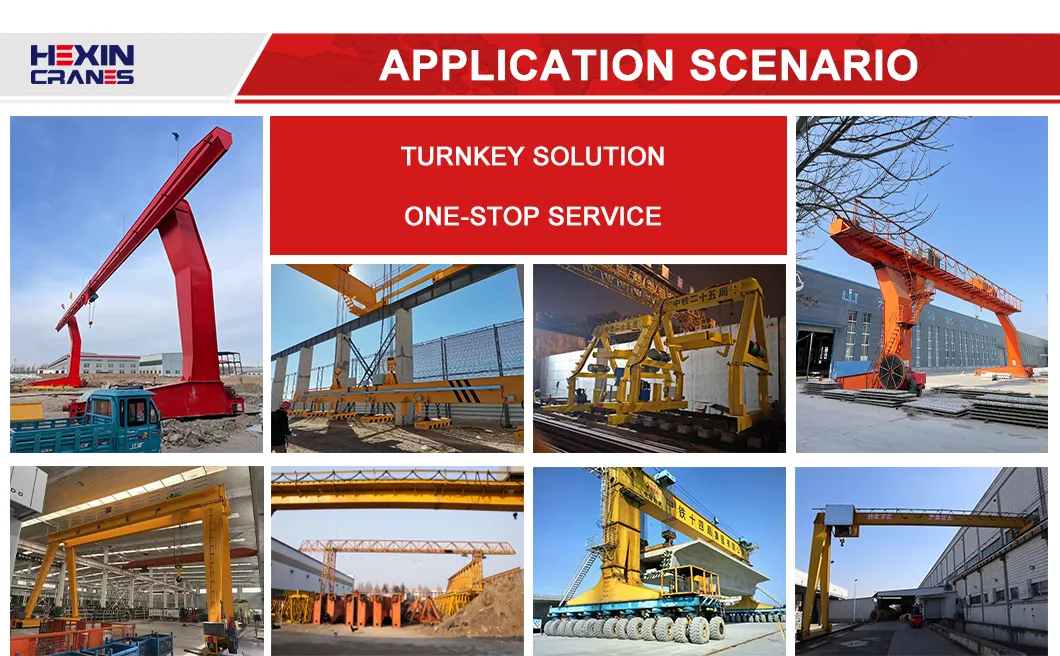

| Application | Factory, Warehouse, Outdoor Storage Yards |
| Material | Q235B/Q355b Steel |

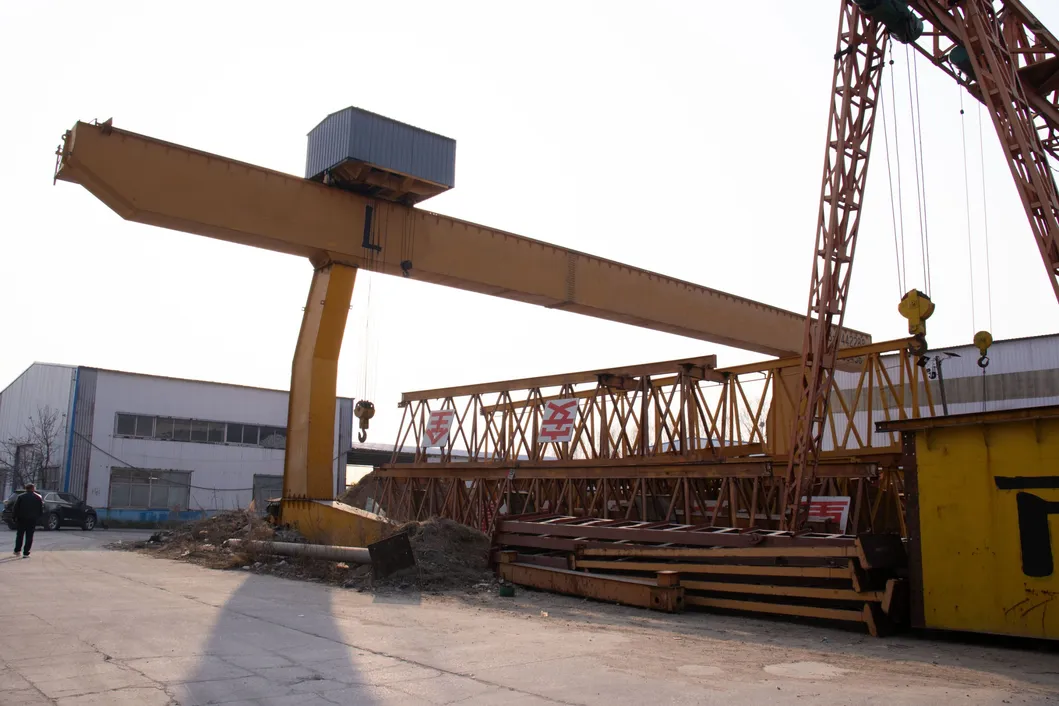

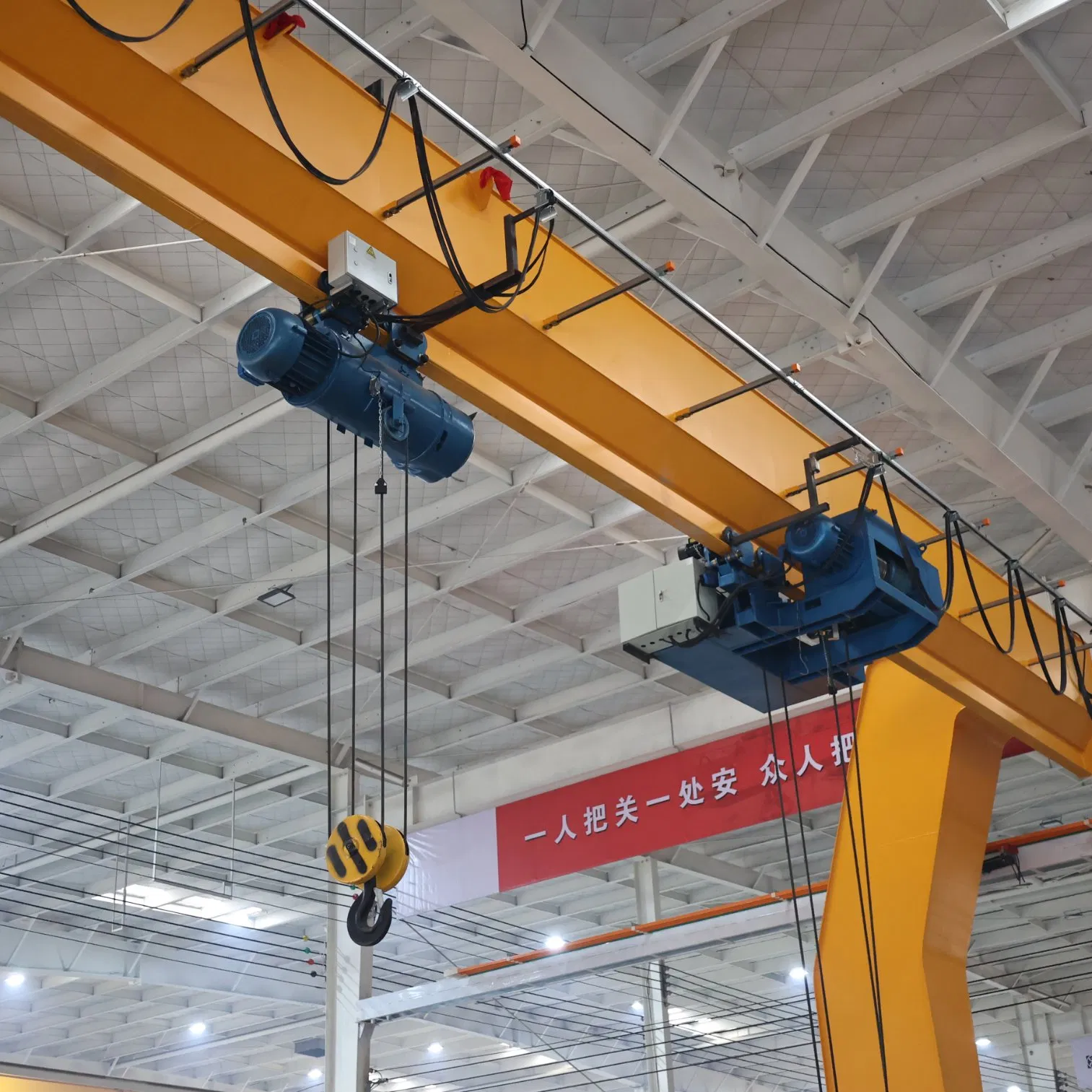

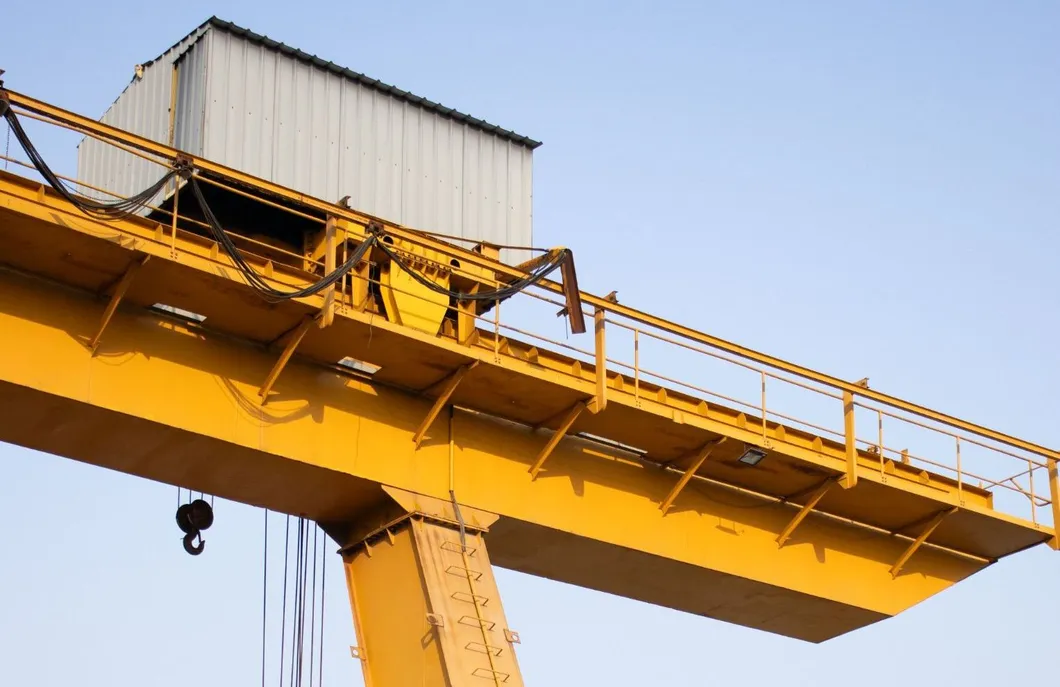

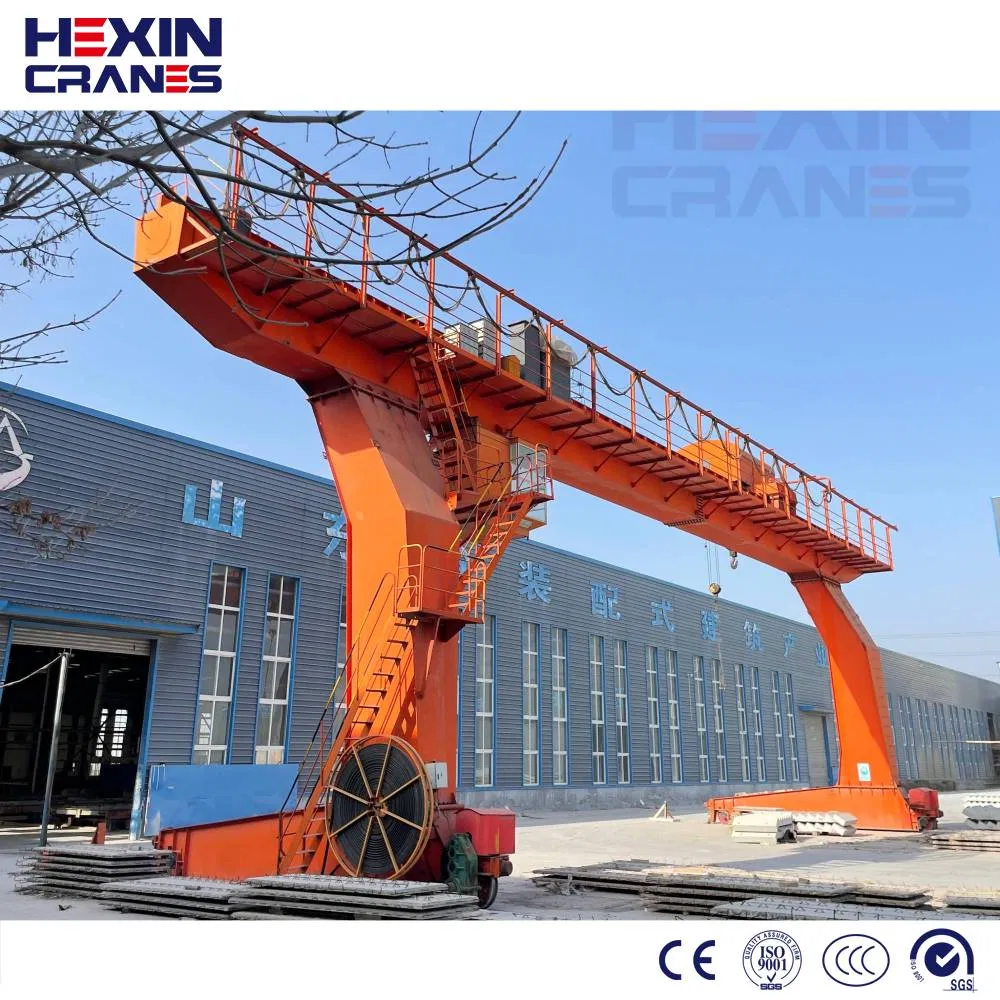

The L-type gantry crane is a uniquely structured lifting equipment, named for the "L"-shaped right-angle structure formed by its main beam and legs. This design optimizes space based on the functional characteristics of traditional gantry cranes, effectively reducing space occupation on the non-operating side or adapting to narrow environments close to walls and obstacles. It is particularly suitable for wall-mounted installation in workshops or light-to-medium cargo handling in narrow passages of ports and warehouses.
| Parameter | Details |
|---|---|
| Type | L-Shape Gantry Crane |
| Tonnage | 1T to 200T / Customized |
| Span | 1 to 40 meters |
| Lifting Height | 2 to 40 meters |
| Working Level | A1 - A8 |
| Warranty | 18 Months after shipment |
| Control Method | Wireless Remote / Ground Handle / Cabin |
| Working Temp | -20°C ~ 45°C |

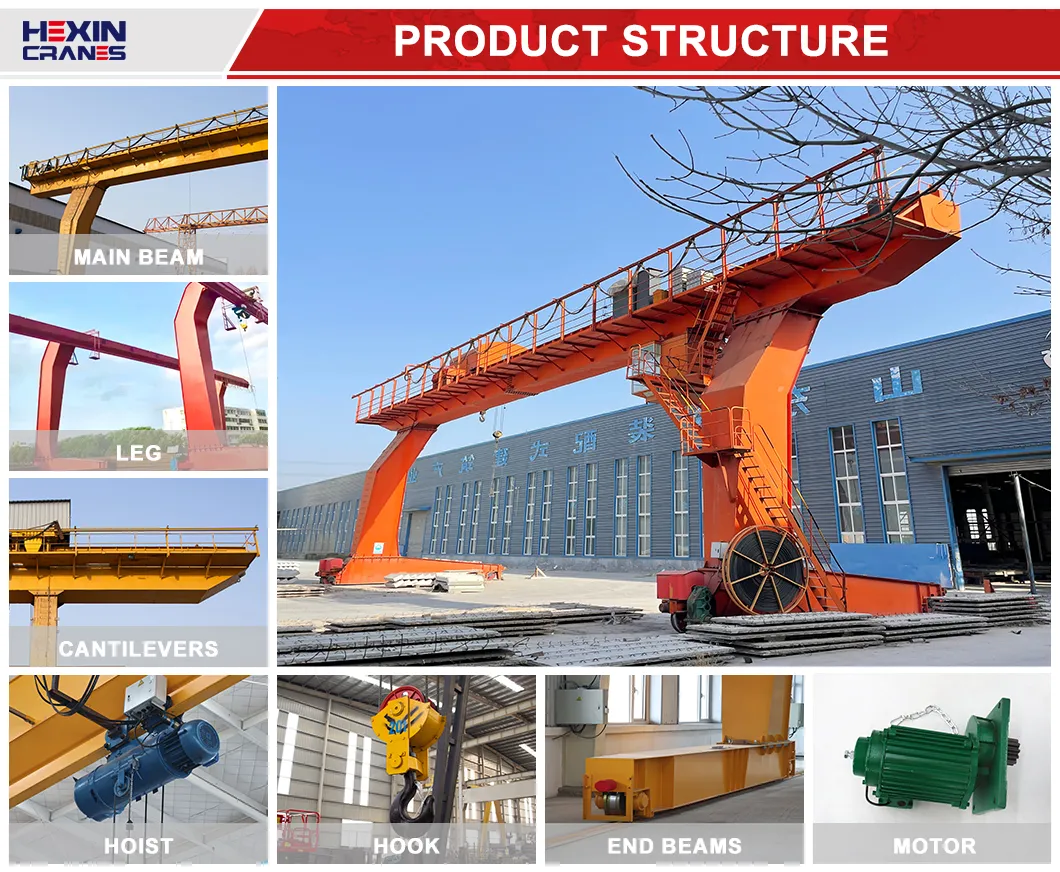

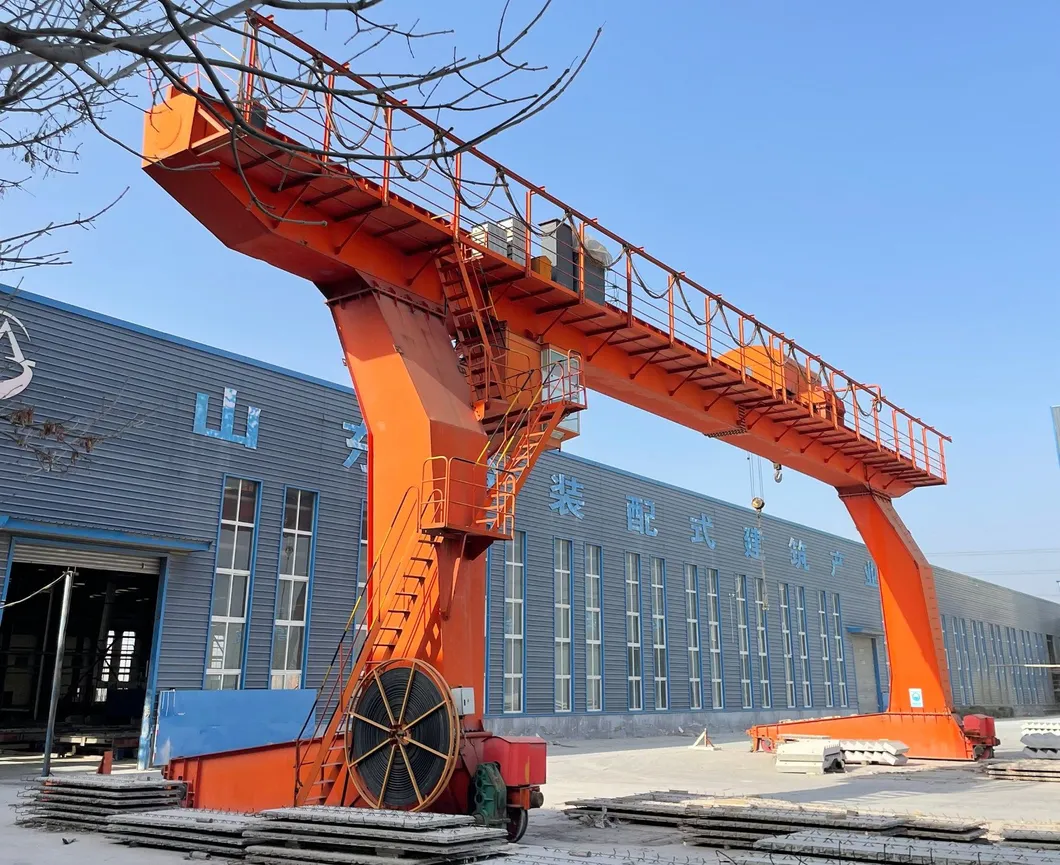

L-Shape Structure: Asymmetric design, lightweight, and strong scenario-specific applicability.

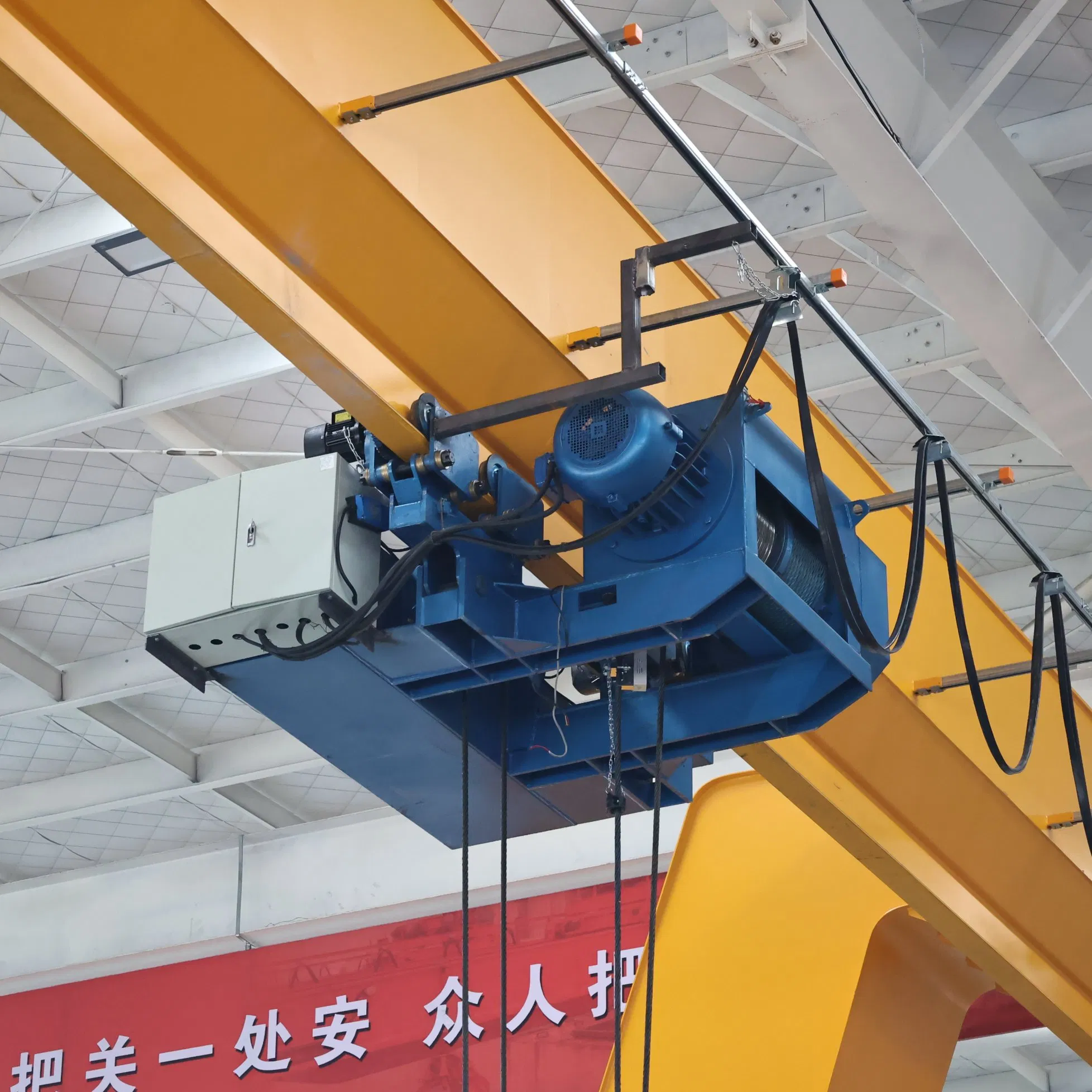

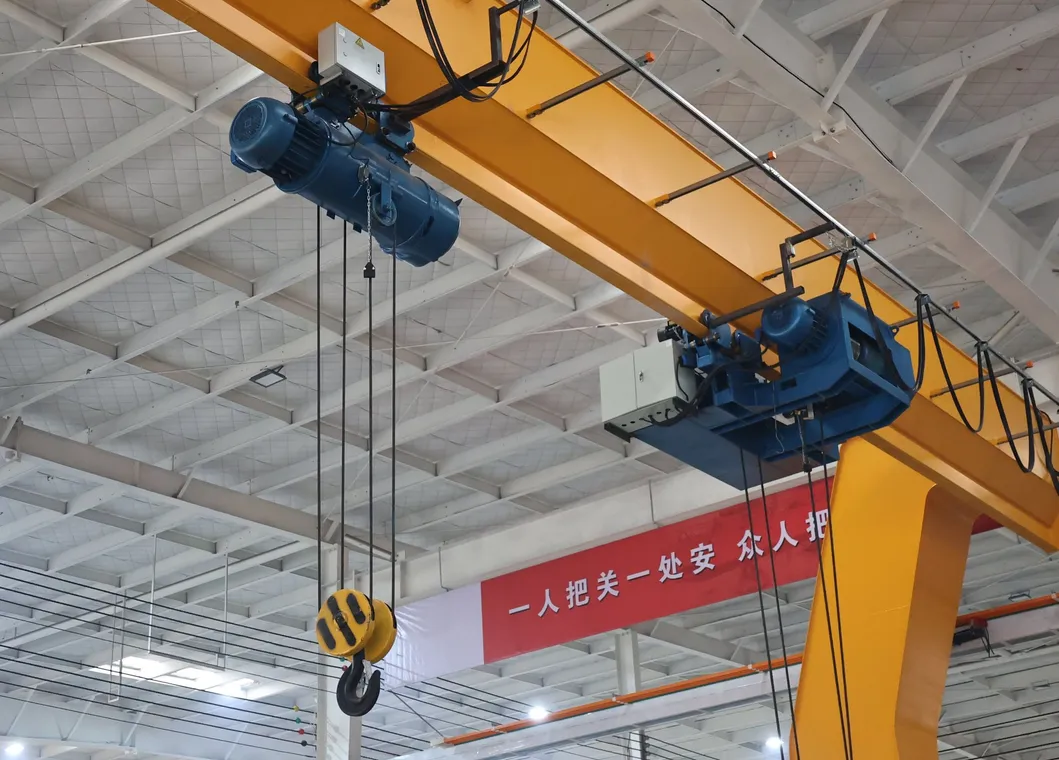

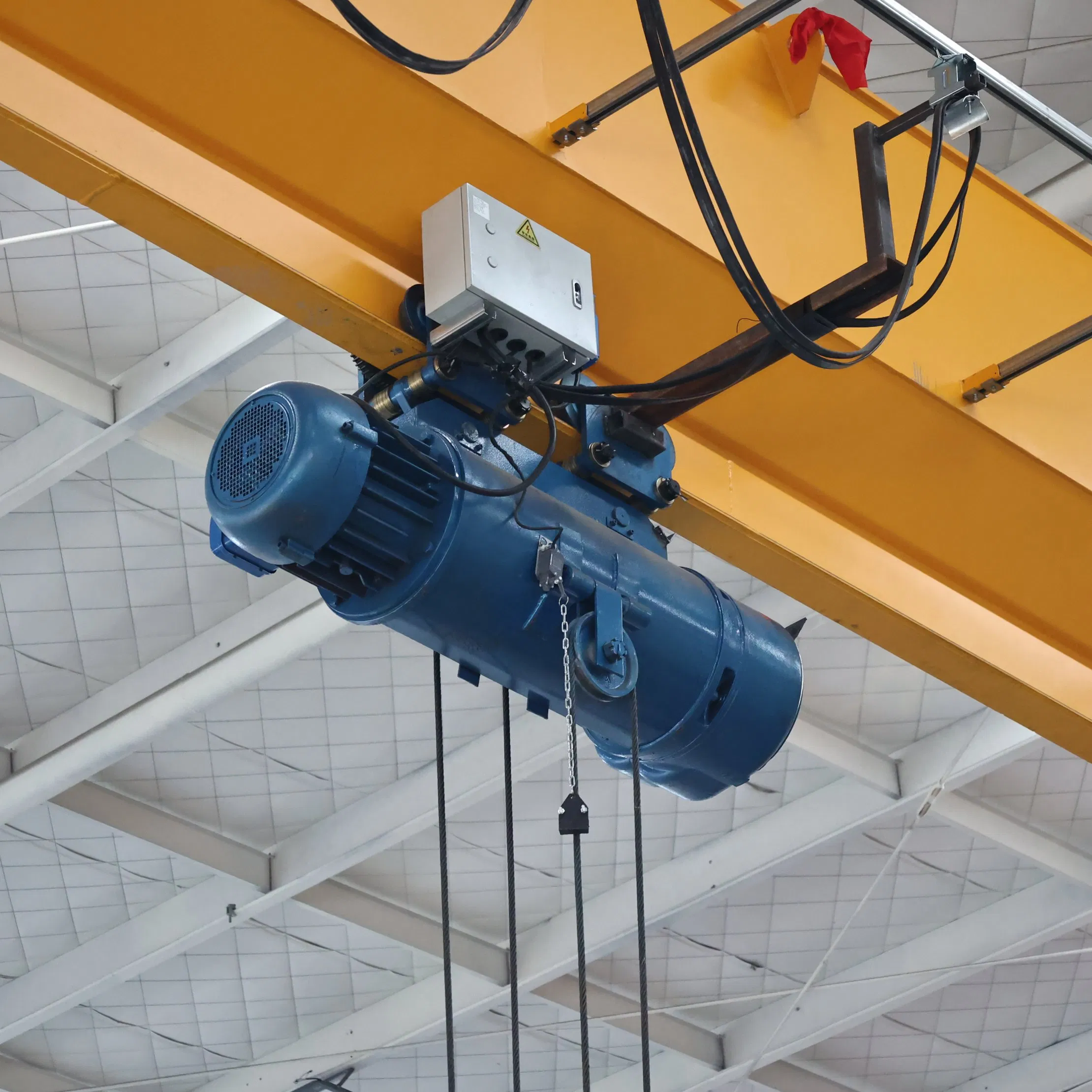

Lifting Mechanism: Electric hoist with motor, reducer, and high-strength wire rope.

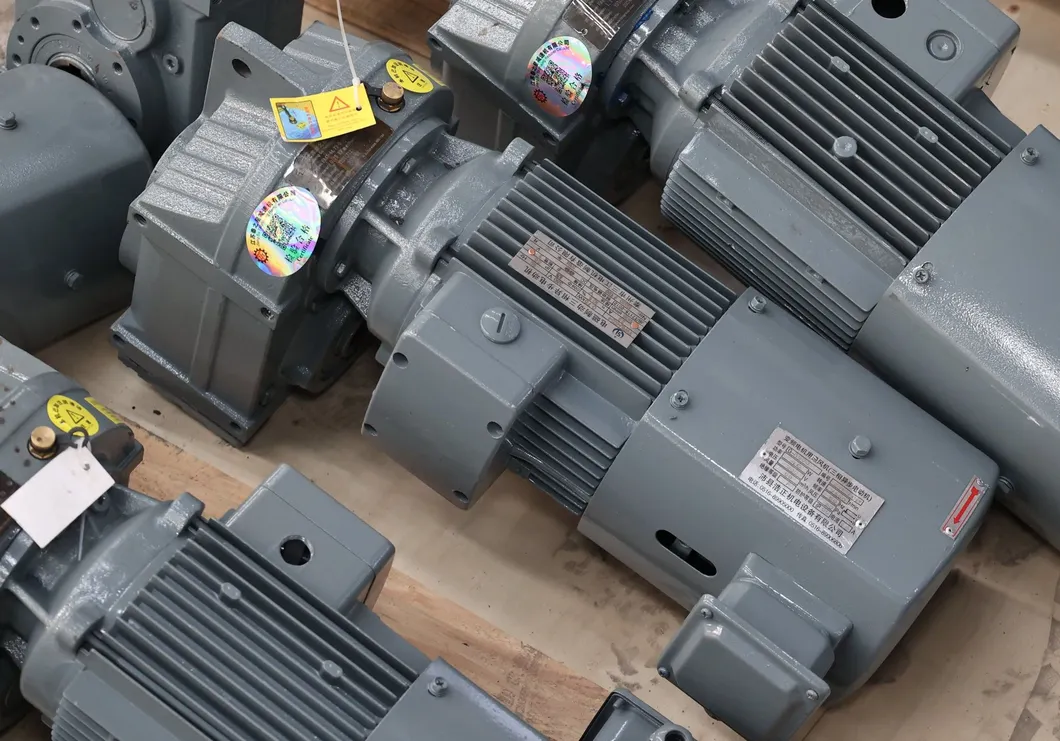

Electrical System: Precision control for safety and strong protection performance.
To provide the most accurate tailored design solution, please share the following details:
