Product Description

📋

Technical Specifications

Model NO.GL-LD-Z

Carrying CapacityWeight Level

Driven TypeDC Power

FeaturesExplosion-Proof, Insulating

CertificationGS, CE, RoHS, ISO 9001

Load Capacity100kg to 800kg

Lifting Height1.5m to 3.5m (Customized)

Suction Caps4, 6, or 8 PCS (Customized)

Hydraulic Motor24V/2000W

Drive Motor24V/900W

Working PrincipleHydraulic Lifting & Vacuum Sucking

OriginChina

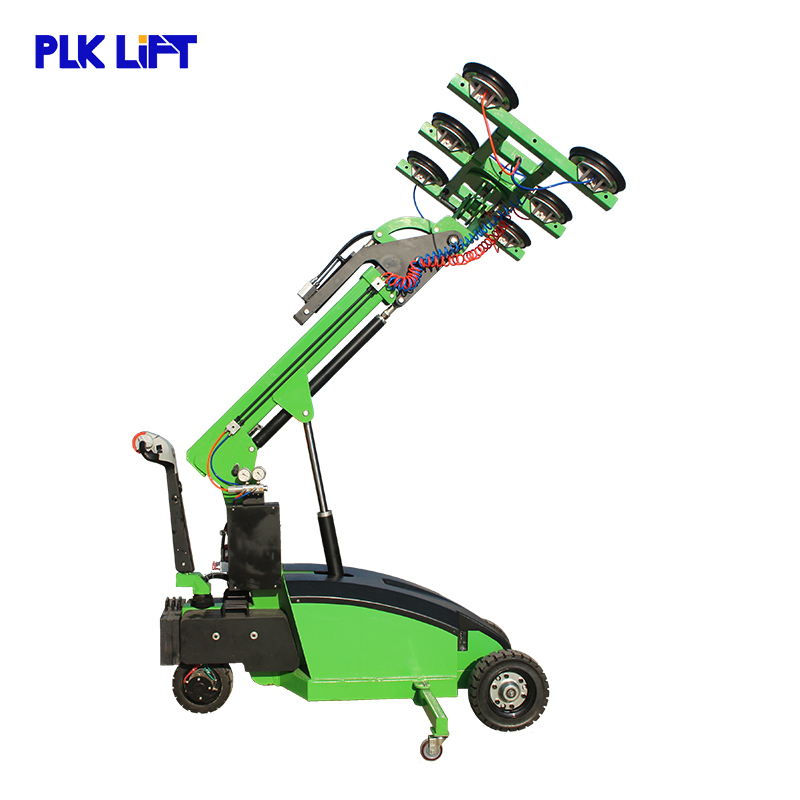

Electric Power Hydraulic Automatic Vacuum Lifter

The hydraulic vacuum lifter is specially designed for handling different kinds of heavy plates, such as steel, glass, granite, and marble, using high-efficiency vacuum suction caps.

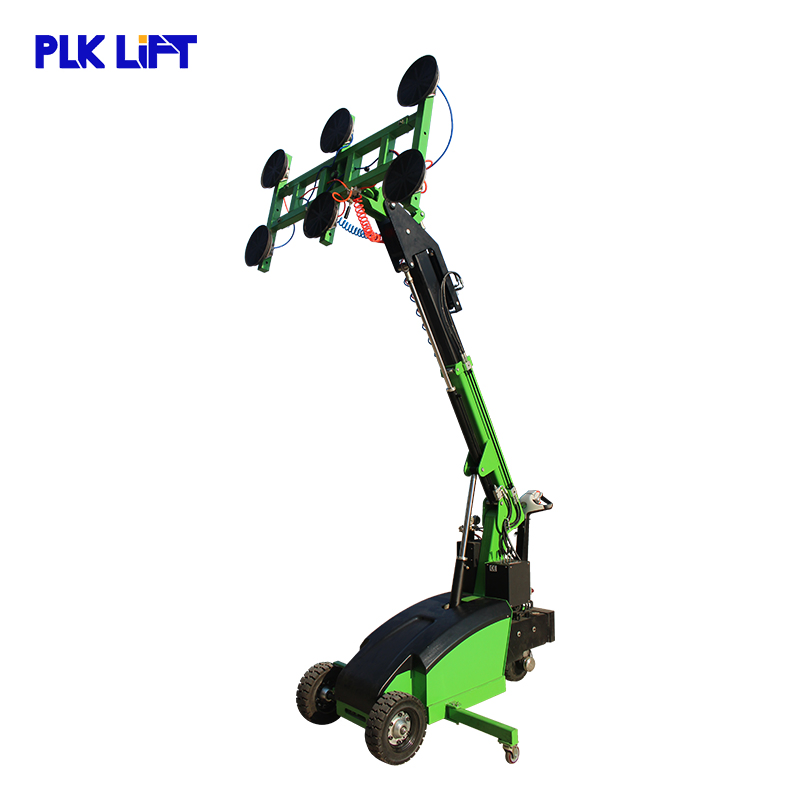

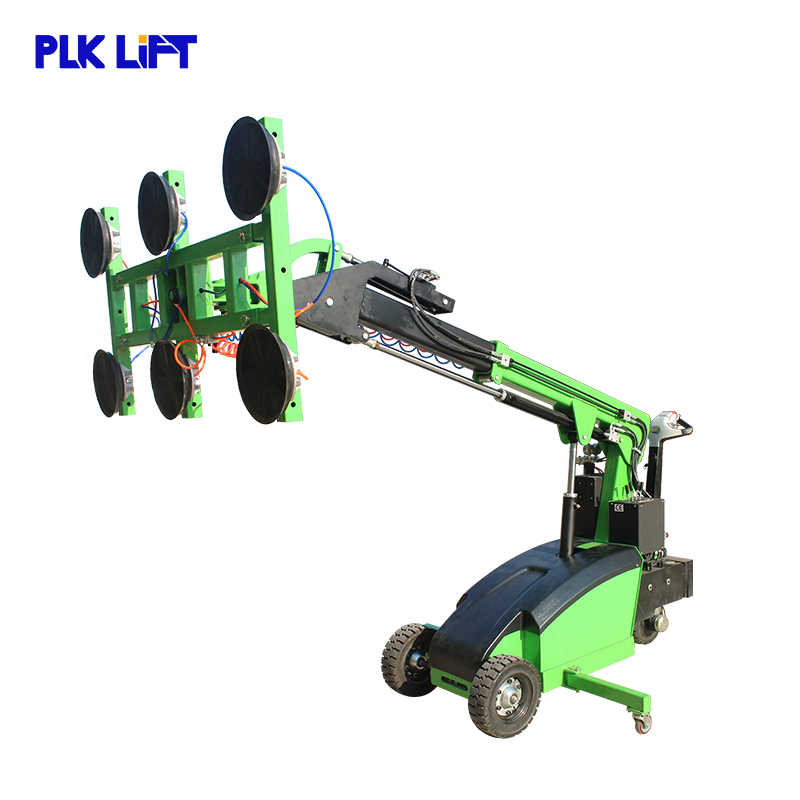

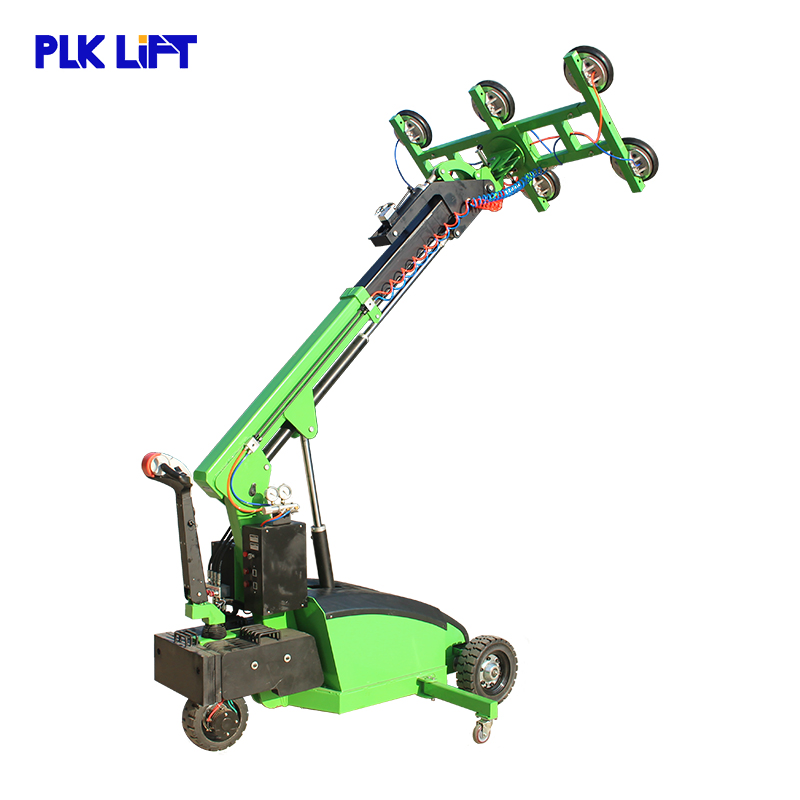

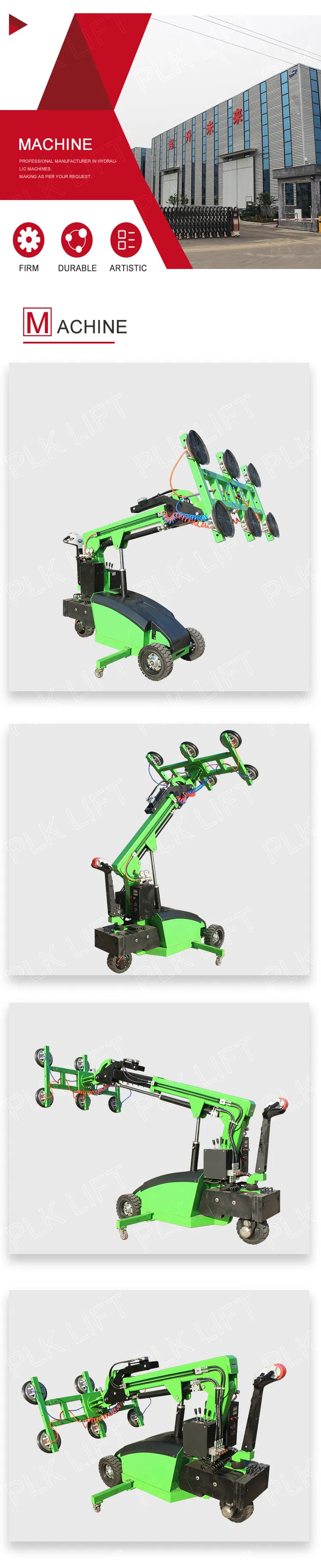

GL-LD series: Reaches heights up to 3.6m (customizable to 4m). Features a flexible boom arm with 360° rollover and 180° tilt frame pad, ideal for installing windows, doors, and heavy panels.

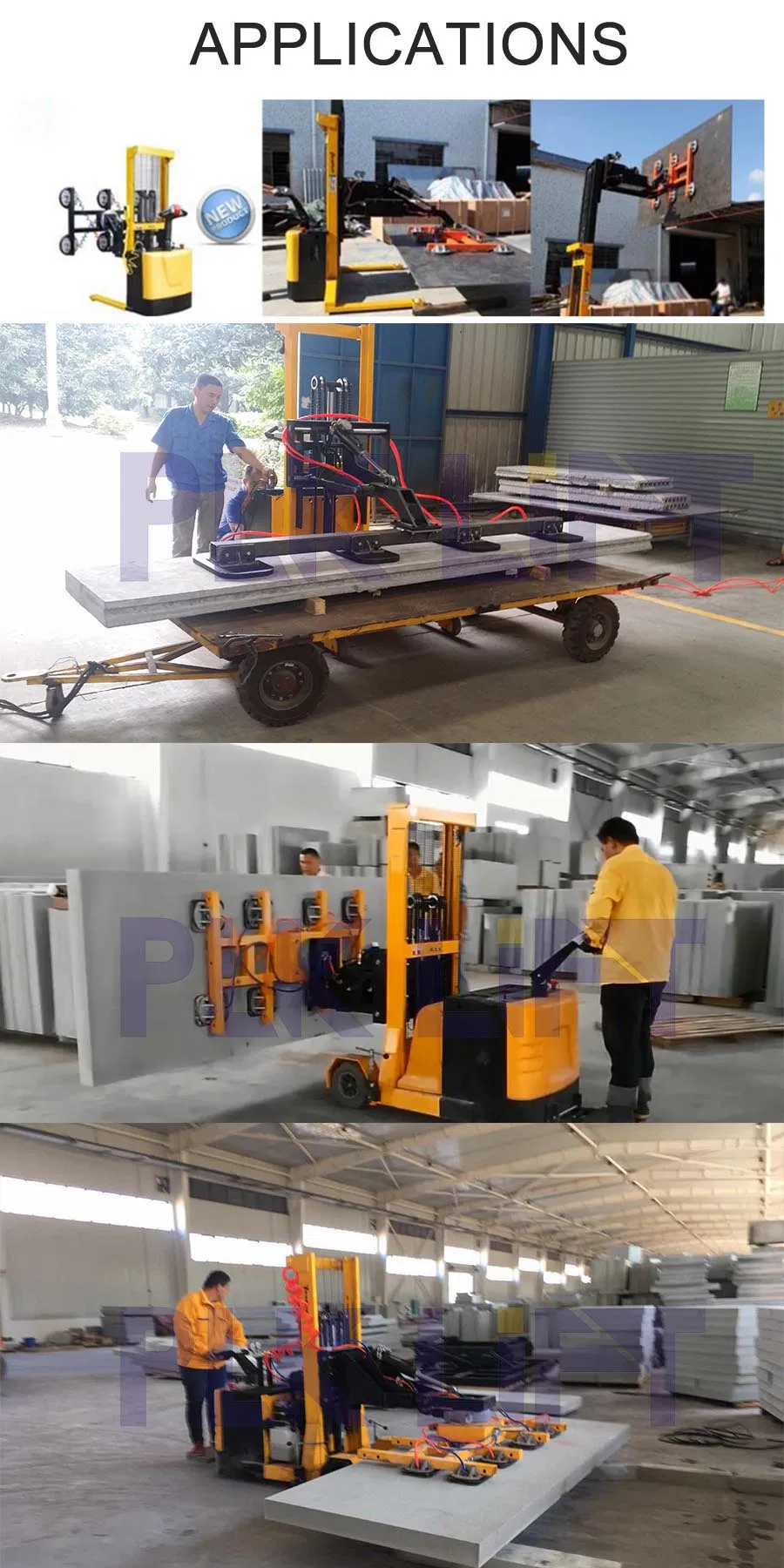

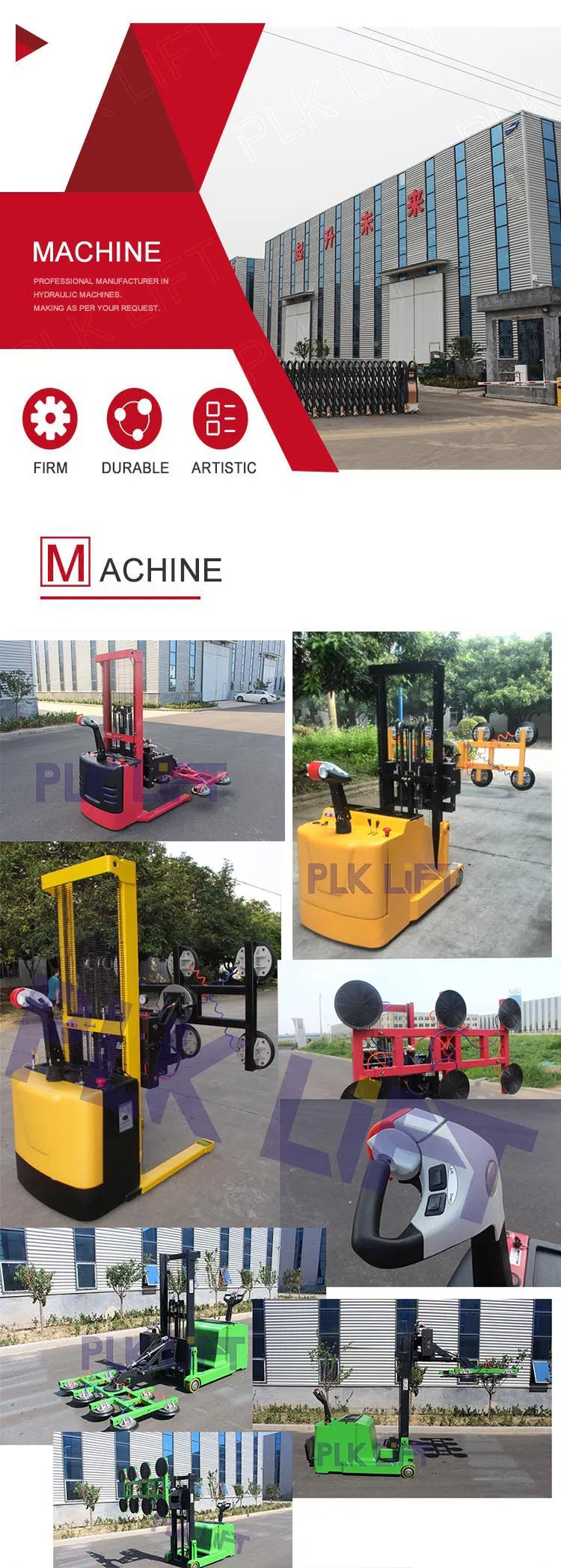

GL-HD series: Floor crane chassis design. Lifting height from 1.6m to 2.6m with 90° vertical tilt. Widely used for moving heavy panels in workshops and warehouses to CNC machines.

📊

LD Series Specifications

Model Type	GL-LD-350	GL-LD-600
Loading Capacity	350kg (retract) / 175kg (extend)	600kg (retract) / 300kg (extend)
Lifting Height	3500mm	3500mm
Battery	2x12V/100AH	2x12V/120AH
Drive Motor	24V/600W	24V/900W
Hydraulic Power	24V/2000W/5L	24V/2000W/5L
Cap Diameter	Ø250mm/300mm	Ø250mm/300mm

📊

HD Series Specifications

Model	GL-HD-8015(6)	GL-HD-8025(8)	GL-HD-6015(4x30)
Max. Load	800kgs	800kgs	600kgs
Safe Load	400kgs	400kgs	300kgs
Lifting Height	1500mm	2500mm	1500mm
QTY of Caps	6pcs	8pcs	4pcs
Drive Motor	24V/900W	24V/900W	24V/700W
Battery	2x12V/160Ah	2x12V/160Ah	2x12V/100Ah

⭐

Core Advantages

Integrated Control: Automatic positioning vertically and horizontally via single button push.
Reliable Actuators: DC24V systems for precise lifting, extension, and tipping.
Efficiency: Significant staff savings and improvement of the working environment.
Anti-Corrosion: Treated with shot blasting and stoving varnish for long-term durability.
Stable Operation: High-quality pump station ensures smooth lifting and falling.
Safety Systems: Heavy-duty cylinders with check valves to prevent drops during hose burst.
Overload Protection: Pressure relief valve and flow control valve for adjustable speed.
Easy Maintenance: Simplified structure for straightforward operation and upkeep.

🖼️

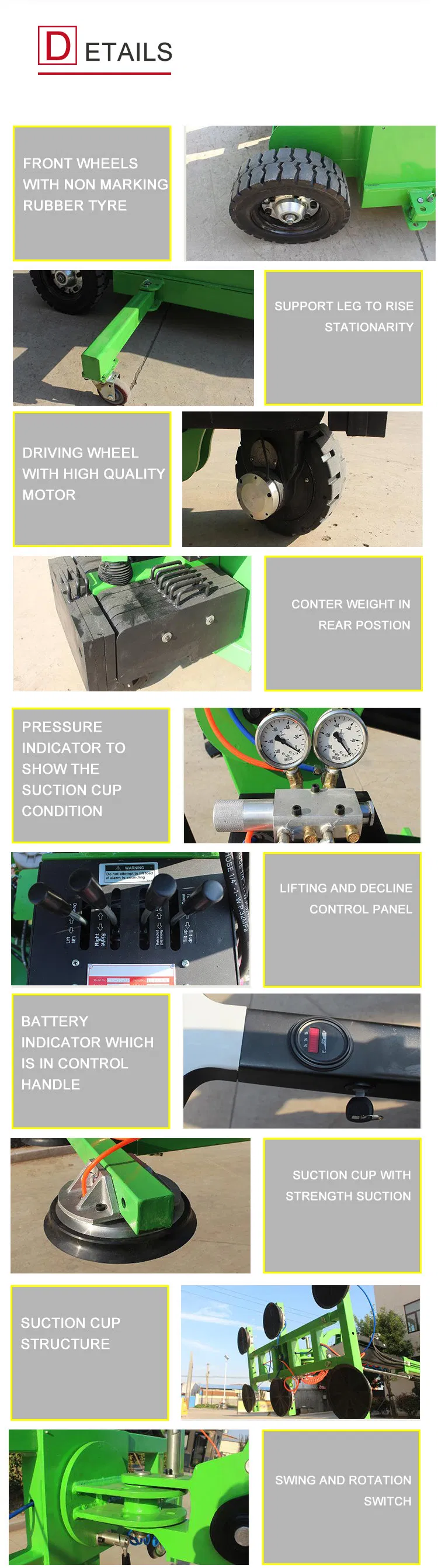

Product Display

❓

Frequently Asked Questions

What materials can this vacuum lifter handle?

It is designed for various heavy plates, including steel, glass, granite, marble, and other smooth-surfaced heavy panels.

What is the difference between the LD and HD series?

The LD series is designed for higher reach (up to 4m) with a flexible 360° rollover boom, while the HD series uses a floor crane chassis, ideal for workshop marble handling and CNC machine feeding.

What is the maximum weight capacity available?

The equipment can handle loads ranging from 100kg up to a maximum of 800kg, depending on the specific model and configuration.

How is the lifter powered and controlled?

It uses a DC 24V battery system with integrated electronic controls, allowing for automated positioning via simple button operation.

Are there safety features to prevent accidental drops?

Yes, it includes heavy-duty cylinders with check valves to stop lowering in case of a hose burst, as well as a pressure relief valve to prevent overload.

Can the number of suction caps be customized?

Yes, the number of suction caps (typically 4, 6, or 8) and the suction plate size can be customized according to your specific material handling needs.
