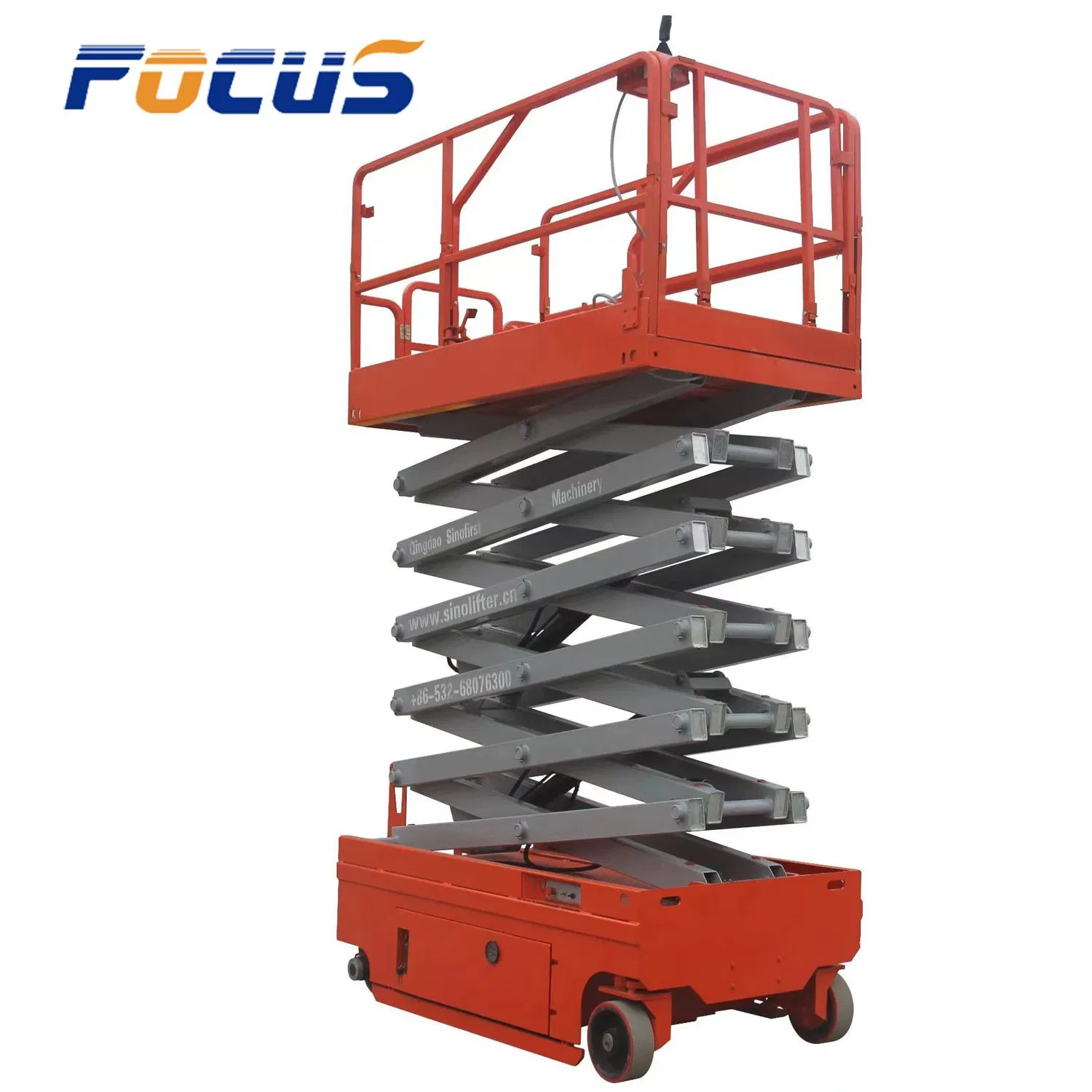

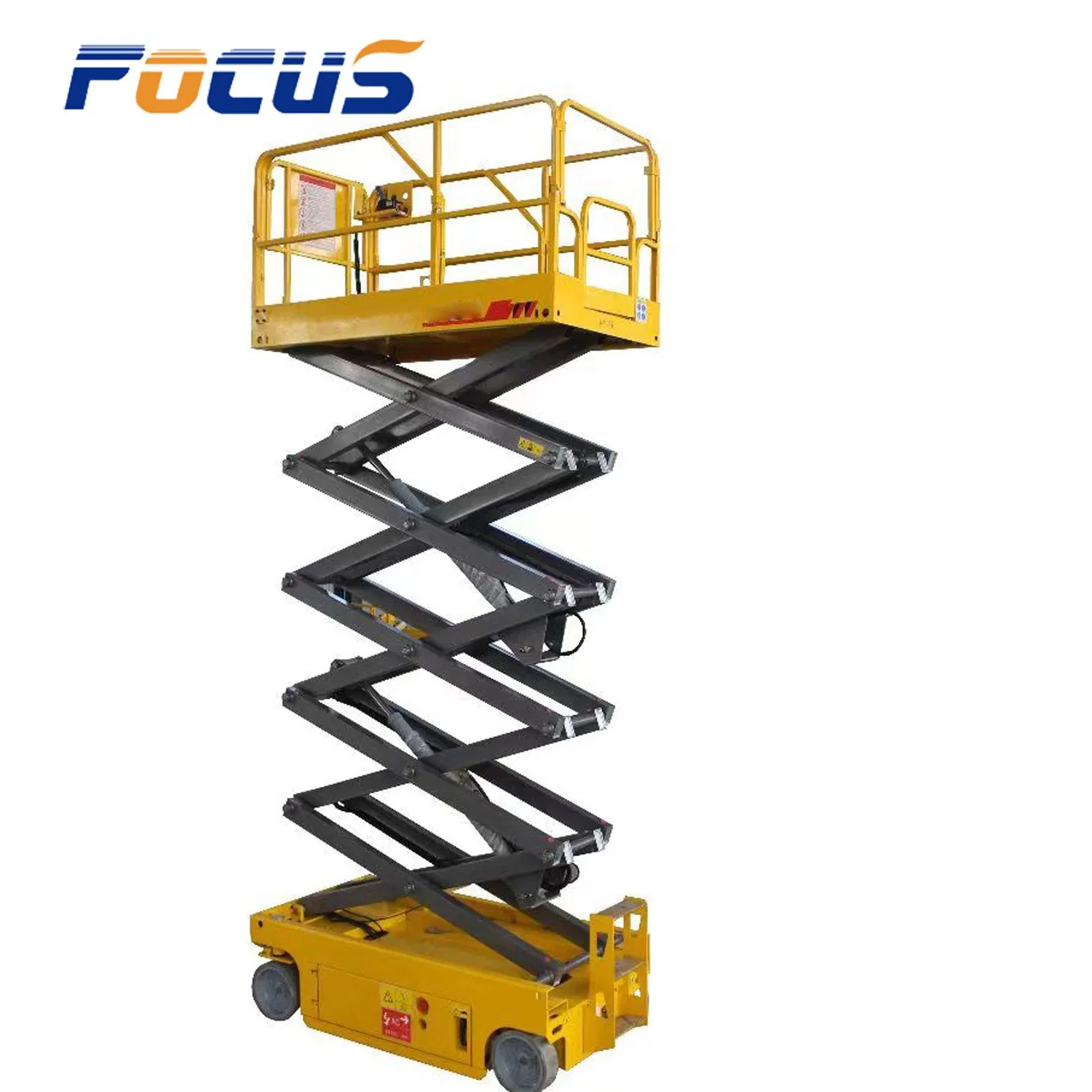

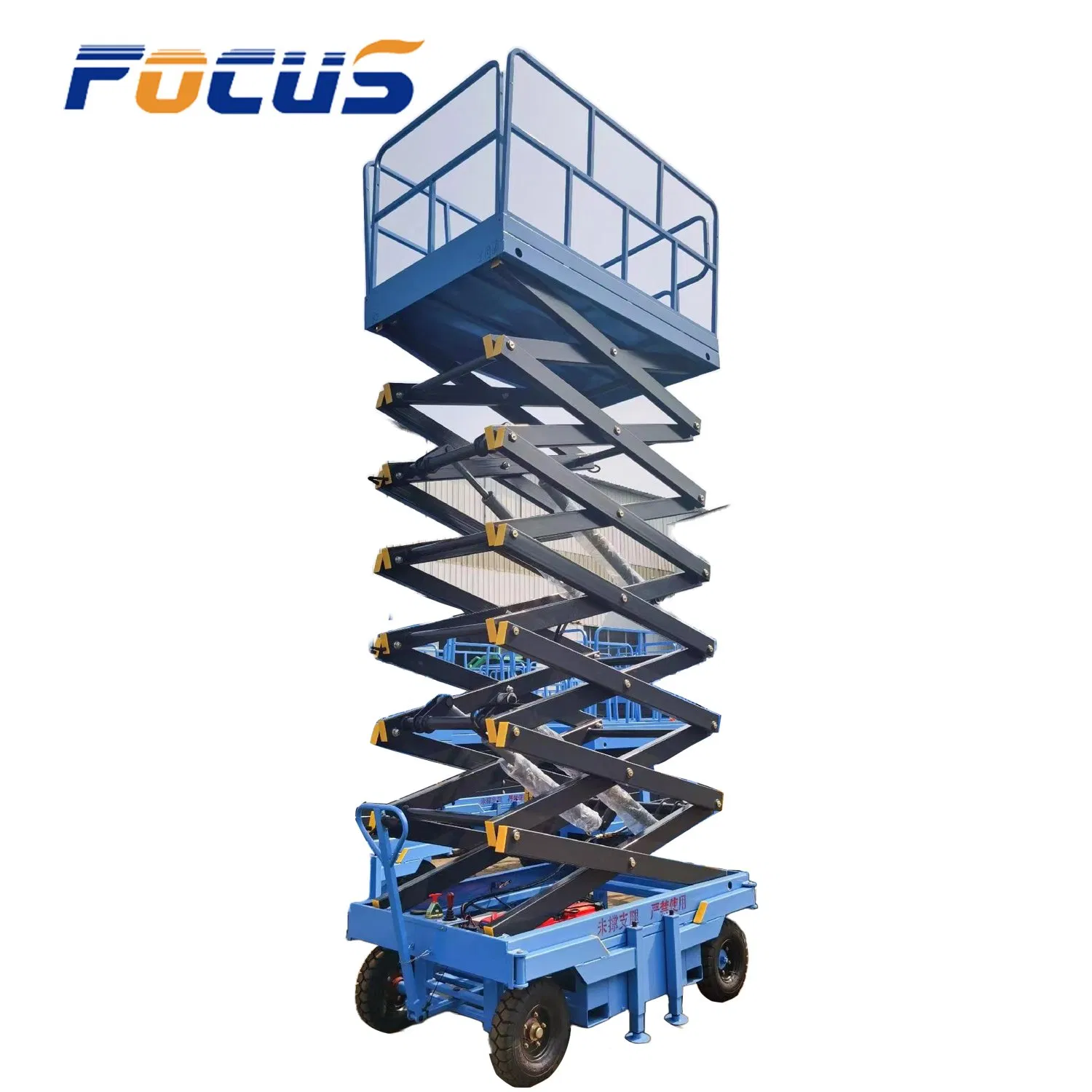

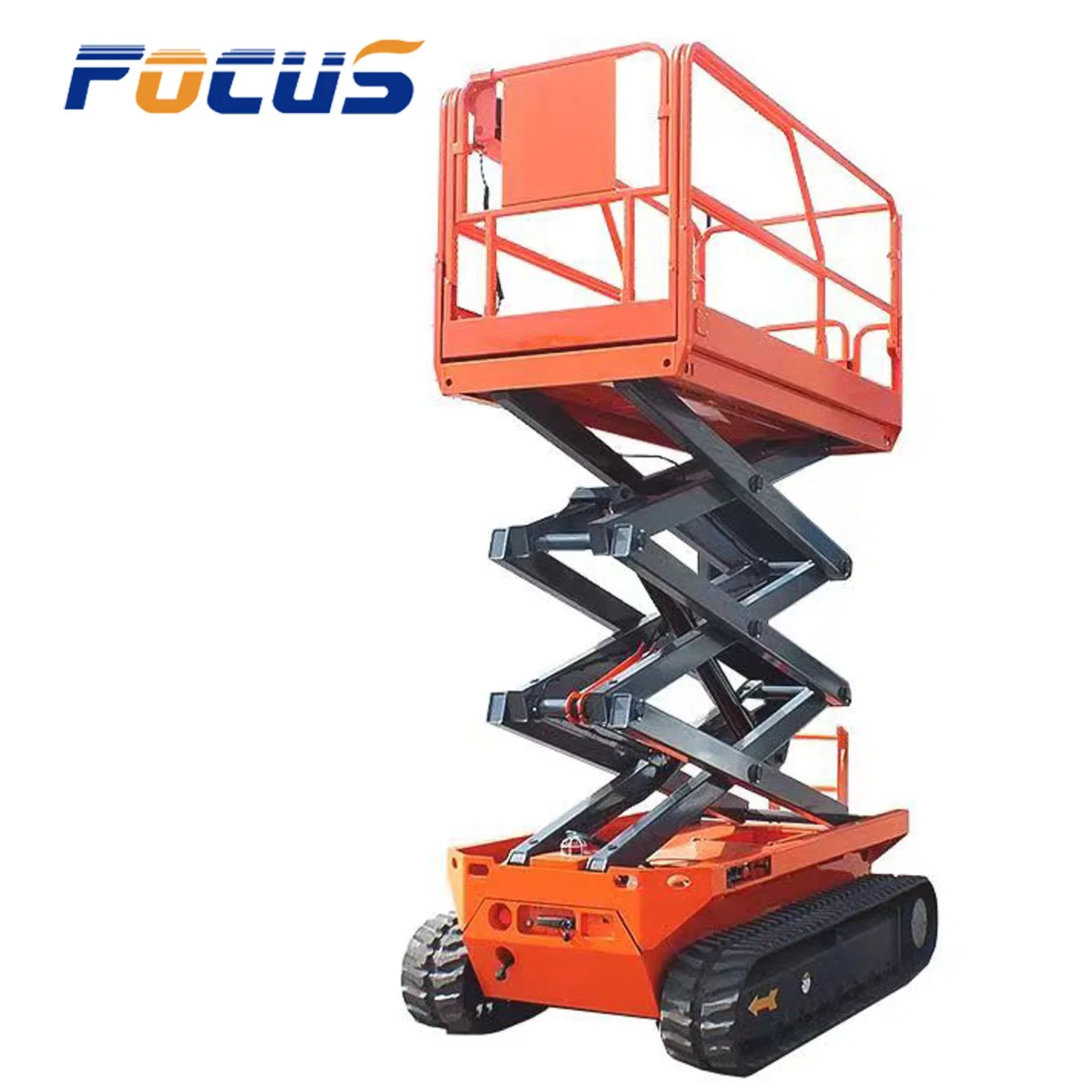

Aerial Work Platform 12m Hydraulic Scissor Lift Jlg-R4045 Mobile Lifting Work Platform Equipment

1 / 5

Aerial Work Platform 12m Hydraulic Scissor Lift Jlg-R4045 Mobile Lifting Work Platform Equipment

Customization:	Available
Application:	Workshop Crane, Warehouse Crane
Lift Mechanism:	Scissor Lift

Send Inquiry

Product Description

📋 Basic Information

Model NO.

JLG-R4045

Carrying Capacity

Middle-Level

Moves

Self-propelled

Driven Type

Hydraulic

Running Mode

Moving

Certification

ISO 9001

HS Code

8428909090

Production Capacity

5000 Vehicle/Year

📦 Packaging & Delivery

Package Size

10.00cm * 10.00cm * 10.00cm

Gross Weight

3175.000kg

🛠️ Product Highlights

The R series scissor aerial work platform has been completely redesigned from both the chassis and platform. It includes an active dent protection system, simple arm design, and thick tires to ensure durability and ease of maintenance, making it highly suitable for rental applications.

Unique and wide tilt angle suitable for multiple working conditions.
Lightest total weight in its class with a unique single-lift oil cylinder design.
Fewer hydraulic oil pipes and joints, reducing leakage points and maintenance costs.
Swing-out component compartment for easy maintenance access.
Lubrication-free parts for a lower total cost of ownership.

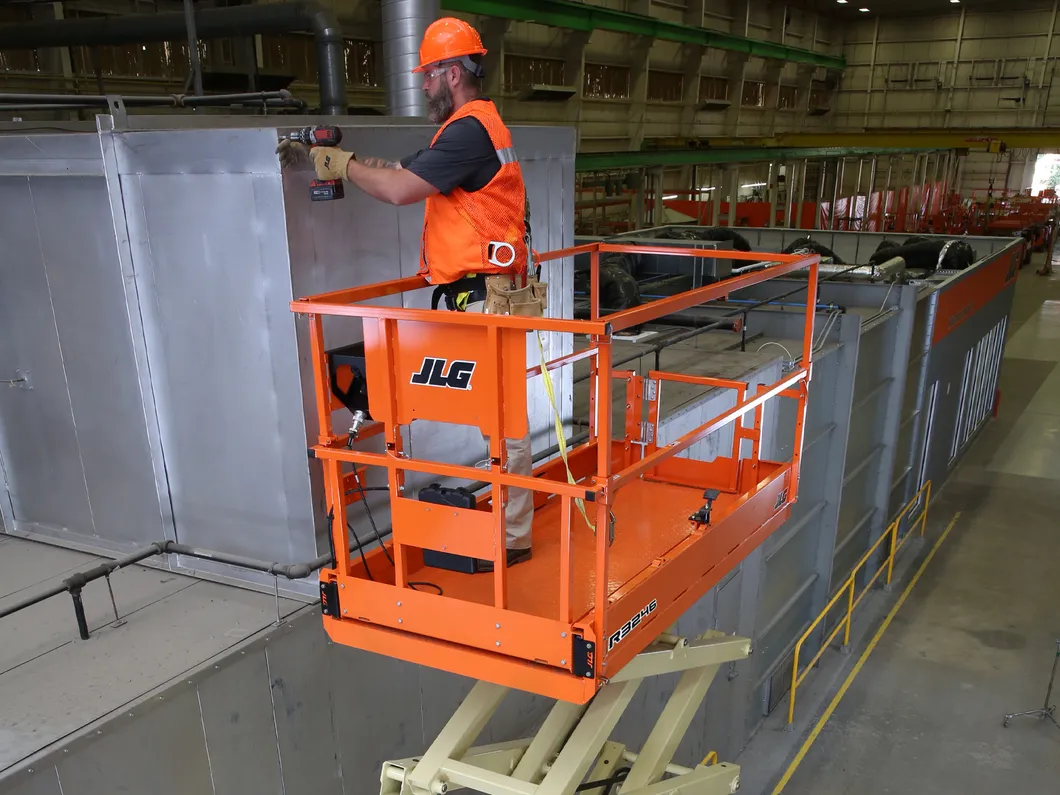

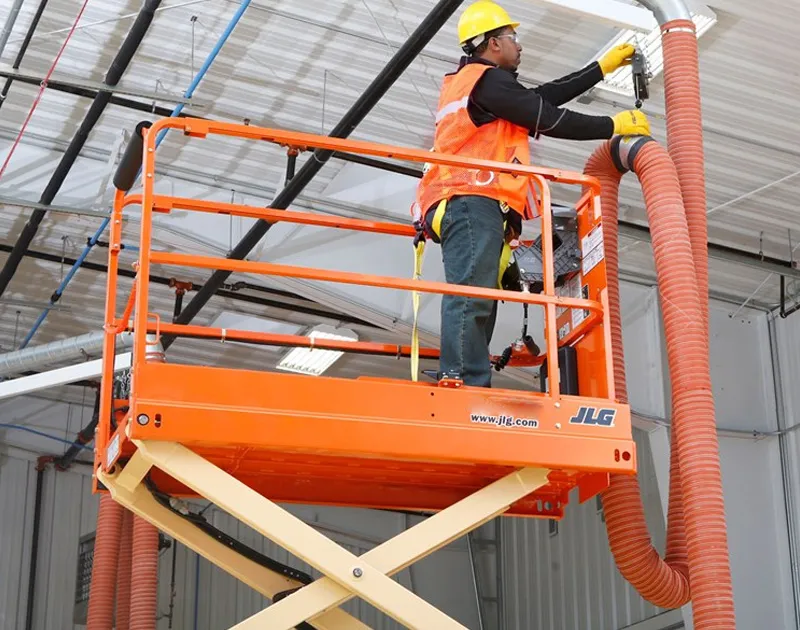

All-steel platforms and "parallel" fence designs for maximum strength.
Large 16x5-inch tires with strong spanning ability for construction sites.
12-meter height model suitable for both indoor and outdoor use.

📊 Technical Specifications

Parameter Name		Specification Details
Power Supply		Battery: 4 x 12v 150 amp-hr
Charger		27 amp High Frequency Charger
Brake System		Multi-Disc Friction (Hydraulic)
Hydraulic Tank Capacity		29.90 L / 7.9 gal.
Hydraulic Pump		Fixed Displacement Gear
Vehicle Weight		3175.15 kg / 7000 lb
Travel Speed (Raised)		0.80 km/h / 0.5 mph
Travel Speed (Lowered)		3.38 km/h / 2.1 mph
Gradeability		25%
Rise / Lower Time		80 sec / 41 sec
Platform Load		349.27 kg / 770 lb
Machine Width		1.14 m / 3 ft 9 in.
Machine Length		2.69 m / 8 ft 10 in.
Platform Height (Max)		11.96 m / 39 ft 3 in.
Working Height		13.79 m / 45 ft 3 in.
Tire Size		16 X 5 in

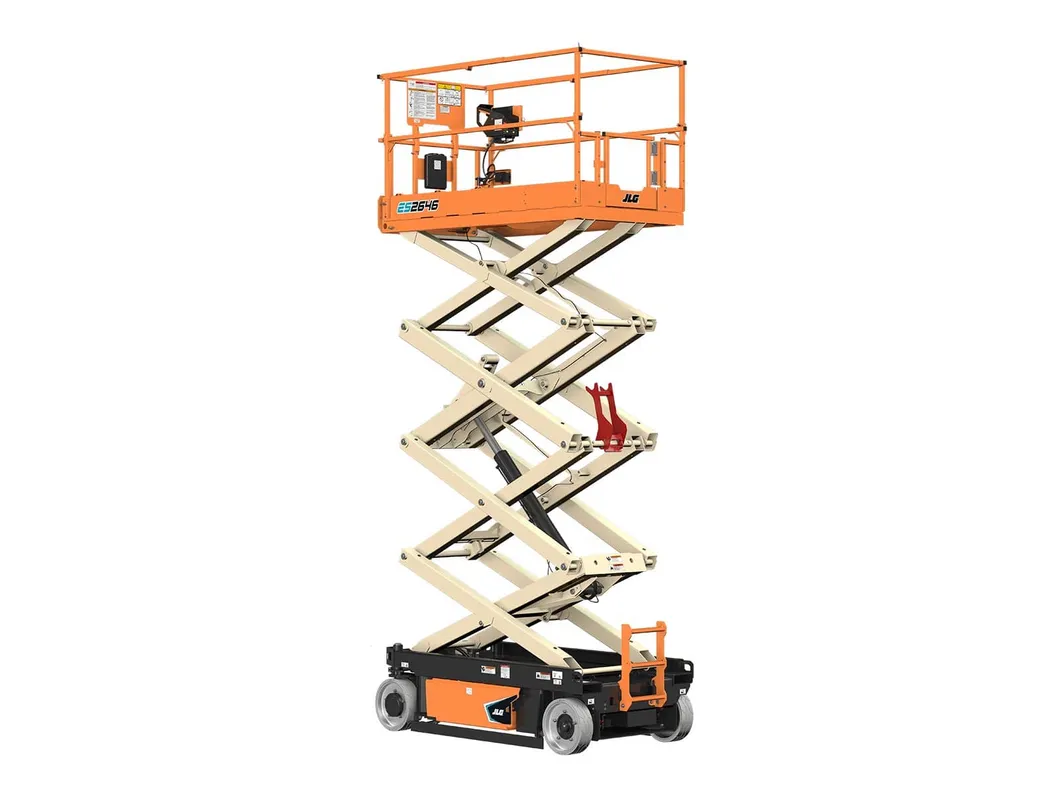

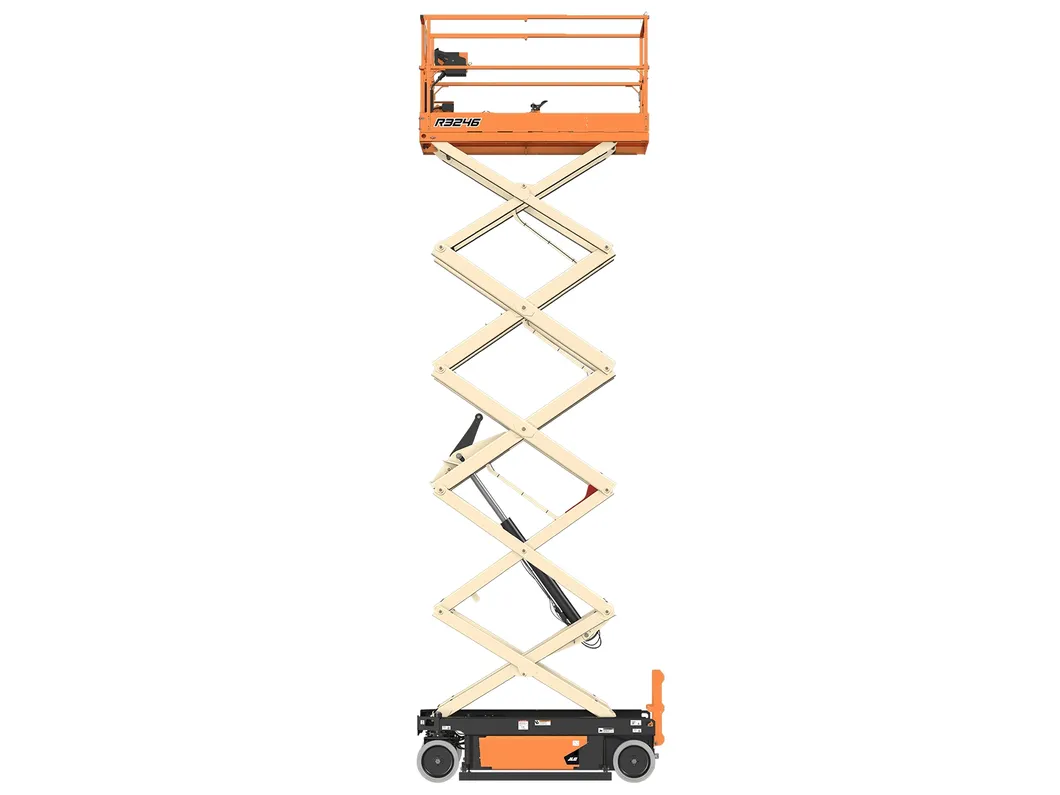

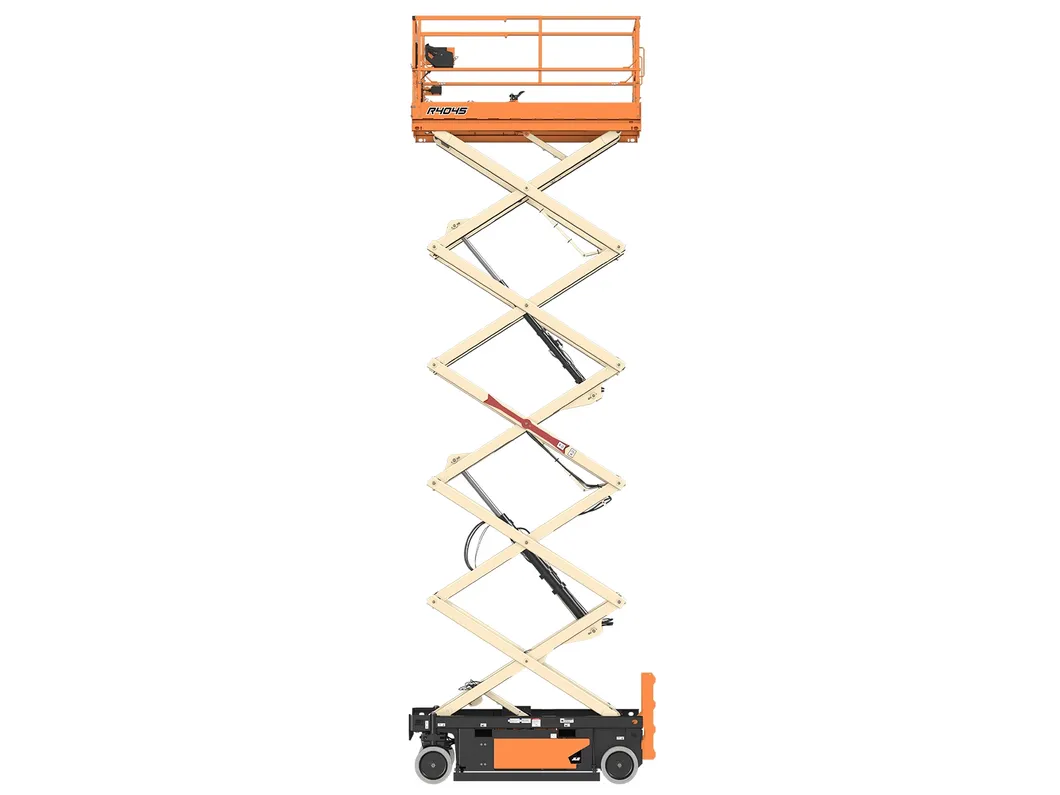

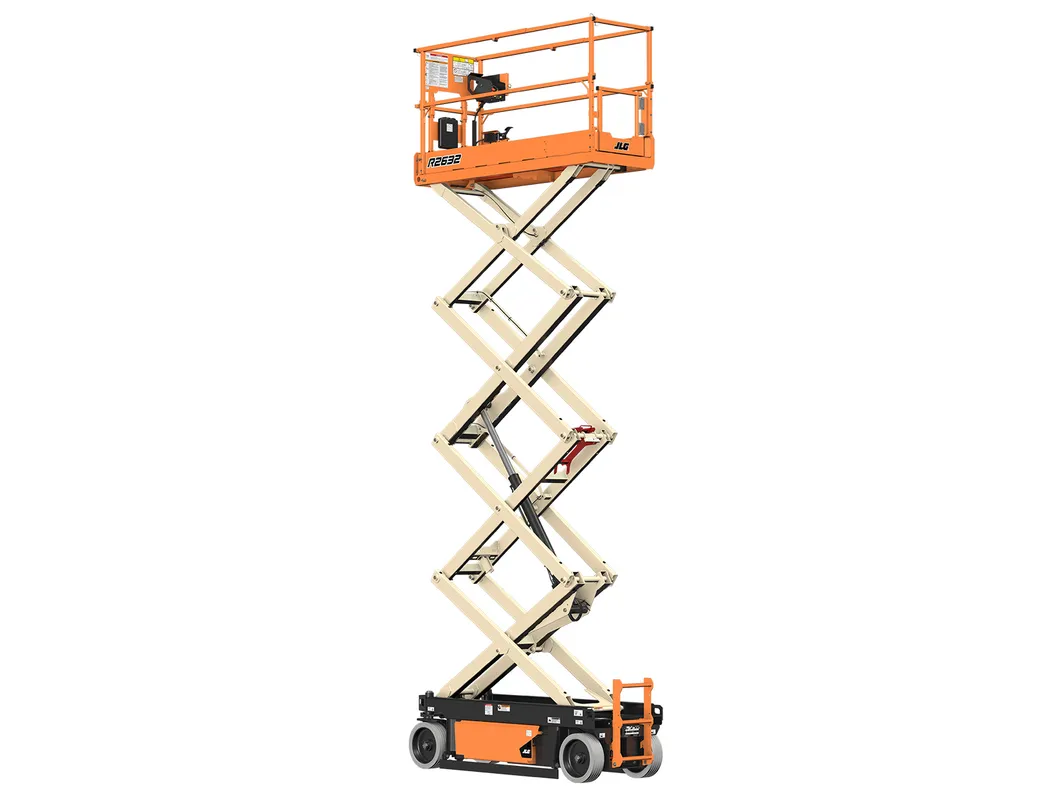

🖼️ Product Gallery

❓ Frequently Asked Questions

What is the maximum working height of the JLG-R4045?

The JLG-R4045 has a maximum platform height of 11.96 meters (39 ft 3 in) and a total working height of approximately 13.79 meters (45 ft 3 in).

Can this scissor lift be used in outdoor environments?

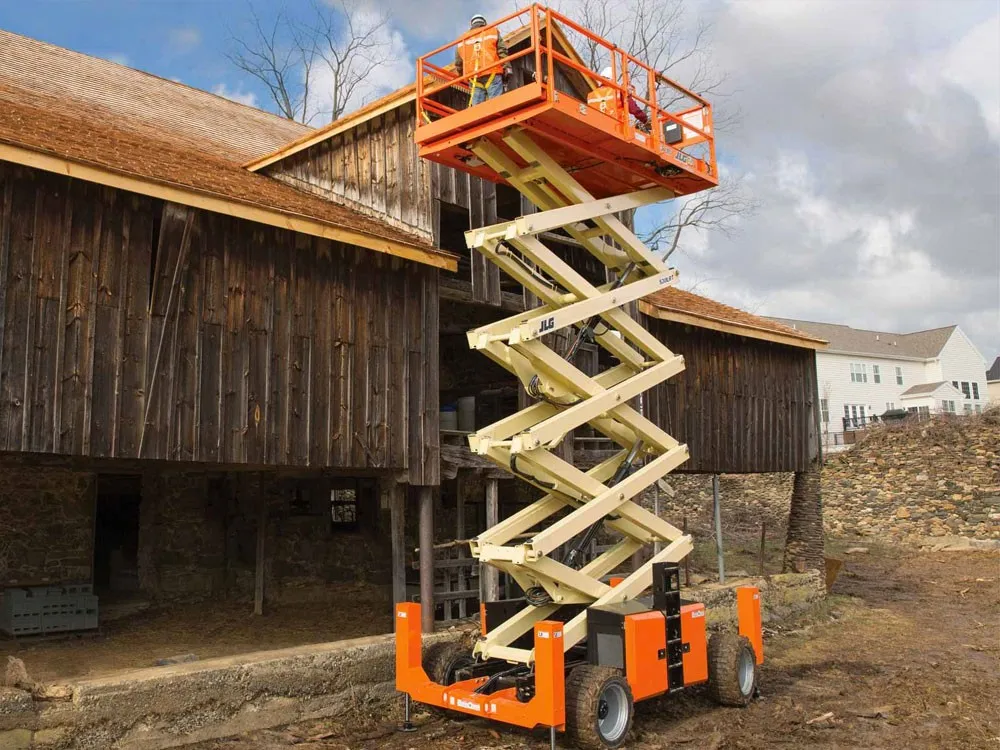

Yes, the R4045 is specifically designed for both indoor and outdoor use, featuring high stability and large 16x5-inch tires suitable for construction sites.

What type of power system drives the JLG-R4045?

It is powered by a 48V system consisting of four 12V 150 amp-hr batteries, supported by a 27 amp high-frequency charger.

What is the load capacity of the platform?

The main platform has a load capacity of 349.27 kg (770 lb), while the extension portion supports up to 113.40 kg (250 lb).

How does the R series improve maintenance efficiency?

The R series features a swing-out component compartment for easy access, lubrication-free parts, and a simplified single-cylinder design to reduce leakage points and costs.

What is the gradeability and travel speed of this model?

The machine offers a 25% gradeability. Its travel speed is 3.38 km/h when the platform is lowered and 0.80 km/h when raised.
