10kw Solar Gel Battery System 10 Watt off Grid Solar System

1 / 5

10kw Solar Gel Battery System 10 Watt off Grid Solar System

Customization:	Available
After-sales Service:	Warranty
Warranty:	10 Years

Send Inquiry

Product Description

Overview & Basic Information

Model NO.

ZB-10KW Off Grid System

Condition

New

Certification

ISO, CE

Specification

Normal, 10kw

Output Voltage

110V-240V

Work Time

24 Hours

Inverter

Pure Sine Wave Inverter

Controller

MPPT Intelligent Controller

Battery Capacity

5kwh/10kwh/Customized

Solar Panel Type

Monocrystalline Silicon

Load Power

3kw, 5kw, 8kw, 10kw

HS Code

8541430000

Product Description

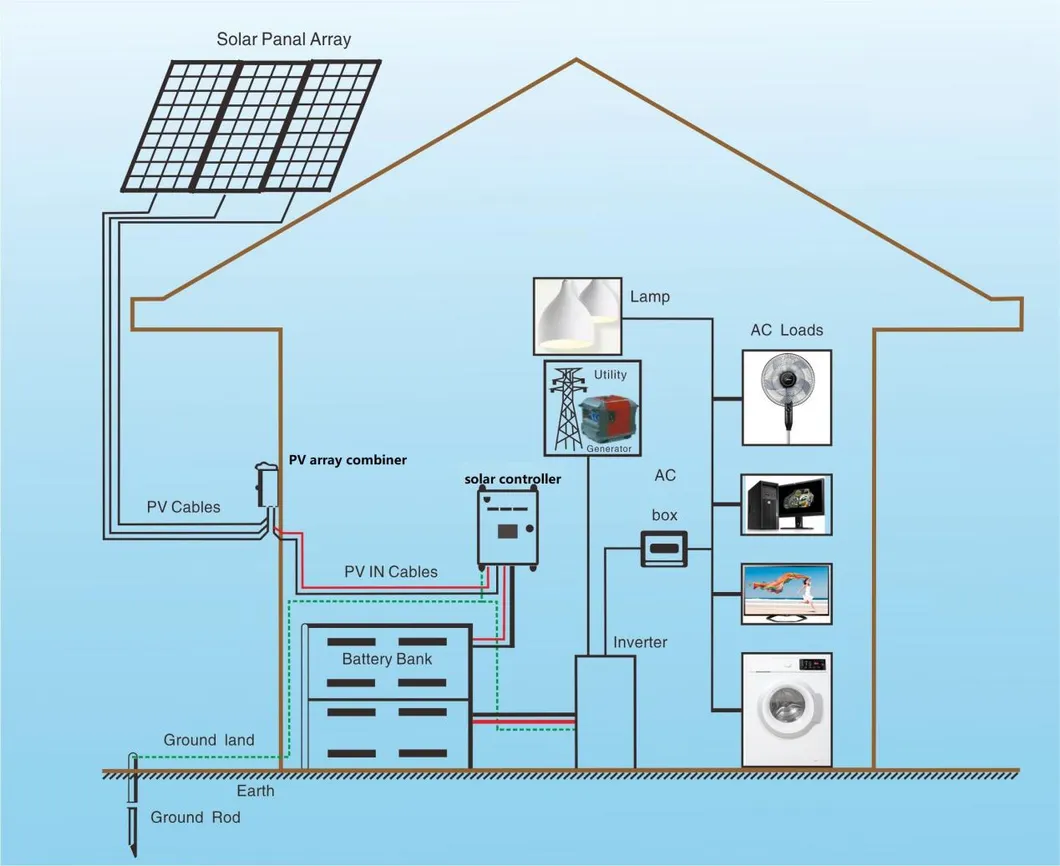

MSP-10KW Off Grid Solar Power System

Ideal for locations without mains power or frequent power outages.
Utilizes battery storage as reliable backup power.
Off-grid hybrid design: Provides independence from the utility grid.
Smart Switching: Automatically transitions to mains power when the battery level is low.

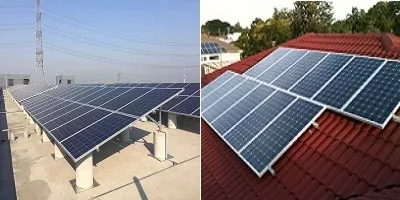

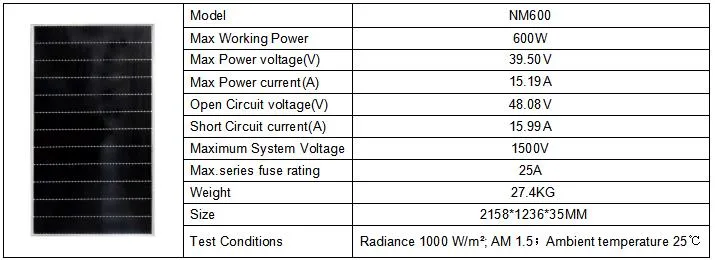

☀️ High-Efficiency Solar Panels

PERC Solar Panel Technology with A-grade solar cells.
Efficiency reaches up to 22%.
Advanced shingled technology to prevent hot spot effects.
Long-term durability: 25-year efficiency output guarantee.

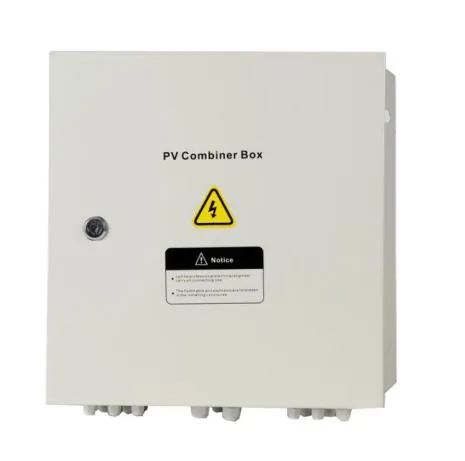

🛠️ PV Combiner Box

Supports multiple channels (4, 6, 8, 10) for solar panel groups.
Equipped with lightning arresters and comprehensive protection systems.
IP65 Waterproof grade for safe outdoor installation.
High voltage protection up to 1000V.

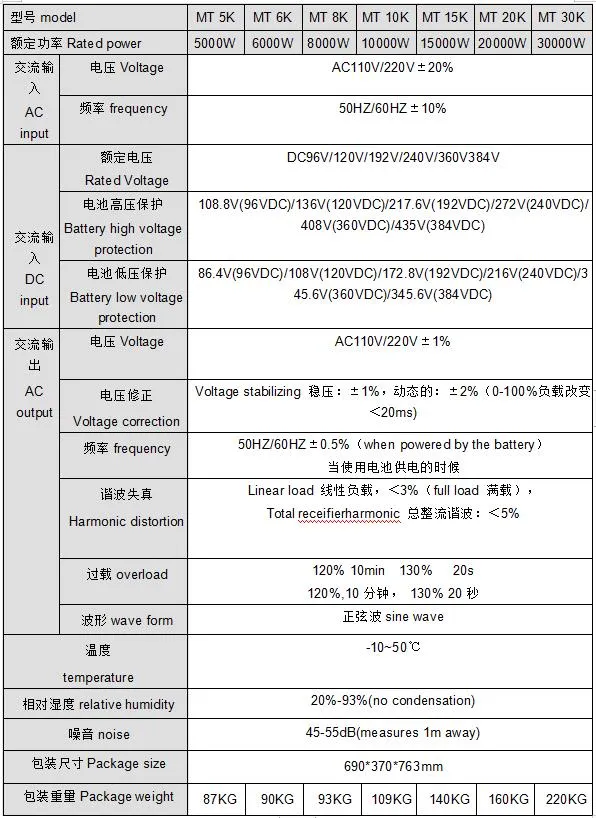

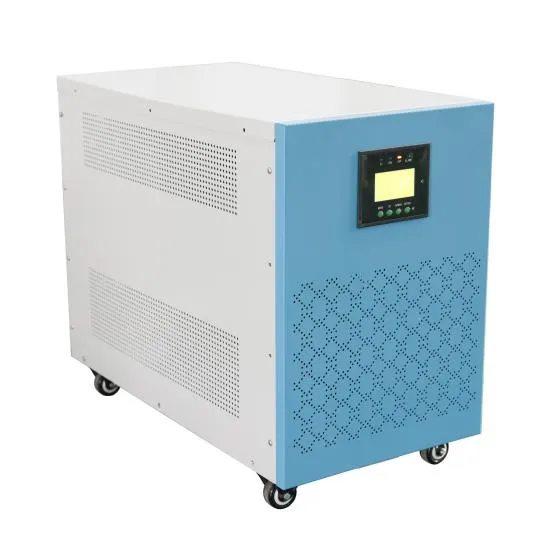

🔋 Intelligent Solar Inverter (5-10kw)

Fuji brand IGBT tube: superior impact resistance and stability compared to ordinary MOS tubes.
Pure Sine Wave Output: Compatible with inductive loads (AC, refrigerators, etc.).
Automatic overload protection and system recovery.
Dual protection modes: Mains and battery priority settings.

Technical Parameters & Load Reference

Load Name	Power (Watt)	Qty	Total Watt
Lights	11W	20	220W
Fan	80W	4	320W
Computer (LCD)	150W	2	300W
Printer	250W	1	250W
Fax Machine	150W	1	150W
Refrigerator (200L)	120W	2	240W
Washing Machine	300W	1	300W
Microwave	1500W	1	1500W
Electric Cooker	300W	1	300W
Air Conditioner (1.5HP)	1125W	4	4500W
Color TV (32 inch)	150W	2	300W
Water Pump	200W	1	200W
TOTAL ESTIMATED LOAD			8855W

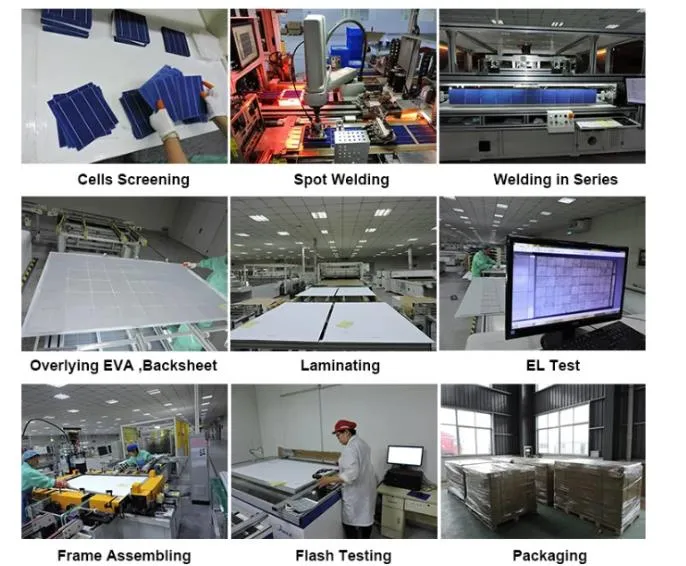

Productive Process & Quality Control

Why Choose Us

Frequently Asked Questions

How does the 10KW off-grid system handle power when the battery is low?

The intelligent inverter can be connected to the mains power. When the battery voltage drops to a specific threshold, it automatically switches to the utility grid to ensure uninterrupted power to your loads.

Can this system run high-power appliances like air conditioners?

Yes, the 10KW system is designed to support inductive loads including 1.5HP air conditioners, refrigerators, and water pumps, thanks to the pure sine wave inverter and Fuji IGBT technology.

What is the advantage of PERC solar panels?

PERC (Passivated Emitter and Rear Cell) panels offer higher energy density and efficiency (up to 22%) compared to standard panels, and they perform better in low-light and high-temperature conditions.

Is the system protected against outdoor elements?

Yes, the PV combiner box features an IP65 waterproof rating and includes built-in lightning protection, making it suitable for safe outdoor installation.

What is the lifespan of the solar panels?

The high-grade monocrystalline solar panels come with a 25-year guaranteed efficiency output and a 15-year free material warranty.

What does a Pure Sine Wave inverter do?

It converts DC power from batteries into clean AC power that matches the quality of the utility grid, ensuring that sensitive electronics and appliances run smoothly without interference or damage.
