Product Description
Parameters and Installation Manual of 10KW48v/96V Off grid System

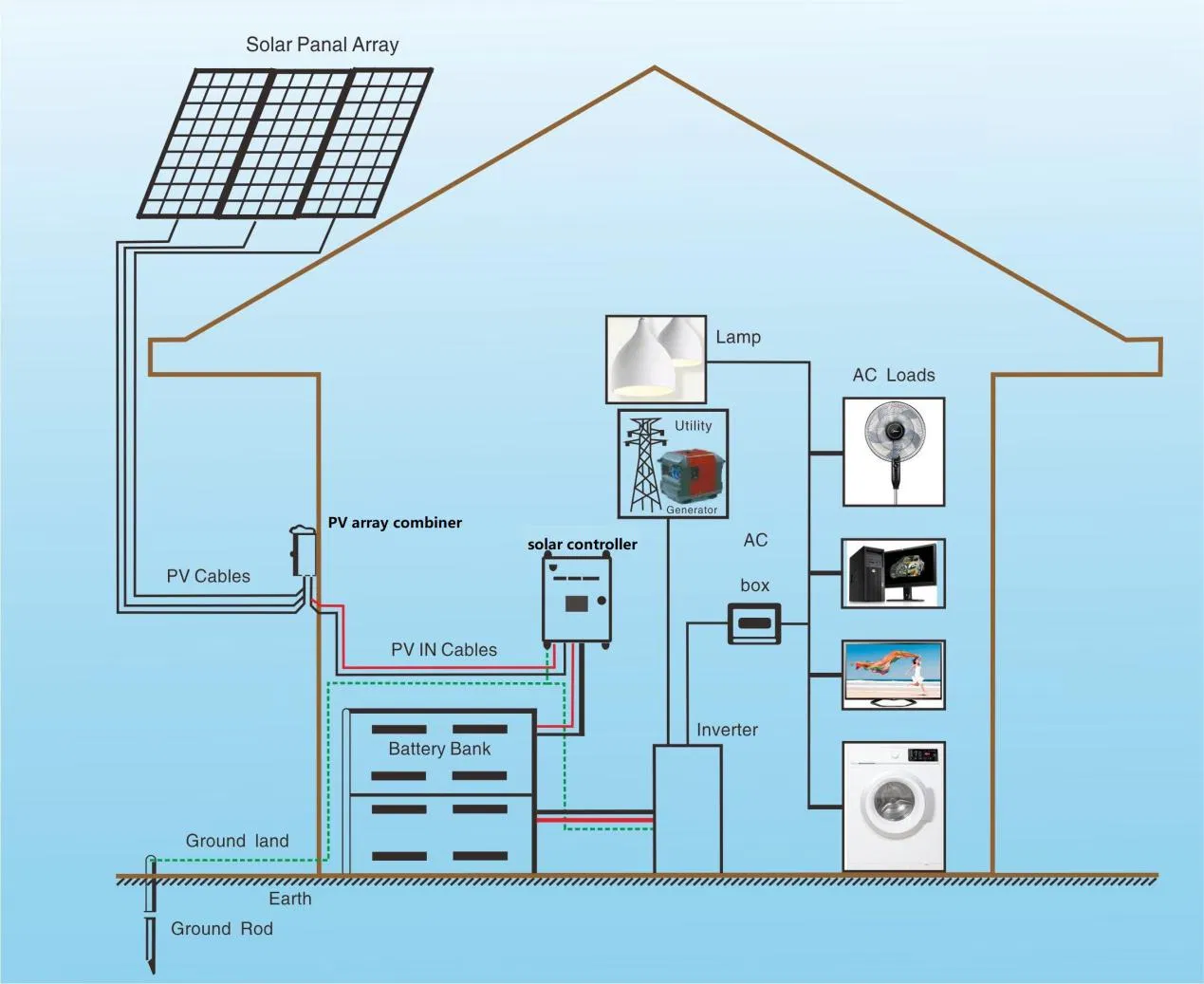

Off grid hybrid solar system
- Used in places where there is no mains power or where power is often cut off
- With battery as backup power
- Comparison with grid connected system -- unable to sell electricity
- Automatically switch to mains power when the battery is low

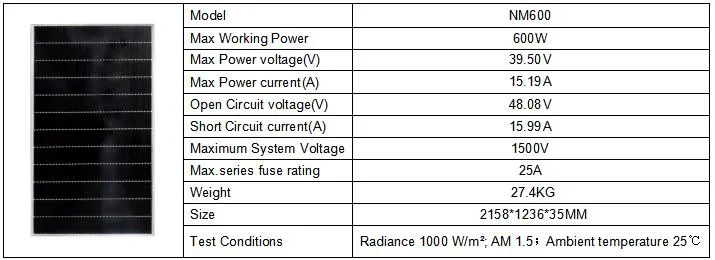

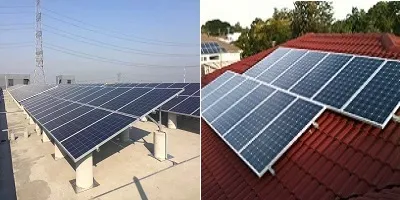

High-Efficiency Solar Panels
When sunlight shines on the semiconductor material, it generates voltage through PN junction electron movement.
- LonGi/Tongwei A-grade PERC solar cells
- USA Shingled technology to prevent hot spot effects
- Energy efficiency reaches up to 22%
- 25-year efficiency output guarantee; 15-year material warranty

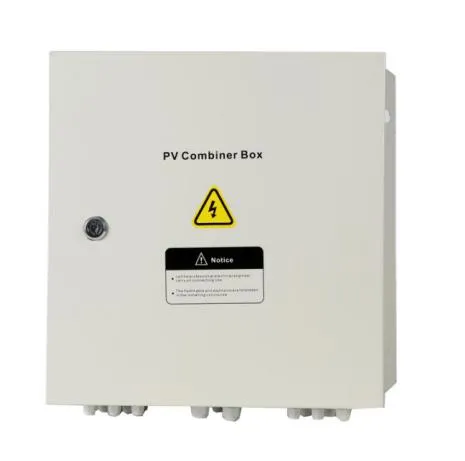

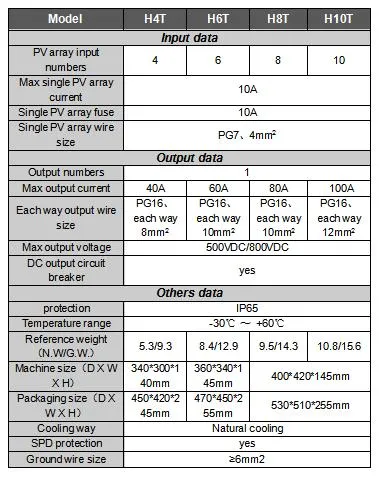

PV Combiner Box
- Supports 4, 6, 8, and 10 channels of solar panel access
- Integrated lightning arrester and protection system
- IP65 waterproof grade for outdoor installation
- High voltage protection and fire prevention technology
- Maximum withstand voltage of 1000V

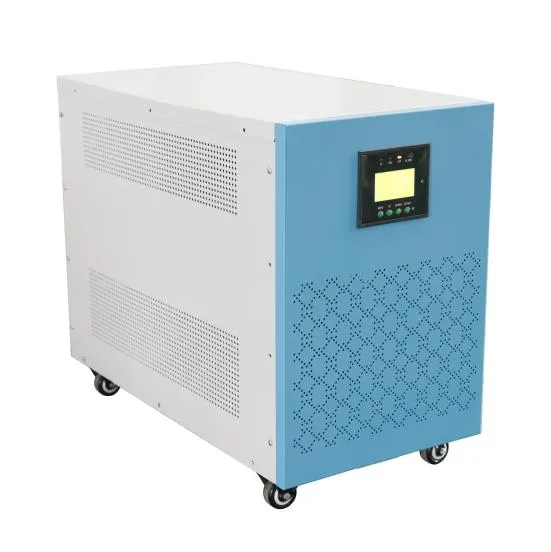

Solar Inverter (5-10kw 96vdc / Output 110V/220V)
- Features Fuji brand IGBT tube for superior impact resistance and durability
- Converts DC power from batteries to AC for household/industrial use
- Automatic jump to mains power during battery depletion or failure
- Capable of driving inductive loads: Air conditioners, refrigerators, fans, and TVs
- Overload protection with automatic restart functionality
- Optional dual protection modes: Mains-first or Battery-first operation
| MSP-10KW Off Grid Solar Power System - Load Reference |
| Load Name |
Wattage (W) |
Quantity |
Total Watts |
| Lights | 11W | 20 | 220 |
| Fan | 80W | 4 | 320 |
| Computer (LCD) | 150W | 2 | 300 |
| Printer | 250W | 1 | 250 |
| Fax Machine | 150W | 1 | 150 |
| Refrigerator (200L) | 120W | 2 | 240 |
| Washing Machine | 300W | 1 | 300 |
| Microwave | 1500W | 1 | 1500 |
| Electric Cooker | 300W | 1 | 300 |
| Air Conditioner (1.5HP) | 1125W | 4 | 4500 |
| Satellite TV/VCD | 25W | 1 | 25 |
| Color TV (32 inch) | 150W | 2 | 300 |
| Water Pump | 200W | 1 | 200 |
| TOTAL ESTIMATED POWER |
8855 W |
Frequently Asked Questions
Q1: Can this 10KW off-grid system power an entire house?
Yes, with an 8855W load capacity reference, it can simultaneously run lights, fans, computers, refrigerators, and even up to four 1.5HP air conditioners.
Q2: What is the advantage of using PERC solar panels?
PERC (Passivated Emitter and Rear Cell) technology increases efficiency up to 22% and helps mitigate hot spot effects, ensuring higher energy harvest even in limited space.
Q3: Does the system work during a power outage or at night?
Yes. The system uses a battery bank as backup power. During the day, solar energy charges the batteries and powers your loads; at night, the stored energy is used.
Q4: What happens if the batteries are completely depleted?
The intelligent inverter features an automatic bypass function. If battery voltage drops too low, it will automatically switch to mains power to ensure uninterrupted electricity.
Q5: Can the inverter handle heavy appliances like water pumps?
Absolutely. Our inverter utilizes Fuji brand IGBT tubes, which are much more impact-resistant than standard MOSFETs, making them ideal for inductive loads like pumps and AC units.
Q6: What is the lifespan and warranty of the solar panels?
The solar panels come with a 15-year material warranty and a 25-year efficiency output guarantee, ensuring long-term reliability for your investment.
