Ensuring Safety with Xgs22ack's Anti-Collision System

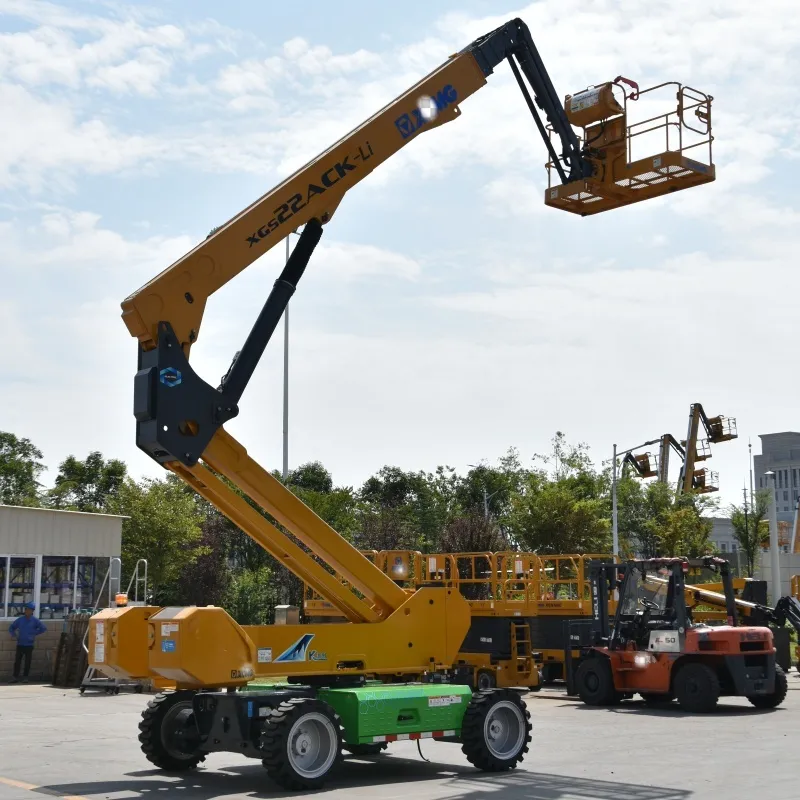

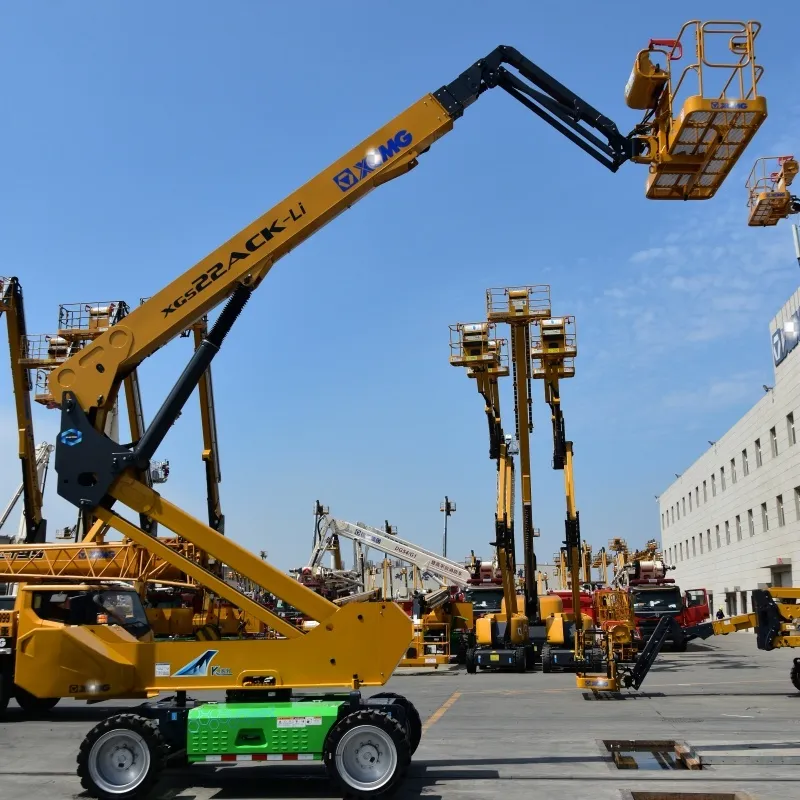

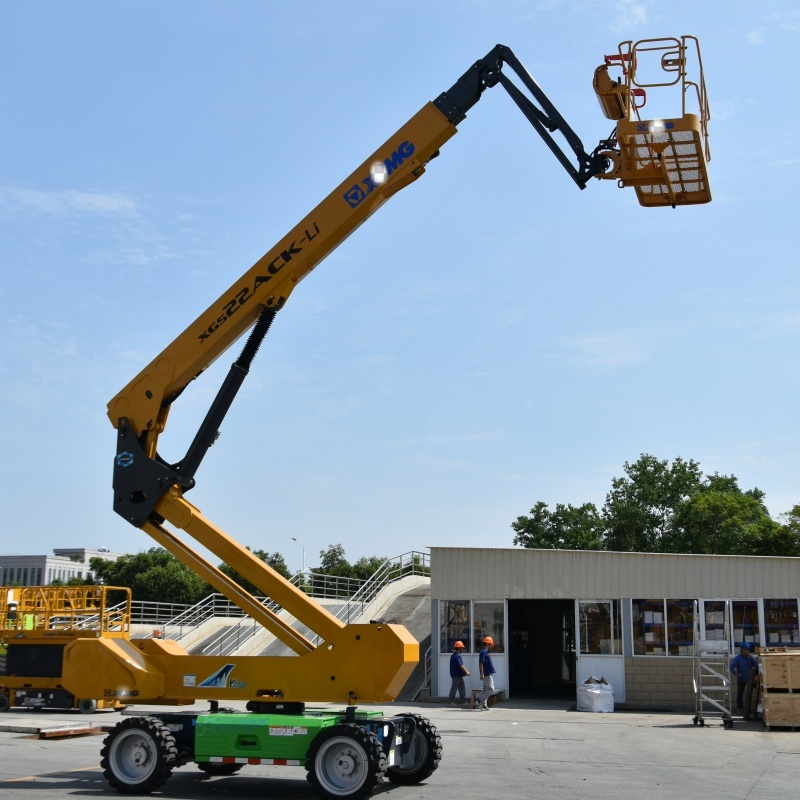

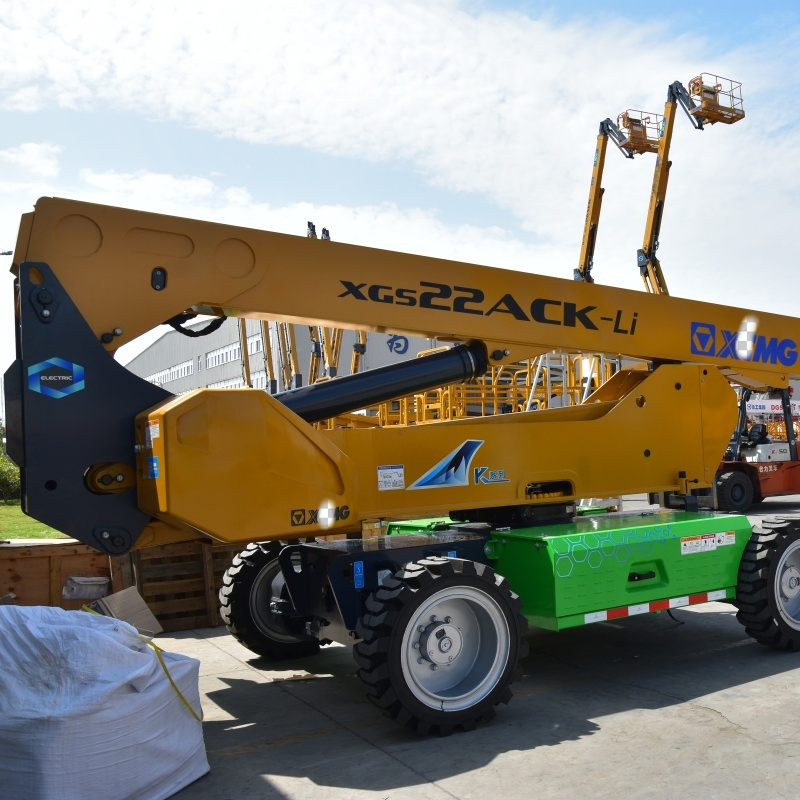

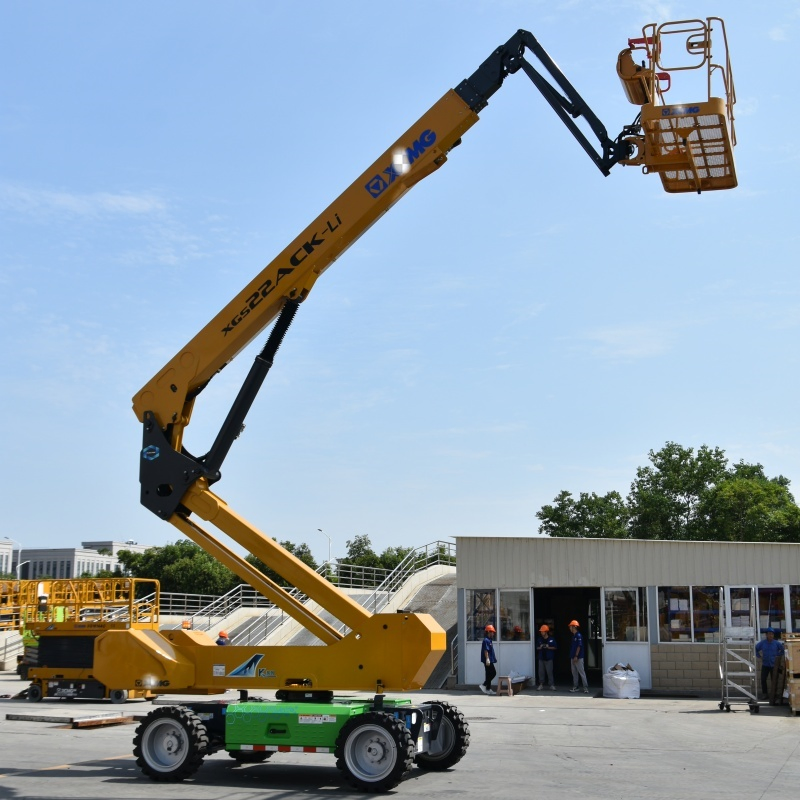

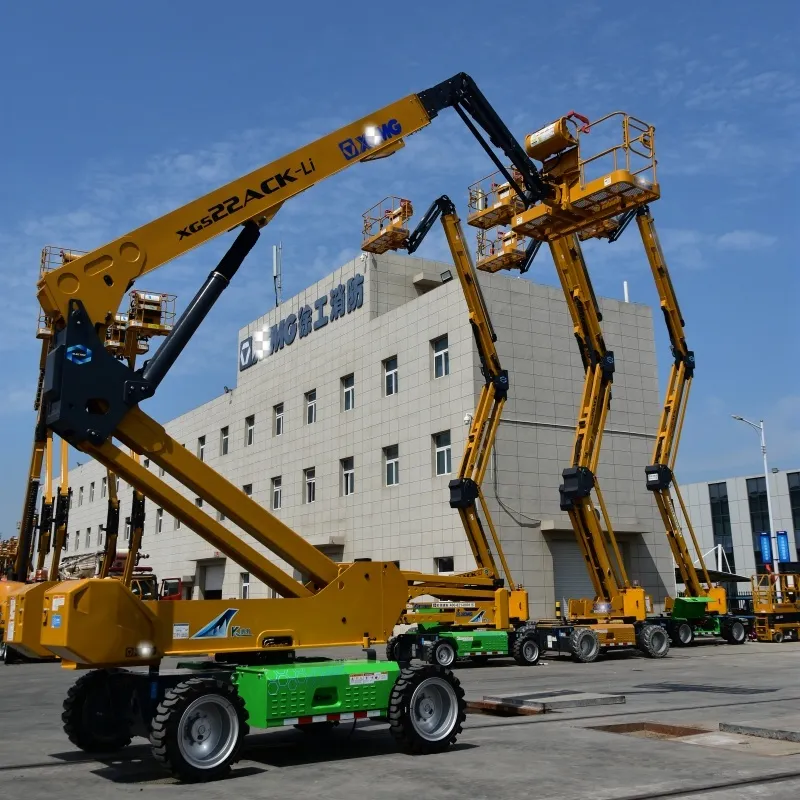

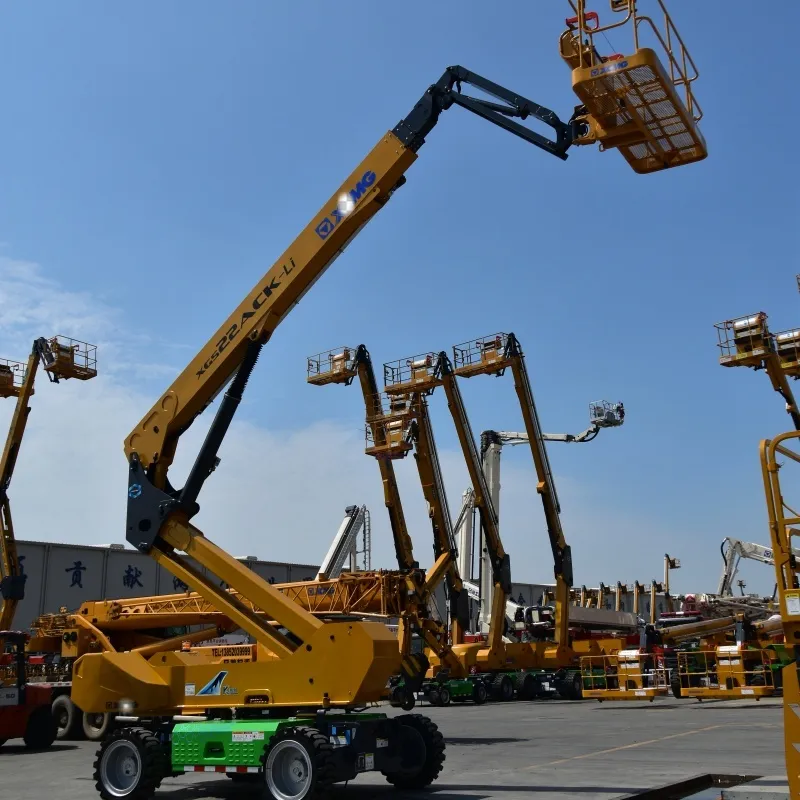

The XGS22ACK aerial work equipment is a remarkable and highly efficient self-propelled telescopic boom lift. This equipment stands out with its excellent working height, reaching a maximum of 22.0 meters, which enables workers to access elevated work areas with ease, making it suitable for a wide range of applications such as construction, maintenance, and installation in various industries. It has a lift capacity of 460 kg or 300 kg, providing a strong load-bearing ability to carry workers, tools, and materials, thus meeting the needs of large-load and wide-operation-area construction tasks.

The XGS22ACK features a combination of a double-link tower arm, three telescopic arms, and one small flying arm structure, which not only realizes the overall storage height of the same-level straight-arm self-propelled aerial work platform but also makes storage and transportation more convenient. The adoption of the double-link and telescopic arm combination synchronous lifting technology allows for the dynamic adjustment of the vehicle's center of gravity, significantly enhancing the overall stability of the equipment during operation.

Equipped with a four-wheel drive system, off-road wide tires, and an axle balance system, the XGS22ACK demonstrates excellent driving and road adaptability, enabling it to operate smoothly even on rough and uneven terrains. The multi-load envelope control technology can monitor the load in real-time, making full use of the boom's bearing capacity. Additionally, the self-balancing extension mechanism improves the safety of the telescopic mechanism and effectively extends the service life of the steel rope.

The electrical control system adopts the distributed control technology based on PLC and CAN bus, enabling functions such as automatic leveling, platform load weighing, dynamic monitoring, and fault alarm, which greatly improves the operation's safety and convenience. The overall machine is mainly equipped with hard pipes, making the pipeline layout more neat and beautiful and reducing the failure rate of oil pipe wear.
