Safe Load Indicator (Load Moment Indicator) is an essential safety protection device for various cranes. Designed and produced in strict accordance with the national standard GB12602-90, it effectively prevents accidents caused by overloading and operational errors.

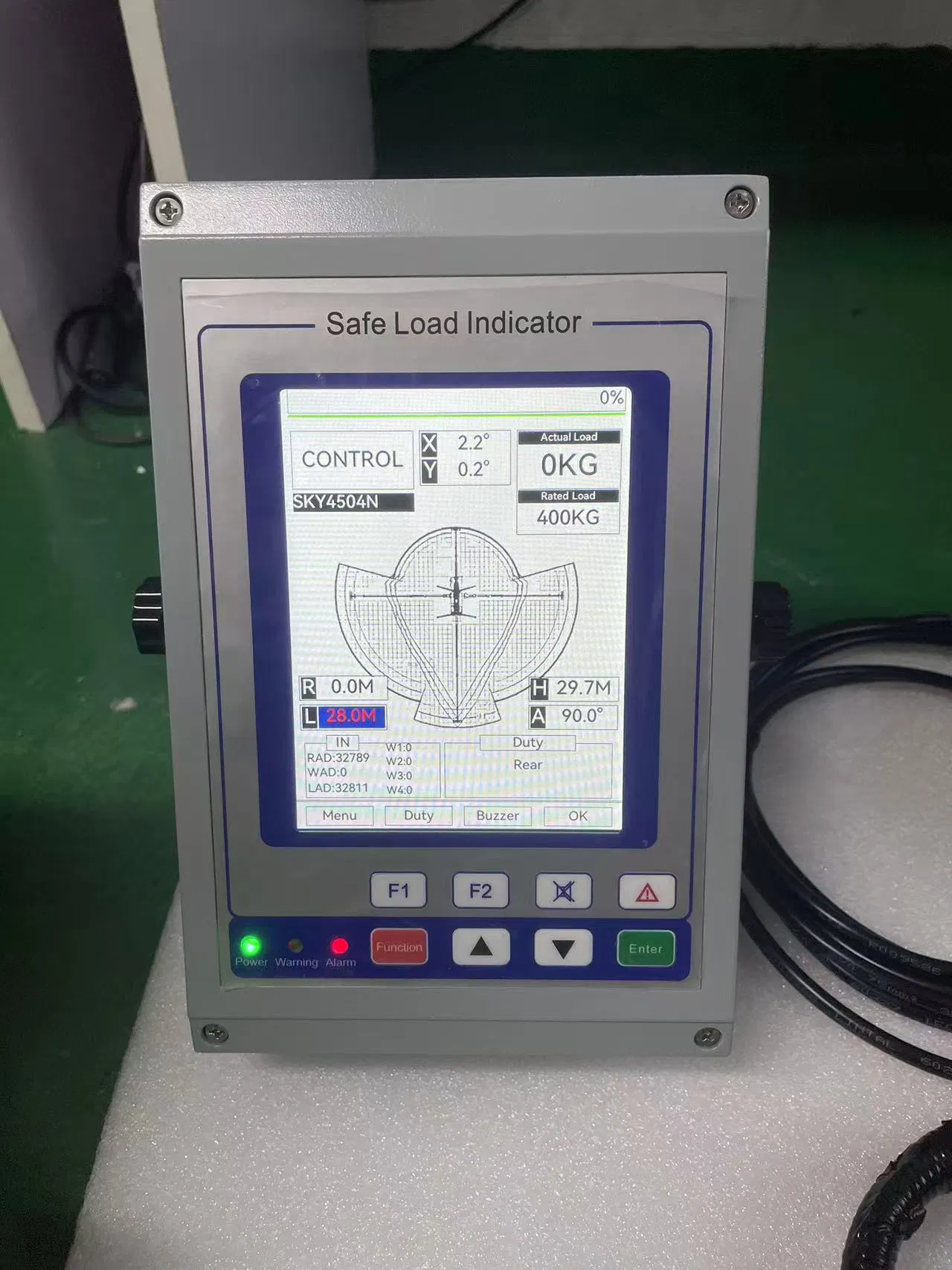

The system monitors and controls lifting equipment according to manufacturer-suggested safe load charts. Critical parameters such as current load, working radius, boom angle, and extension are displayed clearly in the operator's cabin.
Premium Hardware: Features an industrial-grade 5.6-inch LCD screen with sunlight visibility and adjustable brightness for all-weather operation. The high-strength aluminum chassis offers IP65 protection for complex environments.
Advanced Performance: High precision display with anti-interference technology ensures stability. Includes automatic data saving during power outages and optional multi-channel sensor signal inputs.
After-Sales Commitment: 24-hour email response, detailed English manuals, and support from experienced service engineers to ensure minimal downtime.
| Operating Voltage | AC 220V±20% or DC 12~24V |
| Working Temperature | -20 ºC ~ +60 ºC |
| Relative Humidity | <95% (25 ºC) |
| Control Output Capacity | DC24V/1A or AC 220V/1A |
| Power Dissipation | <20W |
| Resolution | 0.1t |
| Comprehensive Error | <5% |
| Alarm Error | <3% |

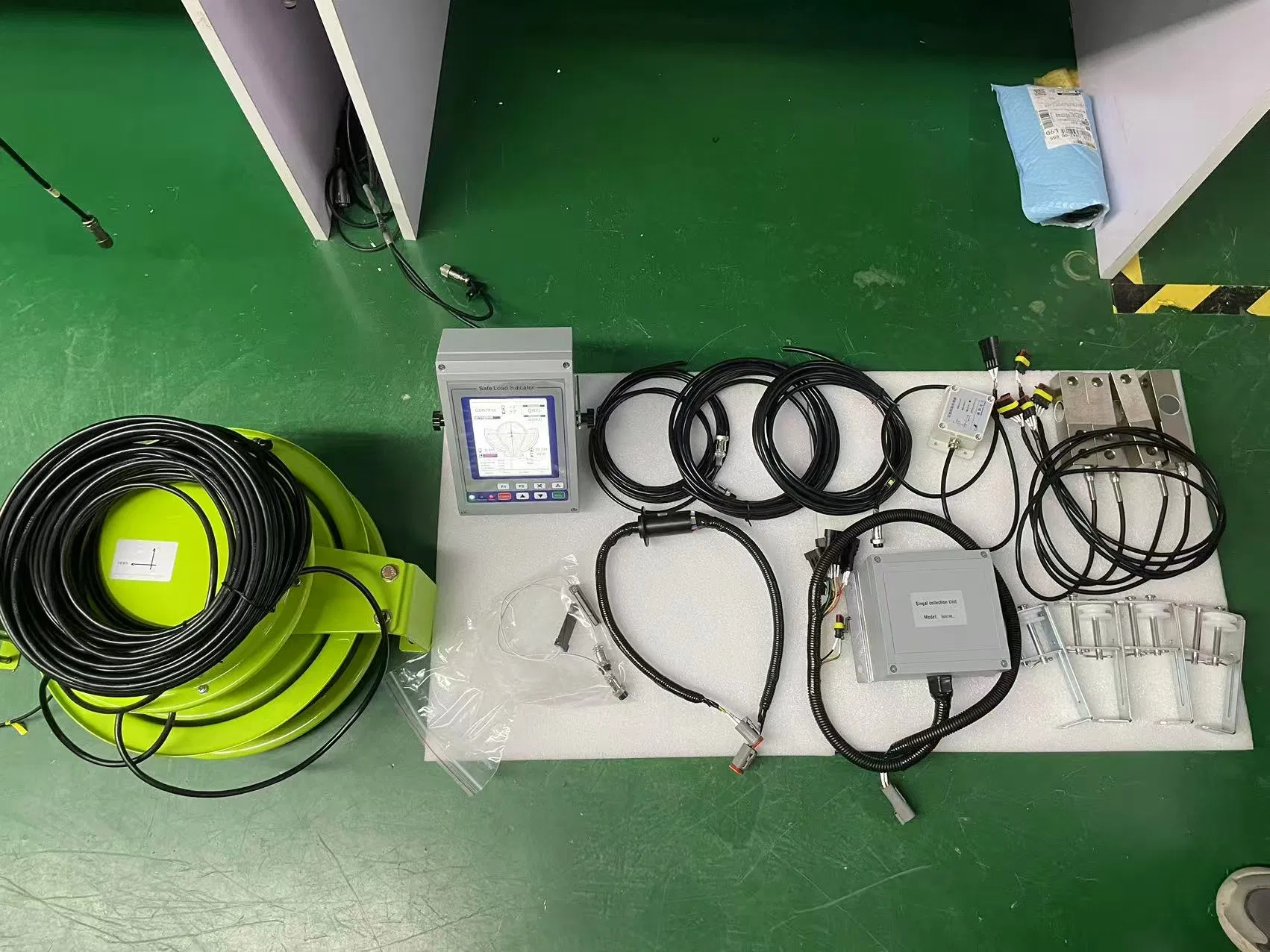

The complete safety system includes:
